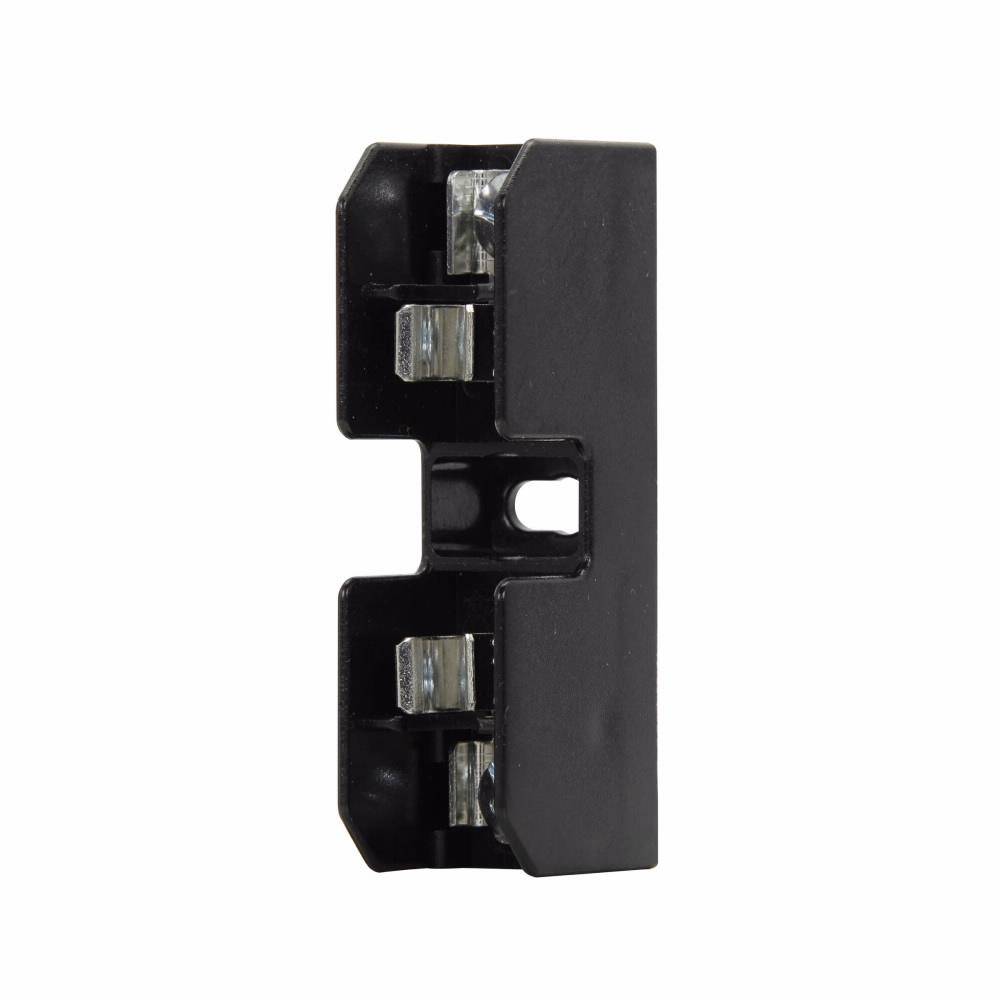

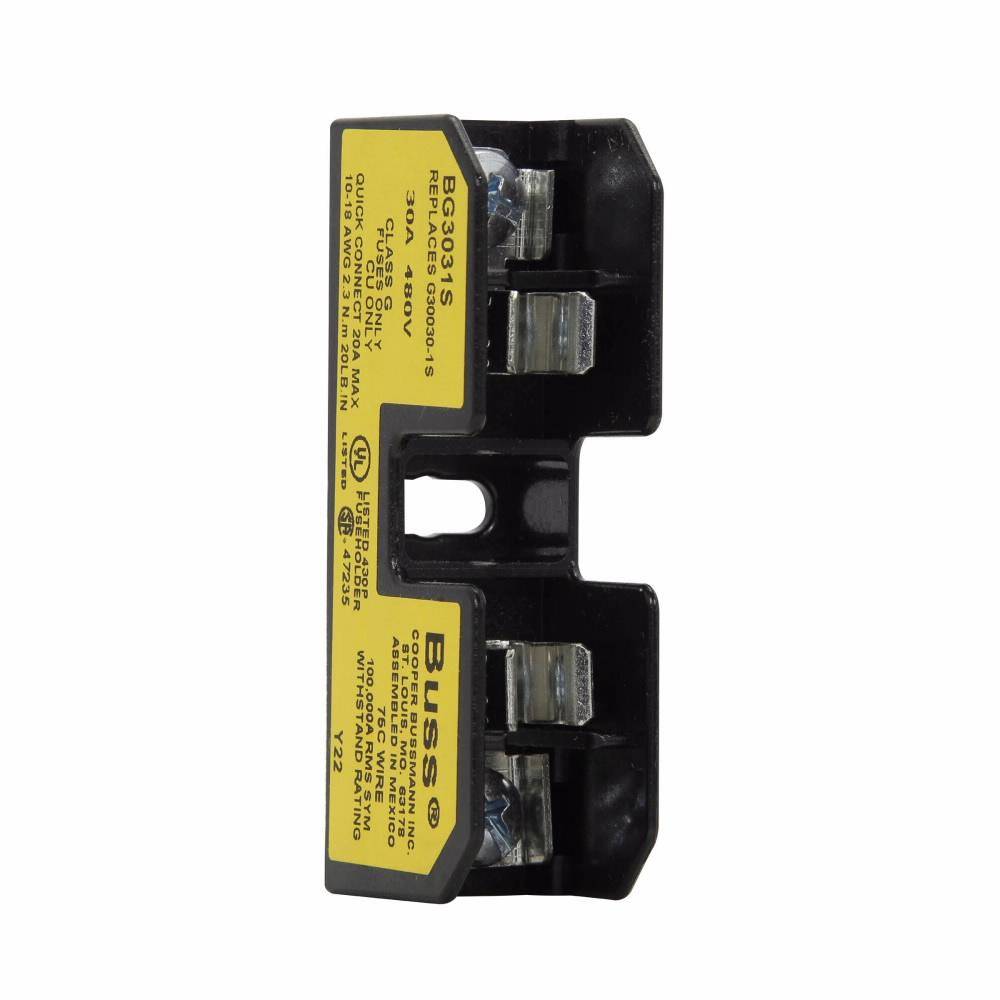

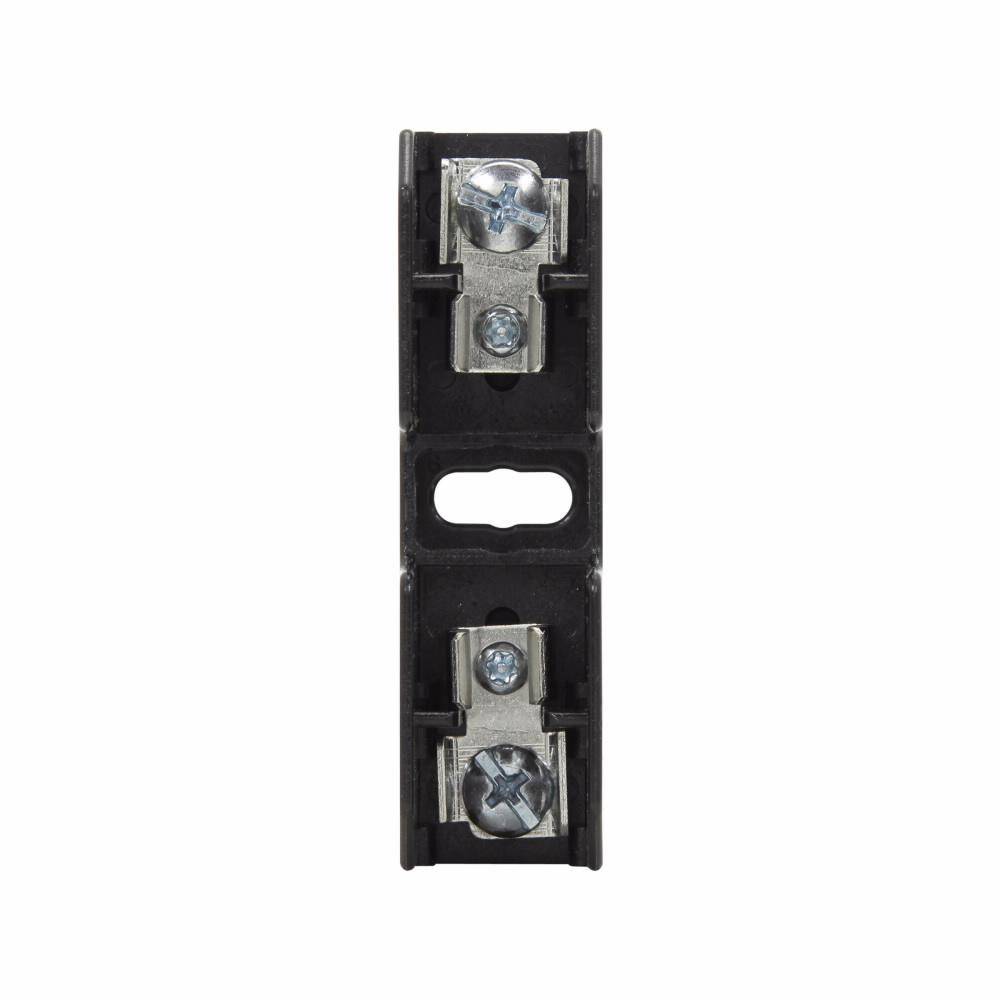

Edison BG3031S Open Style Fuse Block, 480 VAC/VDC, 25 to 30 A, Class: G, 14 to 10 AWG Wire, 1 Pole

Short Description

Eaton's Bussmann series fuse blocks for us with Class G fuses. These Bussmann series fuse blocks are offered in phenolic and thermoplastic with options for DIN rail adapters as well as an inline holder option

Edison Fuse Block, Open Style, Series: BG Series, 480 VAC/VDC, 25 to 30 A, 1 Pole, Class: G, Screw, 14 to 10 AWG Wire, DIN Rail Mount, 1.639 in Fuse Length, 13/32 in Fuse Dia, 130 deg C, For Use With: Bussmann SC Series Class G Fuse, Thermoplastic, Black, 3 in L x 0.86 in W x 1.22 in H
MFG #: BG3031S

EECO #: BUBG3031S

Brand: Edison
UPC #: 051712736688
Attributes
Features
Documents
Product Information
Attributes
Class
G
Color
Black
UNSPSC
39121624
Material
Thermoplastic
Wire Size
14 to 10
Application
Electrical Assemblies, Panels and OEMs Applications
Mounting Type
DIN Rail
Voltage Rating
480
Connection Type
Screw
Temperature Rating
130
Type
Open Style
Series
BG Series
Dimensions
3 in L x 0.86 in W x 1.22 in H
Amperage Rating
25 to 30
Suitable For Use With
Bussmann SC Series Class G Fuse
Features
  • Type: Open Style Fuse Block
  • Series: BG Series
  • Voltage Rating: 480 VAC/VDC
  • Current Rating: 25 to 30 A
  • Pole Configuration: 1 Pole
  • Fuse Class: G
  • Wire Compatibility: 14 to 10 AWG
  • Mounting Type: DIN Rail Mount
  • Fuse Length: 1.639 inches
  • Fuse Diameter: 13/32 inches
  • Temperature Rating: 130°C
  • Compatible Fuse: Bussmann SC Series Class G Fuse
  • Material: Thermoplastic
  • Color: Black
  • Dimensions: 3 in L x 0.86 in W x 1.22 in H
