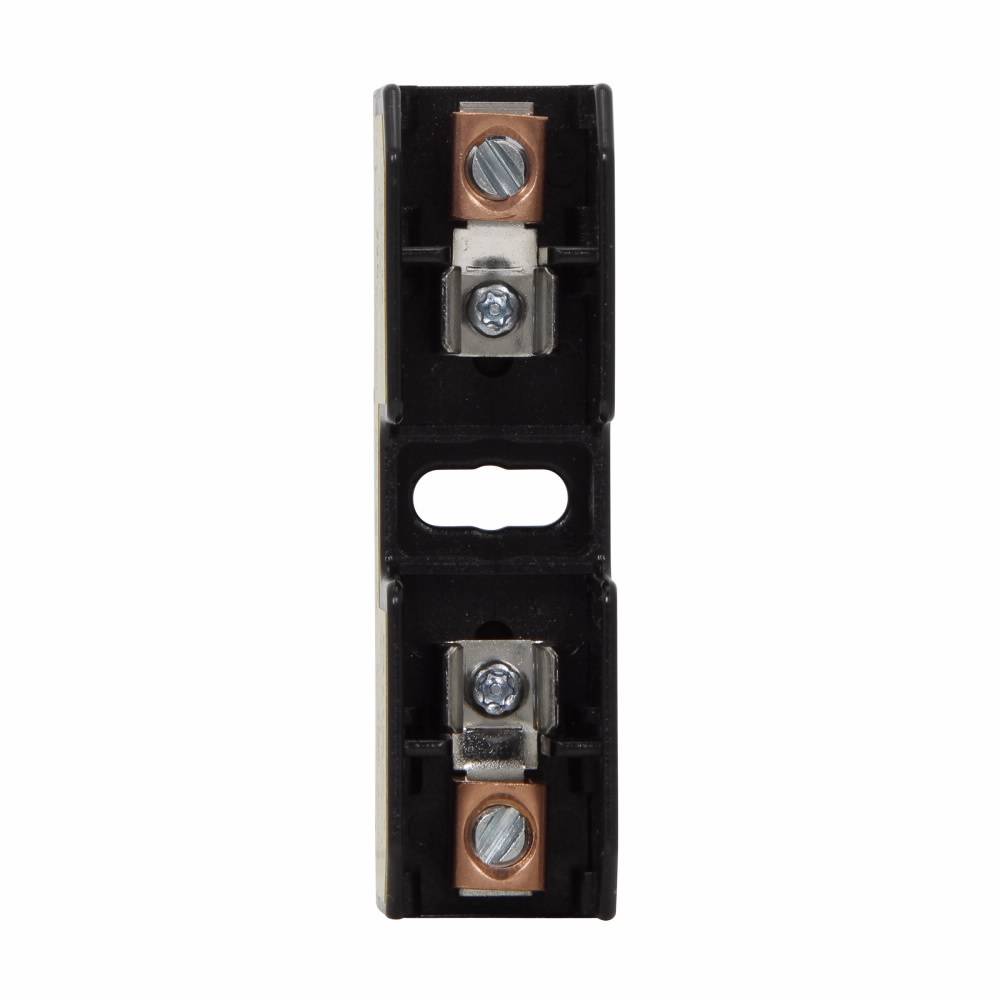

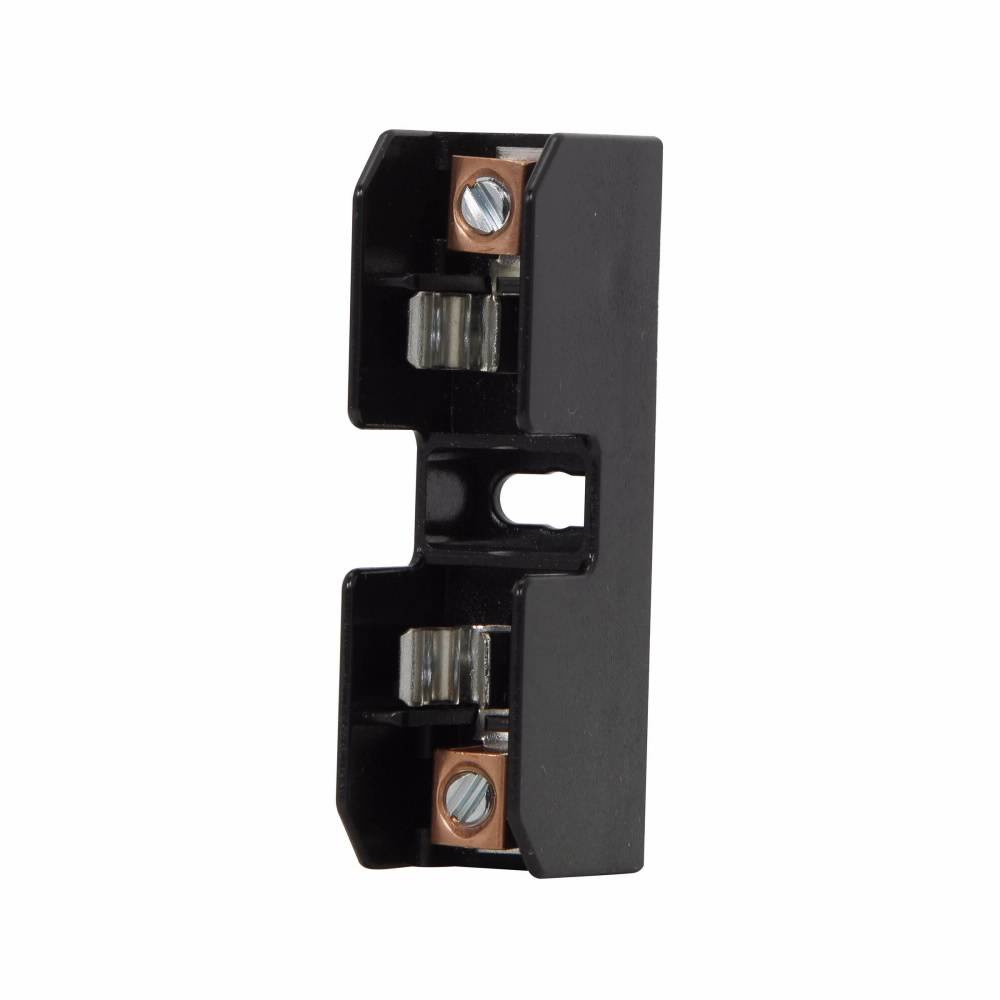

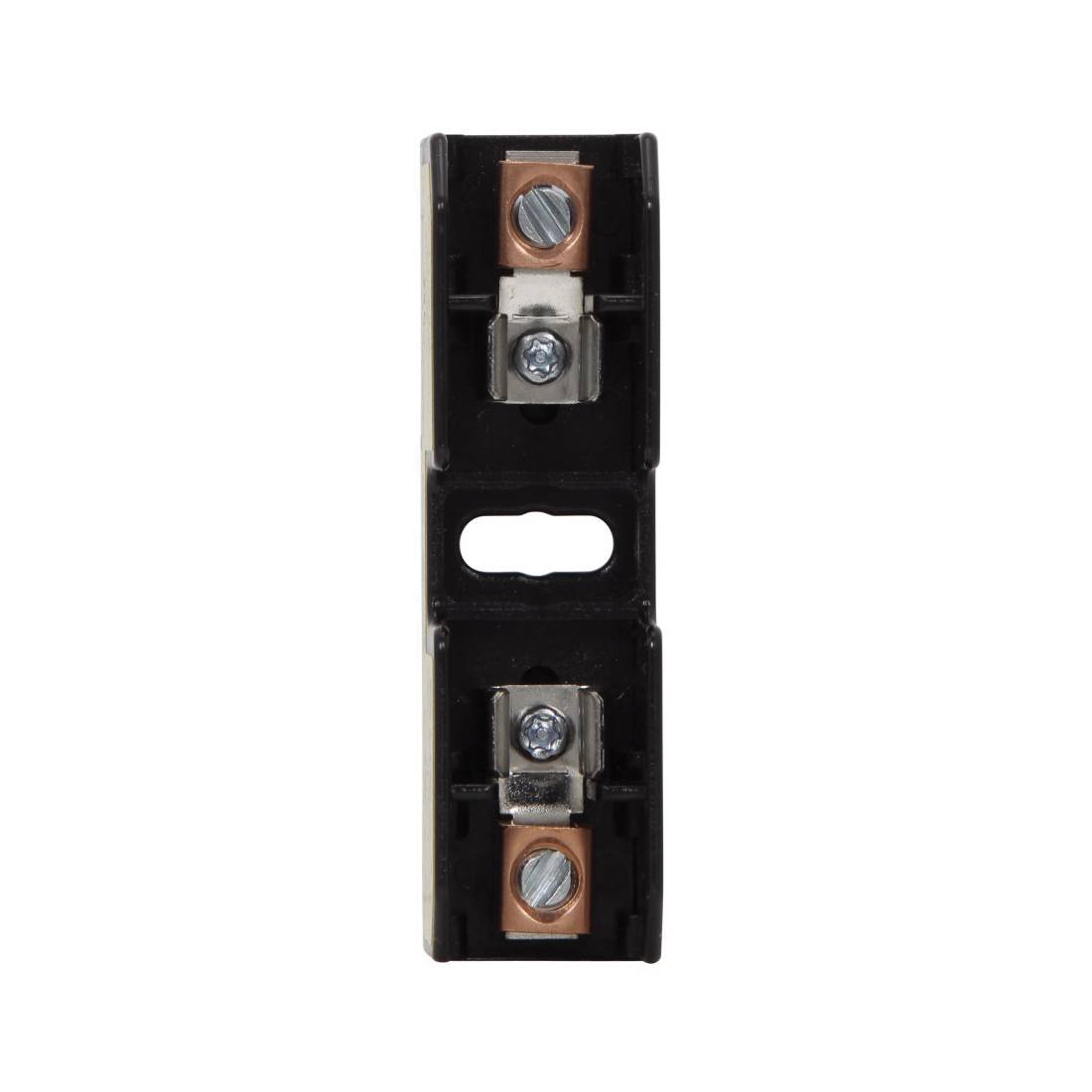

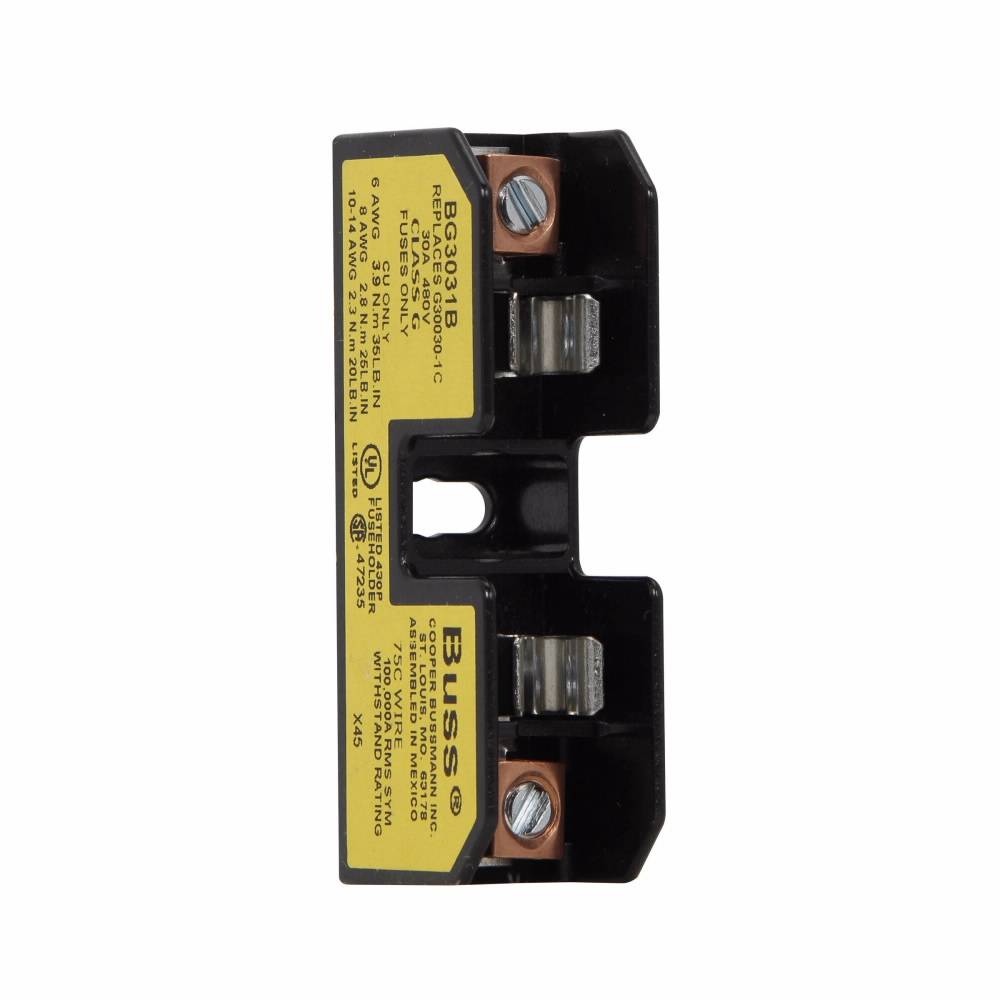

Bussmann BG3031B Open Fuse Block, 480 V, 25 to 30 A, Class: G, 14 to 6 AWG Wire, 1 Pole

Short Description

Eaton's Bussmann series fuse blocks for us with Class G fuses. These Bussmann series fuse blocks are offered in phenolic and thermoplastic with options for DIN rail adapters as well as an inline holder option

Bussmann Fuse Block, Open, Series: BG Series, 480 V, 25 to 30 A, 1 Pole, Class: G, Box Lug, 14 to 6 AWG Wire, DIN Rail Mount, For Use With: SC Fuse, Thermoplastic, Black, 3 in L x 0.86 in W x 1.22 in H
MFG #: BG3031B

EECO #: BUBG3031B

Brand: Bussmann
UPC #: 051712736558
Attributes
Features
Documents
Product Information
Attributes
Class
G
Color
Black
UNSPSC
39121624
Material
Thermoplastic
Wire Size
14 to 6
Application
Electrical Assemblies, Panels and OEMs Applications
Mounting Type
DIN Rail
Voltage Rating
480
Connection Type
Box Lug
Temperature Rating
130
Type
Open
Series
BG Series
Dimensions
3 in L x 0.86 in W x 1.22 in H
Amperage Rating
25 to 30
Suitable For Use With
SC Fuse
Features
  • Model: Bussmann BG3031B Open Fuse Block
  • Voltage Rating: 480 V
  • Current Rating: 25 to 30 A
  • Class: G
  • Wire Size Compatibility: 14 to 6 AWG
  • Configuration: 1 Pole
  • Mounting Type: DIN Rail Mount
  • Material: Thermoplastic
  • Color: Black
  • Dimensions: 3 in L x 0.86 in W x 1.22 in H
  • For Use With: SC Fuse
