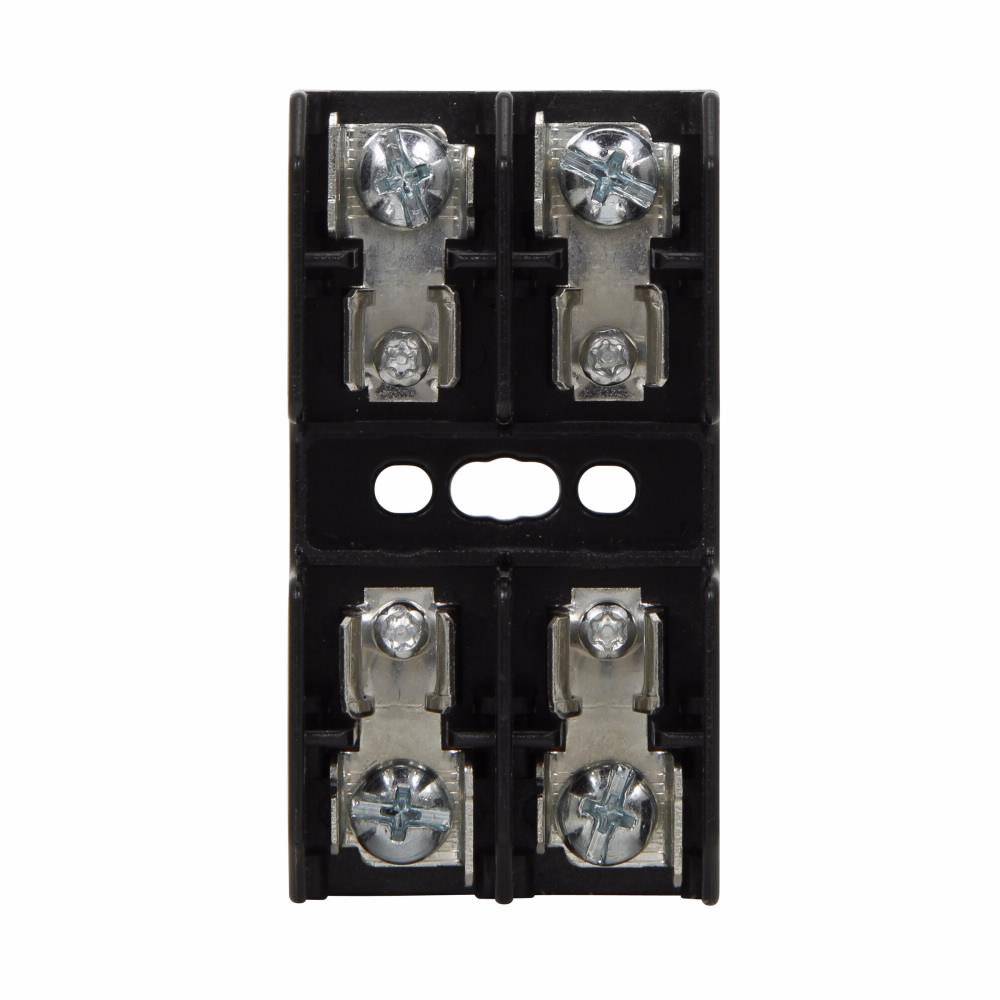

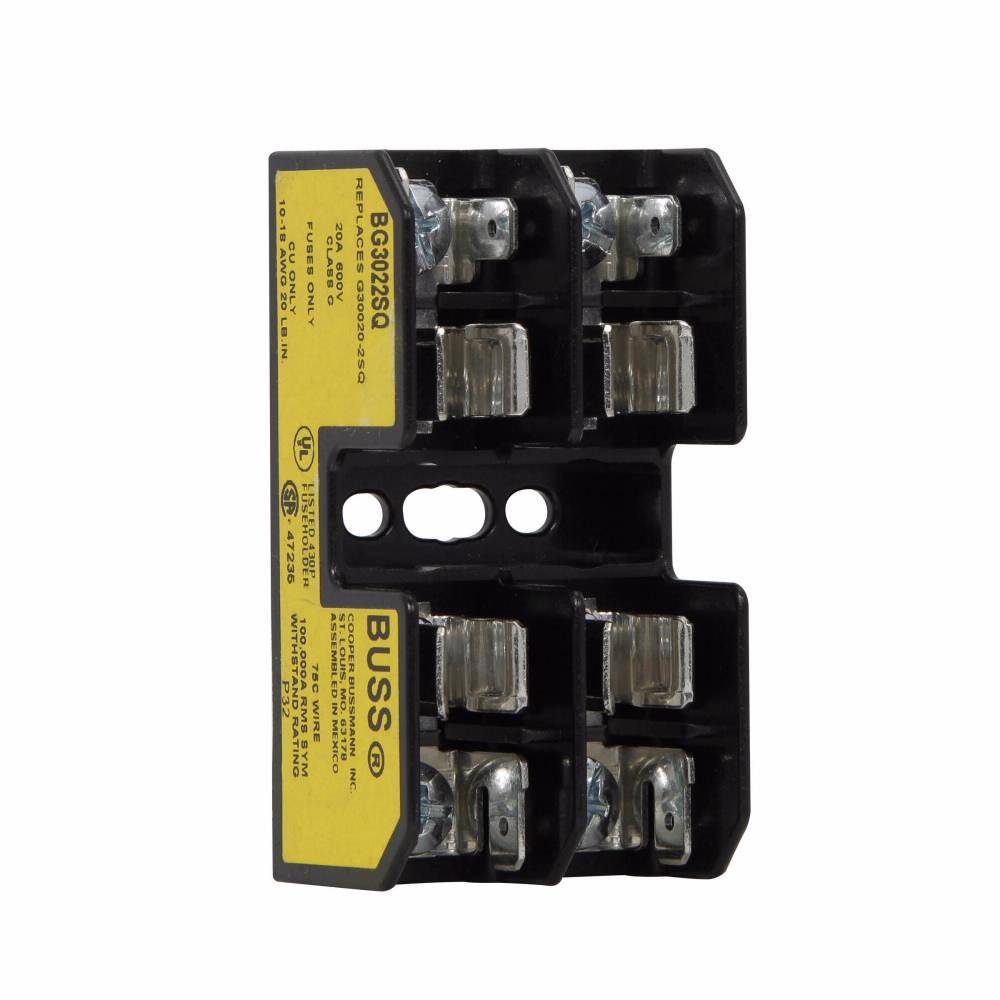

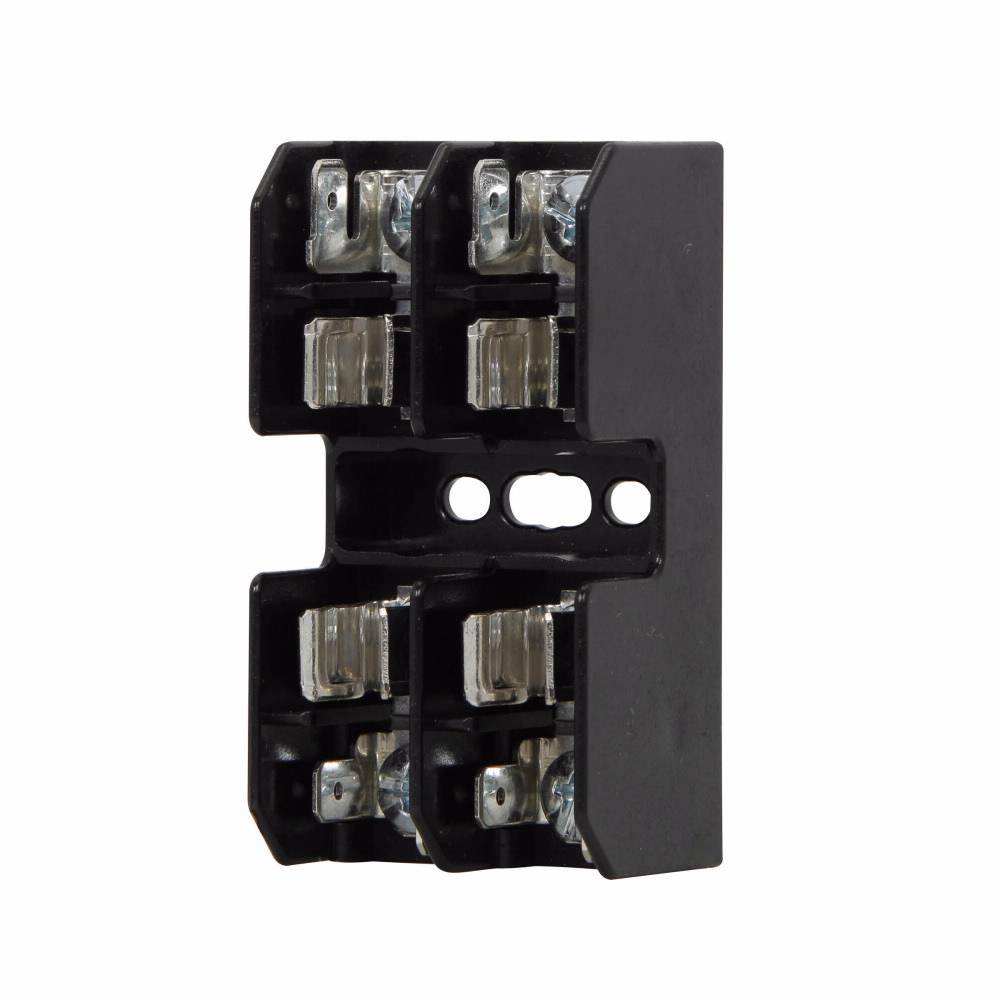

Edison BG3022B Open Fuse Block With Box Lug, 600 V, 20 A, 14 to 6 AWG Cu Wire, 2 Poles

Short Description

Eaton's Bussmann series fuse blocks for us with Class G fuses. These Bussmann series fuse blocks are offered in phenolic and thermoplastic with options for DIN rail adapters as well as an inline holder option

Edison Fuse Block, Open, Series: BG Series, 600 V, 20 A, 2 Pole, Class: G, 14 to 6 AWG Cu Wire, Panel Mount, Thermoplastic, 3 in L x 1.63 in W x 1.22 in H
MFG #: BG3022B

EECO #: BUBG3022B

Brand: Edison
UPC #: 051712736572
Attributes
Features
Documents
Product Information
Attributes
Class
G
Color
Black
UNSPSC
39121624
Material
Thermoplastic
Wire Size
14 to 6 AWG Cu
Application
For used with Edison SEC class G fuses
Mounting Type
Panel
Voltage Rating
600
Connection Type
Box Lug
Temperature Rating
130
Type
Open
Series
BG Series
Dimensions
3 in L x 1.63 in W x 1.22 in H
Amperage Rating
20
Suitable For Use With
SC Fuse
Features
  • Model: Edison BG3022B
  • Type: Open Fuse Block
  • Voltage Rating: 600 V
  • Current Rating: 20 A
  • Number of Poles: 2
  • Wire Gauge Compatibility: 14 to 6 AWG Copper Wire
  • Mounting Type: Panel Mount
  • Material: Thermoplastic
  • Dimensions: 3 in Length x 1.63 in Width x 1.22 in Height
  • Series: BG Series
  • Class: G
