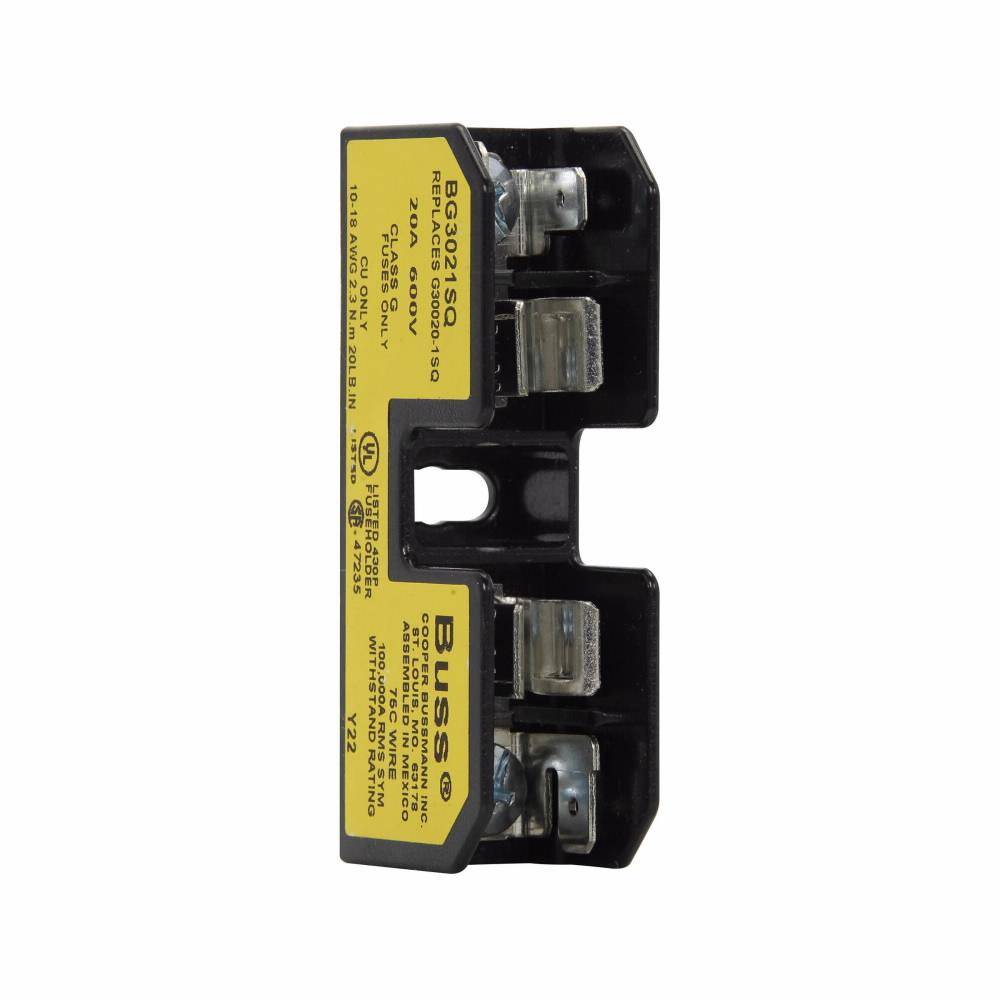

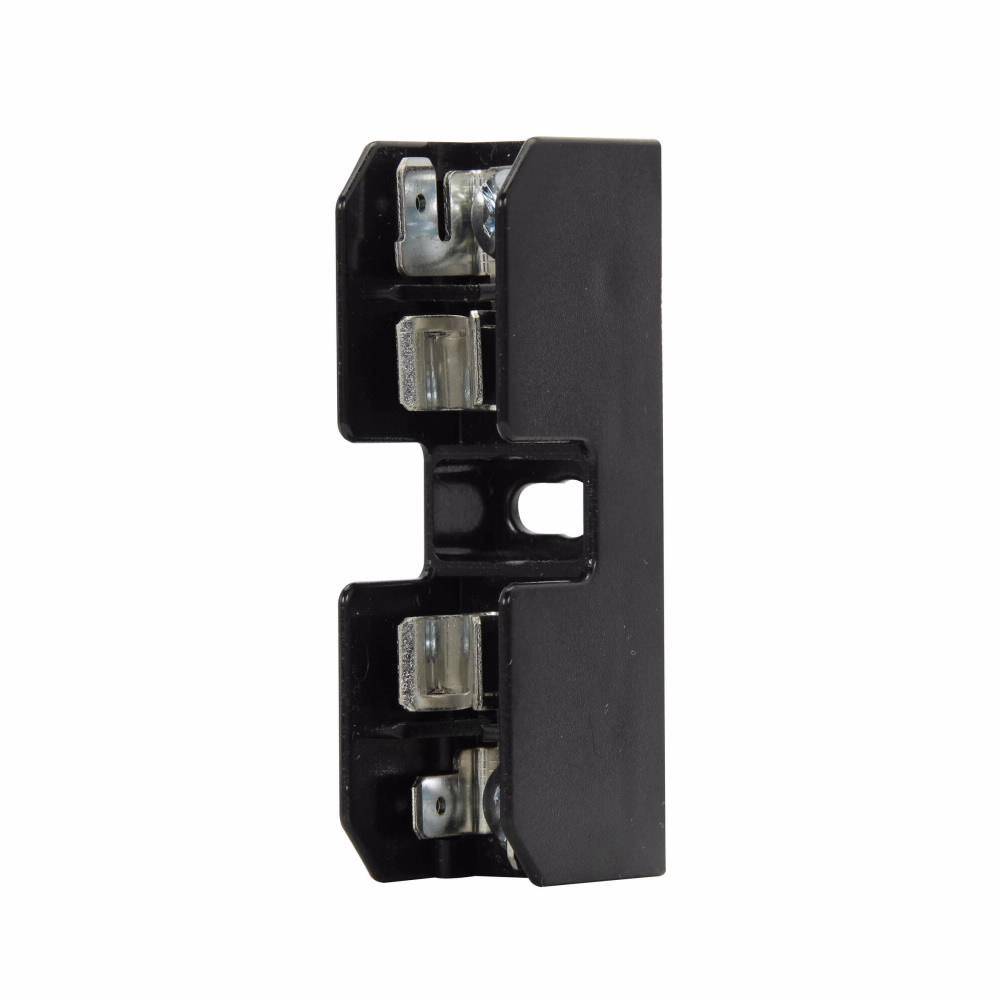

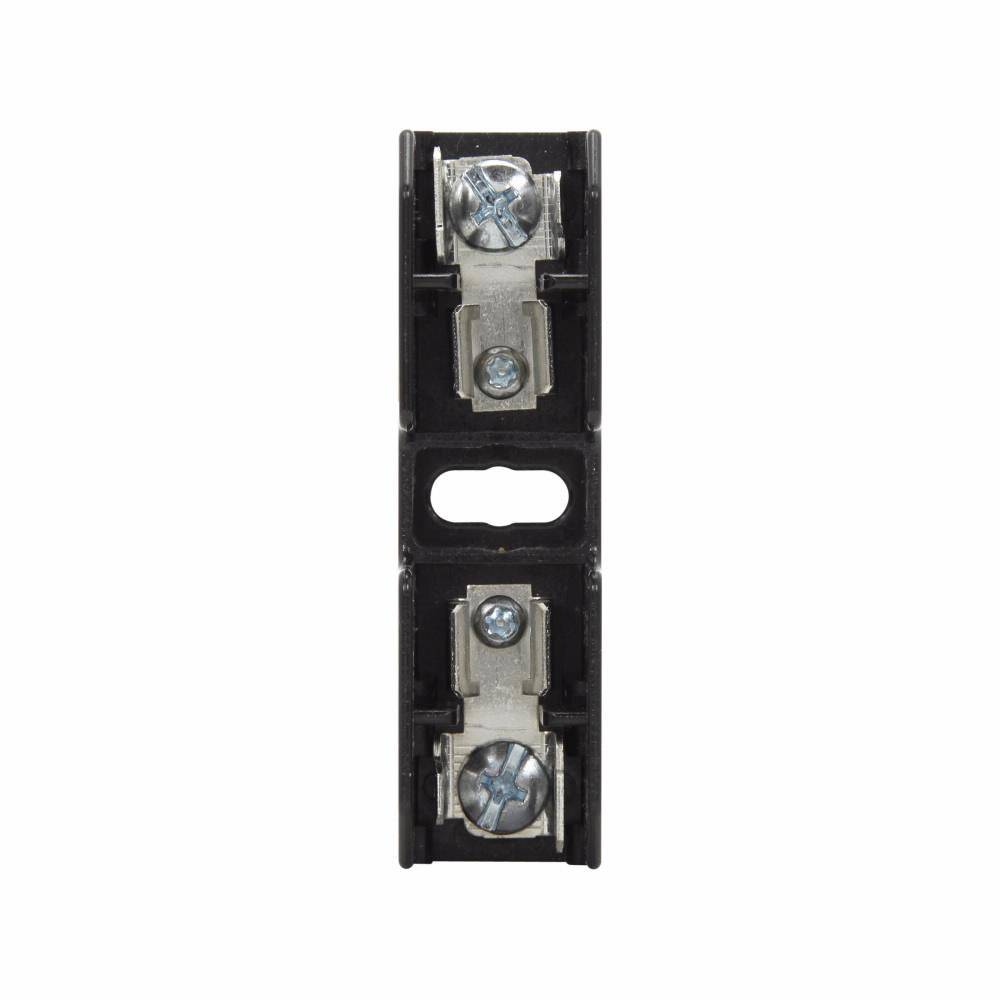

Bussmann BG3021PQ Open Style Fuse Block, 600 V, 1 to 20 A, Class: G, 18 to 10 AWG Wire, 1 Pole

Short Description

Eaton's Bussmann series fuse blocks for us with Class G fuses. These Bussmann series fuse blocks are offered in phenolic and thermoplastic with options for DIN rail adapters as well as an inline holder option

Bussmann Fuse Block, Open Style, Series: BG Series, 600 V, 1 to 20 A, 1 Pole, Class: G, Pressure Plate with Quick-Connect, 18 to 10 AWG Wire, DIN Rail Mount, 1.419 in Fuse Length, 13/32 in Fuse Dia, 130 deg C, For Use With: Bussmann SC Series G Fuse, Thermoplastic, Black, 3 in L x 0.86 in W x 1.22 in H
MFG #: BG3021PQ

EECO #: BUBG3021PQ

Brand: Bussmann
UPC #: 051712121910
Attributes
Features
Documents
Product Information
Attributes
Class
G
Color
Black
UNSPSC
39121624
Material
Thermoplastic
Wire Size
18 to 10
Application
Electrical Assemblies, Panels and OEMs Applications
Mounting Type
DIN Rail
Voltage Rating
600
Connection Type
Pressure Plate with Quick-Connect
Temperature Rating
130
Type
Open Style
Series
BG Series
Dimensions
3 in L x 0.86 in W x 1.22 in H
Amperage Rating
1 to 20
Suitable For Use With
Bussmann SC Series G Fuse
Features
  • 1/4 in quick connect terminal
BG3021PQ_Specification_Sheet
Bussmann_KTS_R_75_Catalog
Bussmann_G30060_1CR_Specification_Sheet
