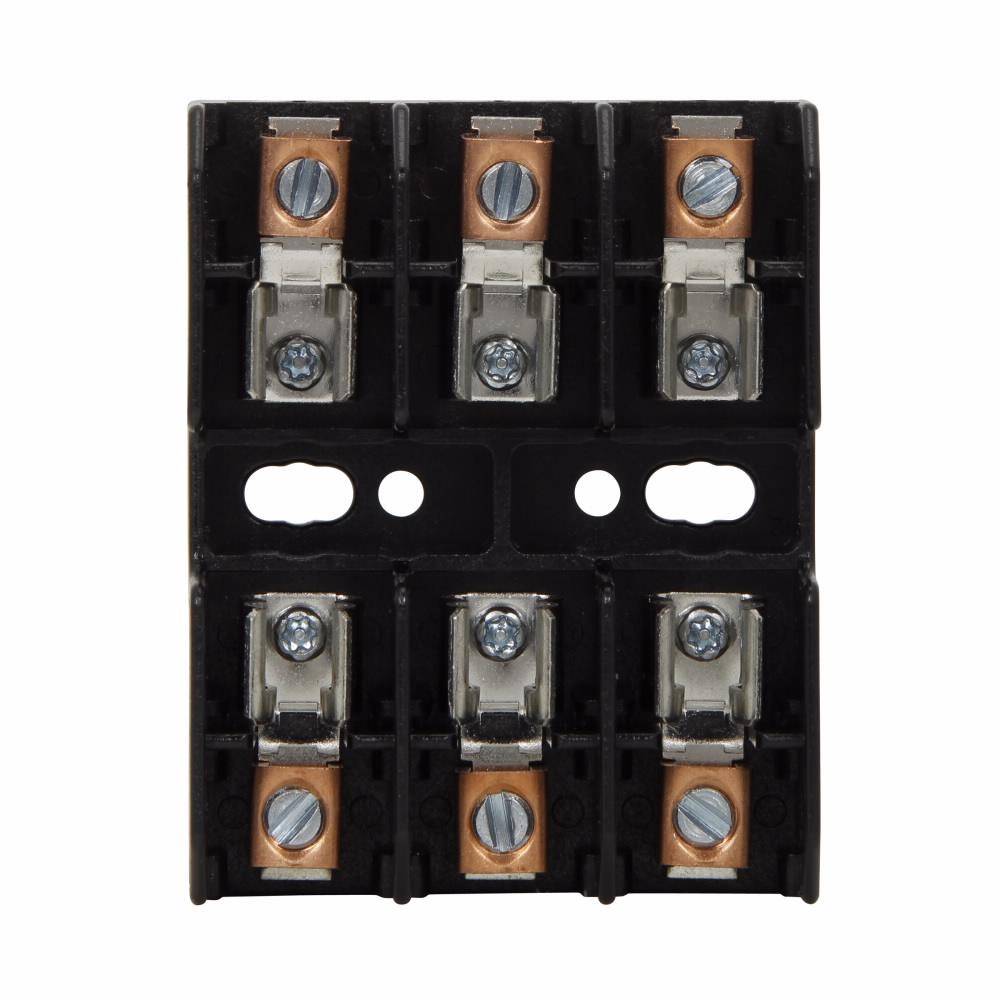

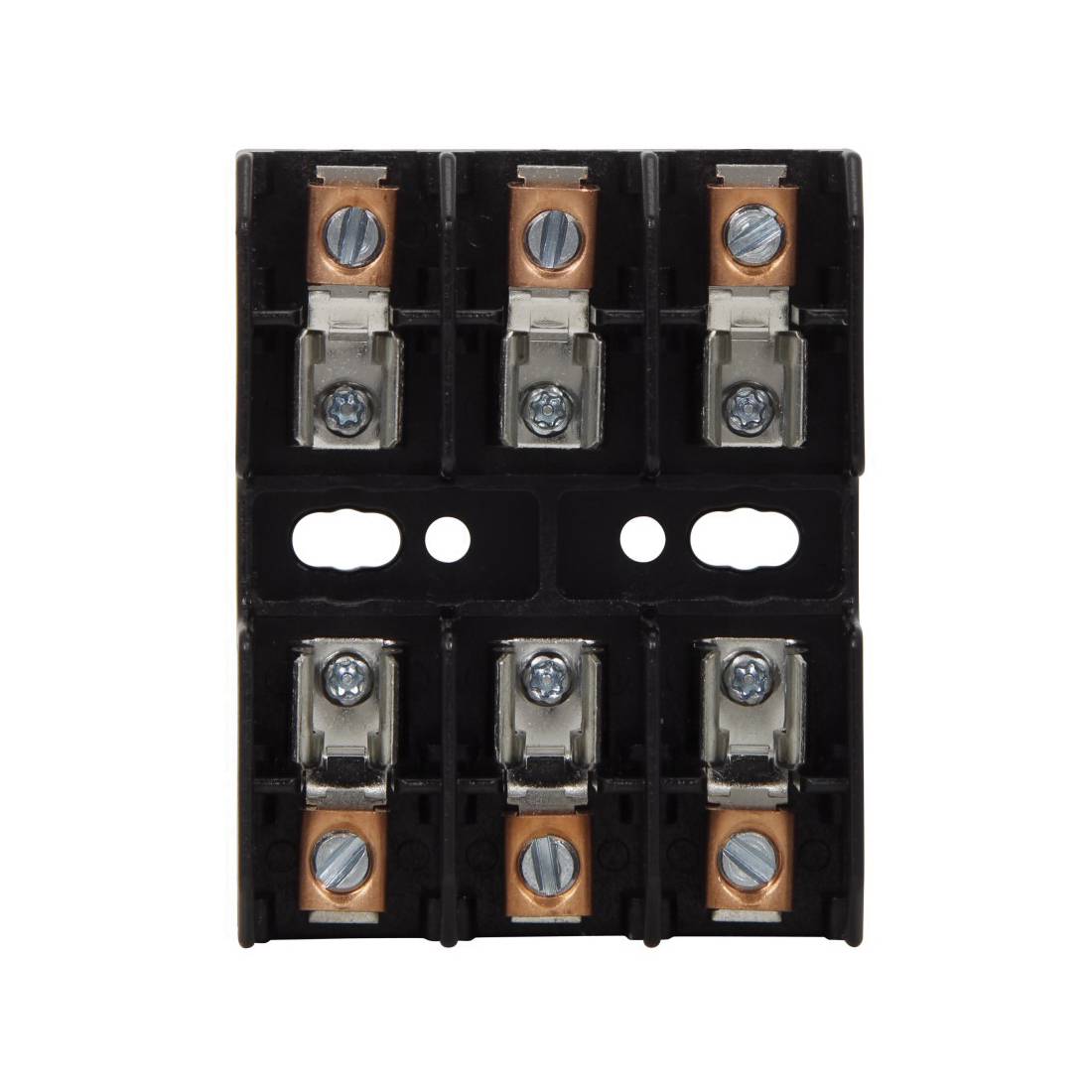

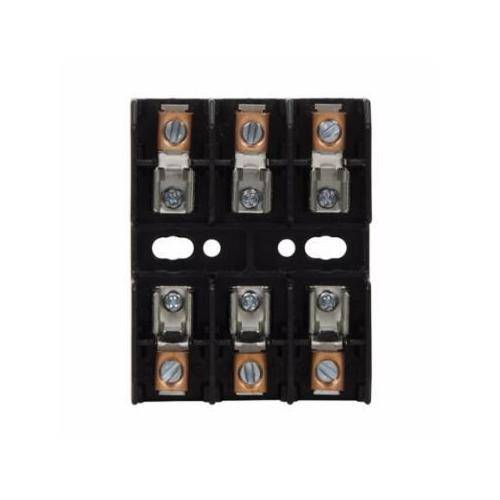

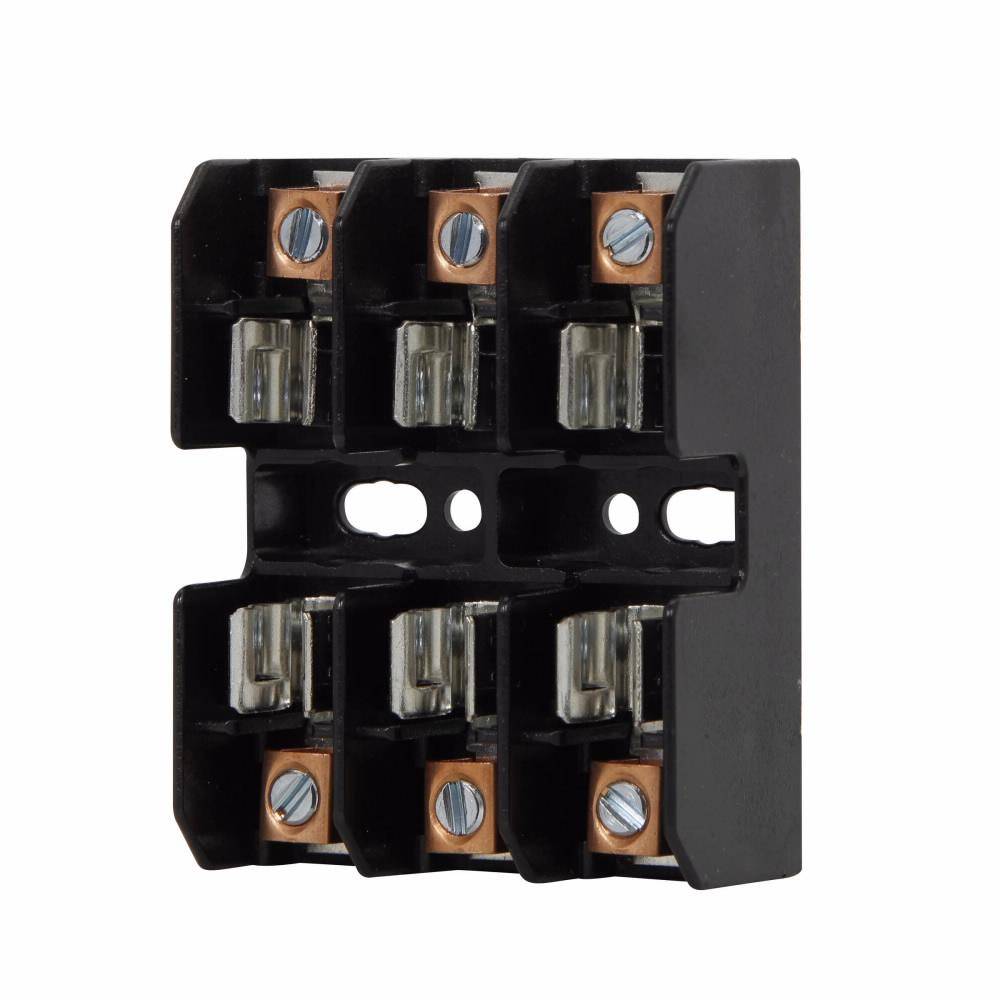

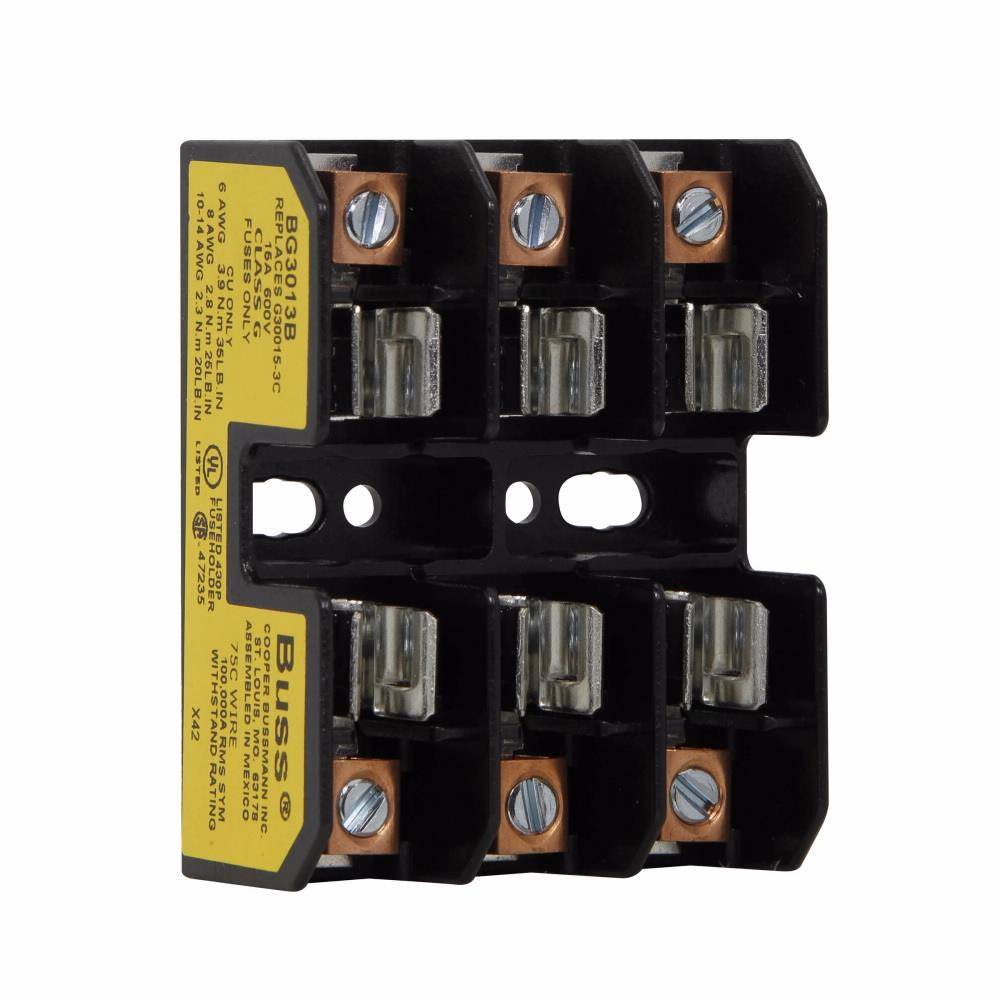

Edison BG3013B Open Style Fuse Block, 600 VAC/VDC, 1 to 15 A, Class: G, 14 to 6 AWG Wire, 3 Poles

Short Description

Eaton's Bussmann series fuse blocks for us with Class G fuses. These Bussmann series fuse blocks are offered in phenolic and thermoplastic with options for DIN rail adapters as well as an inline holder option

Edison Fuse Block, Open Style, Series: BG Series, 600 VAC/VDC, 1 to 15 A, 3 Pole, Class: G, Box Lug, 14 to 6 AWG Wire, DIN Rail Mount, 1.319 in Fuse Length, 13/32 in Fuse Dia, 130 deg C, For Use With: Bussmann SC Series Class G Fuse, Thermoplastic, Black, 3 in L x 2.38 in W x 1.22 in H
MFG #: BG3013B

EECO #: BUBG3013B

Brand: Edison
UPC #: 051712736596
Attributes
Features
Documents
Product Information
Attributes
Class
G
Color
Black
UNSPSC
39121624
Material
Thermoplastic
Wire Size
14 to 6
Application
Electrical Assemblies, Panels and OEMs Applications
Mounting Type
DIN Rail
Voltage Rating
600
Connection Type
Box Lug
Temperature Rating
130
Type
Open Style
Series
BG Series
Dimensions
3 in L x 2.38 in W x 1.22 in H
Amperage Rating
1 to 15
Suitable For Use With
Bussmann SC Series Class G Fuse
Features
  • Model: Edison BG3013B Open Style Fuse Block
  • Voltage Rating: 600 VAC/VDC
  • Current Rating: 1 to 15 A
  • Class: G
  • Wire Size Compatibility: 14 to 6 AWG
  • Number of Poles: 3
  • Fuse Length: 1.319 inches
  • Fuse Diameter: 13/32 inches
  • Operating Temperature: Up to 130°C
  • Mounting Type: DIN Rail Mount
  • Material: Thermoplastic
  • Color: Black
  • Dimensions: 3 in L x 2.38 in W x 1.22 in H
  • Compatible Fuse: Bussmann SC Series Class G Fuse
