Eaton

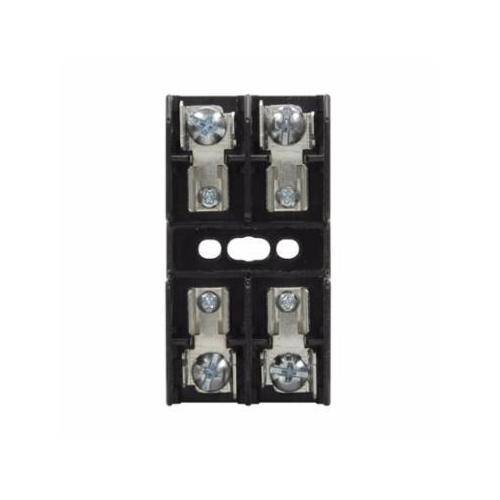

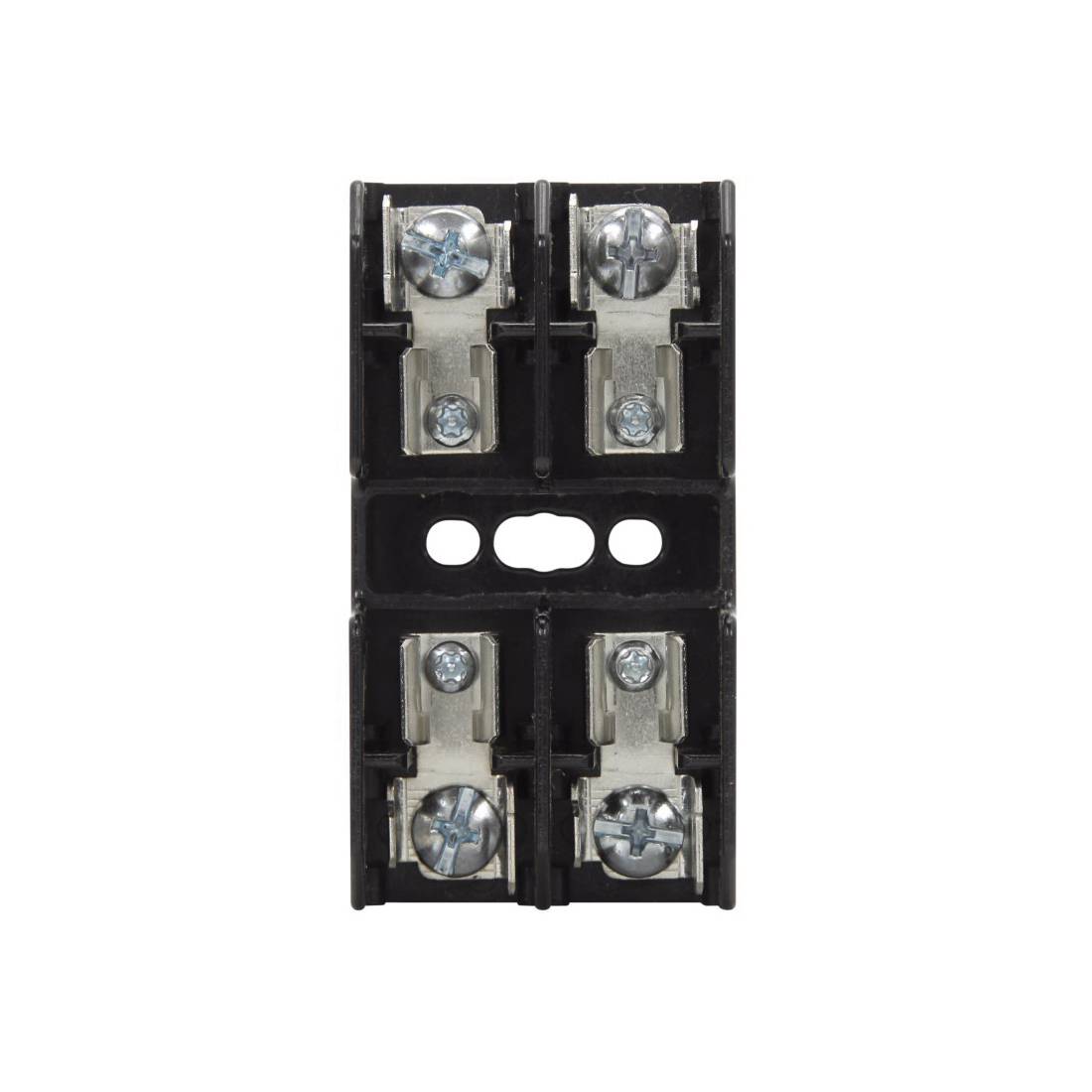

Edison BG3012SQ BG Series Open Style Fuse Block, 600 VAC/VDC, 1 to 20 A, Class: G, 14 to 10 AWG Wire, 2 Poles

Short Description

Eaton's Bussmann series fuse blocks for us with Class G fuses. These Bussmann series fuse blocks are offered in phenolic and thermoplastic with options for DIN rail adapters as well as an inline holder option

Edison Fuse Block, Open Style, Series: BG Series, 600 VAC/VDC, 1 to 20 A, 2 Pole, Class: G, Quick-Connect/Screw Connection, 14 to 10 AWG Wire, DIN Rail Mounting, 1.419 in Fuse Length, 13/32 in Diameter Fuse, 130 deg C, For Use With: Bussmann SC Series Class G Fuse, Thermoplastic, Black, 3 in L x 1.63 in W x 1.22 in H Dimensions
MFG #: BG3012SQ

EECO #: BUBG3012SQ

Brand: Edison
UPC #: 051712736626
Attributes
Features
Documents
Product Information
Attributes
Class
G
Color
Black
UNSPSC
39121624
Material
Thermoplastic
Wire Size
14 to 10
Application
Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
DIN Rail
Voltage Rating
600
Connection Type
Quick-Connect/Screw
Temperature Rating
130
Type
Open Style
Series
BG Series
Dimensions
3 in L x 1.63 in W x 1.22 in H
Amperage Rating
1 to 20
Suitable For Use With
Bussmann SC Series Class G Fuse
Features
  • Open Style Fuse Block
  • Series: BG Series
  • Voltage Rating: 600 VAC/VDC
  • Current Rating: 1 to 20 A
  • Class: G
  • Wire Compatibility: 14 to 10 AWG
  • Number of Poles: 2
  • Connection Type: Quick-Connect/Screw Connection
  • Mounting Type: DIN Rail Mounting
  • Fuse Length: 1.419 inches
  • Fuse Diameter: 13/32 inches
  • Operating Temperature: 130°C
  • Compatible Fuse: Bussmann SC Series Class G Fuse
  • Material: Thermoplastic
  • Color: Black
  • Dimensions: 3 in L x 1.63 in W x 1.22 in H
