Eaton

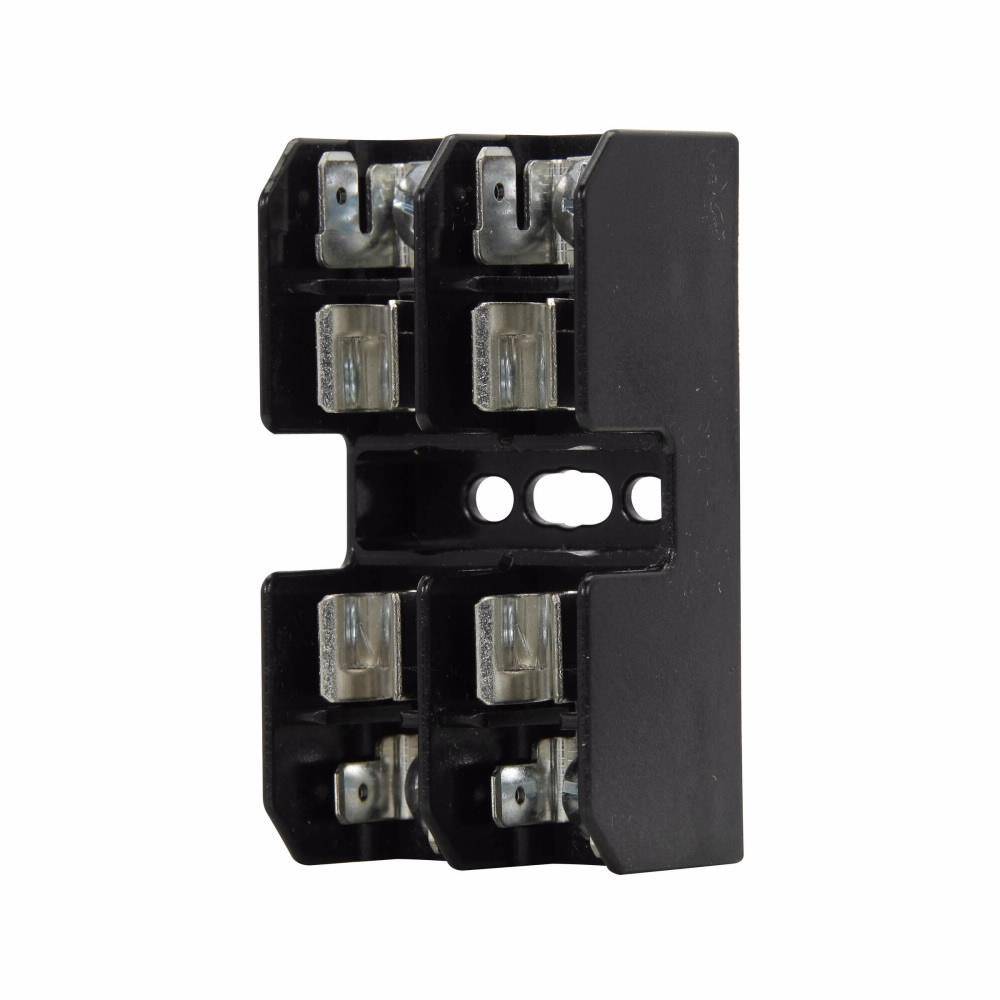

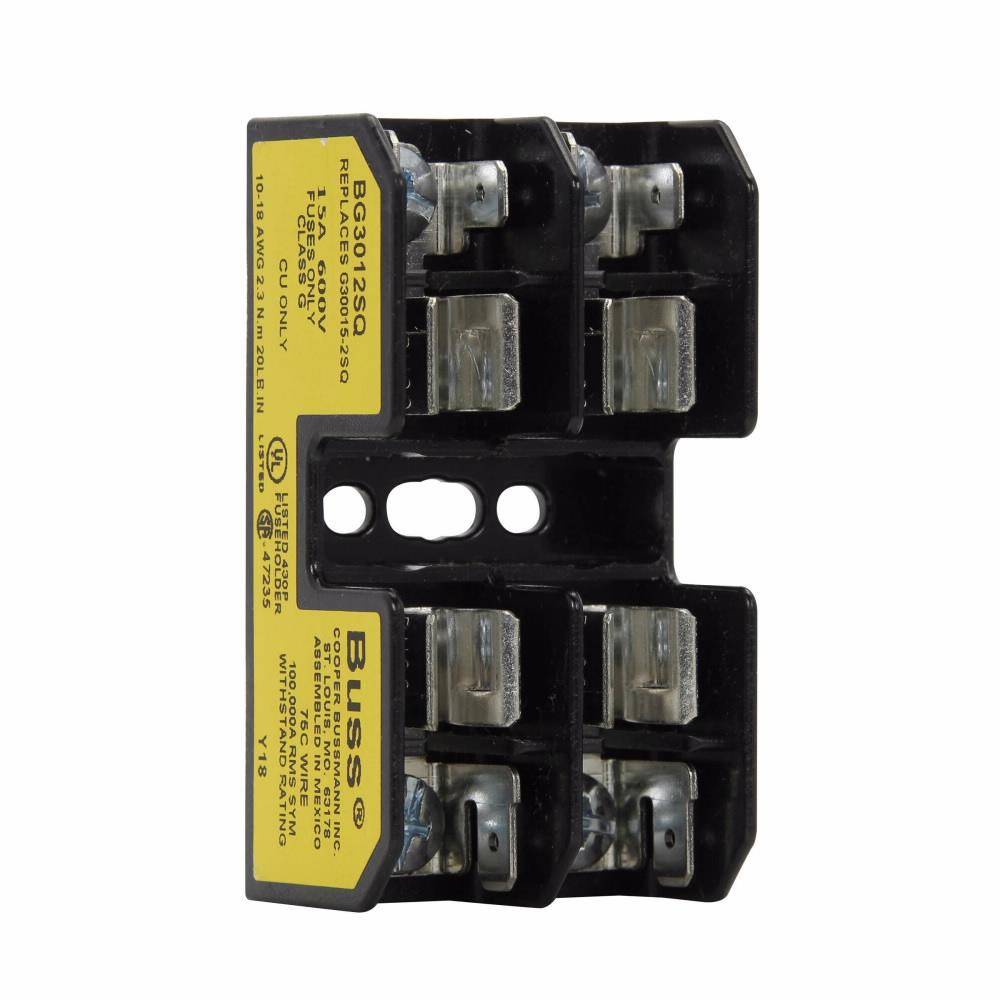

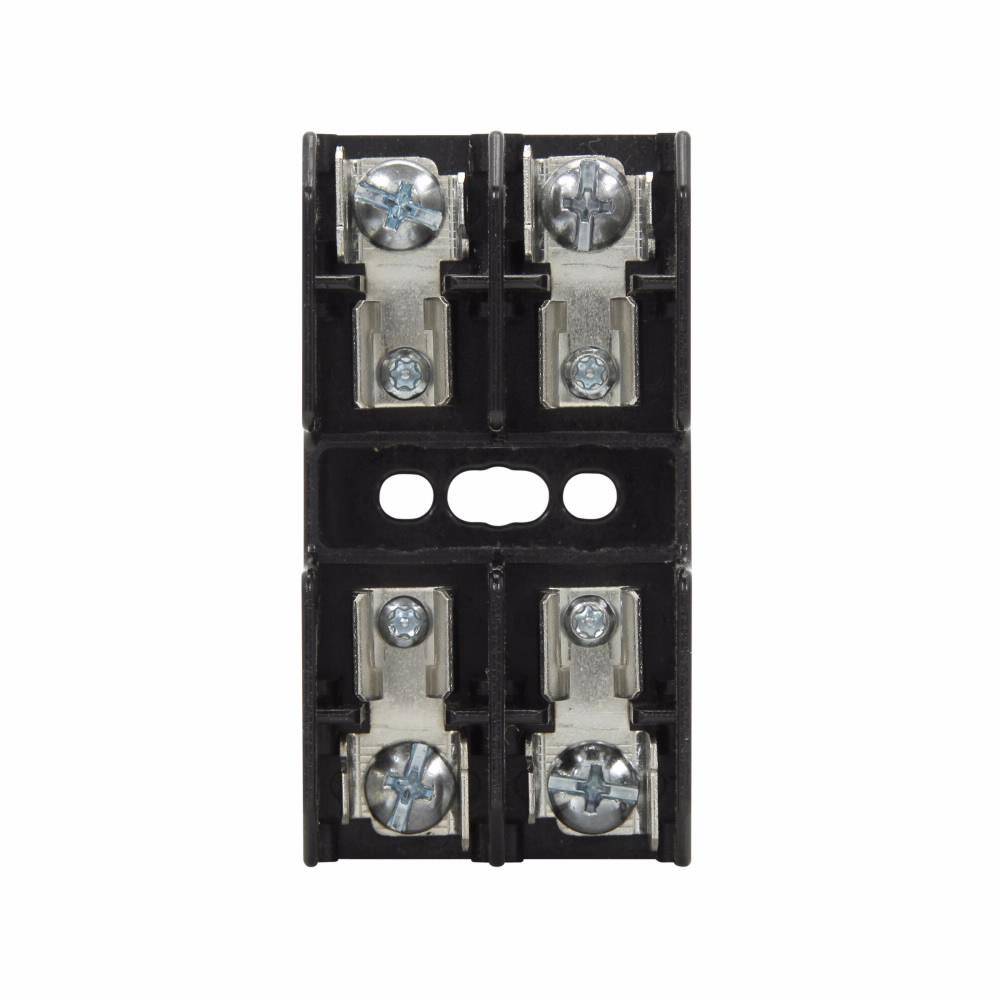

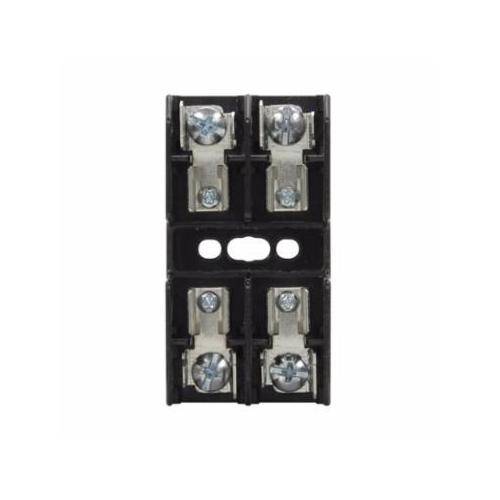

Bussmann BG3012B Open Fuse Block, 600 V, 0.18 to 15 A, Class: G, 14 to 6 AWG Wire, 2 Poles

Short Description

Eaton's Bussmann series fuse blocks for us with Class G fuses. These Bussmann series fuse blocks are offered in phenolic and thermoplastic with options for DIN rail adapters as well as an inline holder option

Bussmann Fuse Block, Open, Series: BG Series, 600 V, 0.18 to 15 A, 2 Pole, Class: G, Box Lug, 14 to 6 AWG Wire, DIN Rail Mount, 130 deg C, For Use With: SC Series Cartridge Fuse, Thermoplastic, Black, 3 in L x 1.63 in W x 1.22 in H
MFG #: BG3012B

EECO #: BUBG3012B

Brand: Bussmann
UPC #: 051712736565
Attributes
Features
Documents
Product Information
Attributes
Class
G
Color
Black
UNSPSC
39121624
Material
Thermoplastic
Wire Size
14 to 6
Application
Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
DIN Rail
Voltage Rating
600
Connection Type
Box Lug
Temperature Rating
130
Type
Open
Series
BG Series
Dimensions
3 in L x 1.63 in W x 1.22 in H
Amperage Rating
0.18 to 15
Suitable For Use With
SC Series Cartridge Fuse
Features
  • Model: Bussmann BG3012B
  • Type: Open Fuse Block
  • Voltage Rating: 600 V
  • Current Rating: 0.18 to 15 A
  • Class: G
  • Wire Size: Compatible with 14 to 6 AWG wire
  • Poles: 2 Pole configuration
  • Mounting: DIN Rail Mount
  • Material: Thermoplastic
  • Color: Black
  • Temperature Rating: 130 °C
  • Dimensions: 3 in L x 1.63 in W x 1.22 in H
  • For Use With: SC Series Cartridge Fuse

Enhanced by AI

Bussmann_BG3012B_Specification_Sheet_CA
G30060_1CR_Specification_Sheet_02
