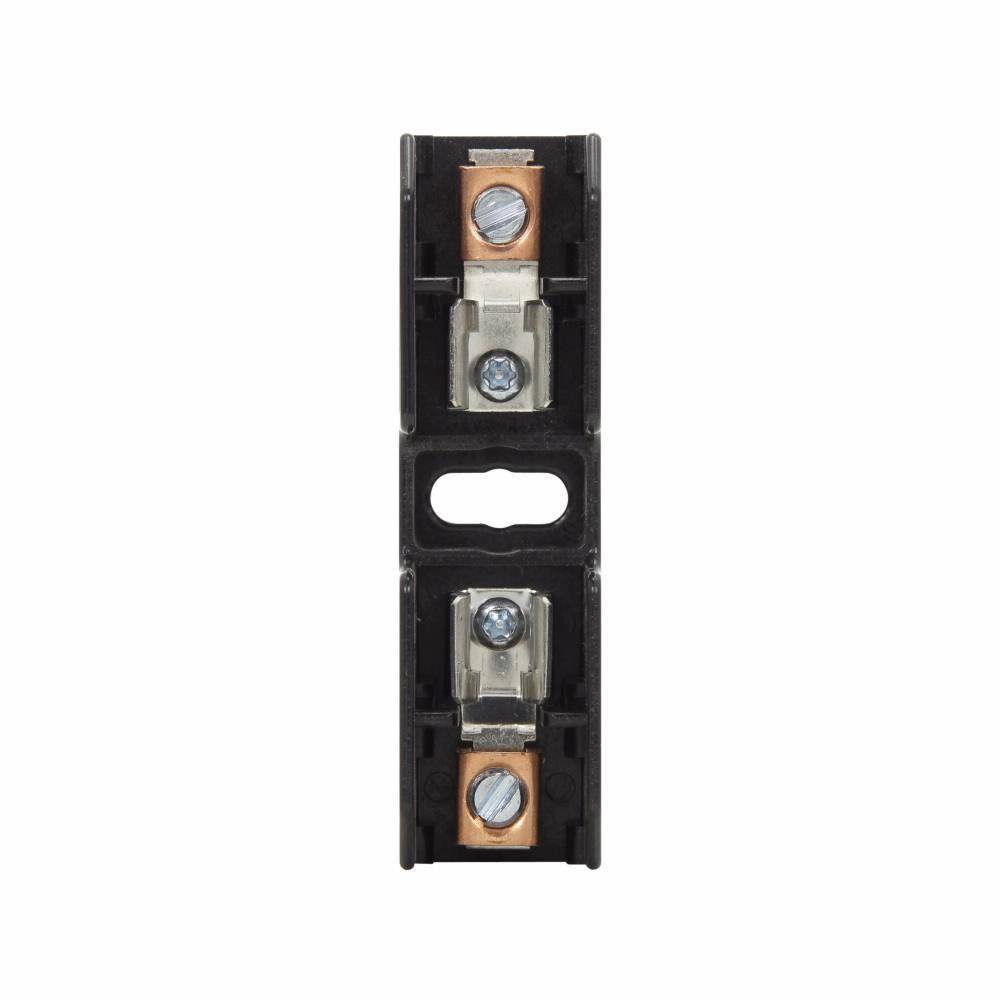

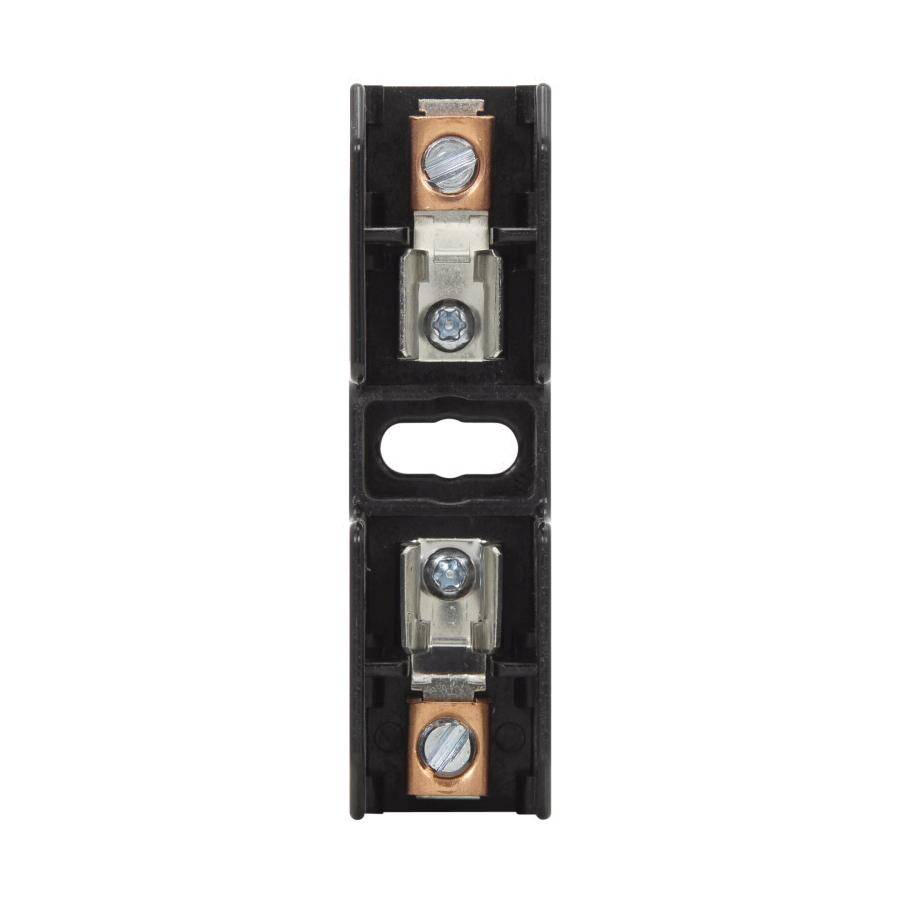

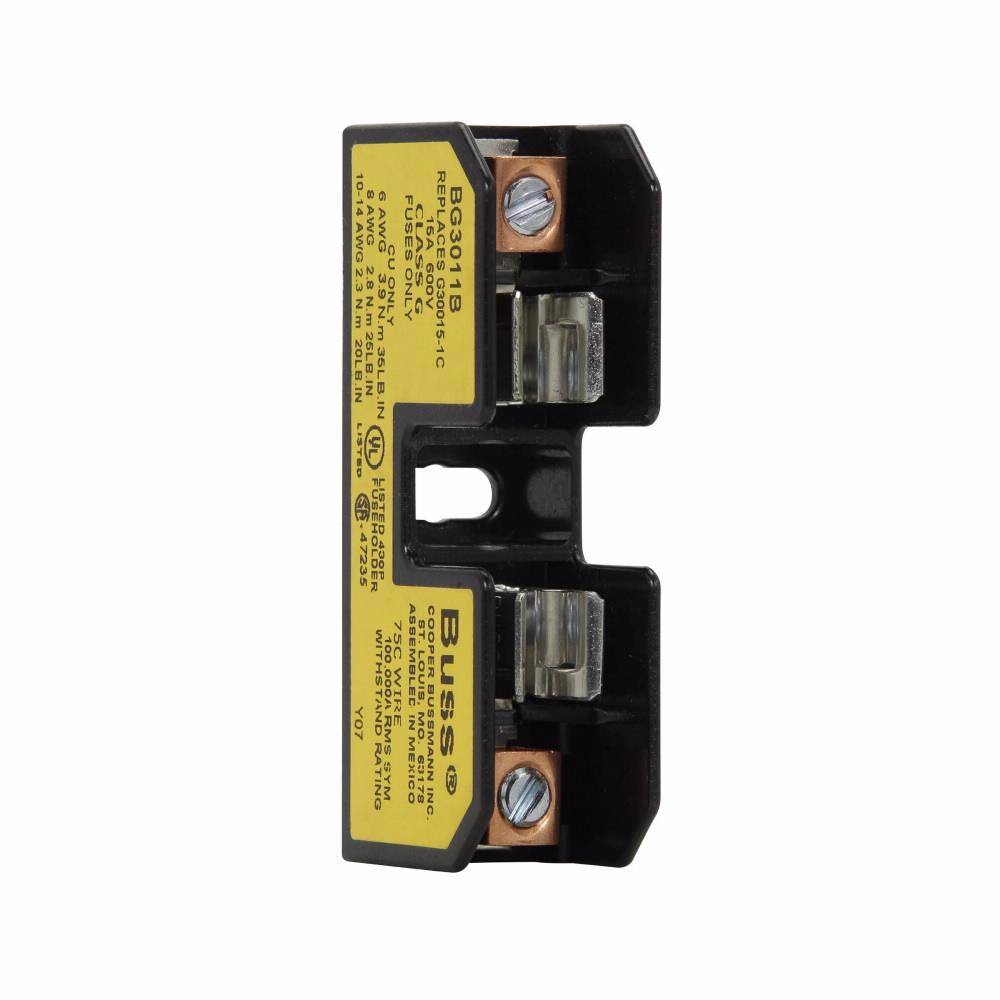

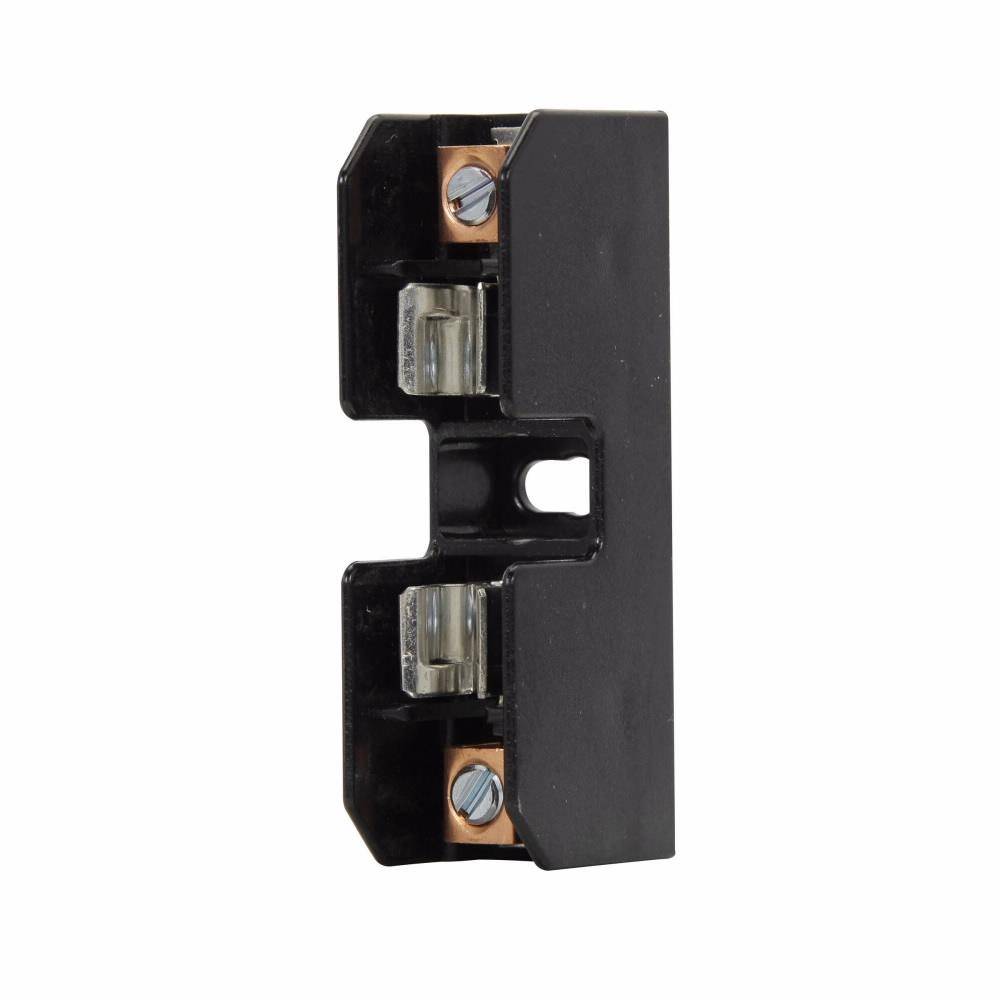

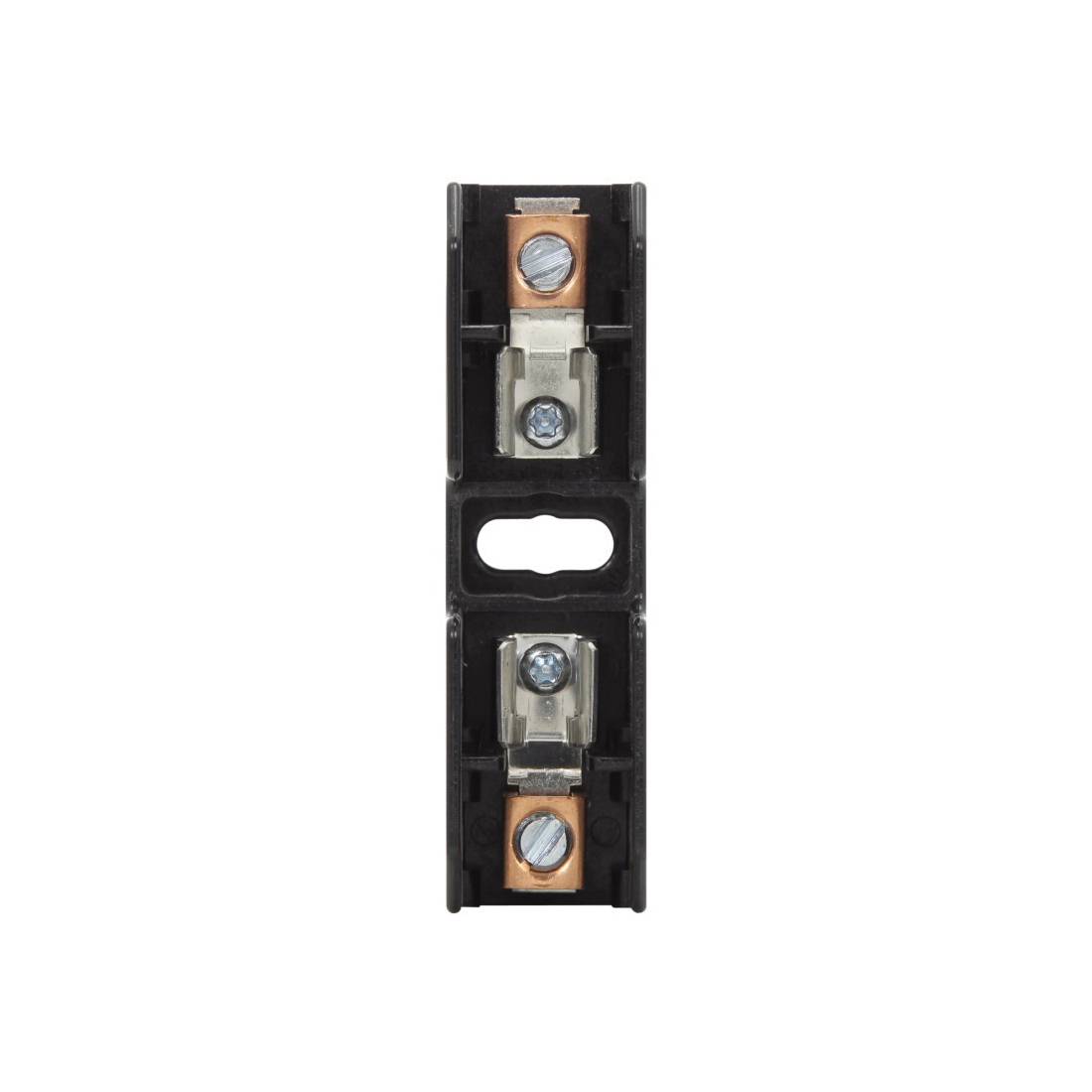

Edison BG3011B Open Style Fuse Block, 600 VAC/VDC, 1 to 15 A, Class: G, 14 to 6 AWG Wire, 1 Pole

Short Description

Eaton's Bussmann series fuse blocks for us with Class G fuses. These Bussmann series fuse blocks are offered in phenolic and thermoplastic with options for DIN rail adapters as well as an inline holder option

Edison Fuse Block, Open Style, Series: BG Series, 600 VAC/VDC, 1 to 15 A, 1 Pole, Class: G, Box Lug, 14 to 6 AWG Wire, DIN Rail Mount, 1.319 in Fuse Length, 13/32 in Fuse Dia, 130 deg C, For Use With: Bussmann SC Series Class G Fuse, Thermoplastic, Black, 3 in L x 0.86 in W x 1.22 in H
MFG #: BG3011B

EECO #: BUBG3011B

Brand: Edison
UPC #: 051712736534
Attributes
Features
Documents
Product Information
Attributes
Class
G
Color
Black
UNSPSC
39121624
Material
Thermoplastic
Wire Size
14 to 6
Application
Electrical Assemblies, Panels and OEMs Applications
Mounting Type
DIN Rail
Voltage Rating
600
Connection Type
Box Lug
Temperature Rating
130
Type
Open Style
Series
BG Series
Dimensions
3 in L x 0.86 in W x 1.22 in H
Amperage Rating
1 to 15
Suitable For Use With
Bussmann SC Series Class G Fuse
Features
  • Type: Open Style Fuse Block
  • Series: BG Series
  • Voltage Rating: 600 VAC/VDC
  • Current Rating: 1 to 15 A
  • Class: G
  • Wire Compatibility: 14 to 6 AWG
  • Poles: 1 Pole
  • Mounting: DIN Rail Mount
  • Fuse Length: 1.319 in
  • Fuse Diameter: 13/32 in
  • Operating Temperature: 130 °C
  • Material: Thermoplastic
  • Color: Black
  • Dimensions: 3 in L x 0.86 in W x 1.22 in H
  • Compatibility: For use with Bussmann SC Series Class G Fuse
