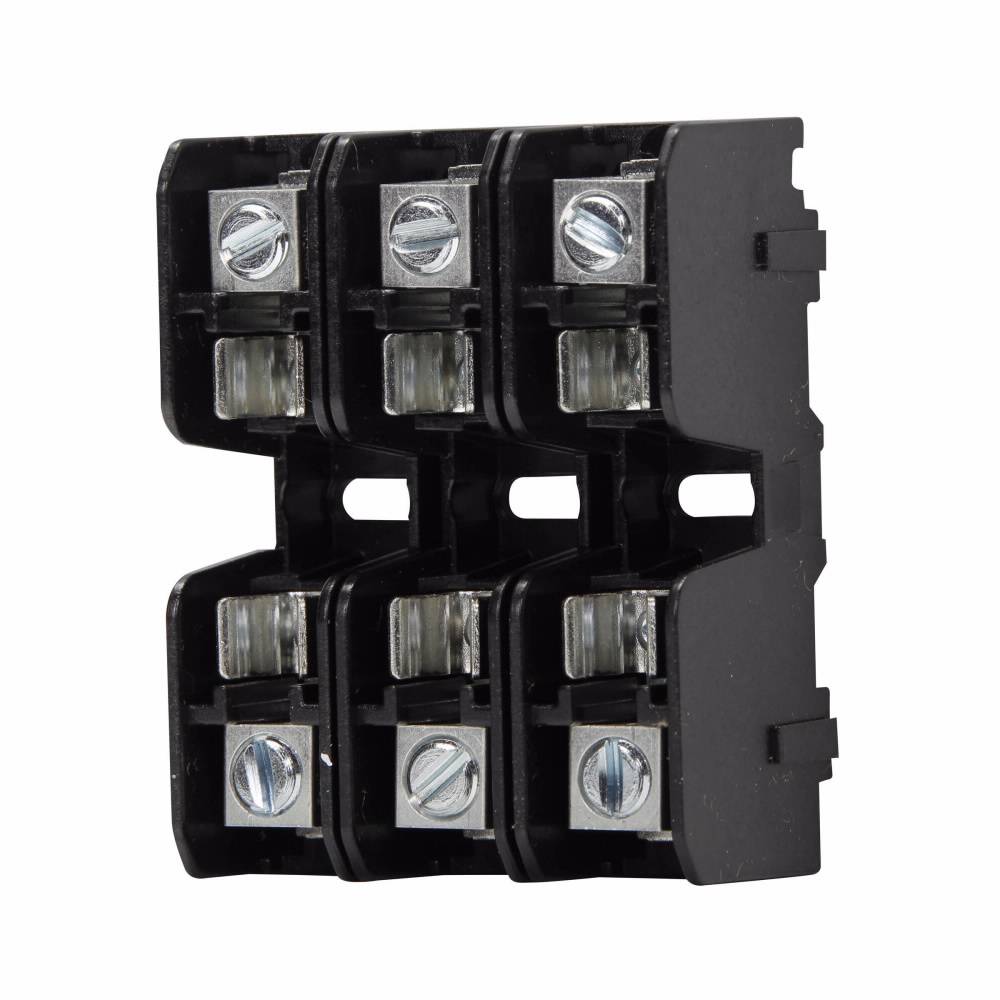

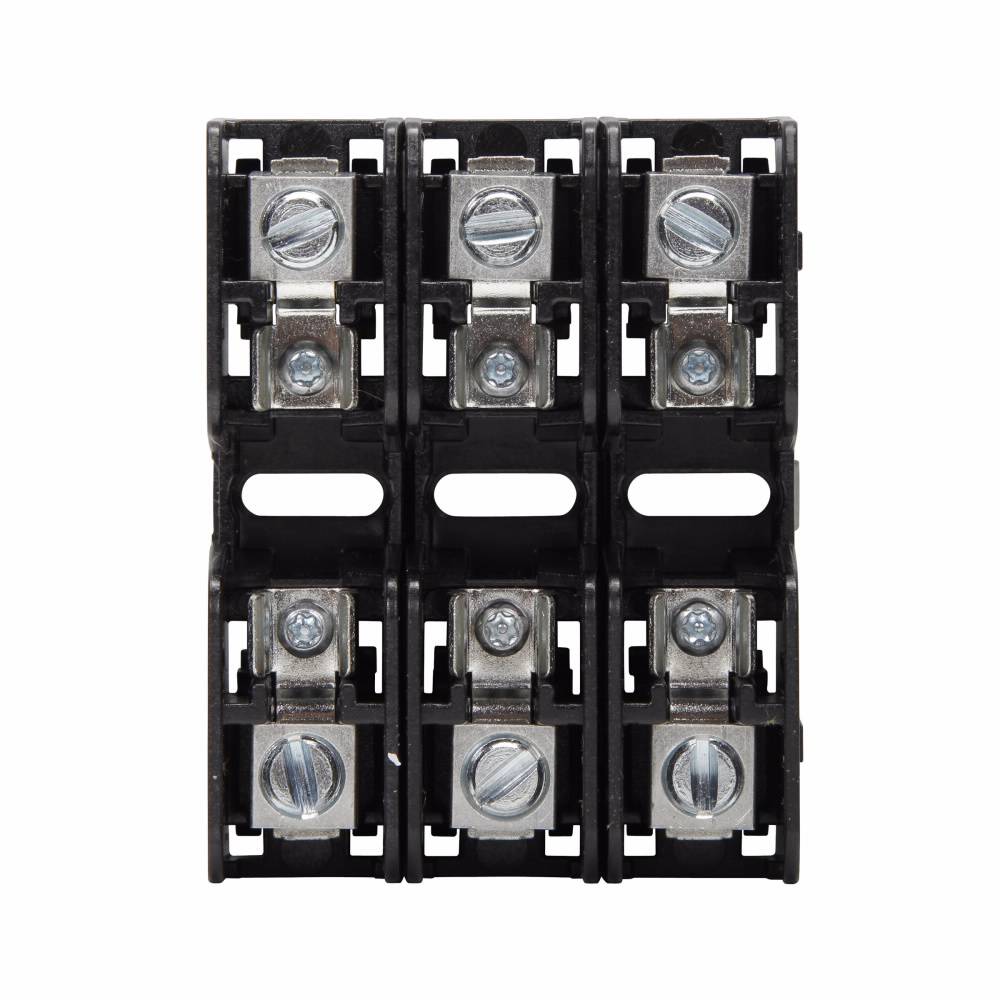

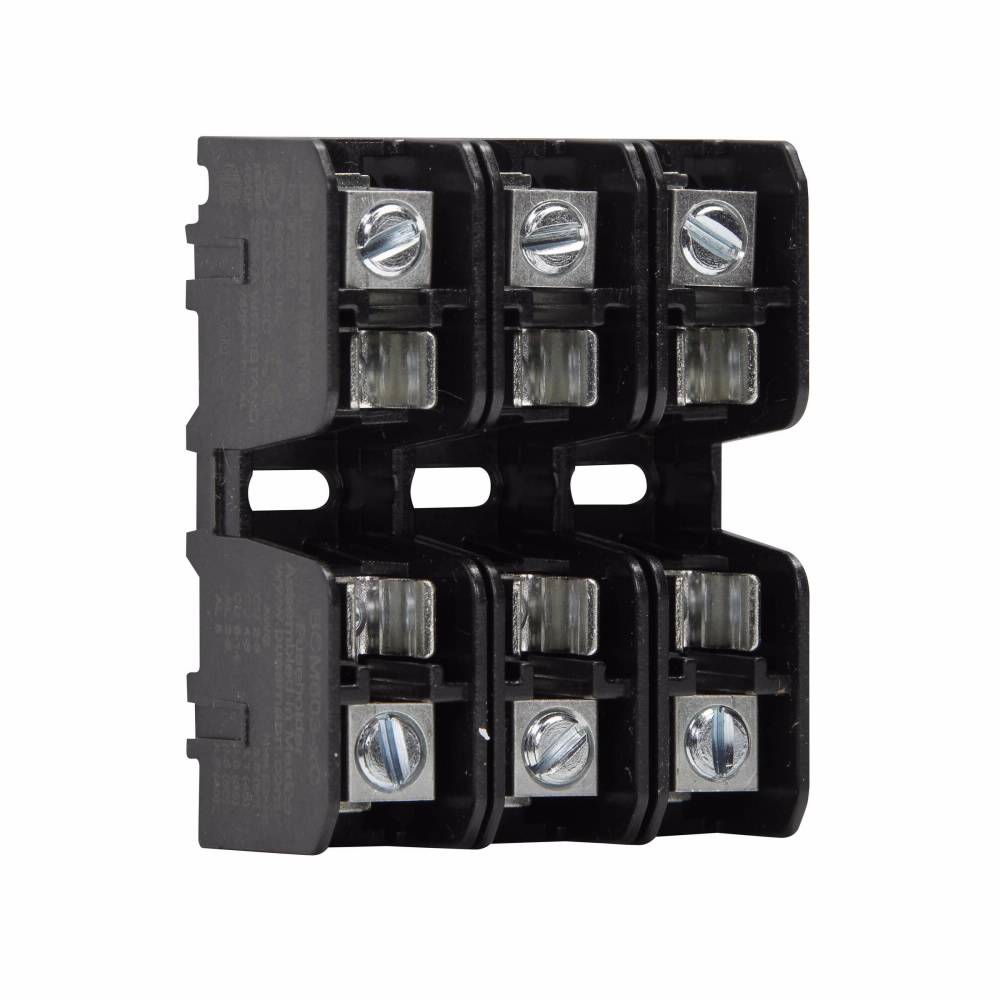

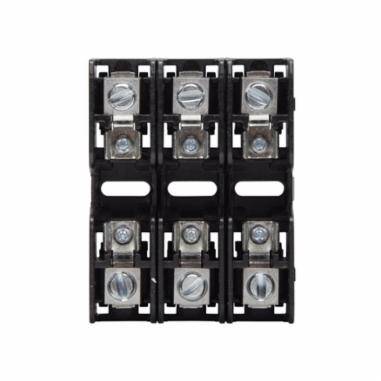

Edison BCM603-3C Modular Fuse Block With Wire Connector, 600 VAC, 30 A, 14 to 2 AWG, 8 to 2 AWG Wire, 3 Poles

Short Description

These new Bussmann series fuse blocks contain multiple features to add versatility, reduce labor and enhance safety of any panel design.

Edison Fuse Block, Modular, Series: BCM, 600 VAC, 30 A, 3 Pole, Class: CC, Box Lug, 14 to 2 AWG, 8 to 2 AWG Wire, DIN Rail/Panel Mount, -40 to 120 deg C, For Use With: Time Delay Low-Peak™ LP-CC, Time Delay Limitron™ FNQ-R, Fast Acting Limitron™ KTK-R Series Fuse, Thermoplastic, 3 in L x 2.4 in W x 1.3 in H
MFG #: BCM603-3C

EECO #: BUBCM6033C

Brand: Edison
UPC #: 051712486293
Attributes
Features
Documents
Product Information
Attributes
Class
CC
UNSPSC
39121624
Material
Thermoplastic
Wire Size
14 to 2 AWG, 8 to 2 AWG
Application
Electrical Assemblies, Panels, EOEMs and Class CC Fuses Applications
Mounting Type
DIN Rail/Panel
Voltage Rating
600
Connection Type
Box Lug
Temperature Rating
-40 to 120
Type
Modular
Series
BCM
Dimensions
3 in L x 2.4 in W x 1.3 in H
Amperage Rating
30
Suitable For Use With
Time Delay Low-Peak™ LP-CC, Time Delay Limitron™ FNQ-R, Fast Acting Limitron™ KTK-R Series Fuse
Features
  • Blocks are fully modular with a snap together design that provides tool less assembly of multiple-pole blocks at point-of-use to reduce inventory and save assembly time and labor
  • DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
  • Compact footprint consumes minimal panel space
  • Optional see through cover enhances safety with IP20 finger safe protection, lockout/ tag out capability and open circuit indication
  • Easy circuit identification with available universal marker labels for fuse block covers
  • Tin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
  • Terminal options to meet application needs including 1/4 in spade quick connect terminals for faster panel assembly
  • 14 to 2 AWG copper, 8 to 2 AWG aluminum wire
