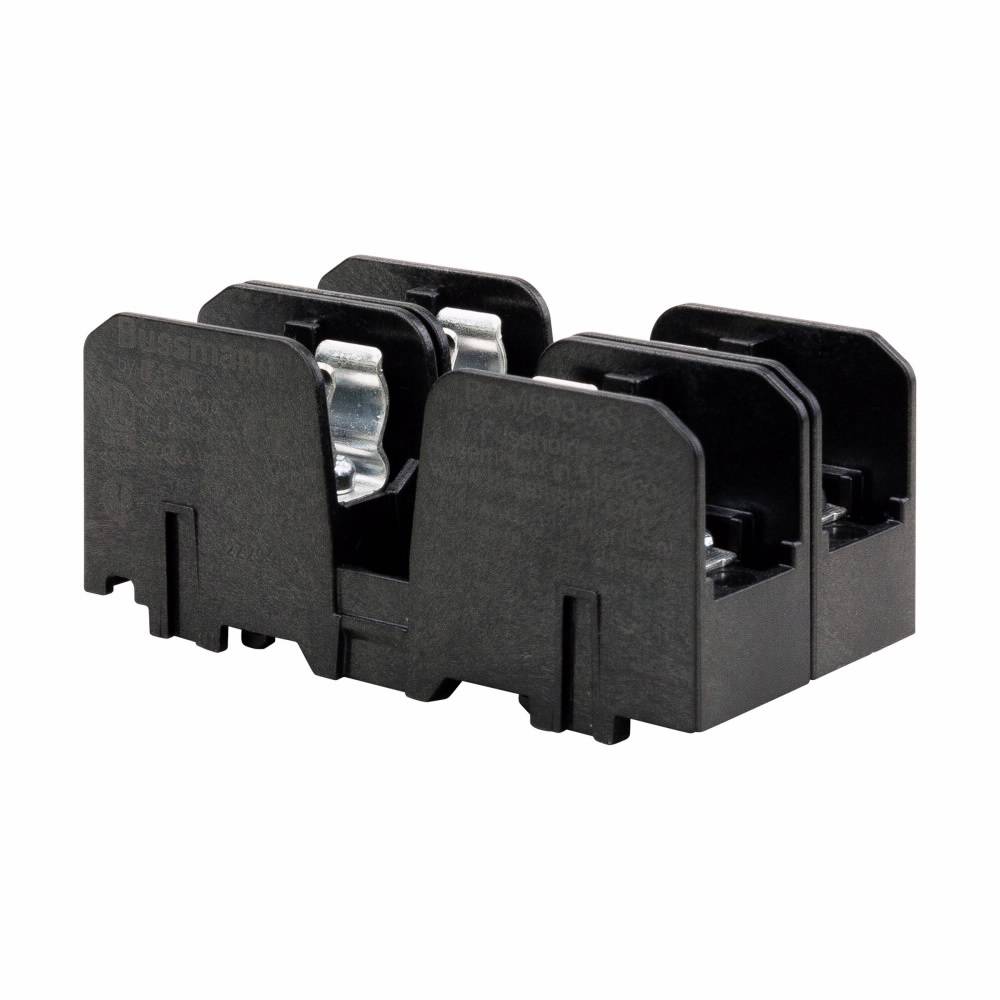

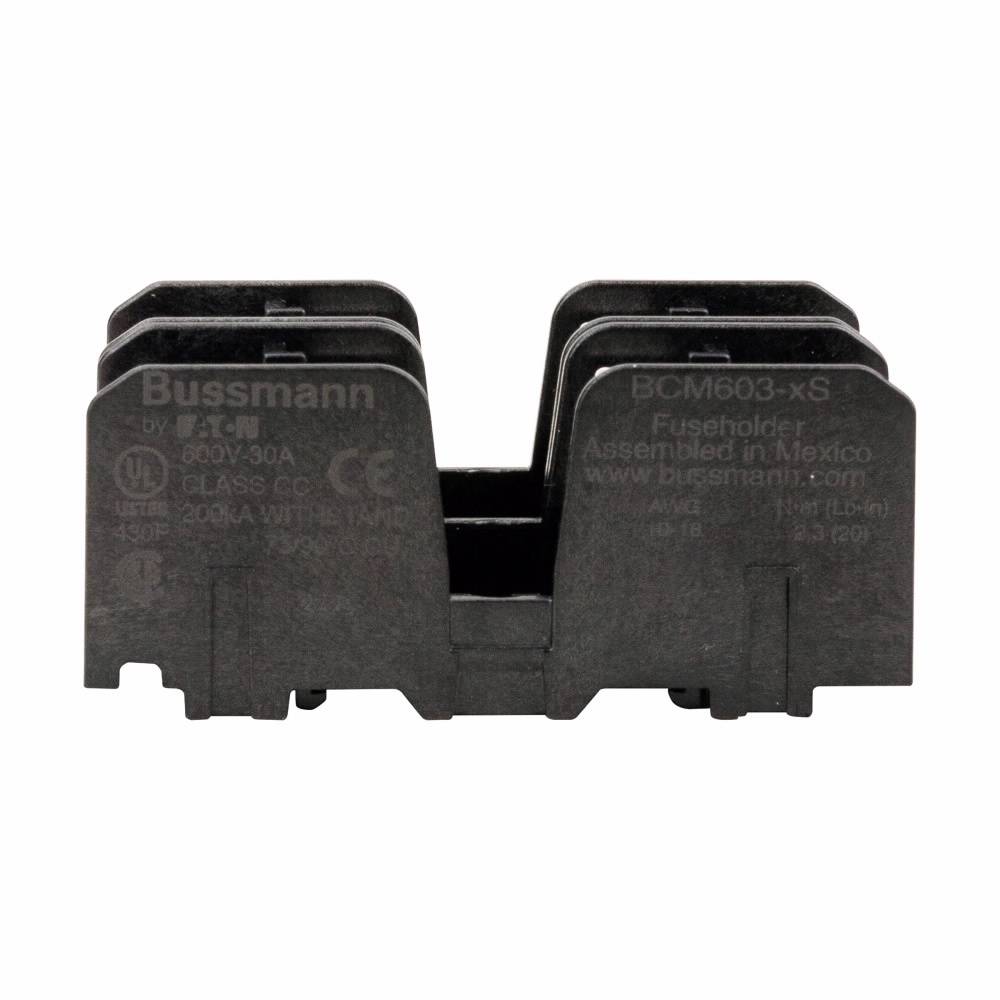

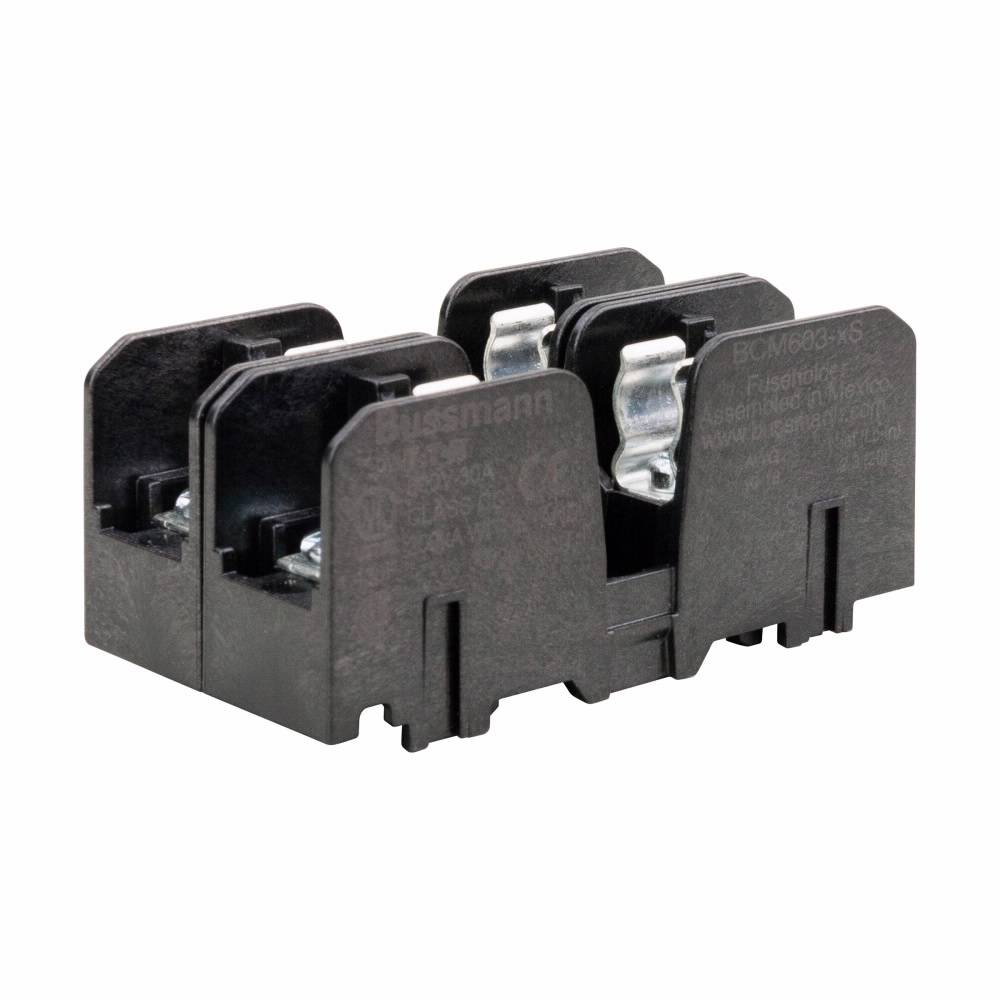

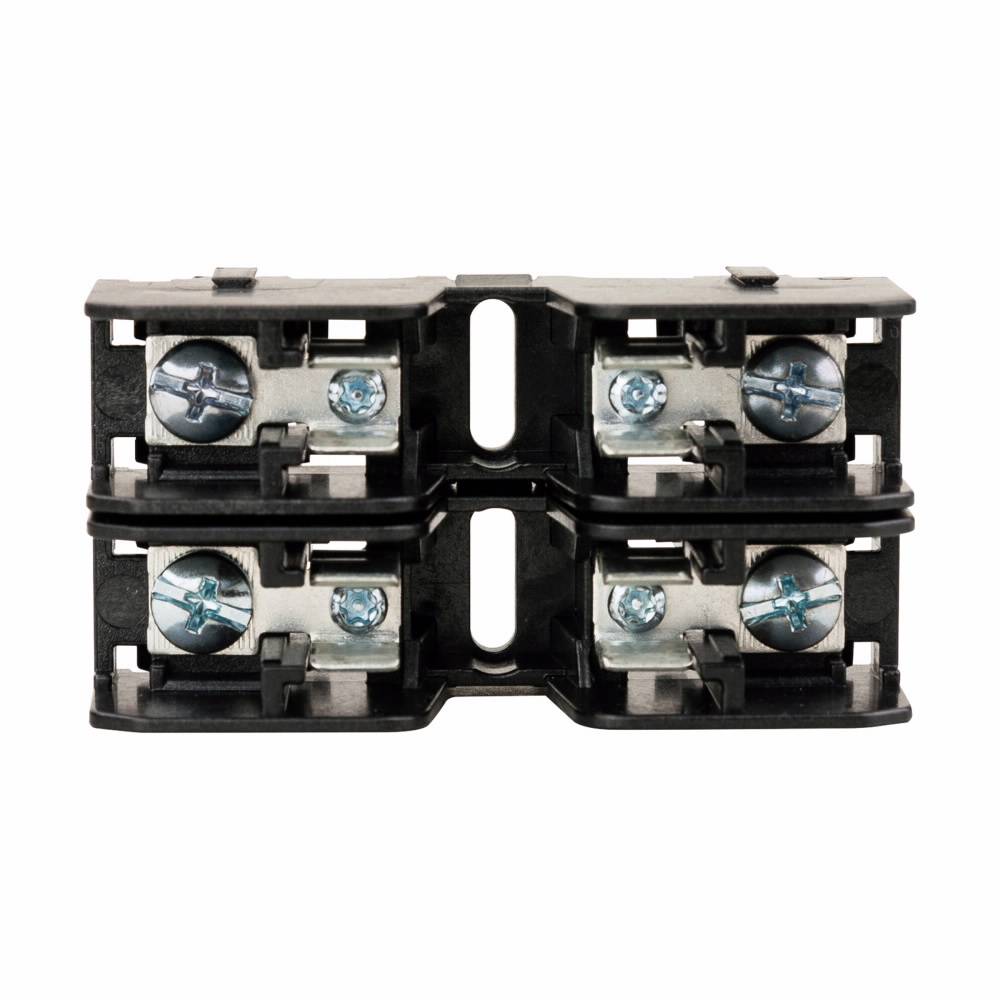

Bussmann BCM603-2S BCM Modular Fuse Block, 600 VAC, 30 A, 18 to 10 AWG Wire, 2 Poles

Short Description

These new Bussmann series fuse blocks contain multiple features to add versatility, reduce labor and enhance safety of any panel design.

Bussmann Fuse Block, Modular, Series: BCM, 600 VAC, 30 A, 2 Pole, Class: CC, Phillips® Slot Screw, 18 to 10 AWG Wire, DIN Rail/Panel Mount, -40 to 120 deg C, For Use With: Low-Peak™ LP-CC Series Time Delay, Limitron™ FNQ-R Series Time Delay, Limitron™ KTK-R Series Fast Acting Fuse, Thermoplastic, 3 in L x 1.6 in W x 1.3 in H

MFG #: BCM603-2S

EECO #: BUBCM6032S

Brand: Bussmann
UPC #: 051712486347
Attributes
Features
Documents
Product Information
Attributes
Class
CC
UNSPSC
39121624
Approval
UL, CSA, CE
Material
Thermoplastic
Wire Size
18 to 10
Application
Electrical Assemblies, Panels and EOEMs Applications
Body Material
Thermoplastic
Mounting Type
DIN Rail/Panel
Terminal Type
Screw
Voltage Rating
600
Connection Type
Phillips® Slot Screw
Number Of Poles
2
Temperature Rating
-40 to 120
Fuse Voltage Rating
600 Volt AC/DC
Type
Modular
Series
BCM
Clip Type
Tin Plated Bimetallic Copper
Fuse Type
Class CC
Dimensions
3 in L x 1.6 in W x 1.3 in H
Amperage Rating
30
Fuse Current Rating
30 Amp
Suitable For Use With
Low-Peak™ LP-CC Series Time Delay, Limitron™ FNQ-R Series Time Delay, Limitron™ KTK-R Series Fast Acting Fuse
Features
  • Blocks are fully modular with a snap together design that provides tool less assembly of multiple pole blocks at point-of-use to reduce inventory and save assembly time and labor
  • DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
  • Compact footprint consumes minimal panel space
  • Tin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
Eaton_Bussmann_00093_8_6_8_7_CAT
Eaton_Bussmann_00101_1_3_DATA
