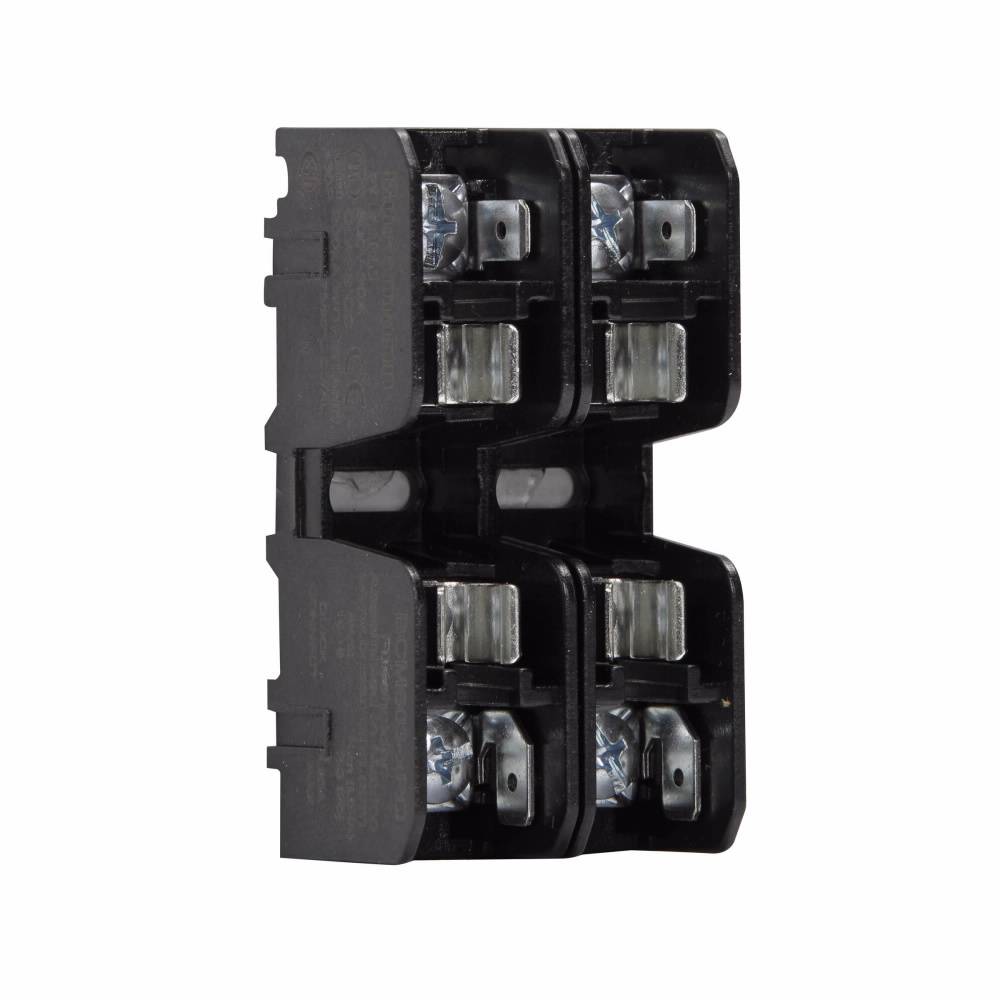

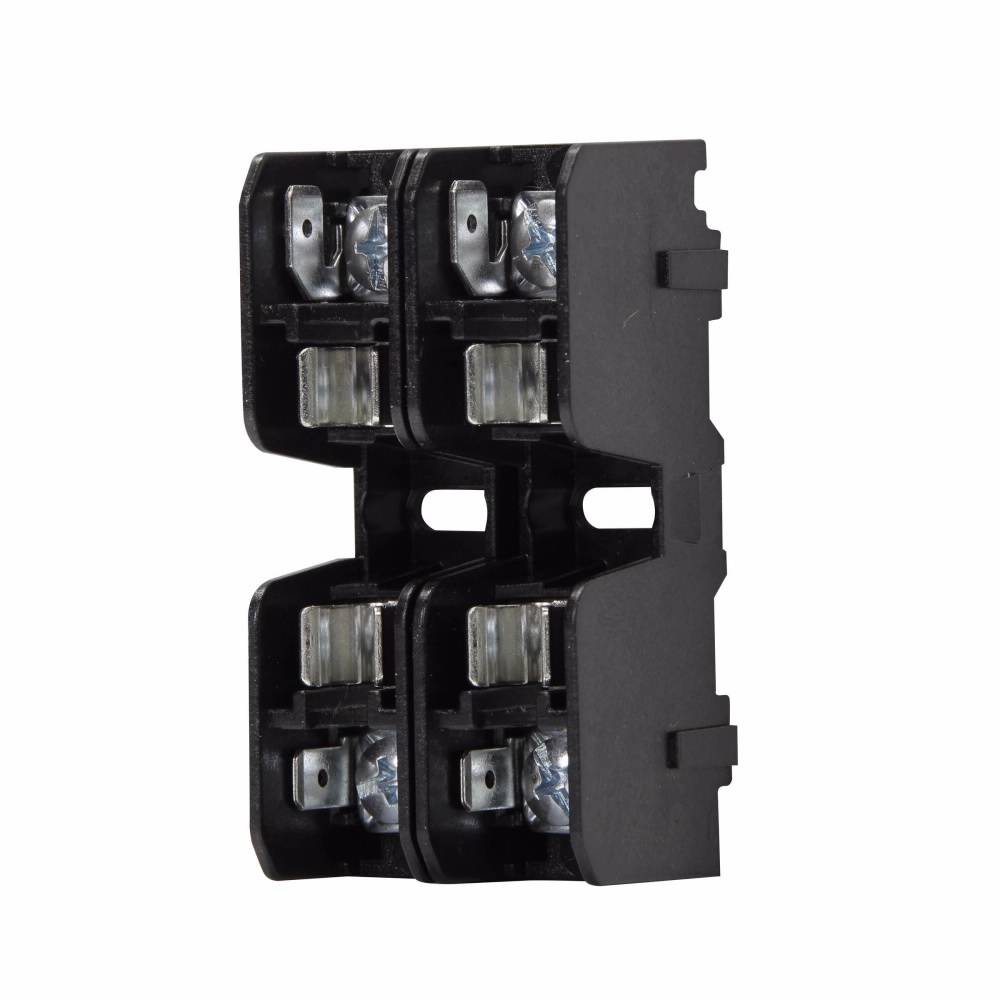

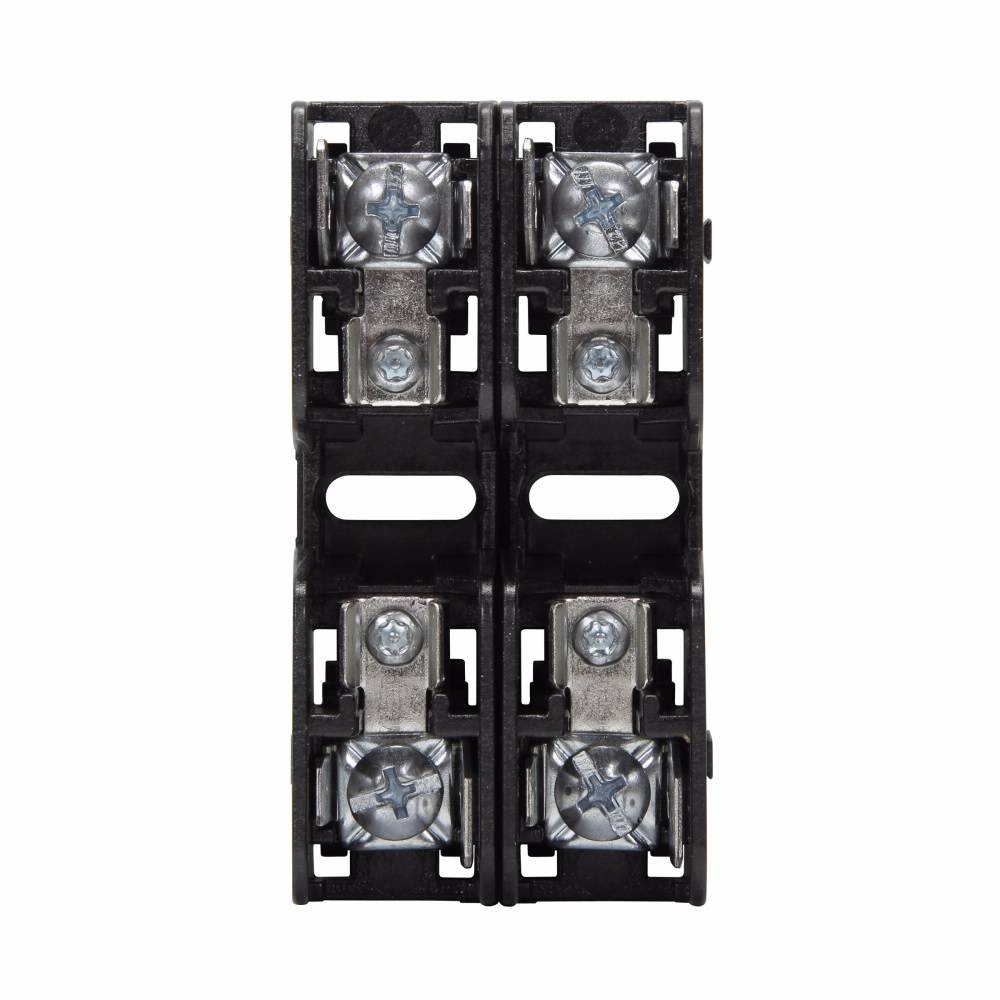

Bussmann BCM603-2PQ Modular Fuse Block With Pressure Plate, 600 VAC, 30 A, 18 to 10 AWG Wire, 2 Poles

Short Description

These new Bussmann series fuse blocks contain multiple features to add versatility, reduce labor and enhance safety of any panel design.

Bussmann Fuse Block, Modular, Series: BCM, 600 VAC, 30 A, 2 Pole, Class: CC, 1/4 in Quick-Connect/Pressure Plate, 18 to 10 AWG Wire, DIN Rail/Panel Mount, -40 to 120 deg C, For Use With: Low-Peak™ LP-CC Series Time Delay, Limitron™ FNQ-R Series Time Delay, Limitron™ KTK-R Series Fast Acting Fuse, Thermoplastic, 3 in L x 1.6 in W x 1.3 in H

MFG #: BCM603-2PQ

EECO #: BUBCM6032PQ

Brand: Bussmann
UPC #: 051712486736
Attributes
Features
Documents
Product Information
Attributes
Class
CC
UNSPSC
39121624
Approval
UL, CSA, CE
Material
Thermoplastic
Wire Size
18 to 10
Application
Electrical Assemblies, Panels and EOEMs Applications
Body Material
Thermoplastic
Mounting Type
DIN Rail/Panel
Terminal Type
Pressure Plate with Quick Connect
Voltage Rating
600
Connection Type
1/4 in Quick-Connect/Pressure Plate
Number Of Poles
2
Temperature Rating
-40 to 120
Fuse Voltage Rating
600 Volt
Type
Modular
Series
BCM
Clip Type
Bimetallic Copper Tin Plated
Fuse Type
Class CC
Dimensions
3 in L x 1.6 in W x 1.3 in H
Amperage Rating
30
Fuse Current Rating
30 Amp
Suitable For Use With
Low-Peak™ LP-CC Series Time Delay, Limitron™ FNQ-R Series Time Delay, Limitron™ KTK-R Series Fast Acting Fuse
Features
  • Blocks are fully modular with a snap together design that provides tool less assembly of multiple pole blocks at point-of-use to reduce inventory and save assembly time and labor
  • DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
  • Compact footprint consumes minimal panel space
  • Tin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
COBUSSE02762_1_3
COBUSSE02770_1_2
COBUSSE03317_8_6_8_7
Qty Unit price
Ea
1 $16.20

Slqt
1 $16.20

Stpk
1 $81.00

Unit
1 $16.20
