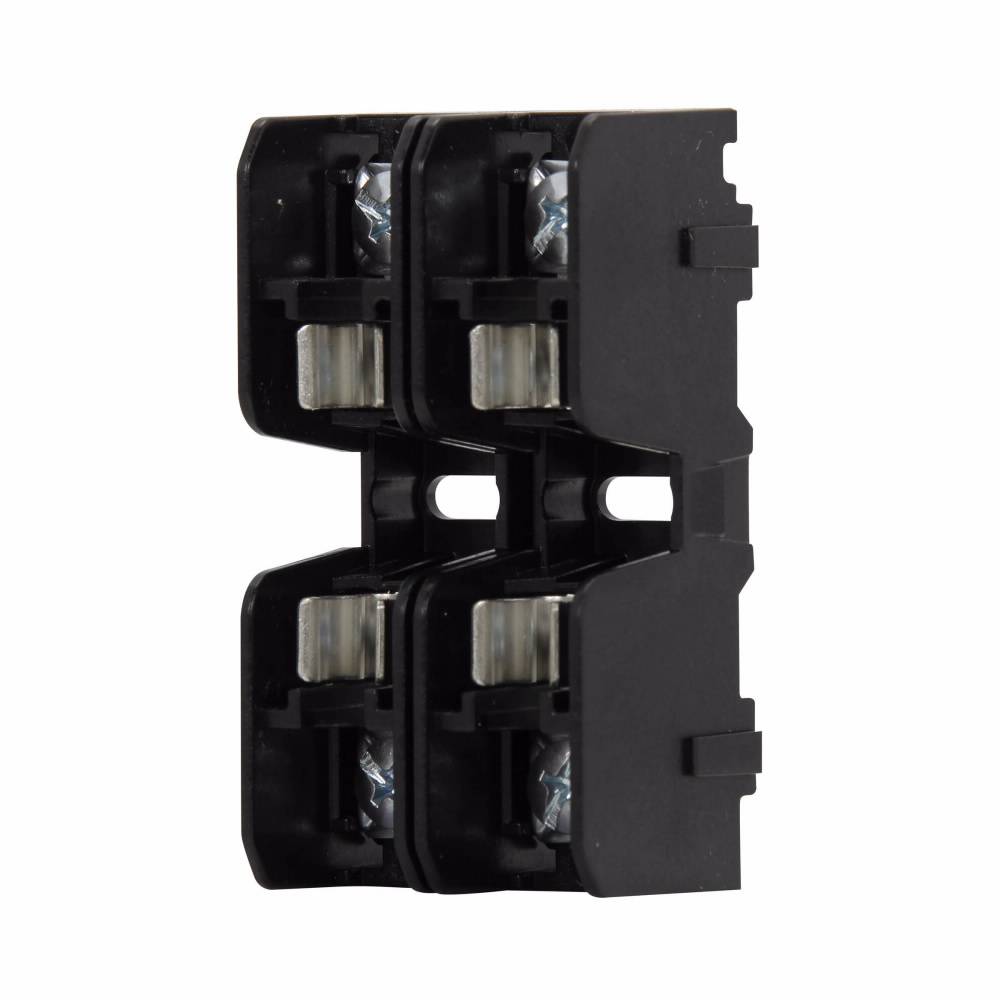

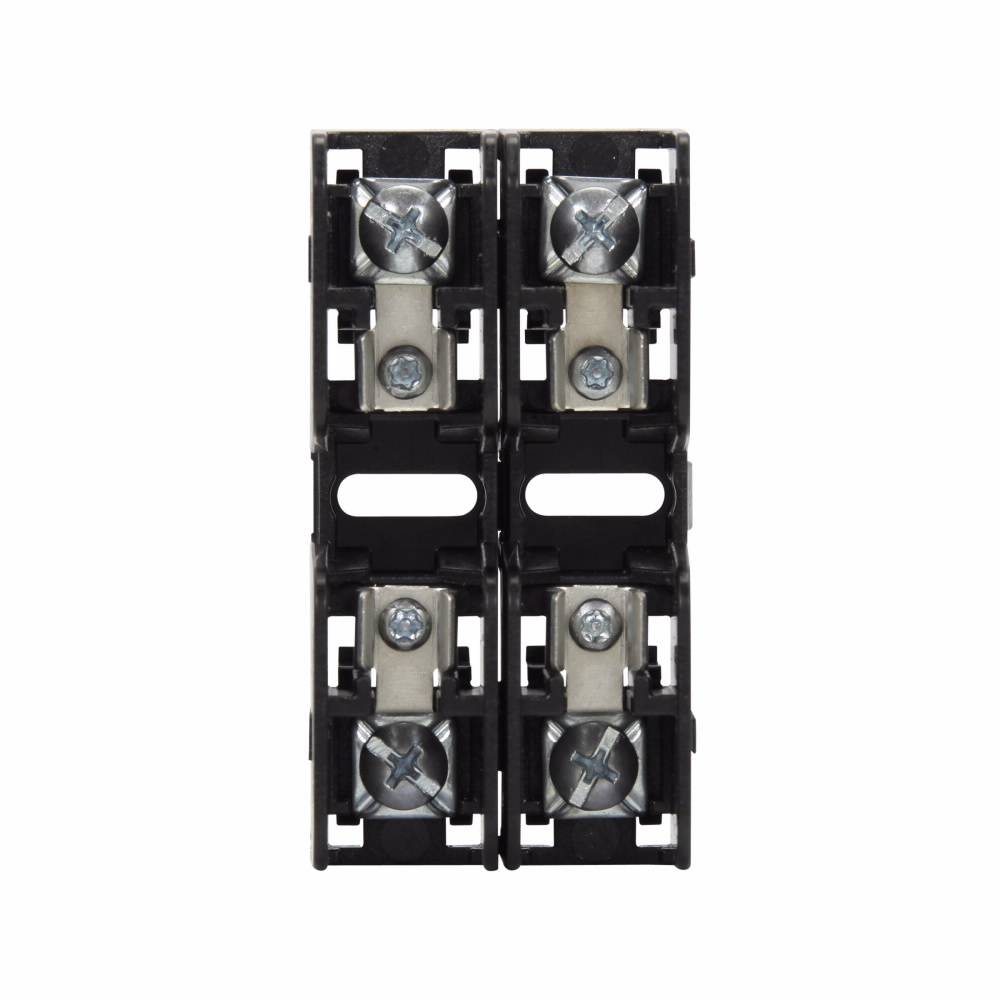

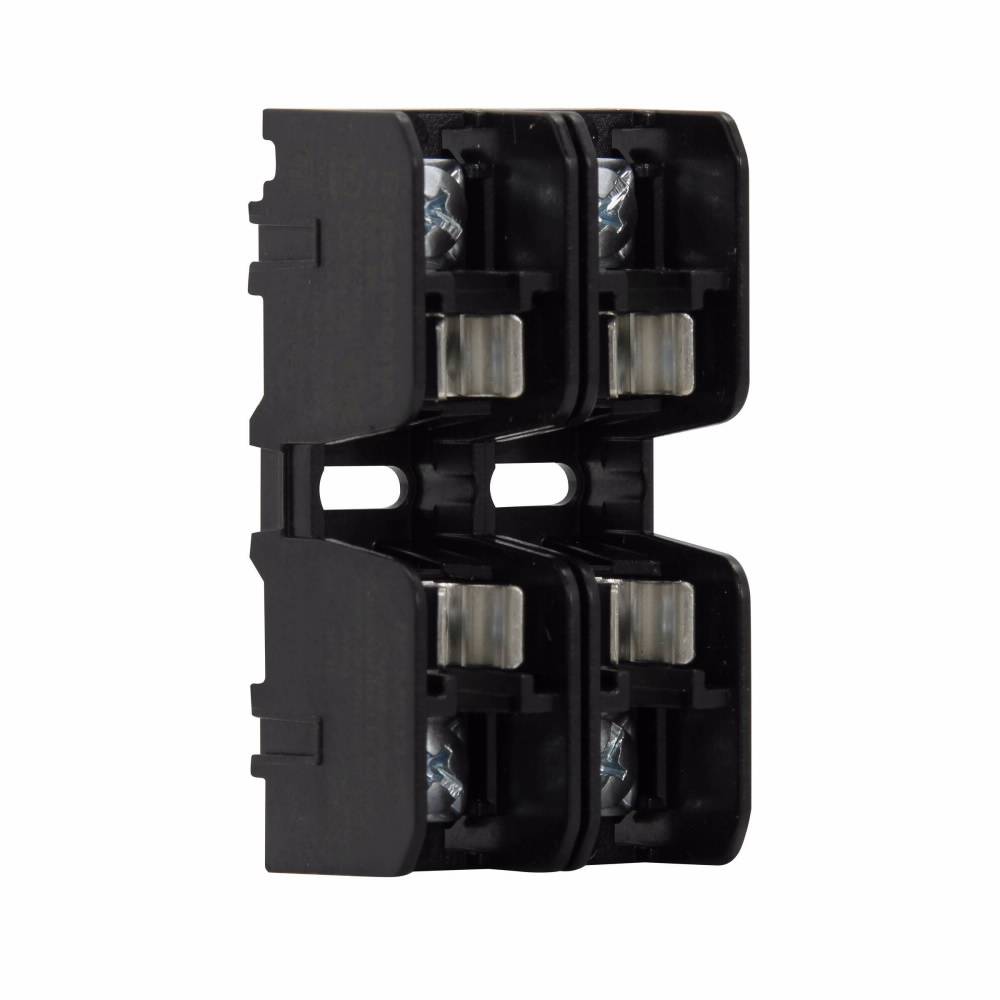

Edison BCM603-2P BC Series Modular Fuse Block With Pressure Plate, 600 VAC/VDC, 30 A, 2 Poles

Short Description

BCM (Class CC) and BMM (supplemental 13/32 x 1-1/2 in/10 x 38 mm) modular style fuse blocks with optional covers. These Bussmann series fuse blocks contain multiple features to add versatility, reduce labor and enhance safety of any panel design.

Edison Fuse Block, Modular, Series: BC Series, 600 VAC/VDC, 30 A, 2 Poles, Class: CC, Panel Mounting, Thermoplastic, 3.03 in L x 1.58 in W x 1.3 in H Dimensions

MFG #: BCM603-2P

EECO #: BUBCM6032P

Brand: Edison
UPC #: 051712486316
Attributes
Features
Documents
Product Information
Attributes
Class
CC
UNSPSC
39121624
Approval
UL, CSA, CE
Material
Thermoplastic
Wire Size
18 to 10 AWG (Copper)
Application
Electrical Assemblies, Panels and OEMs Applications
Body Material
Thermoplastic
Mounting Type
Panel
Terminal Type
Pressure Plate
Voltage Rating
600
Number Of Poles
2
Temperature Rating
-40 to 120
Fuse Voltage Rating
600 Volt
Type
Modular
Series
BC Series
Clip Type
Bimetallic Copper Tin Plated
Fuse Type
Class CC
Dimensions
3.03 in L x 1.58 in W x 1.3 in H
Amperage Rating
30
Fuse Current Rating
30 Amp
Features
  • Blocks are fully modular with a snap together design that provides toolless assembly of multiple pole blocks at point of use to reduce inventory and save assembly time and labor
  • DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
  • Compact footprint consumes minimal panel space
  • Tin plated bi-metallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
  • Standard contact factory
COBUSSE02762_1_3
COBUSSE02770_1_2
COBUSSE03317_8_6_8_7
Edison_BCM6031C_Catalog
Qty Unit price
Ea
1 $15.78

Slqt
1 $15.78

Stpk
1 $78.90

Unit
1 $15.78
