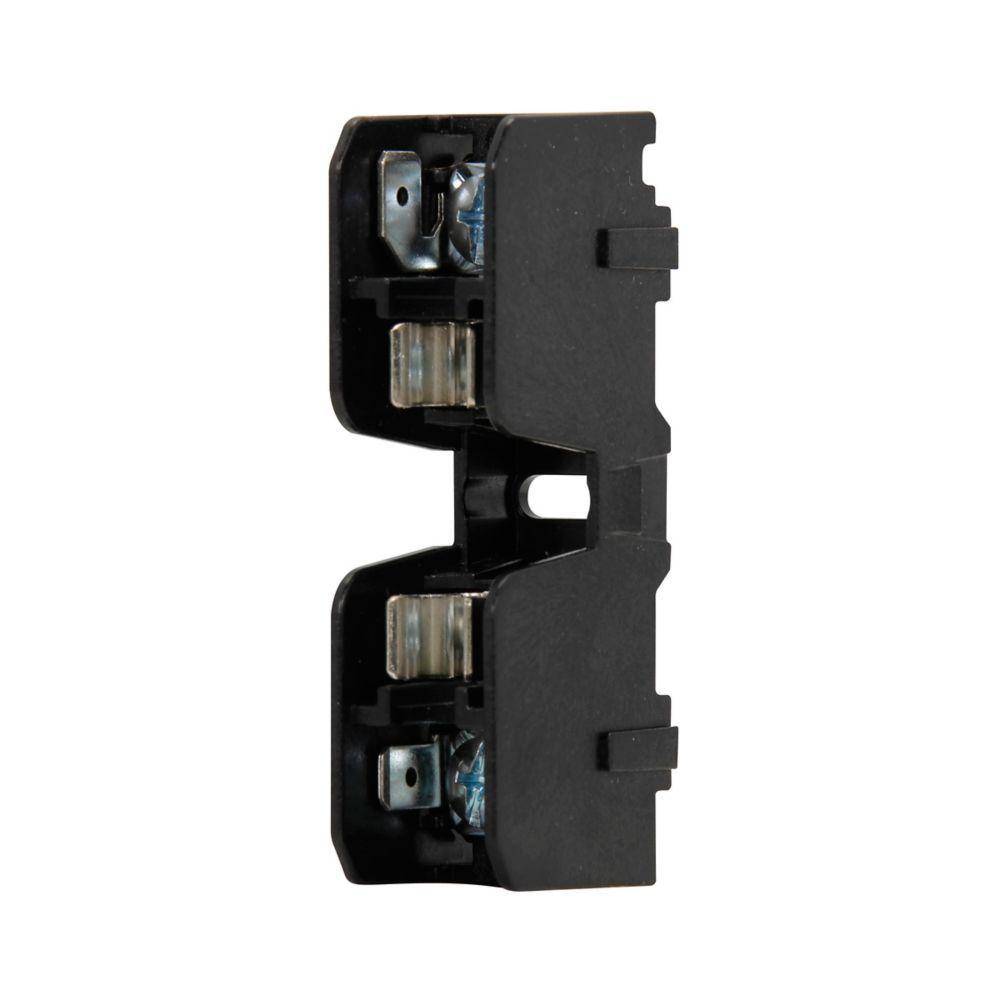

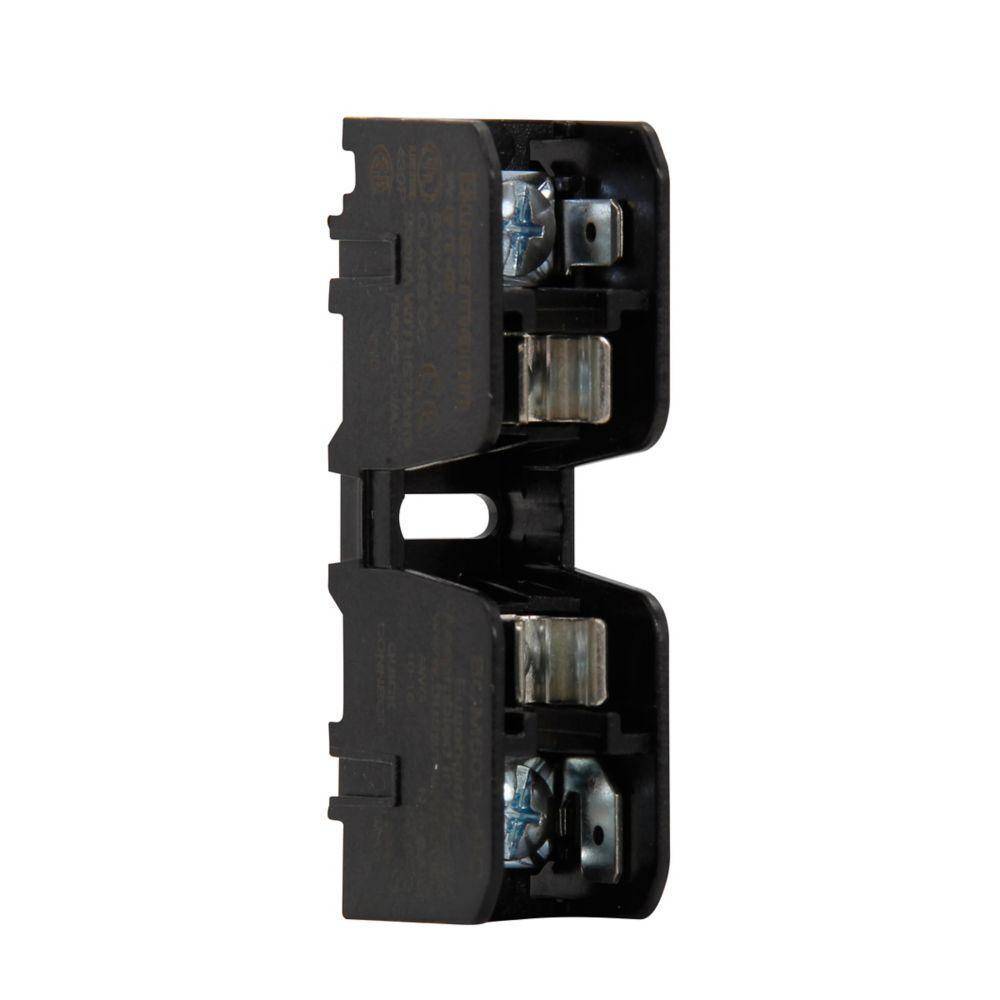

Bussmann BCM603-1PQ Modular Fuse Block With Pressure Plate, 600 VAC, 30 A, 18 to 10 AWG Wire, 1 Poles

Short Description

These new Bussmann series fuse blocks contain multiple features to add versatility, reduce labor and enhance safety of any panel design.

Bussmann Fuse Block, Modular, Series: BCM, 600 VAC, 30 A, 1 Pole, Class: CC, 1/4 in Quick-Connect/Pressure Plate, 18 to 10 AWG Wire, DIN Rail/Panel Mount, -40 to 120 deg C, For Use With: Low-Peak™ LP-CC Series Time Delay, Limitron™ FNQ-R Series Time Delay, Limitron™ KTK-R Series Fast Acting Fuse, Thermoplastic, 3 in L x 0.8 in W x 1.3 in H
MFG #: BCM603-1PQ

EECO #: BUBCM6031PQ

Brand: Bussmann
UPC #: 051712486330
Attributes
Features
Documents
Product Information
Attributes
Class
CC
UNSPSC
39121624
Material
Thermoplastic
Wire Size
18 to 10
Application
Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
DIN Rail/Panel
Voltage Rating
600
Connection Type
1/4 in Quick-Connect/Pressure Plate
Temperature Rating
-40 to 120
Type
Modular
Series
BCM
Dimensions
3 in L x 0.8 in W x 1.3 in H
Amperage Rating
30
Suitable For Use With
Low-Peak™ LP-CC Series Time Delay, Limitron™ FNQ-R Series Time Delay, Limitron™ KTK-R Series Fast Acting Fuse
Features
  • Blocks are fully modular with a snap together design that provides tool less assembly of multiple pole blocks at point-of-use to reduce inventory and save assembly time and labor
  • DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
  • Compact footprint consumes minimal panel space
  • Tin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
Bussmann_BCM603_1PQ_Specification_Sheet
