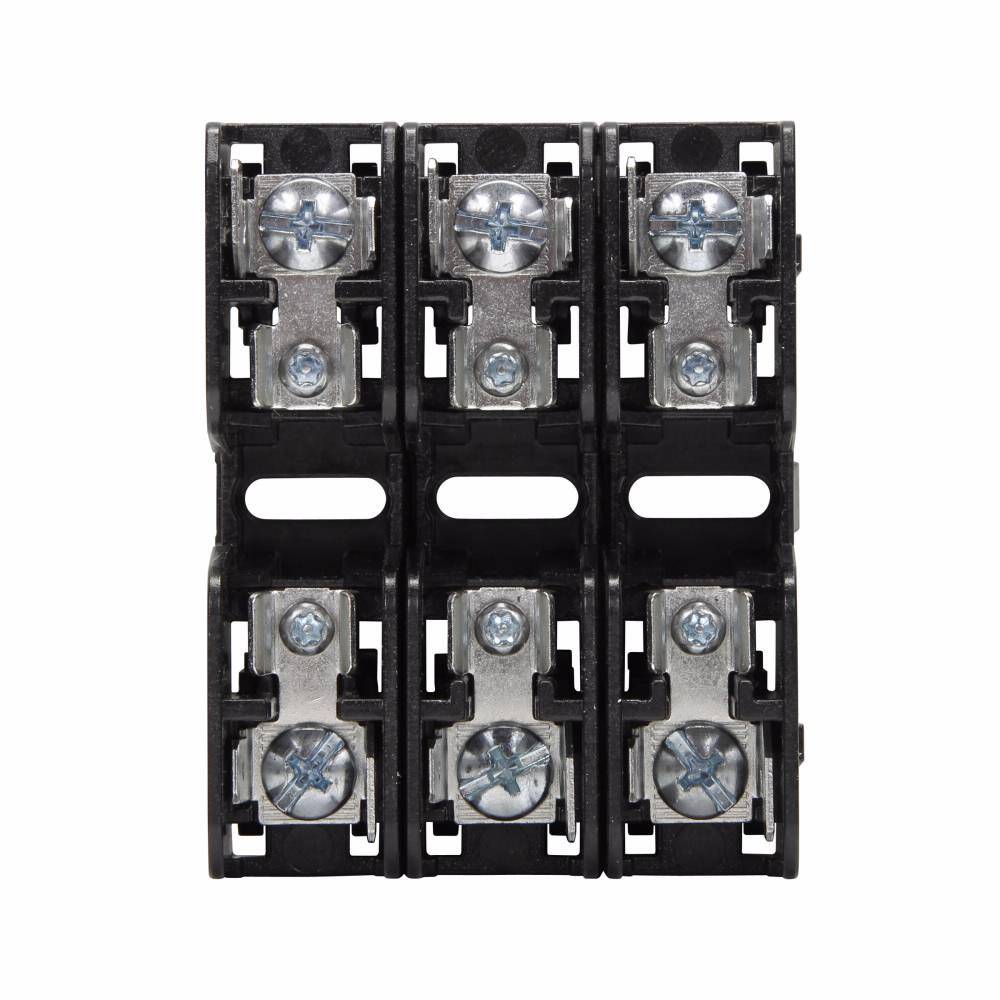

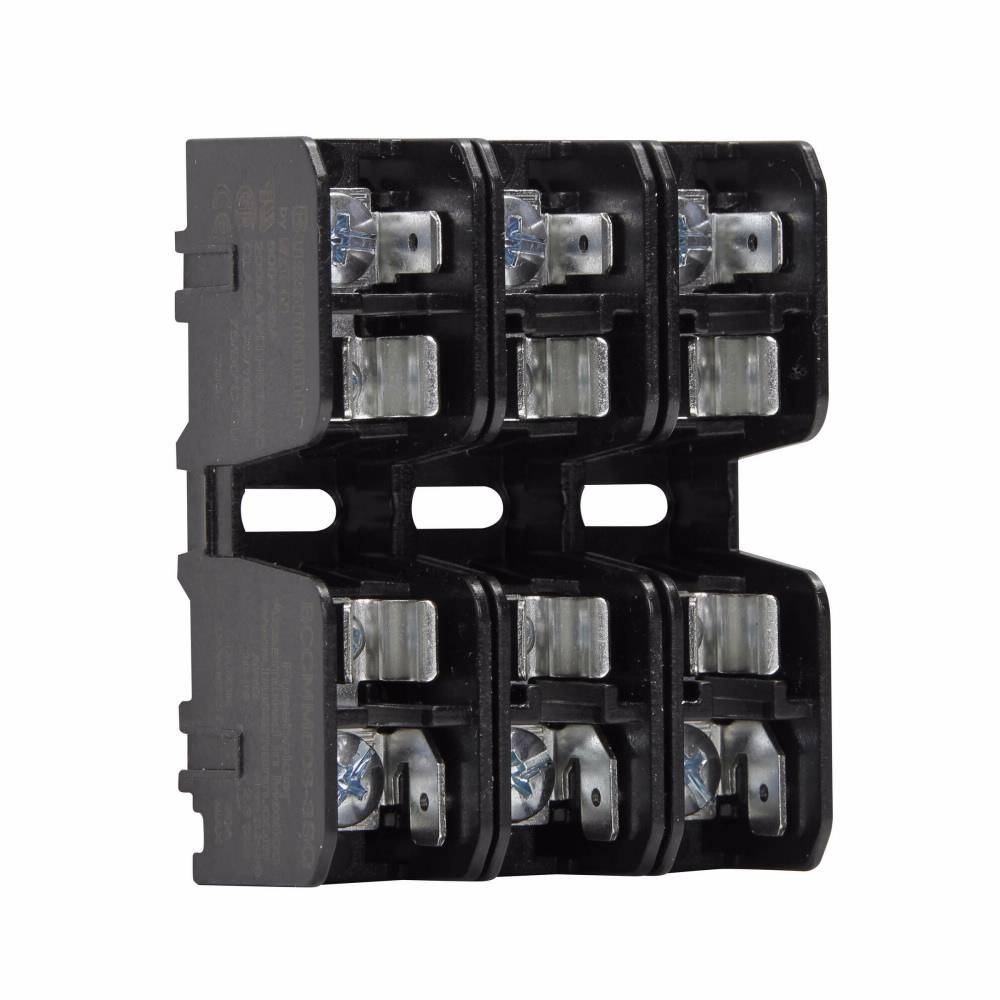

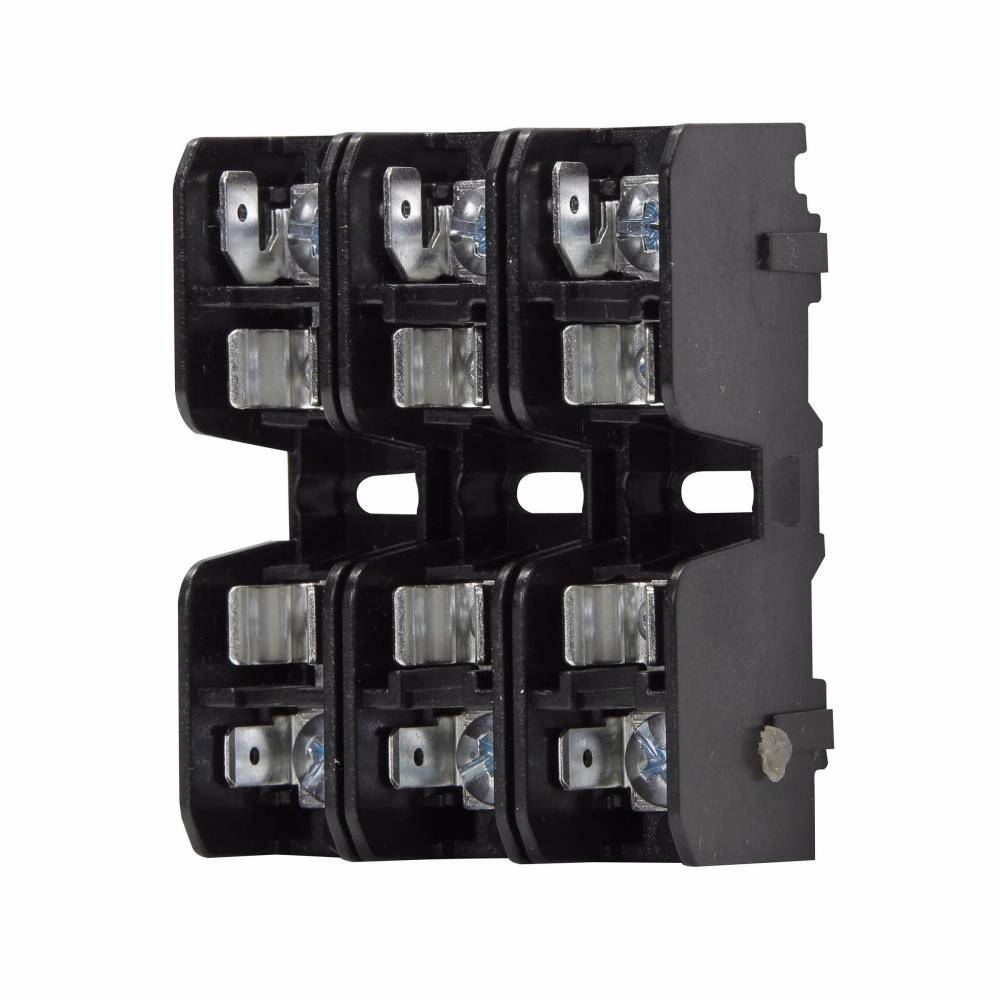

Edison BCCMM603-3SQ BMM Supplemental Modular Ferrule Fuse Block, 600 VAC/VDC, 30 A, 3 Poles

Short Description

BCM (Class CC) and BMM (supplemental 13/32 x 1-1/2 in/10 x 38 mm) modular style fuse blocks with optional covers. These Bussmann series fuse blocks contain multiple features to add versatility, reduce labor and enhance safety of any panel design.

Edison Modular Ferrule Fuse Block, Supplemental, Series: BMM, 600 VAC/VDC, 30 A, 3 Pole, Class: CC, Quick-Connect Connection, DIN Rail Mounting, -40 to 120 deg C, For Use With: 3/32 x 1-1/2 (10 x 38 mm) Midget Fuses, Thermoplastic, 3.03 in L x 2.36 in W x 1.3 in H Dimensions
MFG #: BCCMM603-3SQ

EECO #: BUBCCMM6033SQ

Brand: Edison
UPC #: 051712486514
Attributes
Features
Documents
Product Information
Attributes
Class
CC
UNSPSC
39121624
Material
Thermoplastic
Application
Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
DIN Rail
Voltage Rating
600
Connection Type
Quick-Connect
Temperature Rating
-40 to 120
Type
Supplemental
Series
BMM
Includes
Screw
Dimensions
3.03 in L x 2.36 in W x 1.3 in H
Amperage Rating
30
Suitable For Use With
3/32 x 1-1/2 (10 x 38 mm) Midget Fuses
Features
  • Blocks are fully modular with a snap-together design that provides tool-less assembly of multiple pole blocks at point-of-use to reduce inventory and save assembly time and labor
  • DIN-rail and panel mount versatility allows one product to be used for multiple applications, lowering inventory cost
  • Compact footprint consumes minimal panel space
  • Tin-plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
  • 1/4 in quick-connect terminal maximum ampacity dependent on female spade connector and wire ratings
BCCMM603_3SQ_Specification_Sheet
