Eaton

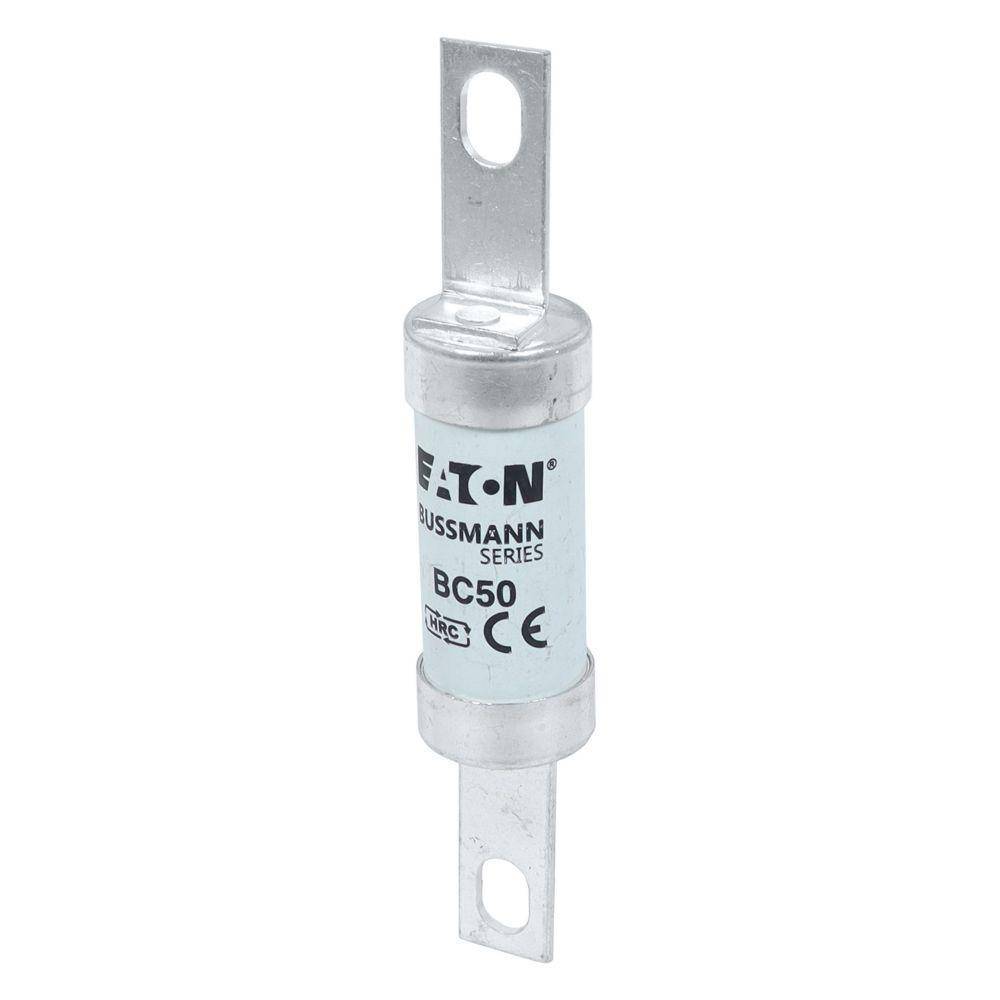

Bussmann BC50 BC Series 2-Hole British Standard Low Voltage HRC Fuse Link, 250/500 VAC/VDC, 50 A, Ceramic

Short Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann HRC Fuse Link, 2-Hole British Standard Low Voltage, Series: BC Series, 250/500 VAC/VDC, 50 A, 4.9 W, Rated Breaking Capacity: 40/80 kA, Stud Mount, Ceramic, 21 mm Dia x 113.5 mm L
MFG #: BC50

EECO #: BUBC50

Brand: Bussmann
UPC #: 051712844468
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Material
Ceramic
Application
Industrial Applications
Power Rating
4.9
Mounting Type
Stud
Voltage Rating
250/500
Type
2-Hole British Standard Low Voltage
Series
BC Series
Dimensions
21 mm Dia x 113.5 mm L
Amperage Rating
50
Features
  • Good peak let through current limitation
  • 1:1:6 selective coordination ratio between minor and major fuse
  • GG characteristics for cable protection and general purpose applications
  • Power loss values within the limits of IEC 60269
Bussmann_BC50_Specification_Sheet
