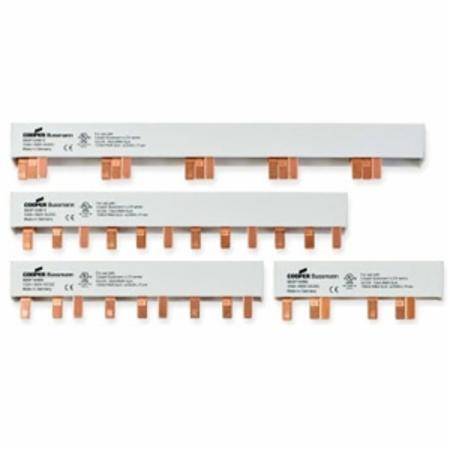

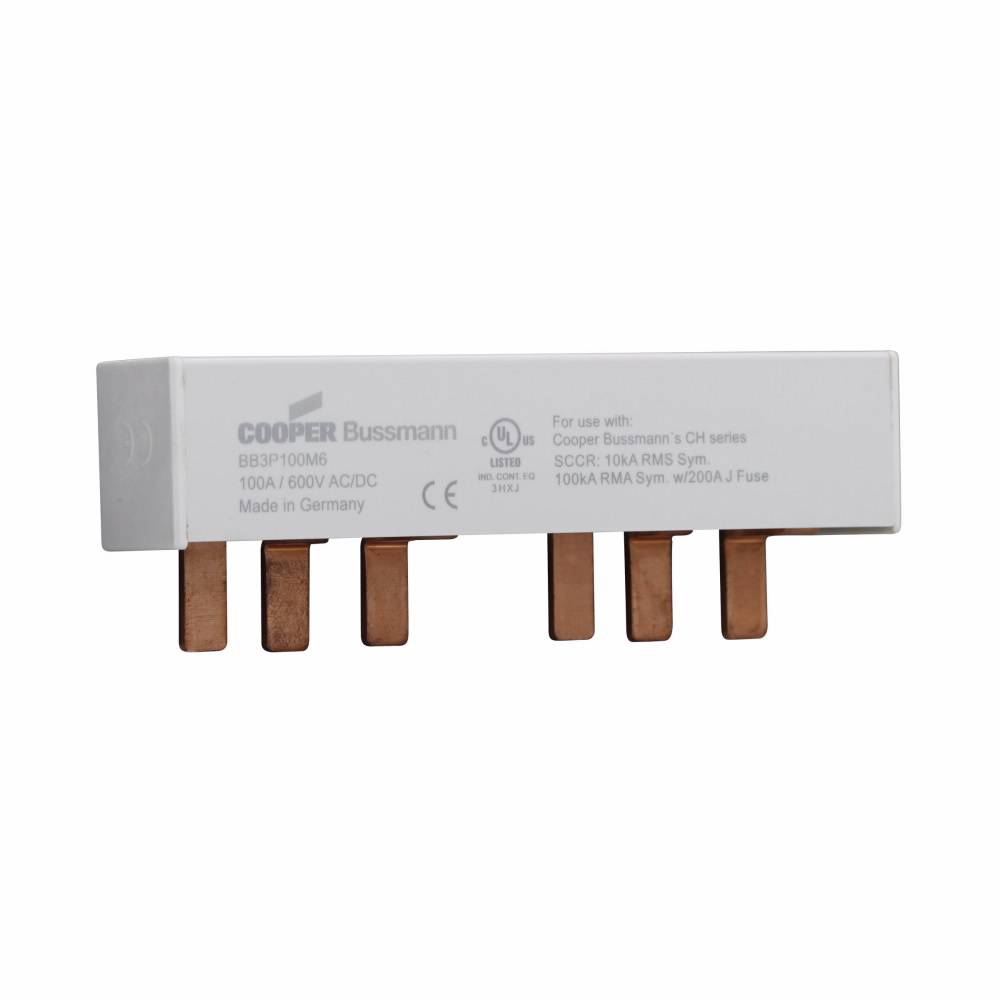

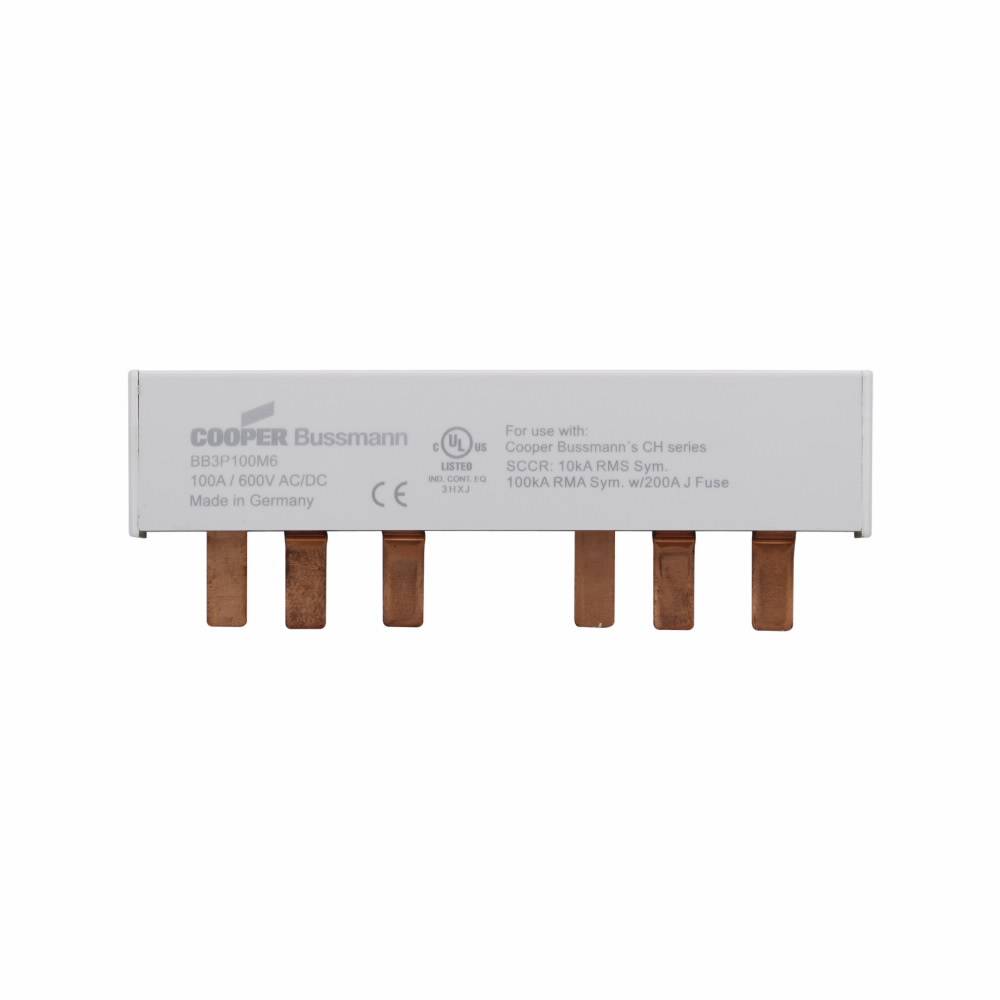

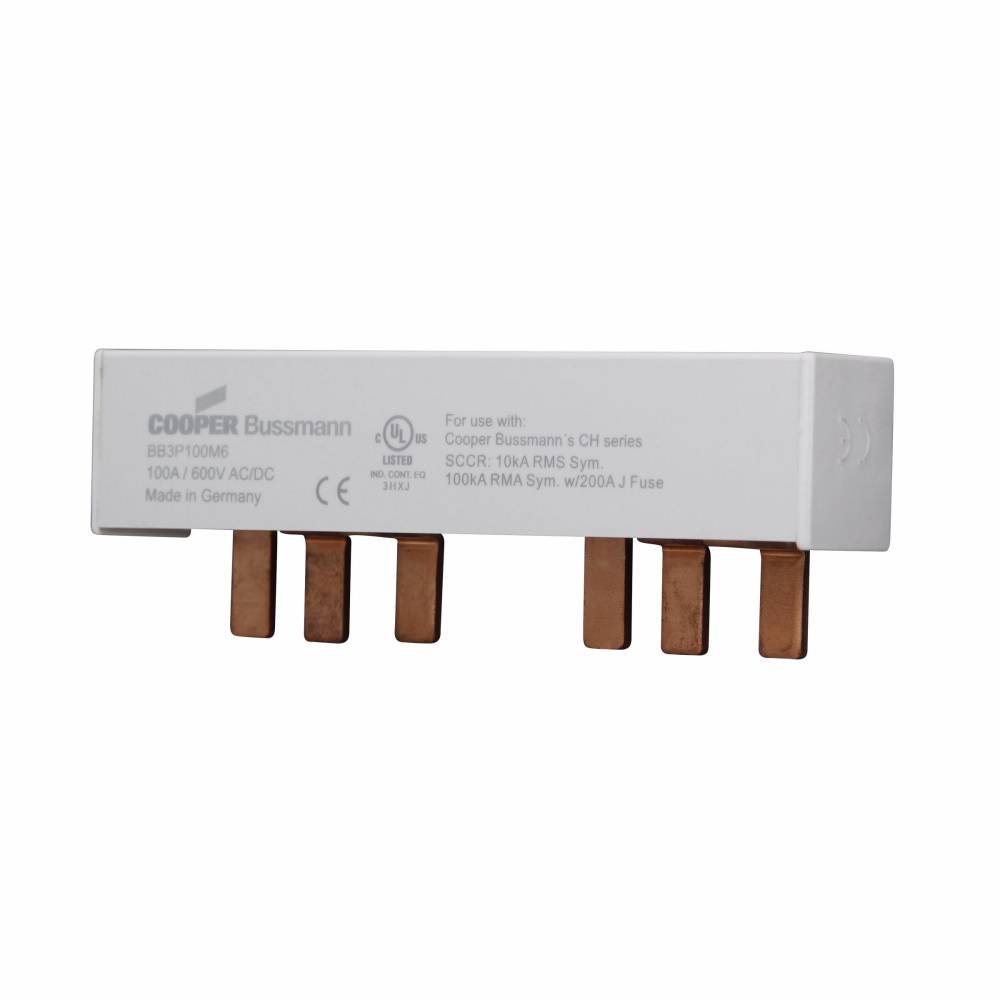

Bussmann BB3P100M6 6-Pin Modular Combination Busbar With Endcaps Assembled, For Use With Class CC, Midget and PV Fuses, 600 VAC/VDC, 100 A, 3 ph, Class J, 17.8 mm Pitch

Short Description

600 VAC, 100 A, 3-Phase, 6-Pin, Class J, Combination, Modular Busbar W/End Cap

Bussmann Combination Busbar, 6-Pin Modular, For Use With: Class CC, Midget and PV Fuses, 600 VAC/VDC, 100 A, 3 ph, Class J, 17.8 mm Pitch, 106 mm L

MFG #: BB3P100M6

EECO #: BUBB3P100M6

Brand: Bussmann
UPC #: 051712366038
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121624
Application
Electrical Assemblies, Panels and OEMs Applications
Maximum DC Voltage Rating
600 Volt DC
Type
6-Pin Modular
Height
0.001 Inch
Amperage
100 Amp
Dimensions
106 mm L
Specifications
600 VAC/VDC, 100 A, 3 ph, Class J, 17.8 mm Pitch
Suitable For Use With
Class CC, Midget and PV Fuses
Features
  • Easily distribute power in single or three phase systems
  • Flexible cut to length busbars do not compromise the finger safe protection
  • Power feed terminals for single and three ph systems
  • 10 kA (default), 100 kA SCCR when protected by a maximum 200 A class J fuse
