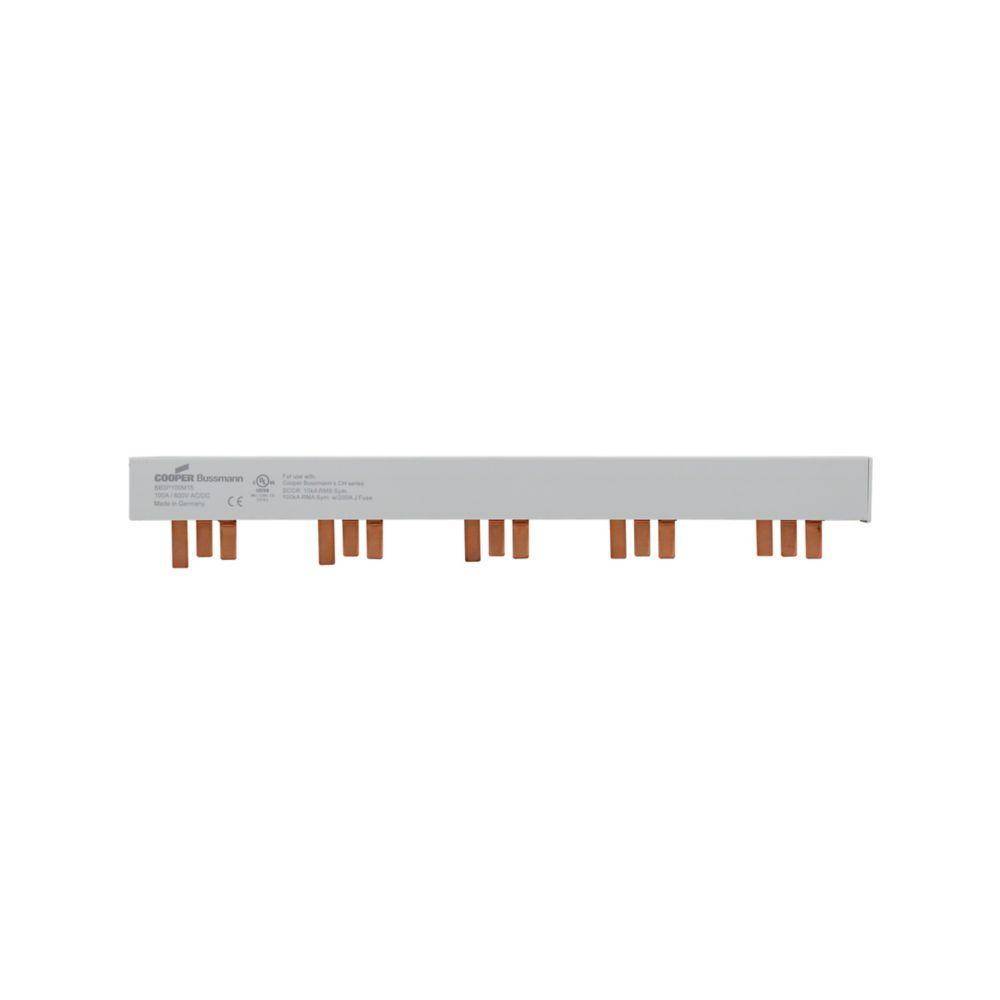

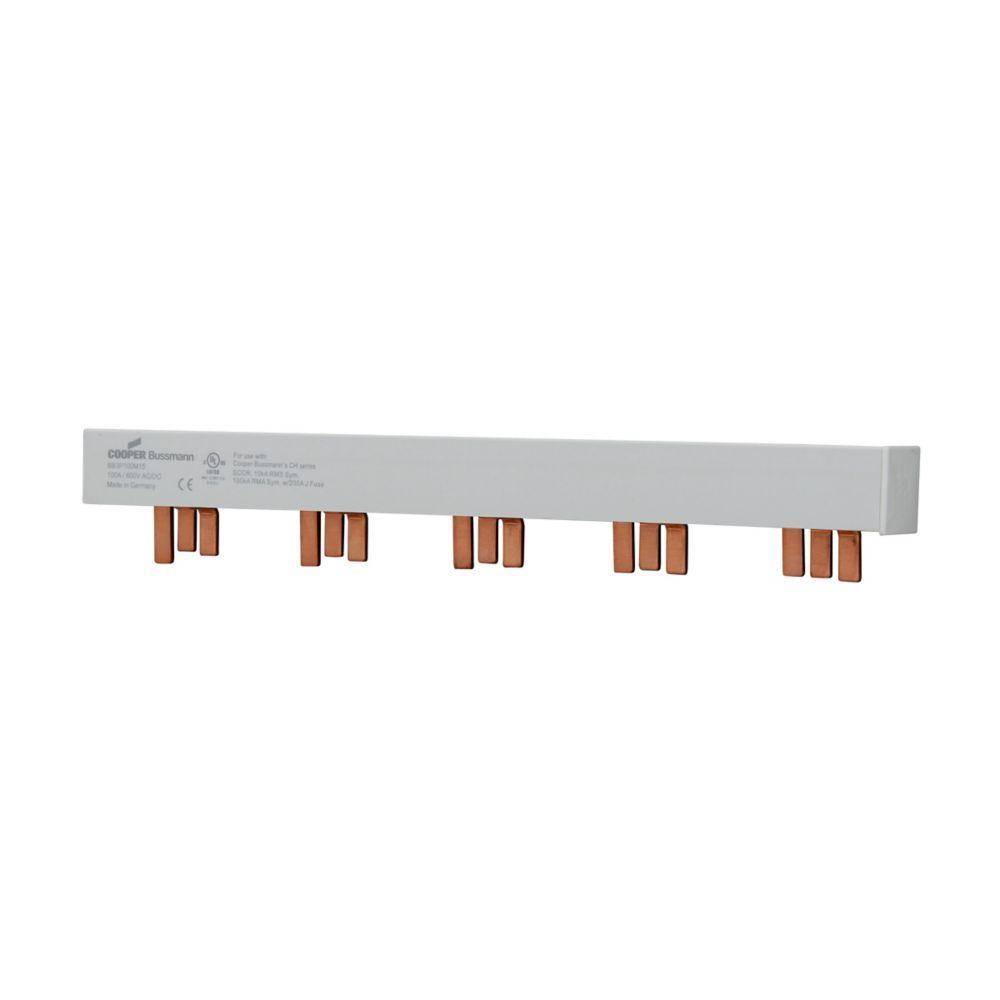

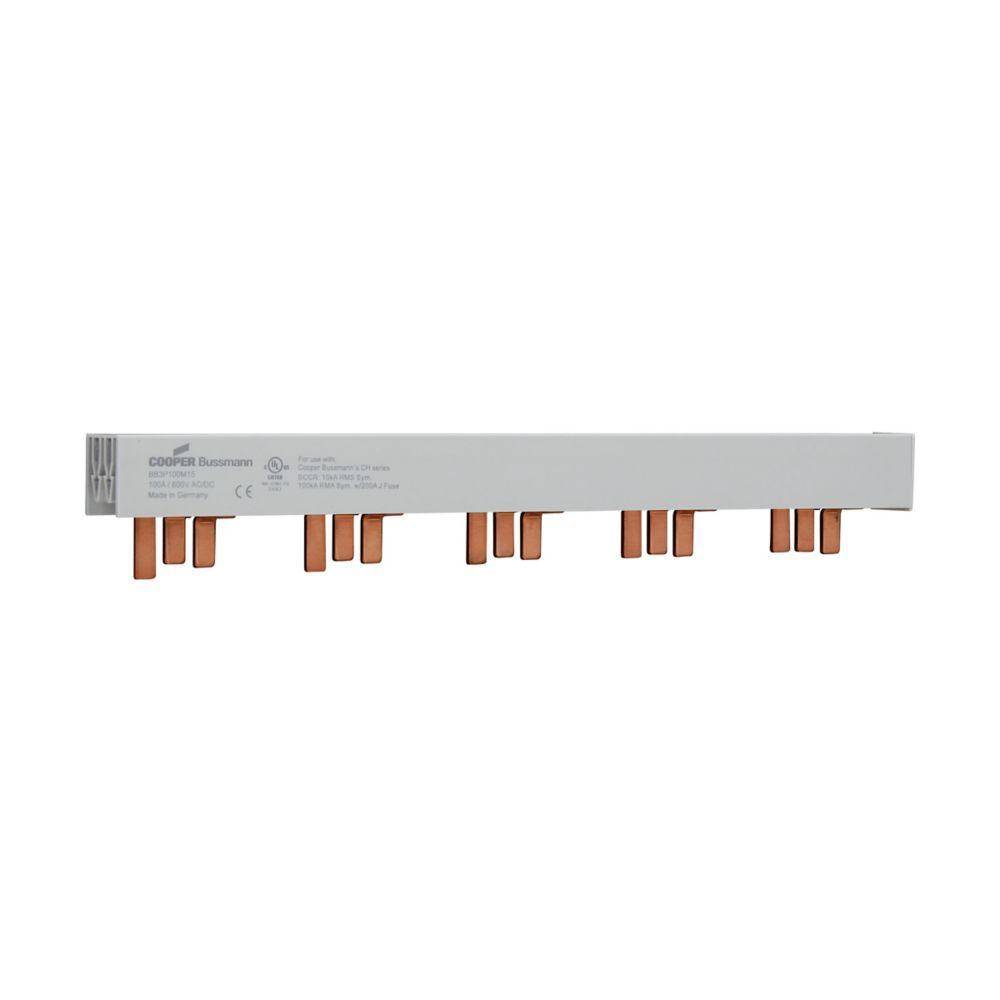

Bussmann BB3P100M15 15-Pin Modular Combination Busbar With Endcaps Assembled, For Use With Class CC, Midget and PV Fuses, 600 VAC/VDC, 100 A, 3 ph, Class J, 17.8 mm Pitch

Short Description

Enhance your electrical system with the Bussmann BB3P100M15 15-Pin Modular Combination Busbar, designed for seamless integration with Class CC, Midget, and PV fuses. This robust busbar supports 600 VAC/VDC and 100 A, ensuring reliable performance in three-phase applications. Compact and efficient, it features a 17.8 mm pitch and comes fully assembled with endcaps for your convenience.Enhanced by AI

Bussmann Combination Busbar, 15-Pin Modular, For Use With: Class CC, Midget and PV Fuses, 600 VAC/VDC, 100 A, 3 ph, Class J, 17.8 mm Pitch, 10 in L x 2 in W x 1 in H

MFG #: BB3P100M15

EECO #: BUBB3P100M15

Brand: Bussmann
UPC #: 051712366069
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121624
Application
Electrical Assemblies, Panels and OEMs Applications
Type
15-Pin Modular
Dimensions
10 in L x 2 in W x 1 in H
Specifications
600 VAC/VDC, 100 A, 3 ph, Class J, 17.8 mm Pitch
Suitable For Use With
Class CC, Midget and PV Fuses
Features
  • Easily distribute power in single or three phase systems
  • Flexible cut to length busbars do not compromise the finger safe protection
  • Power feed terminals for single and three ph systems
  • 10 kA (default), 100 kA SCCR when protected by a maximum 200 A class J fuse
