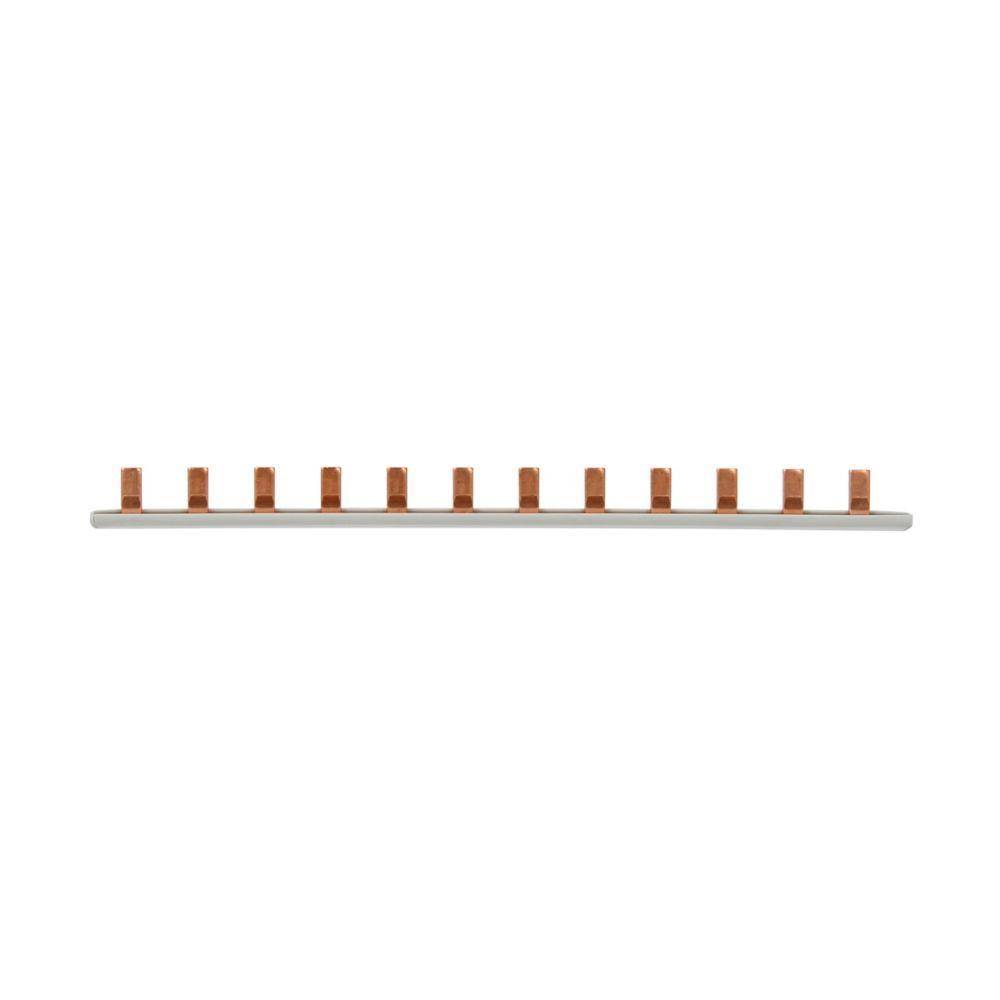

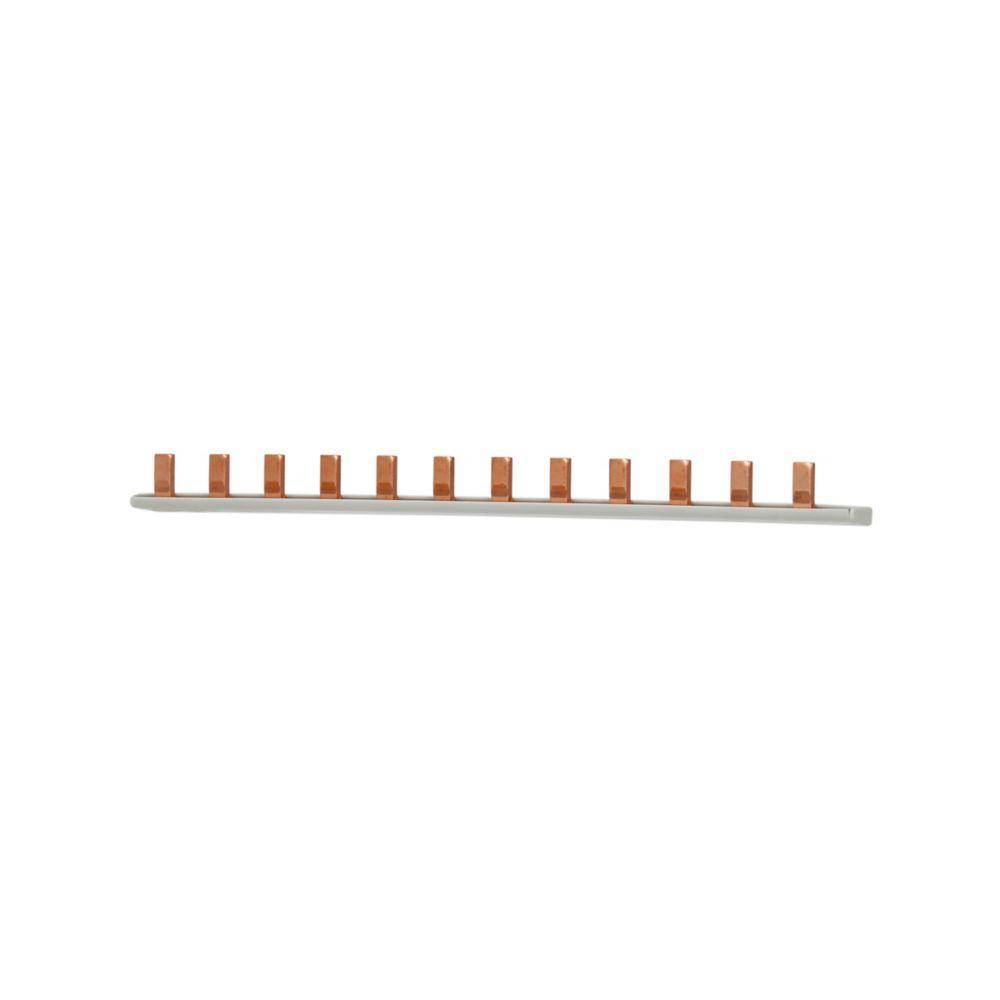

Bussmann BB1P100M12 1-Phase 12-Pin Modular Combination Busbar With Assembled End Cap, For Use With PV Series Class J/CC/Supplemental Non-Indicating Fuse, 100 VDC, 100 A

Short Description

Enhance your electrical system with the Bussmann BB1P100M12 1-Phase 12-Pin Modular Combination Busbar. Designed for seamless integration with PV Series Class J/CC fuses, this robust busbar supports up to 100 VDC and 100 A, ensuring reliable performance and safety in your applications.Enhanced by AI

Bussmann Combination Busbar, 1-Phase 12-Pin Modular, For Use With: PV Series Class J/CC/Supplemental Non-Indicating Fuse, 100 VDC, 100 A, 208 mm L

MFG #: BB1P100M12

EECO #: BUBB1P100M12

Brand: Bussmann
UPC #: 051712366007
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121624
Application
Electrical Assemblies, Panels and EOEMs Applications
Type
1-Phase 12-Pin Modular
Dimensions
208 mm L
Specifications
100 VDC, 100 A
Suitable For Use With
PV Series Class J/CC/Supplemental Non-Indicating Fuse
Features
  • Flexible cut to length solutions without compromising on the product's finger safe features
  • 100 kA short circuit current rating when protected by a 200 A class J fuse
  • 1 ph bus bars rated to 1000 VDC and 100 A in end fed configuration
  • Power feed terminals for 1 ph systems
Bussmann_BB1P100M12_Specification_Sheet
