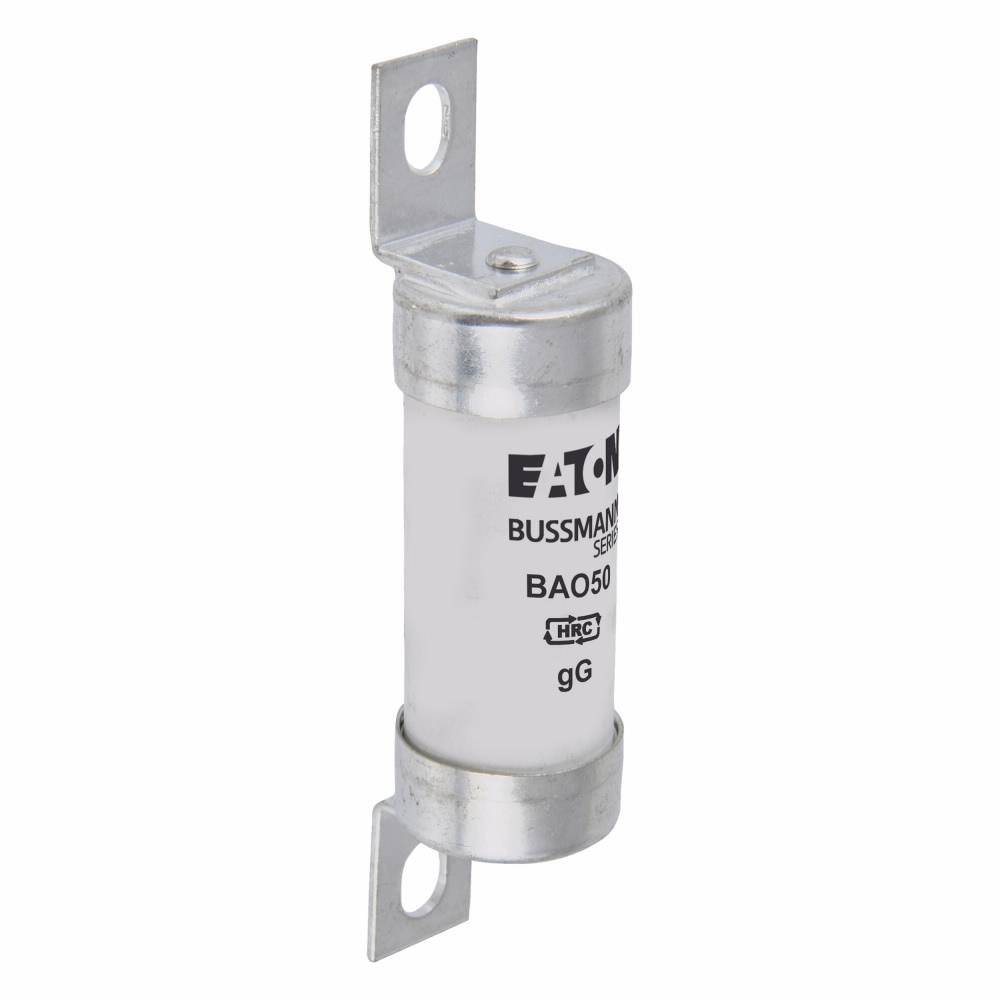

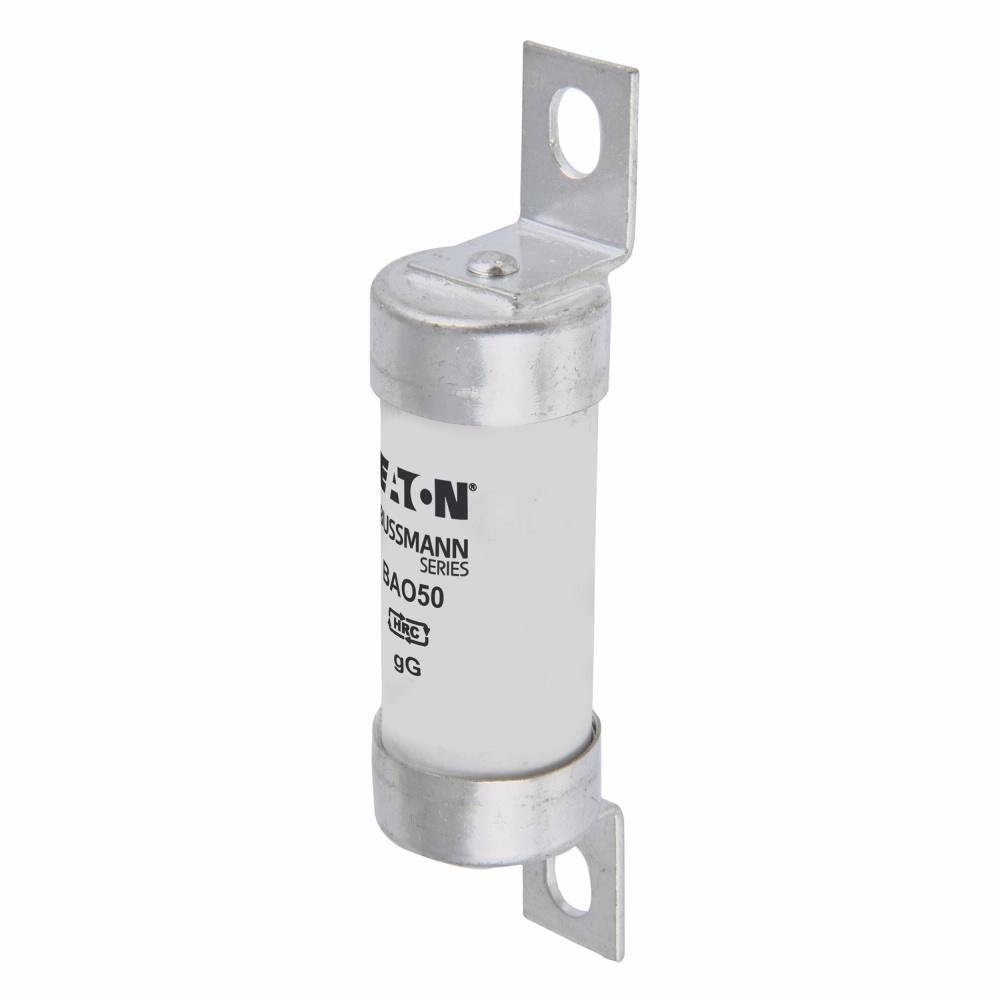

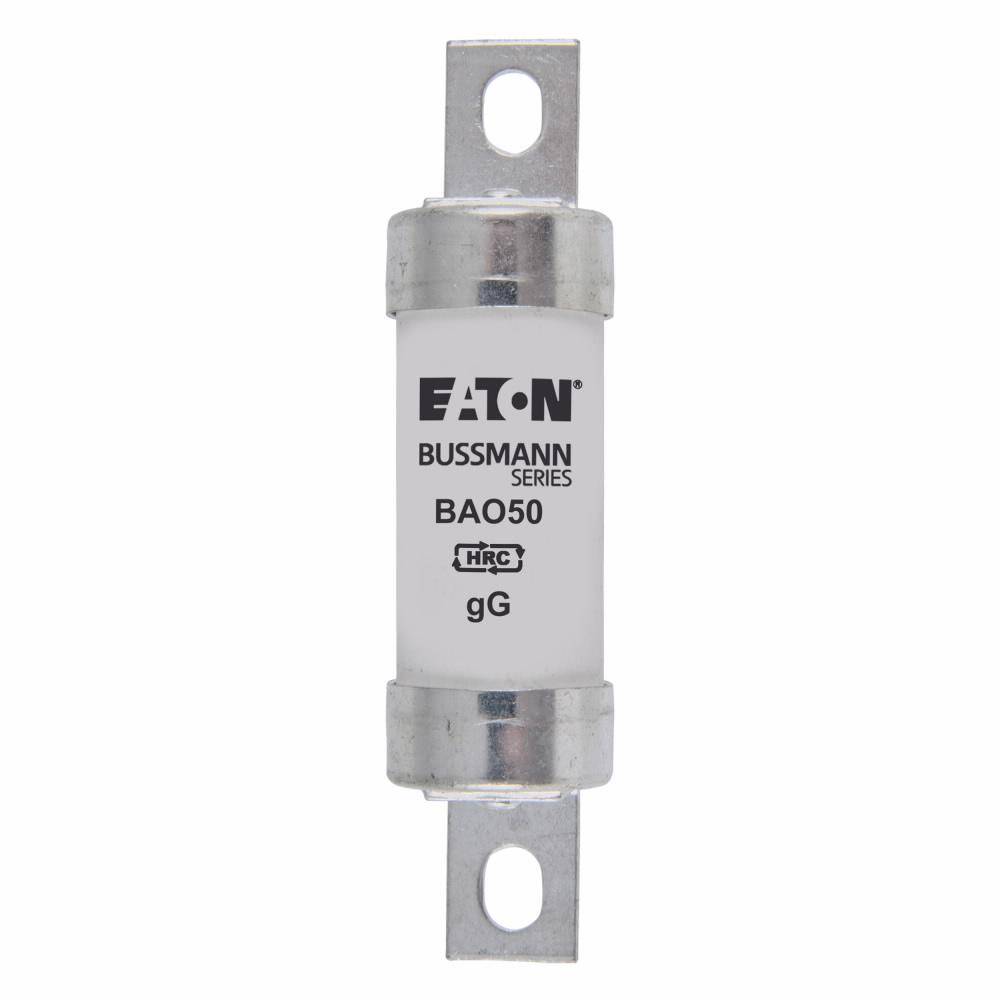

Edison BAO50 Offset Bolted Tag Low Voltage HRC Fuse Link, 500 VAC, 50 A, Ceramic
Edison BAO50 Offset Bolted Tag Low Voltage HRC Fuse Link, 500 VAC, 50 A, Ceramic
Edison BAO50 Offset Bolted Tag Low Voltage HRC Fuse Link, 500 VAC, 50 A, Ceramic
Edison BAO50 Offset Bolted Tag Low Voltage HRC Fuse Link, 500 VAC, 50 A, Ceramic
Edison BAO50 Offset Bolted Tag Low Voltage HRC Fuse Link, 500 VAC, 50 A, Ceramic
Edison BAO50 Offset Bolted Tag Low Voltage HRC Fuse Link, 500 VAC, 50 A, Ceramic
Edison BAO50 Offset Bolted Tag Low Voltage HRC Fuse Link, 500 VAC, 50 A, Ceramic
Edison BAO50 Offset Bolted Tag Low Voltage HRC Fuse Link, 500 VAC, 50 A, Ceramic
Share Share Print Print
Eaton

Edison BAO50 Offset Bolted Tag Low Voltage HRC Fuse Link, 500 VAC, 50 A, Ceramic

Short Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Edison HRC Fuse Link, Offset Bolted Tag Low Voltage, Series: BAO, 500 VAC, 50 A, Rated Breaking Capacity: 80 kA, Ceramic, 87 mm W x 22 mm D x 21 mm H
MFG #: BAO50

EECO #: BUBAO50

Brand: Edison
UPC #: 051712838559
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Material
Ceramic
Application
For used with the protection of general industrial applications example power distribution, cable protection and motor protection
Mounting Type
Stud
Voltage Rating
500
Type
Offset Bolted Tag Low Voltage
Series
BAO
Dimensions
87 mm W x 22 mm D x 21 mm H
Amperage Rating
50
Suitable For Use With
Class C/gG/gL Fuse
Features
  • BAO types are low voltage fuses complying with general purpose gG characteristics
  • Good peak let-through current limitation
  • 1:1:6 selective coordination ratio between "minor" and "major" fuse
  • Power loss values well within the limits of IEC 60269-2
CEO100_RoHS_01
BAO50_Specification_Sheet_01
everwhere
Edison BAO50 Offset Bolted Tag Low Voltage HRC Fuse Link, 500 VAC, 50 A, Ceramic
