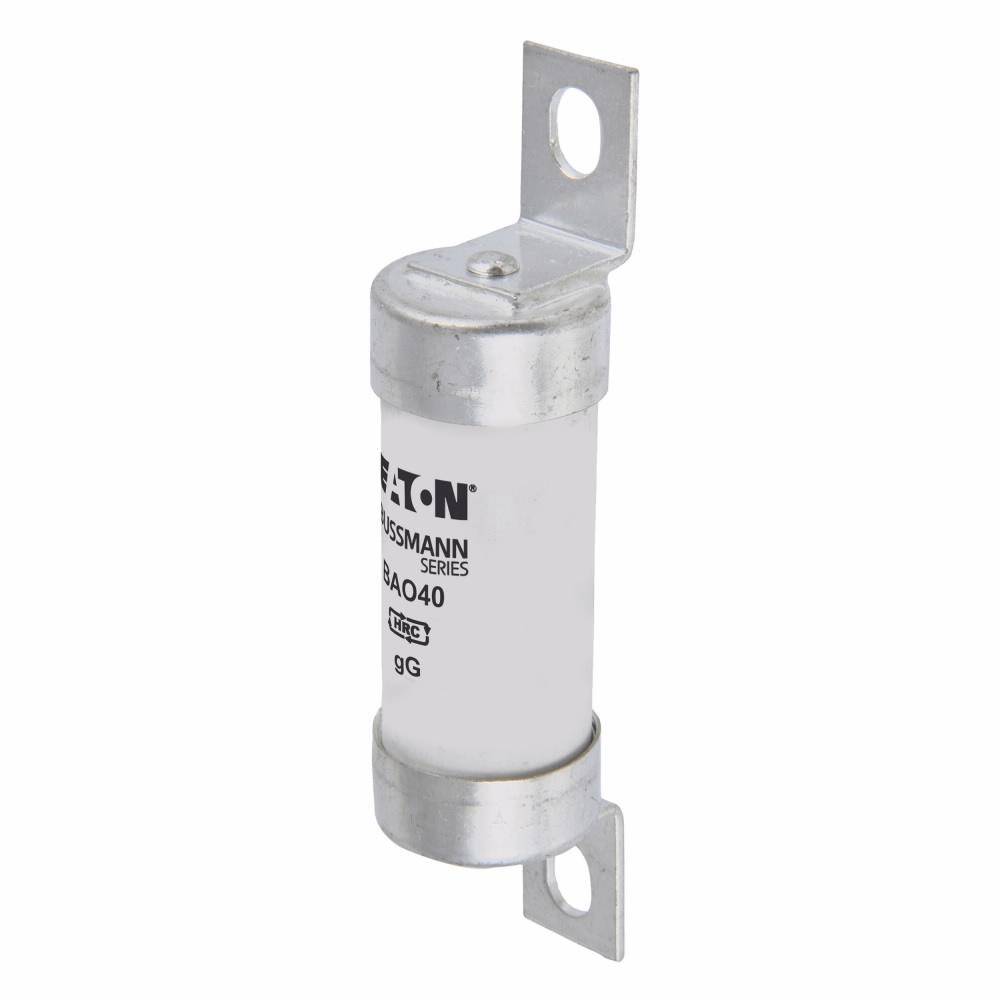

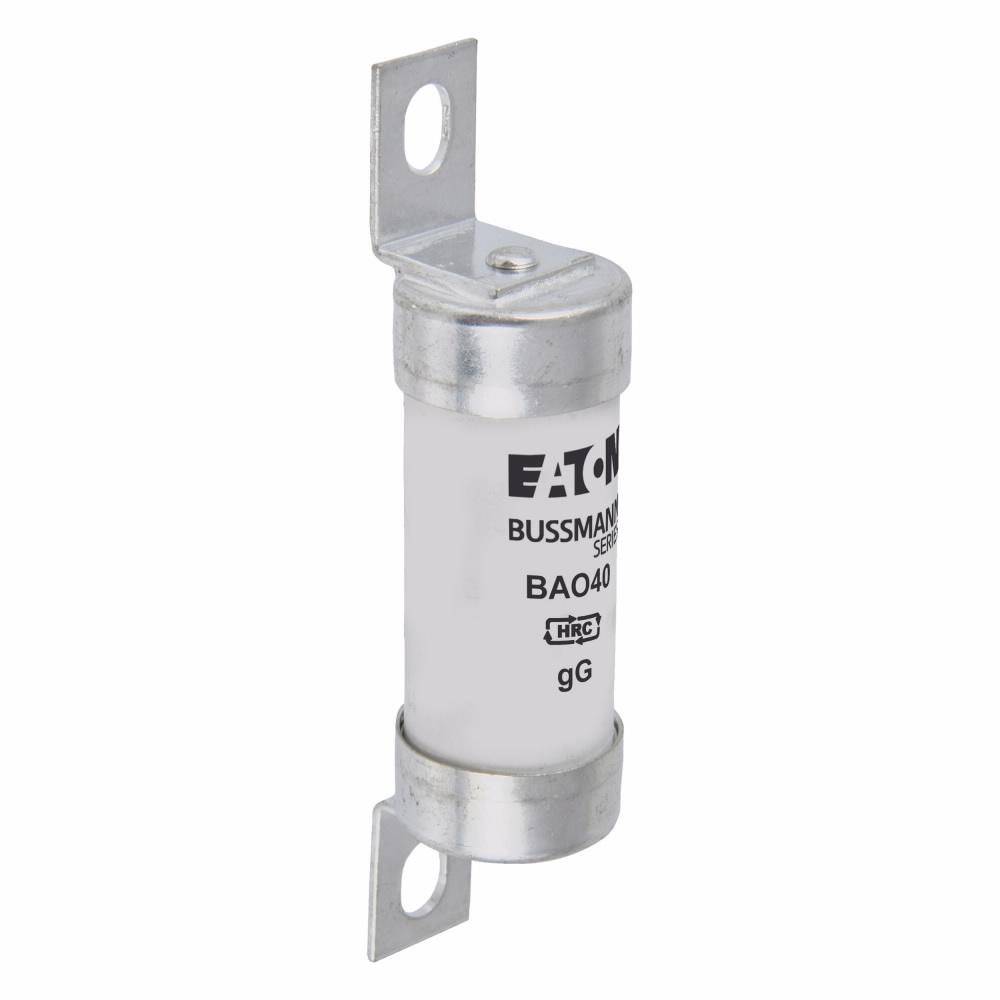

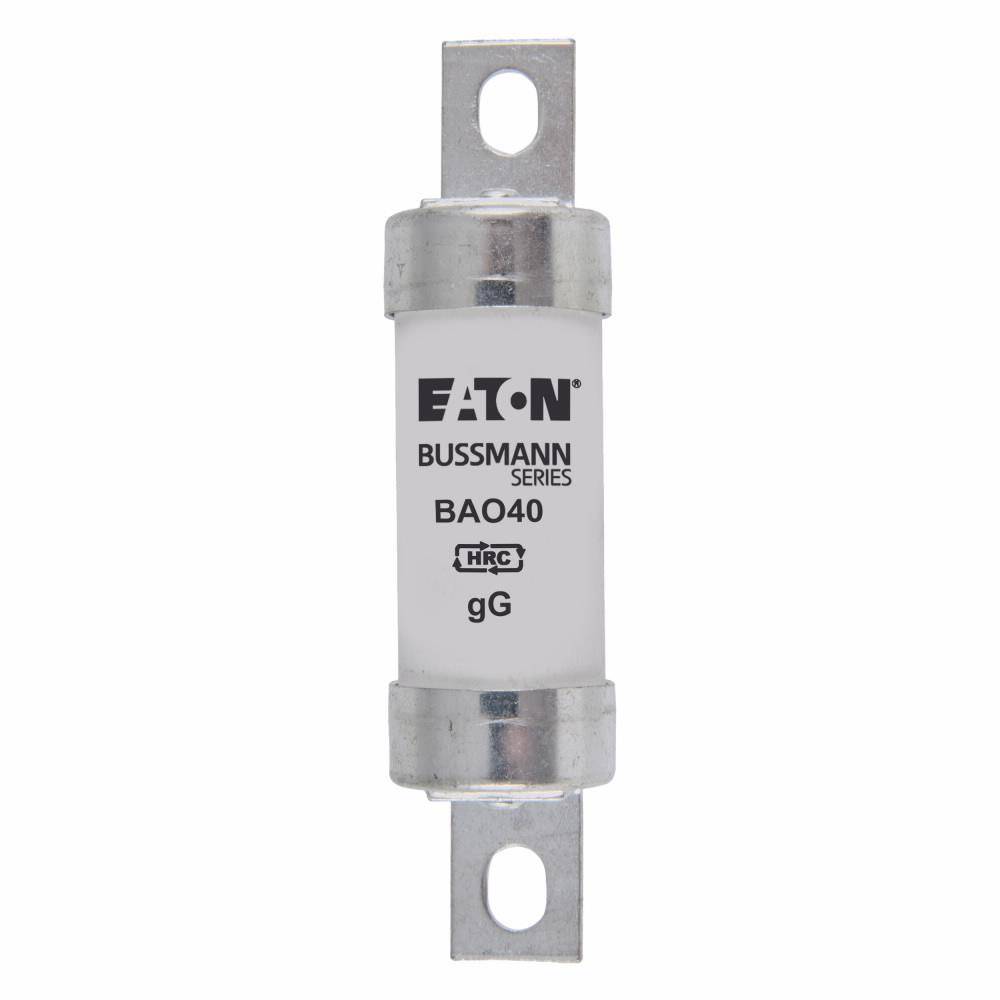

Edison BAO40 Offset Bolted Tag Low Voltage HRC Fuse Link, 500 VAC, 40 A, Ceramic
Edison BAO40 Offset Bolted Tag Low Voltage HRC Fuse Link, 500 VAC, 40 A, Ceramic
Edison BAO40 Offset Bolted Tag Low Voltage HRC Fuse Link, 500 VAC, 40 A, Ceramic
Edison BAO40 Offset Bolted Tag Low Voltage HRC Fuse Link, 500 VAC, 40 A, Ceramic
Edison BAO40 Offset Bolted Tag Low Voltage HRC Fuse Link, 500 VAC, 40 A, Ceramic
Edison BAO40 Offset Bolted Tag Low Voltage HRC Fuse Link, 500 VAC, 40 A, Ceramic
Share Share Print Print
Eaton

Edison BAO40 Offset Bolted Tag Low Voltage HRC Fuse Link, 500 VAC, 40 A, Ceramic

Short Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Edison HRC Fuse Link, Offset Bolted Tag Low Voltage, Series: BAO, 500 VAC, 40 A, Rated Breaking Capacity: 80 kA, Ceramic, 87 mm W x 22 mm D x 21 mm H
MFG #: BAO40

EECO #: BUBAO40

Brand: Edison
UPC #: 051712838542
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Material
Ceramic
Application
For used with the protection of general industrial applications example power distribution, cable protection and motor protection
Mounting Type
Stud
Voltage Rating
500
Type
Offset Bolted Tag Low Voltage
Series
BAO
Dimensions
87 mm W x 22 mm D x 21 mm H
Amperage Rating
40
Features
  • BAO types are low voltage fuses complying with general purpose gG characteristics
  • Good peak let-through current limitation
  • 1:1:6 selective coordination ratio between "minor" and "major" fuse
  • Power loss values well within the limits of IEC 60269-2
