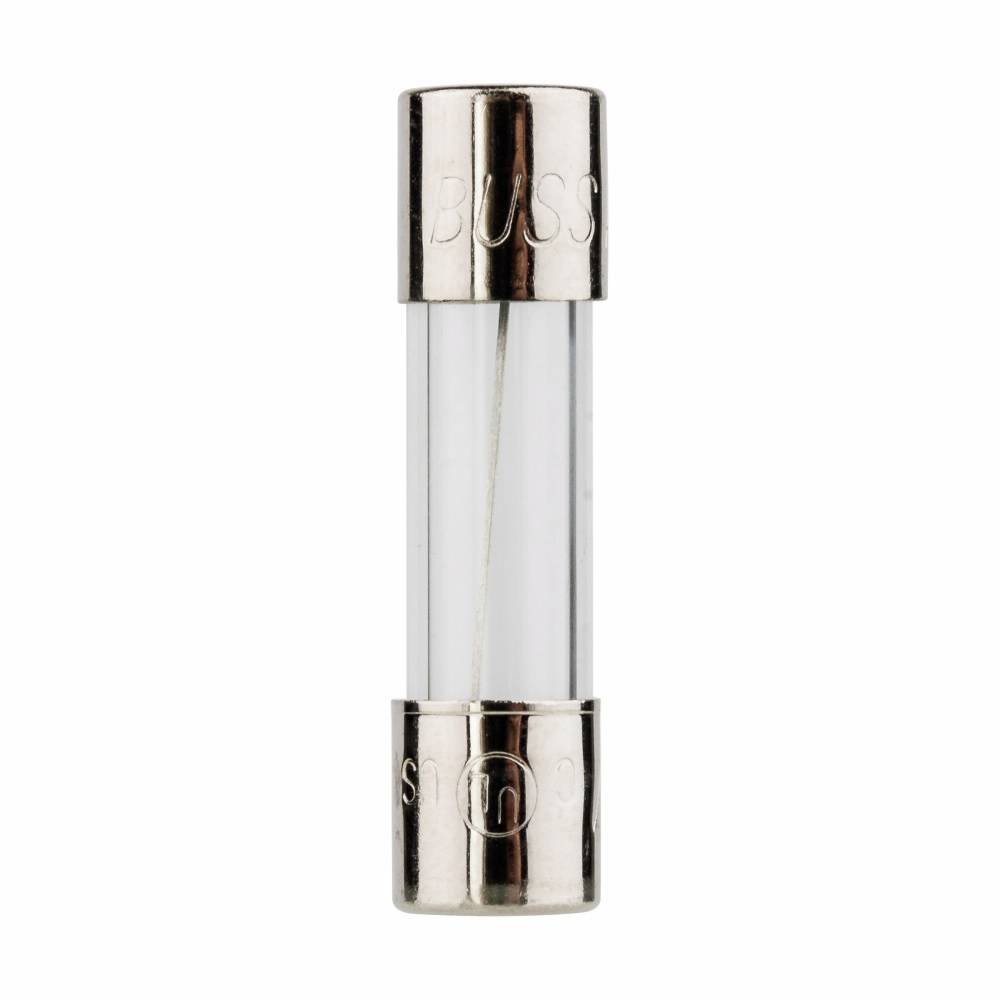

Bussmann AGX-7 Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 7 A, 250 VAC, 200 A, 10 kA Interrupt, Cylindrical Body

Short Description

Ensure reliable protection for your electrical circuits with the Bussmann AGX-7 Small Dimension Fast Acting Fuse. Featuring durable nickel plated brass end caps and a compact design, this 7 A fuse is perfect for high-performance applications. With a 10 kA interrupt rating and quick response time, it’s your go-to solution for safeguarding against overloads!Enhanced by AI

Bussmann Fast Acting Fuse, Small Dimension, Series: AGX, Non-Indicating, 7 A, 250 VAC, 200 A, 10 kA Interrupt, 4 hr, 60 min, 5 s, 2 min Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1 in L Body

MFG #: AGX-7

EECO #: BUAGX7

Brand: Bussmann
UPC #: 051712704892
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121607
Material
Glass
Application
Instruments, Electronic and Small Appliance Circuits Applications
Mounting Type
Holder
Response Time
4 hr, 60 min, 5 s, 2 min
Terminal Type
Ferrule
Voltage Rating
250
Type
Small Dimension
Series
AGX
Amperage Rating
7
Features
  • Size rejects insertion of other fuse types
  • 4 hr minimum at 110%, 60 min maximum at 135%, 5 sec maximum at 200%, 2 min maximum at 200% response time
  • 200 A at 250 VAC, 10 kA at 125 VAC interrupt rating
Bussmann_AGX_2_Specification_Sheet_CA
IDW_DOCUMENT_a7288632db4157a8f3d074cf5f563caac380008892efd8abbe72fd08f6634776
IDW_DOCUMENT_a7fd3f9c14075e7fcd204dc58d4501a4aa3124d1cea6a943940ce8b2c6a44981
IDW_DOCUMENT_c1e05ab561da79e1402f46f13e33cf86c955b25986d0b3e3d8c0cdaa9428f55c
Bussmann_AGX_1_200_Catalog
