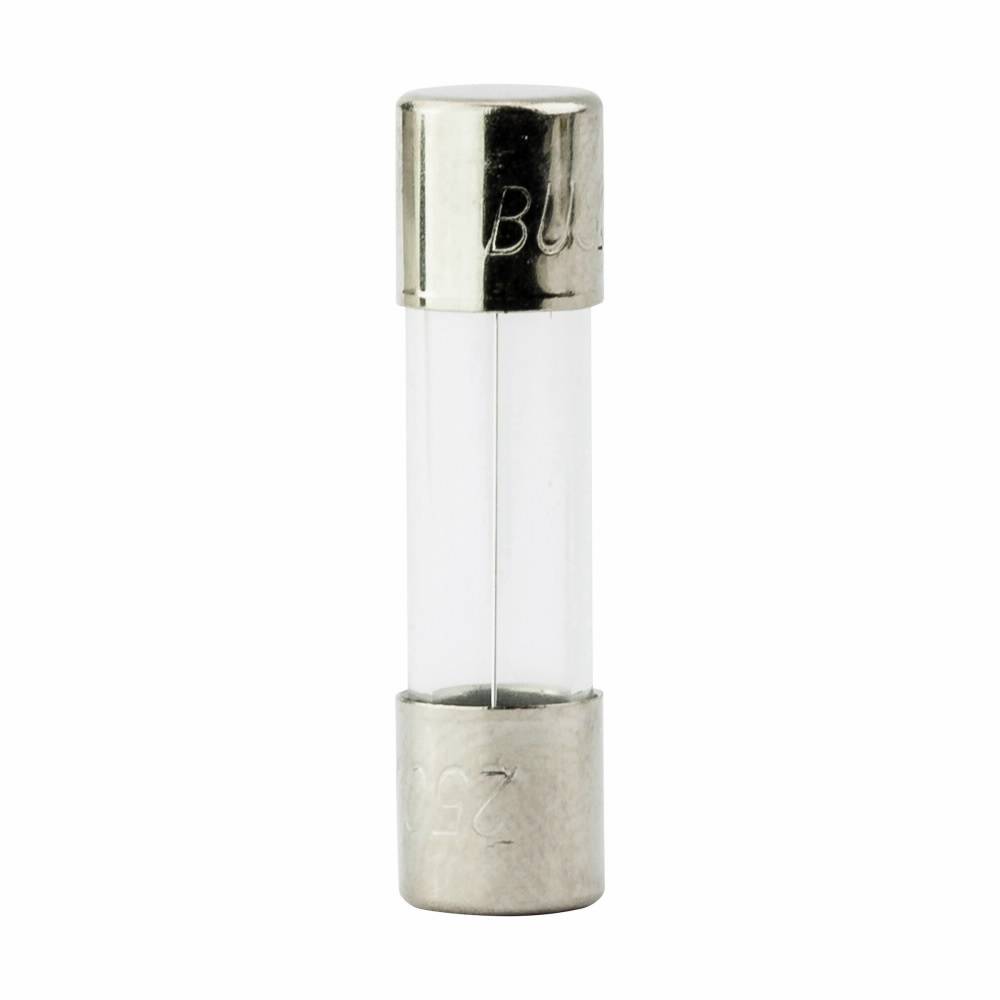

Bussmann AGX-4 AGX Small Dimension Fast Acting Fuse, 4 A, 250 VAC, 200 A, 10 kA Interrupt, Cylindrical Body
Share Share Print Print
Eaton

Bussmann AGX-4 AGX Small Dimension Fast Acting Fuse, 4 A, 250 VAC, 200 A, 10 kA Interrupt, Cylindrical Body

Short Description

Ensure reliable protection with the Bussmann AGX-4 Fast Acting Fuse. Designed for small dimensions, this 4 A, 250 VAC fuse offers efficient interruption capabilities up to 10 kA, making it ideal for various applications.Enhanced by AI

Bussmann, AGX-4, Fast Acting Fuse, Small Dimension, Series: AGX, Non-Indicating, Rejection, 4 A, 250 VAC, 200 A, 10 kA Interrupt, 4 hr, 60 min, 5 s, 2 min Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1 in L Body

MFG #: AGX-4

EECO #: BUAGX4

Brand: Bussmann
UPC #: 051712704786
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121607
Material
Glass
Application
Instruments, Electronic and Small Appliance Circuits Applications
Mounting Type
Holder
Response Time
4 hr, 60 min, 5 s, 2 min
Terminal Type
Ferrule
Voltage Rating
250
Type
Small Dimension
Series
AGX
Amperage Rating
4
Features
  • Size rejects insertion of other fuse types
  • 200 A at 250 VAC, 10 kA at 125 VAC interrupt rating
  • Nickel plated brass end caps
  • 4 hr minimum at 110% of ampere rating, 60 min maximum at 135% of ampere rating, 2 min maximum at 200% of ampere rating response time
