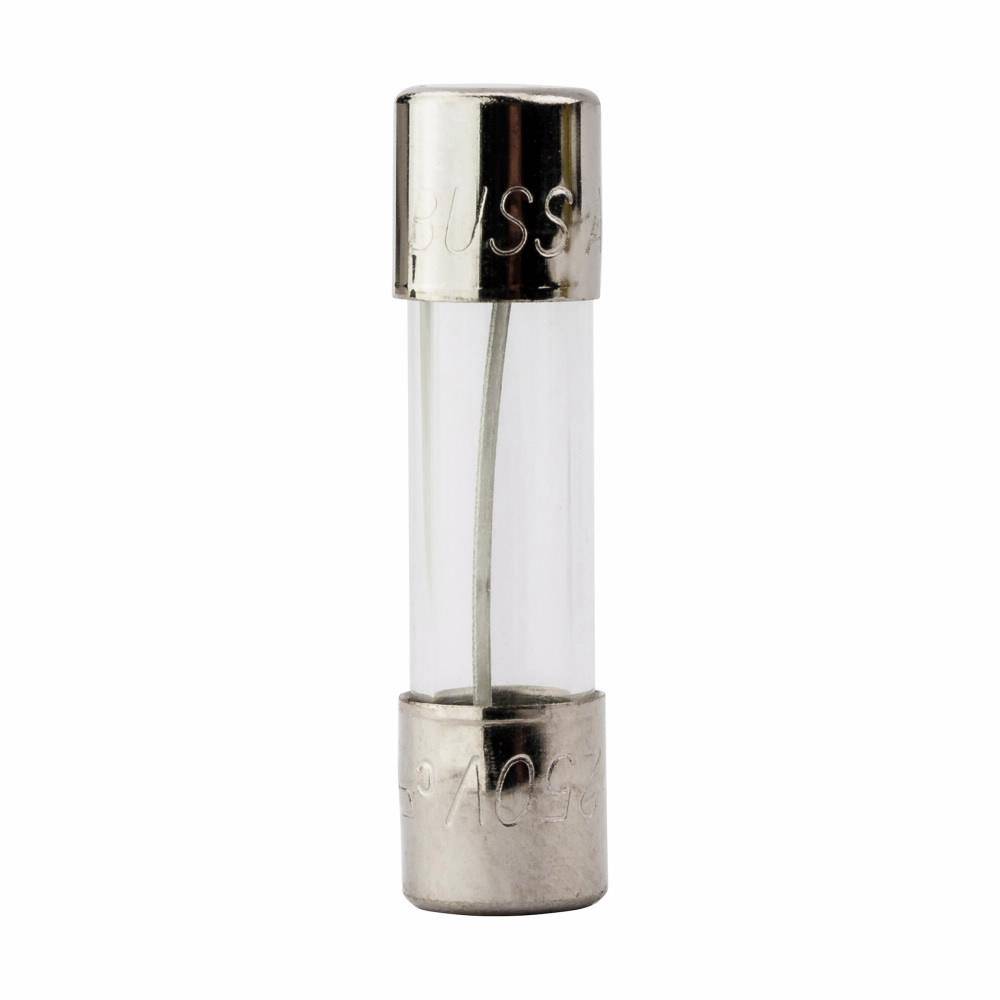

Bussmann AGX-25 Small Dimension Fast Acting Fuse, 25 A, 125 VAC, 32 VAC/VDC, 1 kA Interrupt, Cylindrical Body
Share Share Print Print
Eaton

Bussmann AGX-25 Small Dimension Fast Acting Fuse, 25 A, 125 VAC, 32 VAC/VDC, 1 kA Interrupt, Cylindrical Body

Short Description

Ensure reliable protection for your electrical systems with the Bussmann AGX-25 Small Dimension Fast Acting Fuse. Designed for quick response and high interrupt capacity, this fuse is perfect for safeguarding your devices at 25 A, 125 VAC, and 32 VAC/VDC.Enhanced by AI

Bussmann Fast Acting Fuse, Small Dimension, Series: AGX, Non-Indicating, Rejection, 25 A, 125 VAC, 32 VAC/VDC, 1 kA Interrupt, 4 hr, 60 min, 2 min Response, Ferrule Terminal, Clip/Holder Mounting, Cylindrical Body, Glass, 1/4 in Dia x 1 in L Body

MFG #: AGX-25

EECO #: BUAGX25

Brand: Bussmann
UPC #: 051712704847
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121607
Material
Glass
Application
Electronic Circuits
Mounting Type
Clip/Holder
Response Time
4 hr, 60 min, 2 min
Terminal Type
Ferrule
Voltage Rating
125 VAC/32 VAC/VDC
Type
Small Dimension
Series
AGX
Amperage Rating
25
Features
  • Size rejects insertion of other fuse types
  • Nickel plated brass end caps
  • 4 hr minimum at 110% of ampere rating, 60 min maximum at 135% of ampere rating, 2 min maximum at 200% of ampere rating response time
  • 1 kA at 32 VAC interrupt rating
Bussmann_AGX_1_Catalog
IDW_DOCUMENT_a7288632db4157a8f3d074cf5f563caac380008892efd8abbe72fd08f6634776
IDW_DOCUMENT_75aecc50f7933337fc83f16b77145d2d3f6f55e7bf70e6e49db941f63bd137a0
IDW_DOCUMENT_9116176e7cd6d0f57248997c40d27f8899ae167305f1b698cfcb9baec52d3ab1
Bussmann_AGX_1_200_Catalog
