Eaton

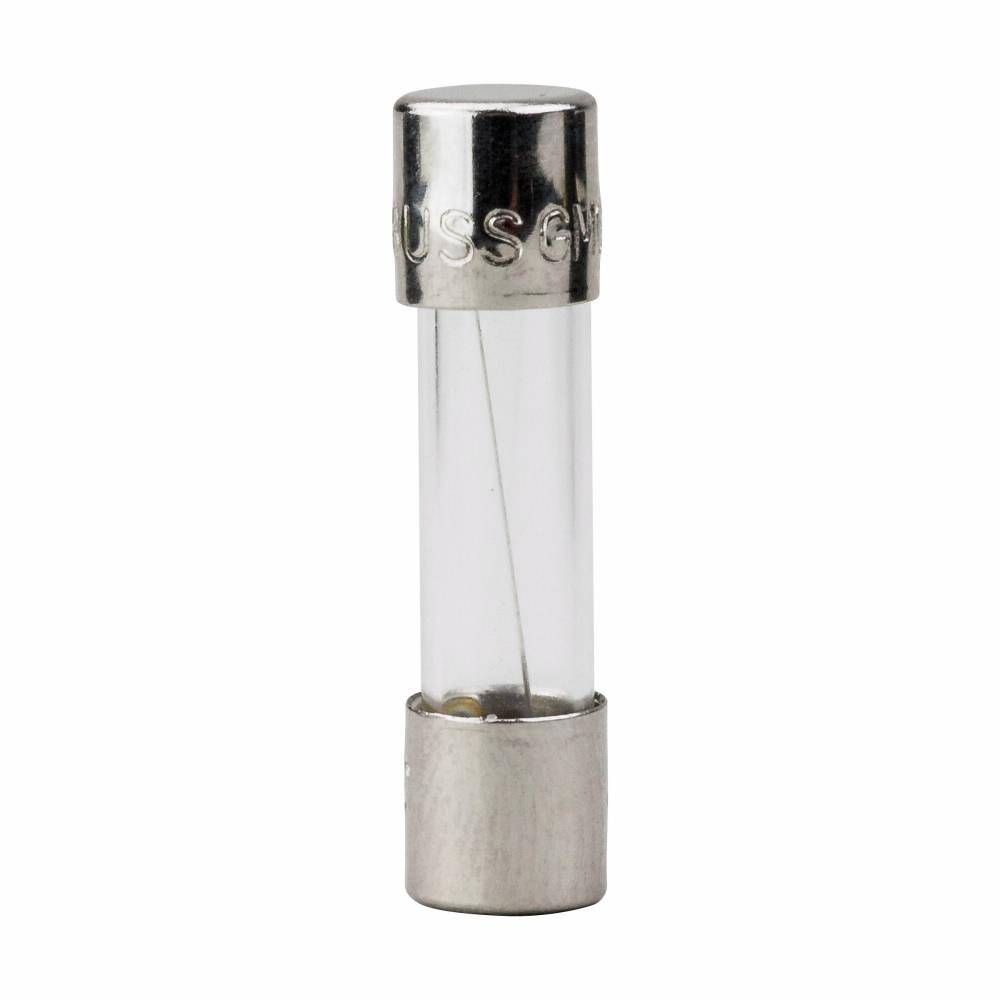

Bussmann AGX-2-1/2 Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 2-1/2 A, 250 VAC, 100 A, 10 kA Interrupt, Cylindrical Body

Short Description

Ensure reliable protection for your electrical circuits with the Bussmann AGX-2-1/2 Small Dimension Fast Acting Fuse. Designed for efficiency and safety, this fuse features durable nickel plated brass end caps and a compact cylindrical body, making it an essential component for any electrical system.Enhanced by AI

Bussmann Fast Acting Fuse, Small Dimension, Series: AGX, Non-Indicating, Rejection, 2-1/2 A, 250 VAC, 100 A, 10 kA Interrupt, 4 hr, 60 min, 5 s, 2 min Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1 in L Body

MFG #: AGX-2-1/2

EECO #: BUAGX21/2

Brand: Bussmann
UPC #: 051712704878
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121607
Material
Glass
Application
Instruments, Electronic and Small Appliance Circuits Applications
Mounting Type
Holder
Response Time
4 hr, 60 min, 5 s, 2 min
Terminal Type
Ferrule
Voltage Rating
250
Type
Small Dimension
Series
AGX
Amperage Rating
2-1/2
Features
  • Size rejects insertion of other fuse types
  • 4 hr minimum at 110%, 60 min maximum at 135%, 5 sec maximum at 200%, 2 min maximum at 200% response time
  • 100 A at 250 VAC, 10 kA at 125 VAC interrupt rating
