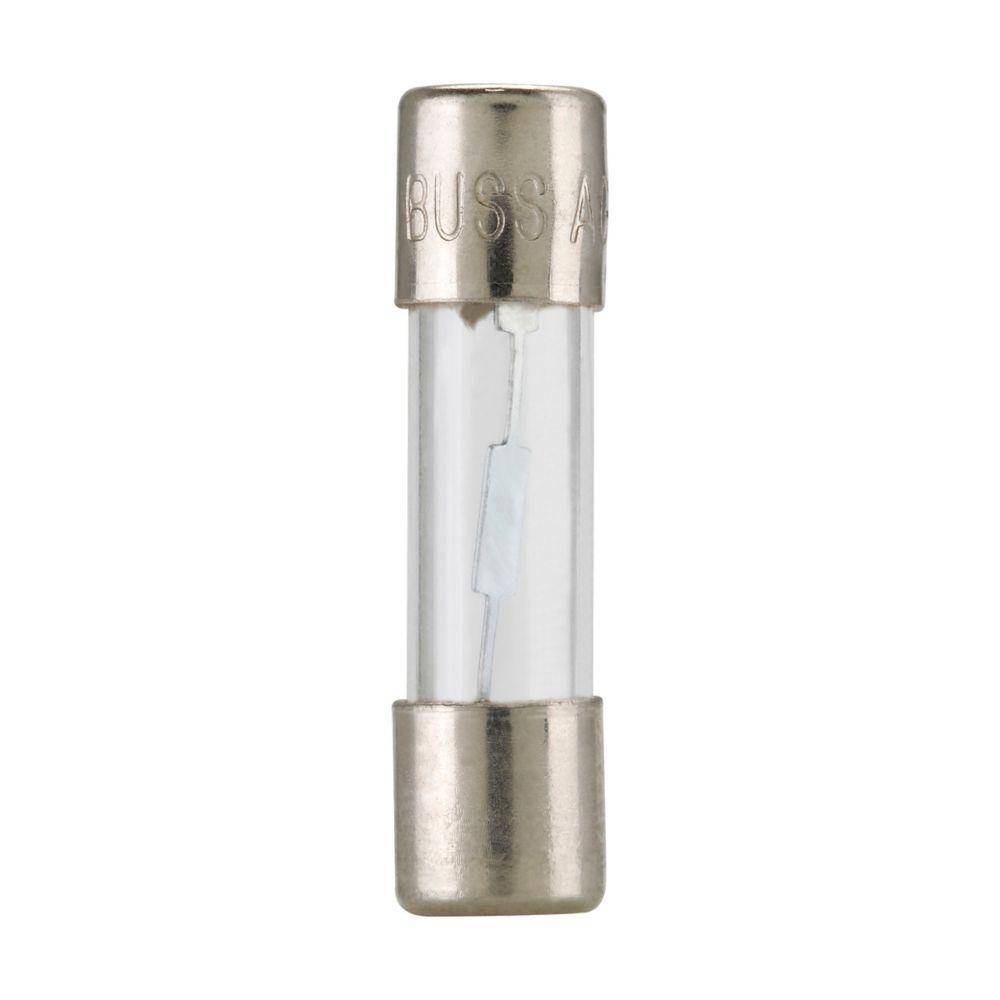

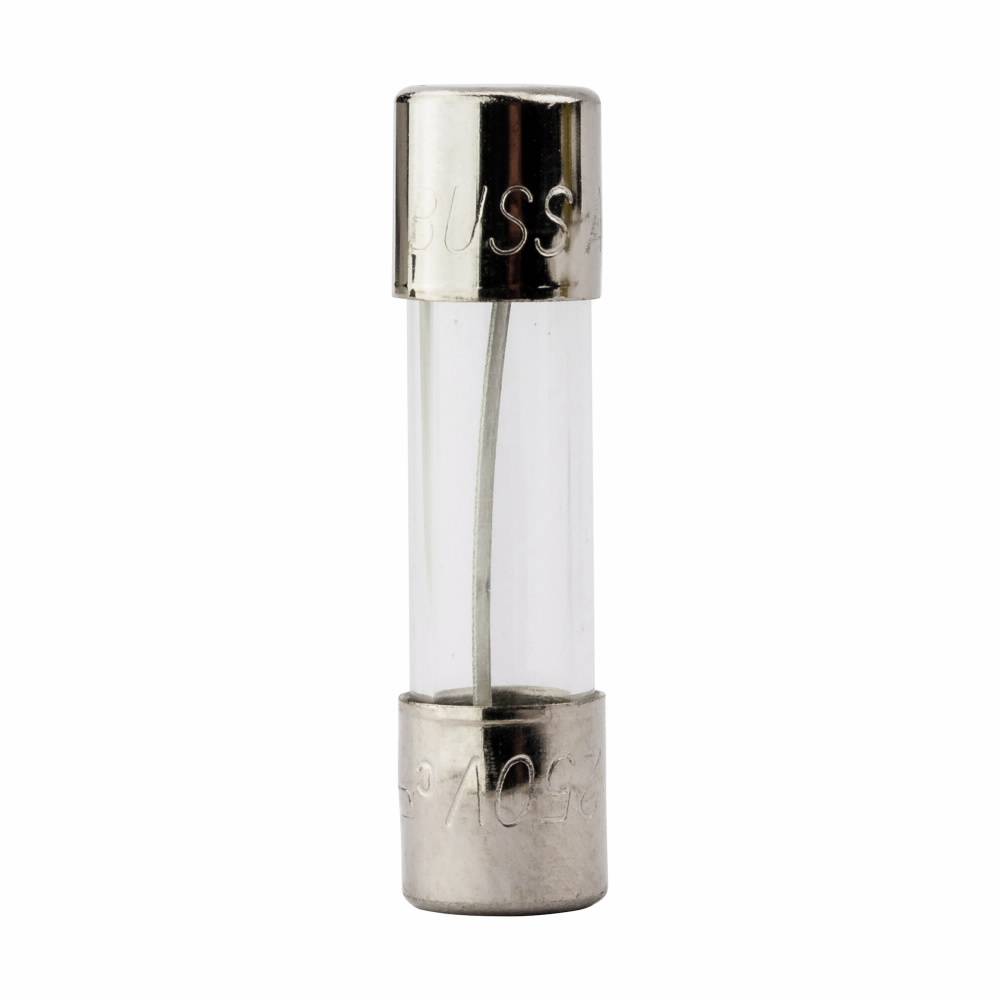

Bussmann AGX-15 Small Dimension Fast Acting Fuse, 15 A, 250 VAC, 32 VAC/VDC, 1 kA Interrupt, Cylindrical Body
Bussmann AGX-15 Small Dimension Fast Acting Fuse, 15 A, 250 VAC, 32 VAC/VDC, 1 kA Interrupt, Cylindrical Body
Bussmann AGX-15 Small Dimension Fast Acting Fuse, 15 A, 250 VAC, 32 VAC/VDC, 1 kA Interrupt, Cylindrical Body
Bussmann AGX-15 Small Dimension Fast Acting Fuse, 15 A, 250 VAC, 32 VAC/VDC, 1 kA Interrupt, Cylindrical Body
Bussmann AGX-15 Small Dimension Fast Acting Fuse, 15 A, 250 VAC, 32 VAC/VDC, 1 kA Interrupt, Cylindrical Body
Bussmann AGX-15 Small Dimension Fast Acting Fuse, 15 A, 250 VAC, 32 VAC/VDC, 1 kA Interrupt, Cylindrical Body
Share Share Print Print
Eaton

Bussmann AGX-15 Small Dimension Fast Acting Fuse, 15 A, 250 VAC, 32 VAC/VDC, 1 kA Interrupt, Cylindrical Body

Short Description

Ensure reliable protection for your electrical circuits with the Bussmann AGX-15 Small Dimension Fast Acting Fuse. This 15 A fuse is designed for high performance and quick response, making it ideal for a variety of applications. With a compact cylindrical body and robust interrupt capacity, it’s the perfect choice for safeguarding your devices.Enhanced by AI

Bussmann Fast Acting Fuse, Small Dimension, Series: AGX, Non-Indicating, Rejection, 15 A, 250 VAC, 32 VAC/VDC, 1 kA Interrupt, 4 hr, 60 min, 2 min Response, Ferrule Terminal, Clip/Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1 in L Body

MFG #: AGX-15

EECO #: BUAGX15

Brand: Bussmann
UPC #: 051712704823
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121607
Material
Glass
Application
Electronic Circuits
Mounting Type
Clip/Holder
Response Time
4 hr, 60 min, 2 min
Terminal Type
Ferrule
Voltage Rating
250 VAC/32 VAC/VDC
Type
Small Dimension
Series
AGX
Amperage Rating
15
Features
  • Size rejects insertion of other fuse types
  • Nickel plated brass end caps
  • 4 hr minimum at 110% of ampere rating, 60 min maximum at 135% of ampere rating, 2 min maximum at 200% of ampere rating response time
  • 1 kA at 32 VAC interrupt rating
