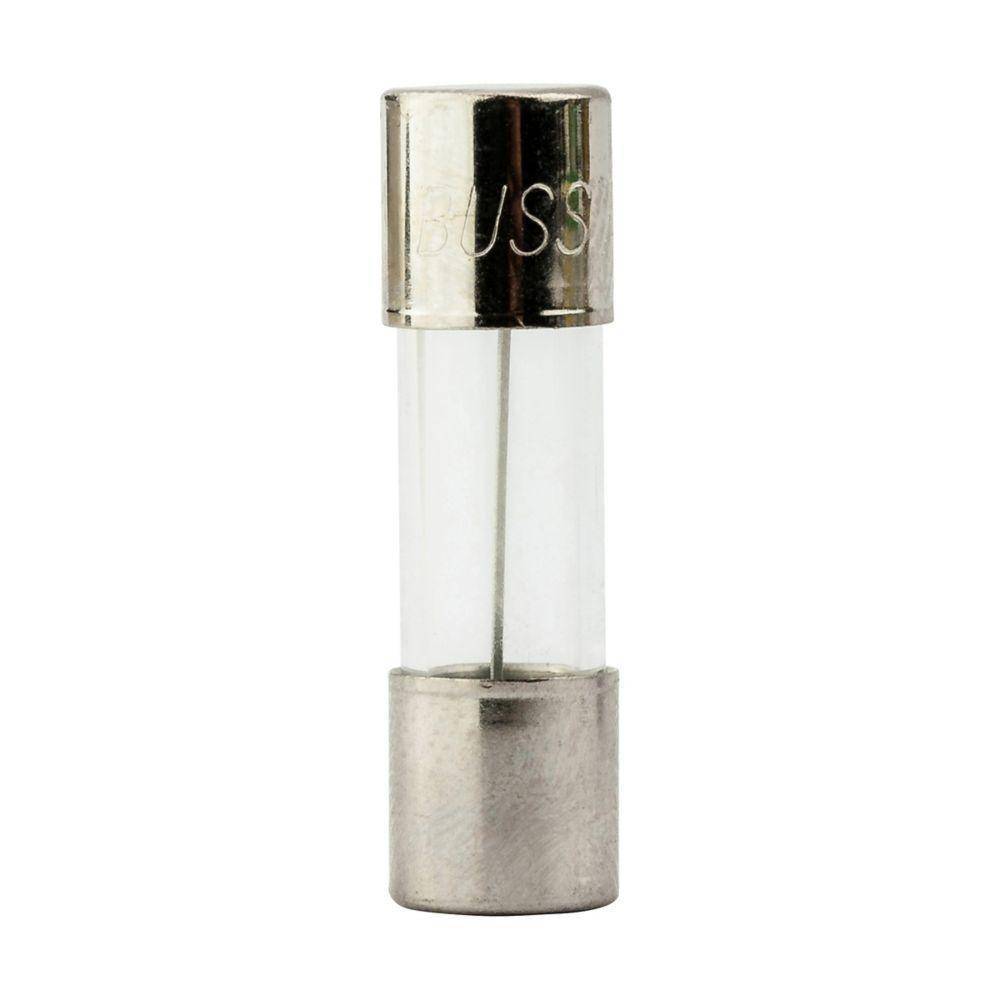

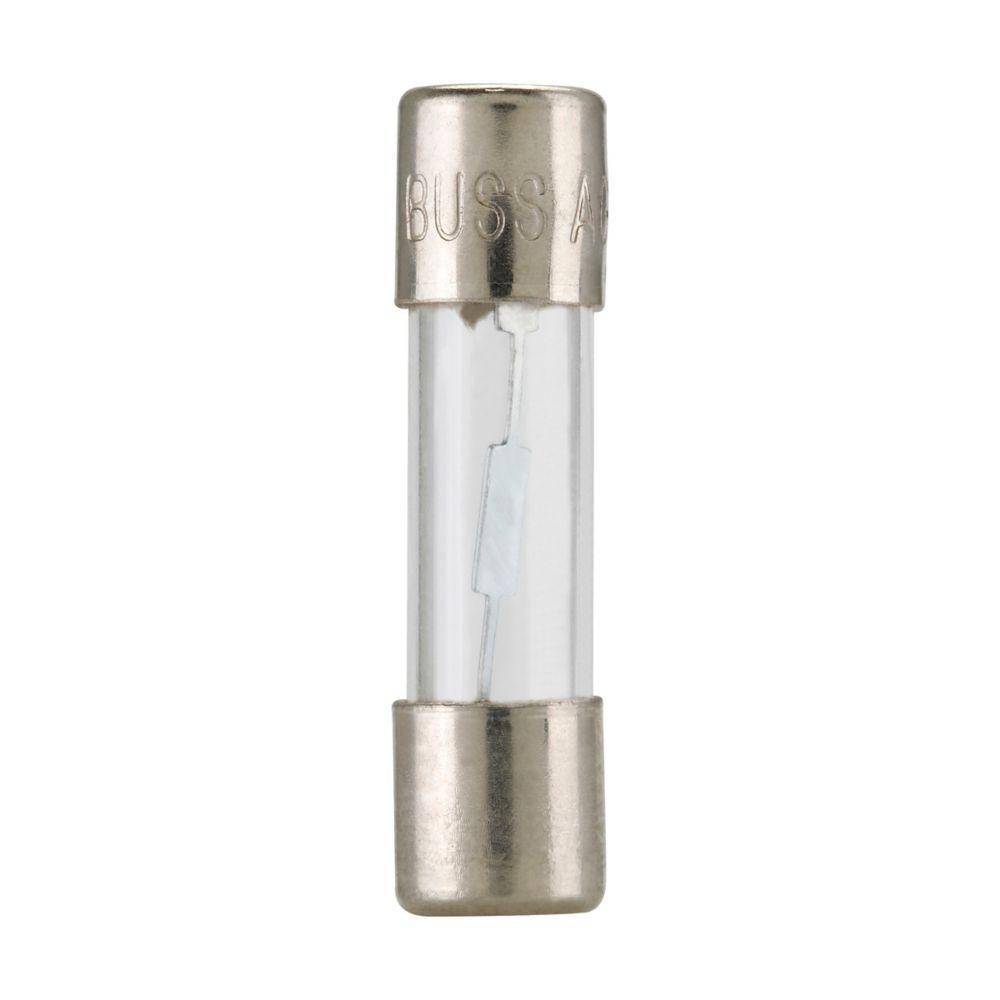

Bussmann AGX-1/10 Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 1/10 A, 250 VAC, 35 A, 10 kA Interrupt, Cylindrical Body
Bussmann AGX-1/10 Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 1/10 A, 250 VAC, 35 A, 10 kA Interrupt, Cylindrical Body
Bussmann AGX-1/10 Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 1/10 A, 250 VAC, 35 A, 10 kA Interrupt, Cylindrical Body
Bussmann AGX-1/10 Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 1/10 A, 250 VAC, 35 A, 10 kA Interrupt, Cylindrical Body
Bussmann AGX-1/10 Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 1/10 A, 250 VAC, 35 A, 10 kA Interrupt, Cylindrical Body
Bussmann AGX-1/10 Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 1/10 A, 250 VAC, 35 A, 10 kA Interrupt, Cylindrical Body
Share Share Print Print
Eaton

Bussmann AGX-1/10 Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 1/10 A, 250 VAC, 35 A, 10 kA Interrupt, Cylindrical Body

Short Description

Ensure reliable protection for your electrical circuits with the Bussmann AGX-1/10 Small Dimension Fast Acting Fuse. Designed for efficiency, this fuse features nickel-plated brass end caps and a compact cylindrical body, making it an ideal choice for various applications. With a quick response time and robust interrupt rating, it guarantees safety and performance you can trust.Enhanced by AI

Bussmann Fast Acting Fuse, Small Dimension, Series: AGX, Non-Indicating, Rejection, 1/10 A, 250 VAC, 35 A, 10 kA Interrupt, 4 hr, 60 min, 5 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1 in L Body

MFG #: AGX-1/10

EECO #: BUAGX1/10

Brand: Bussmann
UPC #: 051712704656
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121607
Material
Glass
Application
Instruments, Electronic and Small Appliance Circuits Applications
Mounting Type
Holder
Response Time
4 hr, 60 min, 5 s
Terminal Type
Ferrule
Voltage Rating
250
Type
Small Dimension
Series
AGX
Amperage Rating
1/10
Features
  • Size rejects insertion of other fuse types
  • 4 hr minimum at 110%, 60 min maximum at 135%, 5 sec maximum at 200% response time
  • 35 A at 250 VAC, 10 kA at 125 VAC interrupt rating
Bussmann_AGX_2_Specification_Sheet_CA
Bussmann_AGX_1_200_Catalog
IDW_DOCUMENT_59e0494e6039b85cc28a97a95da9d3e91e3a9fc97365677acbbfc713f5fdd1a6
IDW_DOCUMENT_fe75f0c483dd1565fcfcc16aac004ed0c6c5e16d02bf4444dddc8af176d4d272
