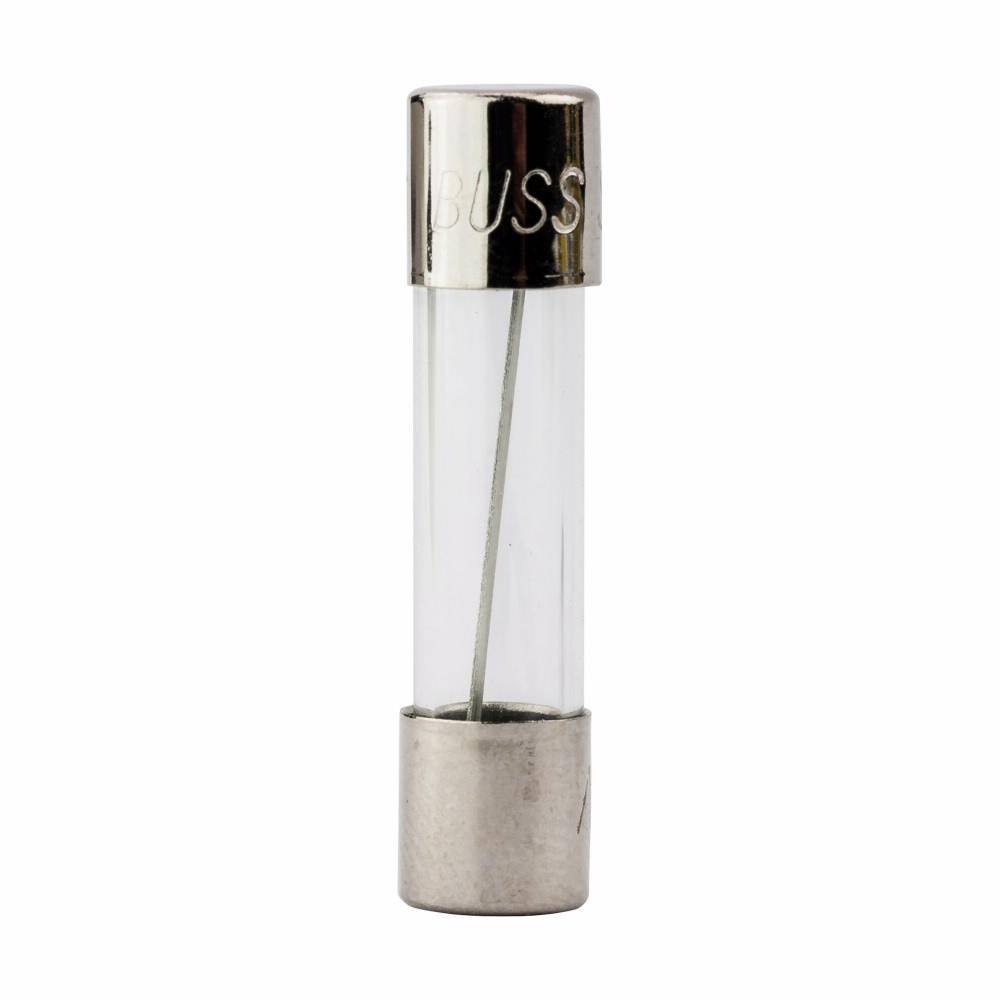

Bussmann AGX-10 Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 10 A, 250 VAC, 200 A, 10 kA Interrupt, Cylindrical Body
Share Share Print Print
Eaton

Bussmann AGX-10 Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 10 A, 250 VAC, 200 A, 10 kA Interrupt, Cylindrical Body

Short Description

Ensure optimal protection for your electrical systems with the Bussmann AGX-10 Small Dimension Fast Acting Fuse. Designed for reliability, this fuse features nickel-plated brass end caps and a cylindrical body, making it ideal for various applications. With a 10 A rating and 10 kA interrupt, it guarantees swift response times to keep your devices safe.Enhanced by AI

Bussmann Fast Acting Fuse, Small Dimension, Series: AGX, Non-Indicating, Rejection, 10 A, 250 VAC, 200 A, 10 kA Interrupt, 4 hr, 60 min, 5 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1 in L Body

MFG #: AGX-10

EECO #: BUAGX10

Brand: Bussmann
UPC #: 051712704816
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121607
Material
Glass
Application
Instruments, Electronic and Small Appliance Circuits Applications
Mounting Type
Holder
Response Time
4 hr, 60 min, 5 s
Terminal Type
Ferrule
Voltage Rating
250
Type
Small Dimension
Series
AGX
Amperage Rating
10
Features
  • Size rejects insertion of other fuse types
  • 4 hr minimum at 110%, 60 min maximum at 135%, 5 sec maximum at 200% response time
  • 200 A at 250 VAC, 10 kA at 125 VAC interrupt rating
Bussmann_AGX_1_Catalog
IDW_DOCUMENT_a7288632db4157a8f3d074cf5f563caac380008892efd8abbe72fd08f6634776
IDW_DOCUMENT_4b3d002b993b7be9968b9549fc9560f844611bf0f8a60a7ea5da223d97302b32
IDW_DOCUMENT_e30d981d8a350a451c268132400a73b743656f7eee8243261dbef27b3f6d169d
Bussmann_AGX_1_200_Catalog
