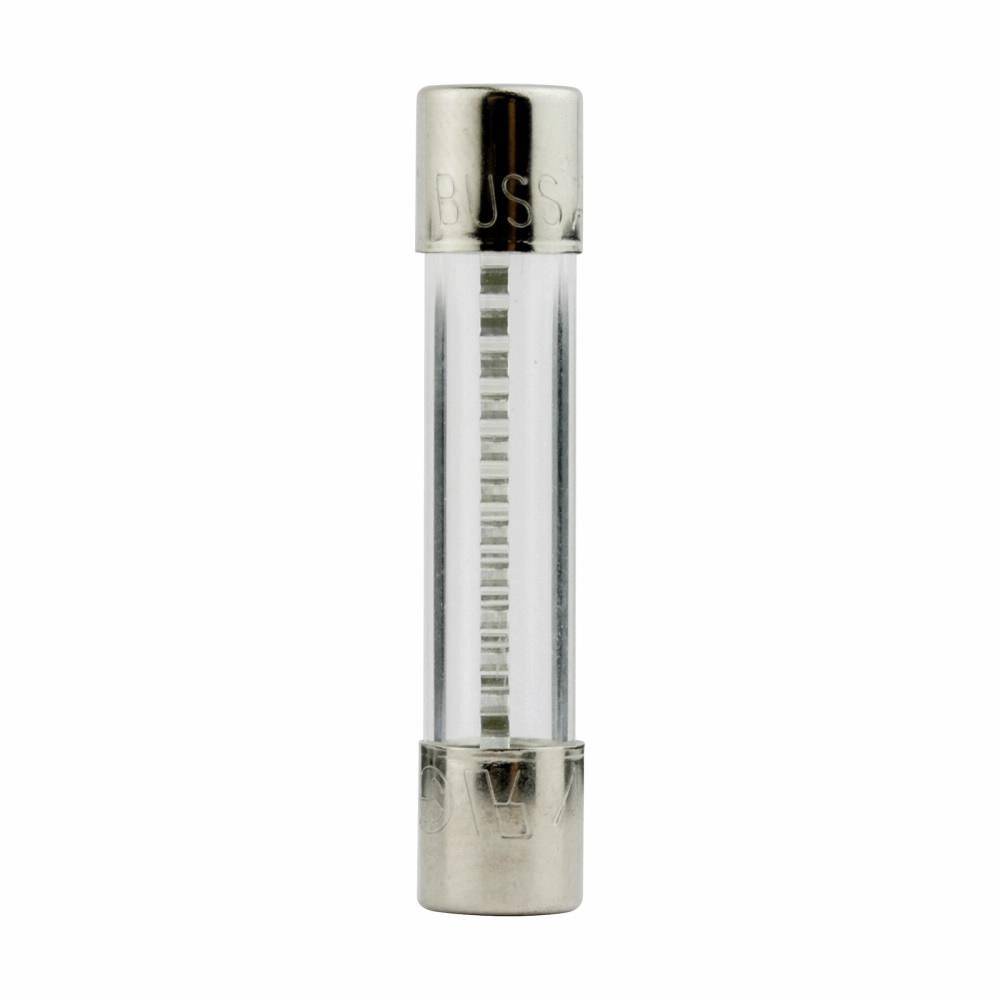

Bussmann AGC-40-R Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 40 A, 32 VAC, 1 kA Interrupt, Cylindrical Body
Bussmann AGC-40-R Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 40 A, 32 VAC, 1 kA Interrupt, Cylindrical Body
Bussmann AGC-40-R Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 40 A, 32 VAC, 1 kA Interrupt, Cylindrical Body
Bussmann AGC-40-R Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 40 A, 32 VAC, 1 kA Interrupt, Cylindrical Body
Share Share Print Print
Eaton

Bussmann AGC-40-R Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 40 A, 32 VAC, 1 kA Interrupt, Cylindrical Body

Short Description

Fast-acting, glass tube 1/4" x 1-1/4" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation. Eaton's AGC fast-acting, glass tube 1/4" x 1-1/4" ferrule fuses are designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.

Bussmann Fast Acting Fuse, Small Dimension, Series: AGC, Non-Indicating, Non-Rejection, 40 A, 32 VAC, 1 kA Interrupt, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body
MFG #: AGC-40-R

EECO #: BUAGC40R

Brand: Bussmann
UPC #: 051712504270
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121607
Material
Glass
Application
Electronic Circuits Applications
Mounting Type
Holder
Response Time
60 min, 120 s
Terminal Type
Ferrule
Voltage Rating
32
Type
Small Dimension
Series
AGC
Amperage Rating
40
Features
  • Fast acting for maximum component protection
  • Wide amp/volt ratings allow versatility of protecting electronic circuits
  • 1 kA at 32 VAC interrupt rating
  • 60 min maximum at 135%, 120 sec maximum at 200% response time
