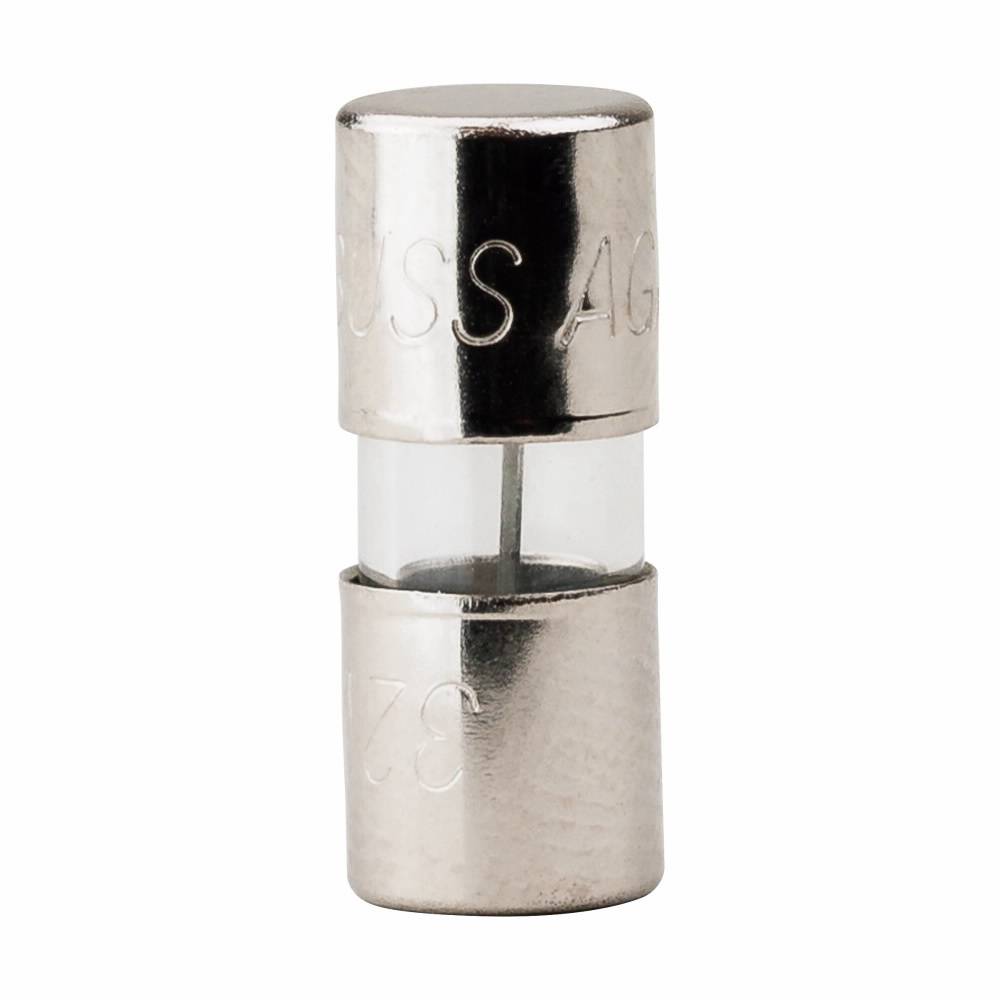

Bussmann AGA-30 Small Dimension Fast Acting Fuse, 30 A, 125 VAC, 32 VDC, Cylindrical Body
Share Share Print Print
Eaton

Bussmann AGA-30 Small Dimension Fast Acting Fuse, 30 A, 125 VAC, 32 VDC, Cylindrical Body

Short Description

Fast-acting, glass tube 1/4" x 5/8" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation. Eaton's AGA fast-acting, glass tube ferrule 1/4" x 5/8" fuses are designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.

Bussmann Fast Acting Fuse, Small Dimension, Series: AGA, Non-Indicating, Rejection, 30 A, 125 VAC, 32 VDC, Ferrule Terminal, Clip/Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 5/8 in L Body
MFG #: AGA-30

EECO #: BUAGA30

Brand: Bussmann
UPC #: 051712703482
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121607
Material
Glass
Application
Electronic Circuits
Mounting Type
Clip/Holder
Response Time
4 hr, 60 min, 120 s
Terminal Type
Ferrule
Voltage Rating
125 VAC/32 VDC
Type
Small Dimension
Series
AGA
Amperage Rating
30
Features
  • Fast acting for maximum protection
  • Size rejects insertion of other fuse types
  • Nickel plated brass end caps
  • 1000 A at 32 VAC interrupt rating
