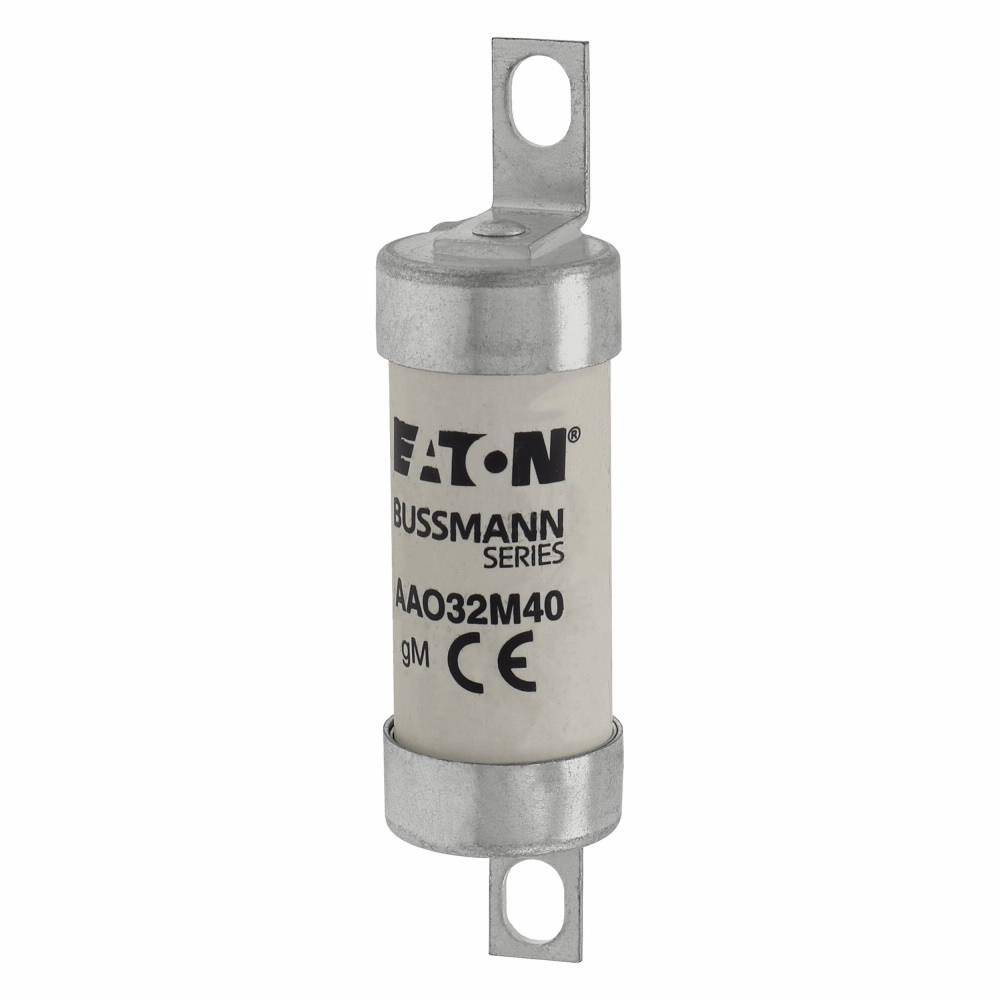

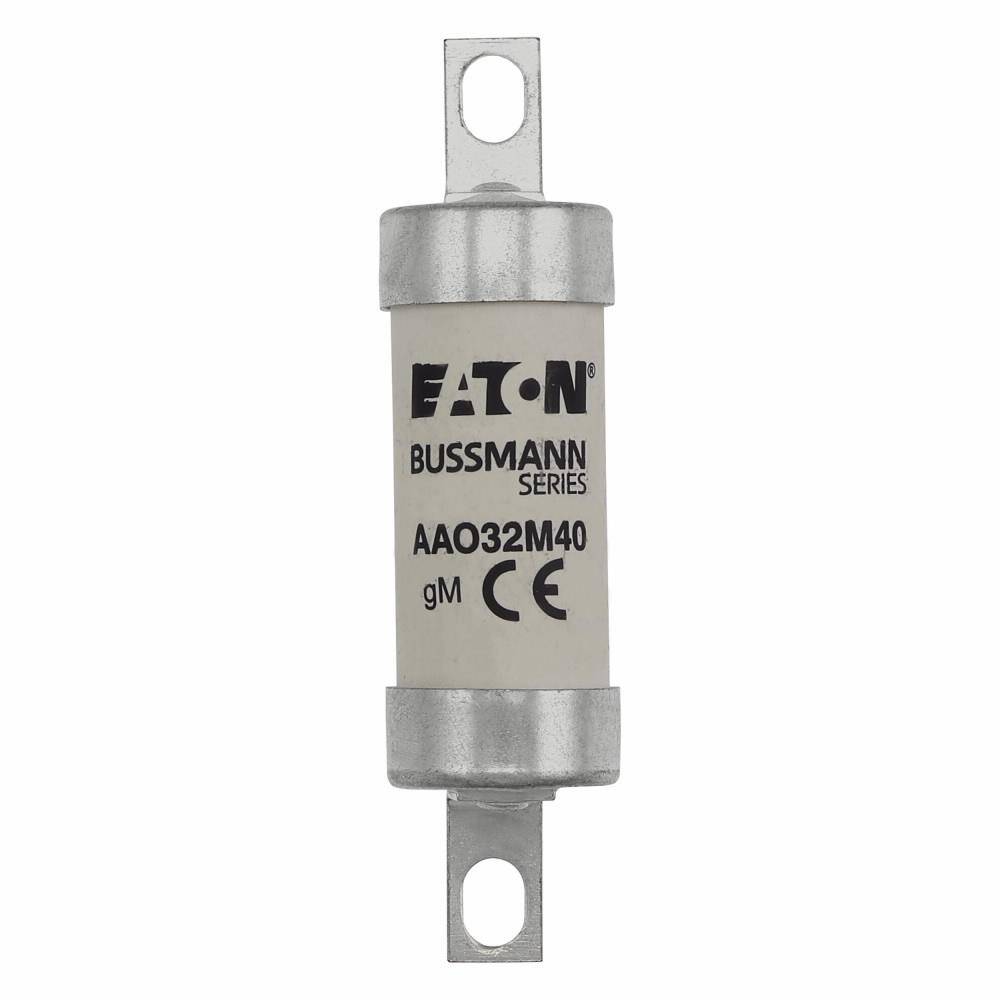

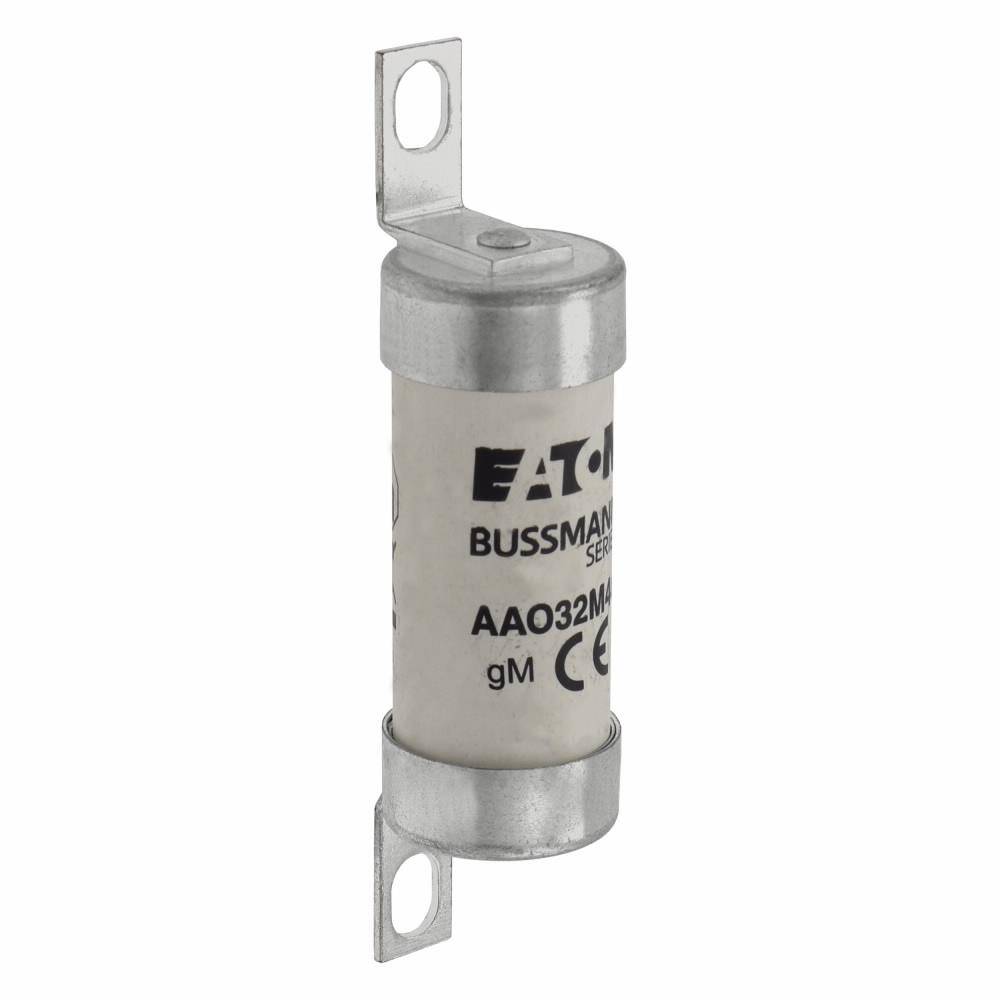

Edison AAO32M40 Non-Indicating Fuse Link, 550 VAC, 40 A, Ceramic
Edison AAO32M40 Non-Indicating Fuse Link, 550 VAC, 40 A, Ceramic
Edison AAO32M40 Non-Indicating Fuse Link, 550 VAC, 40 A, Ceramic
Edison AAO32M40 Non-Indicating Fuse Link, 550 VAC, 40 A, Ceramic
Edison AAO32M40 Non-Indicating Fuse Link, 550 VAC, 40 A, Ceramic
Edison AAO32M40 Non-Indicating Fuse Link, 550 VAC, 40 A, Ceramic
Edison AAO32M40 Non-Indicating Fuse Link, 550 VAC, 40 A, Ceramic
Edison AAO32M40 Non-Indicating Fuse Link, 550 VAC, 40 A, Ceramic
Edison AAO32M40 Non-Indicating Fuse Link, 550 VAC, 40 A, Ceramic
Edison AAO32M40 Non-Indicating Fuse Link, 550 VAC, 40 A, Ceramic
Share Share Print Print
Eaton

Edison AAO32M40 Non-Indicating Fuse Link, 550 VAC, 40 A, Ceramic

Short Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Edison Fuse Link, Non-Indicating, Series: AAO, 550 VAC, 40 A, Rated Breaking Capacity: 80 kA, Stud Mount, Ceramic, 7/8 in Dia x 85 mm L
MFG #: AAO32M40

EECO #: BUAAO32M40

Brand: Edison
UPC #: 051712838443
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Material
Ceramic
Application
Power Distribution, Cable Protection and Motor Protection Applications
Mounting Type
Stud
Voltage Rating
550
Type
Non-Indicating
Series
AAO
Dimensions
7/8 in Dia x 85 mm L
Amperage Rating
40
Features
  • Good peak let through current limitation
  • 1:1:6 selective coordination ratio between minor and major fuse
  • Power loss values well within the limits of IEC 60269
