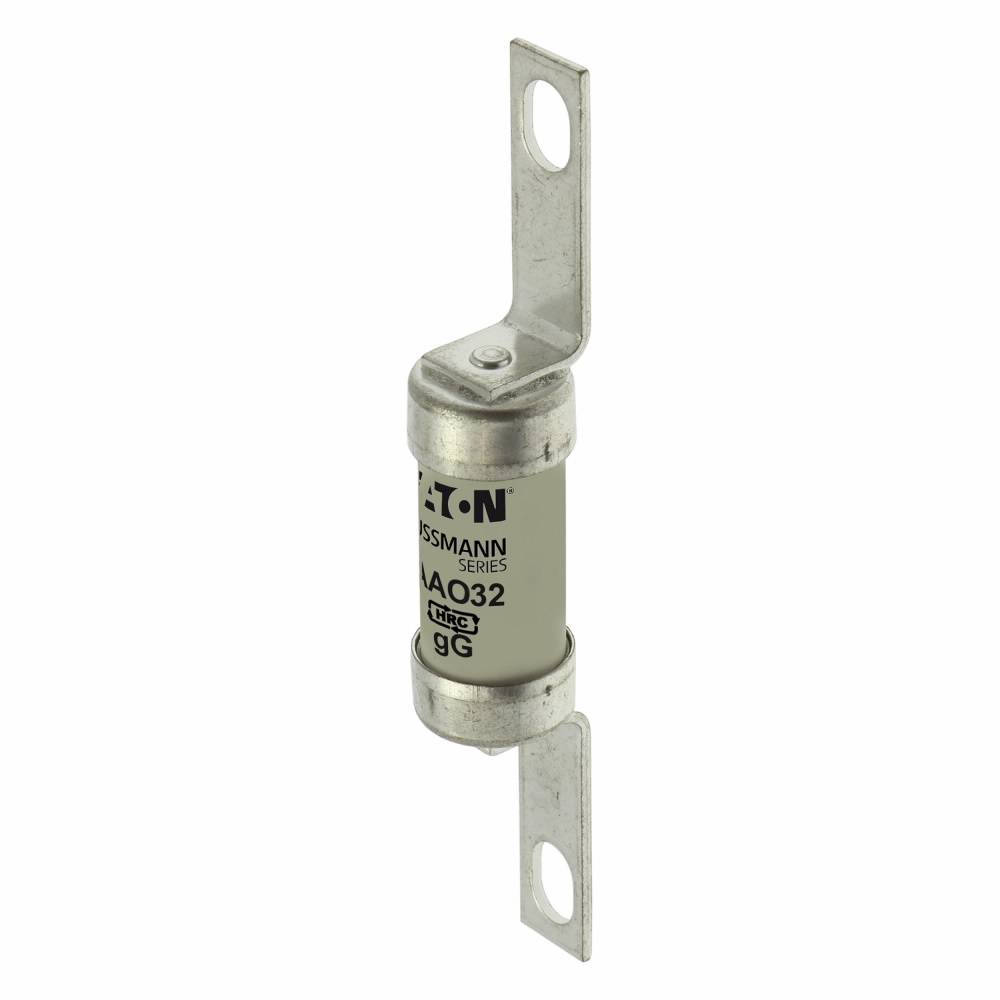

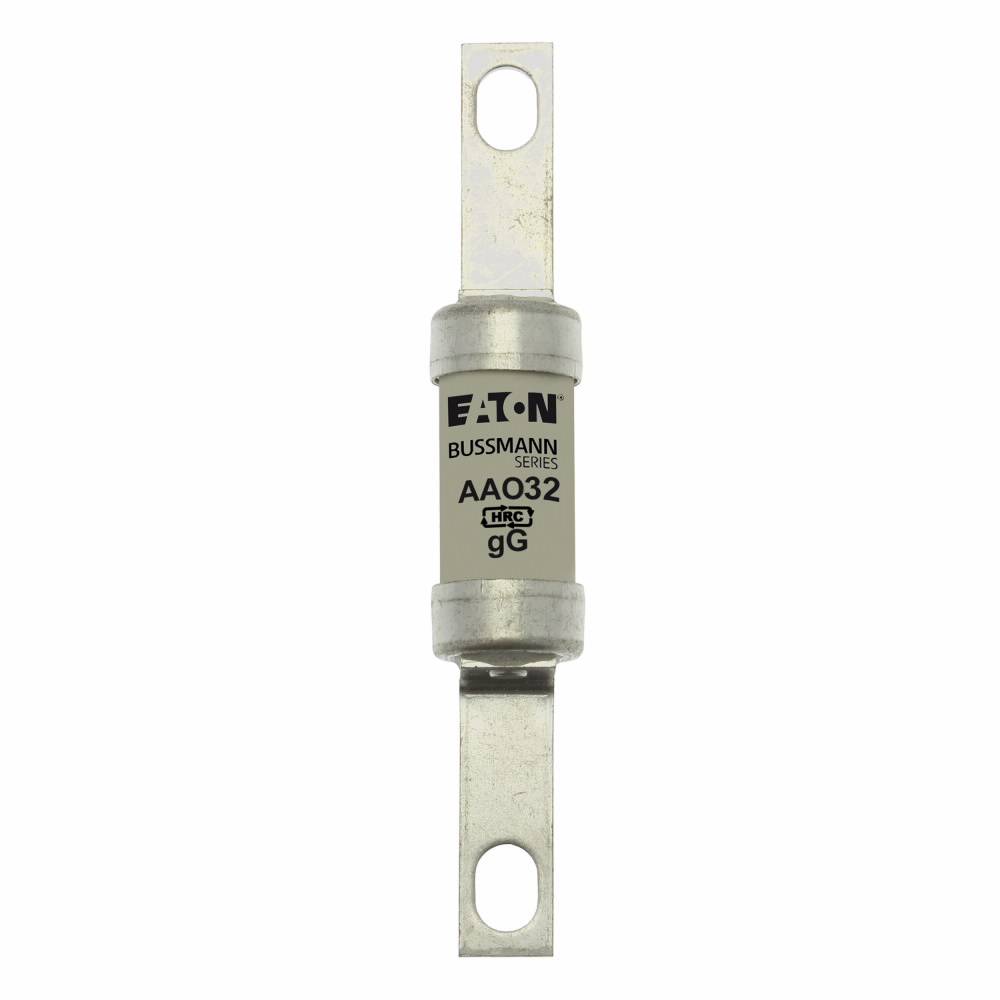

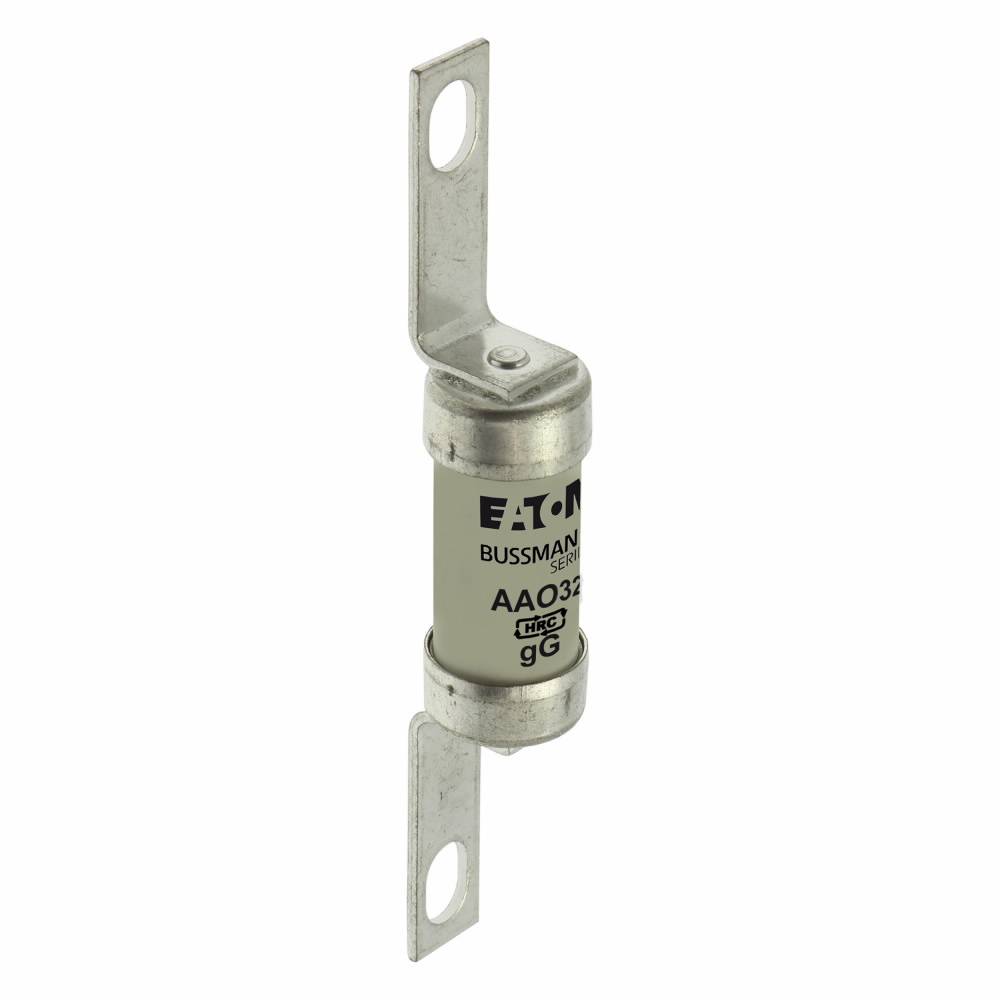

Edison AAO32 High Rupture Capacity Non-Indicating Fuse Link, 550 VAC, 32 A, Ceramic

Name: Edison AAO32 High Rupture Capacity Non-Indicating Fuse Link, 550 VAC, 32 A, Ceramic
Brand: Eaton
SKU: BUAAO32
Availability: InStock

Short Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Edison Fuse Link, High Rupture Capacity Non-Indicating, Series: AAO, 550 VAC, 32 A, Rated Breaking Capacity: 80 kA, Stud Mount, Ceramic, 13.7 mm Dia x 85 mm L

MFG #: AAO32

EECO #: BUAAO32 BUAAO32

Brand: Edison

UPC #: 051712838436

Attributes

Features

Documents

Product Information

Attributes

UNSPSC

39121626

Material

Ceramic

Application

Power Distribution, Cable Protection and Motor Protection Applications

Mounting Type

Stud

Voltage Rating

550

Type

High Rupture Capacity Non-Indicating

Series

AAO

Dimensions

13.7 mm Dia x 85 mm L

Amperage Rating

Suitable For Use With

Class C/gG/gL Fuse

Features

Good peak let through current limitation
1:1:6 selective coordination ratio between minor and major fuse
Power loss values well within the limits of IEC 60269
