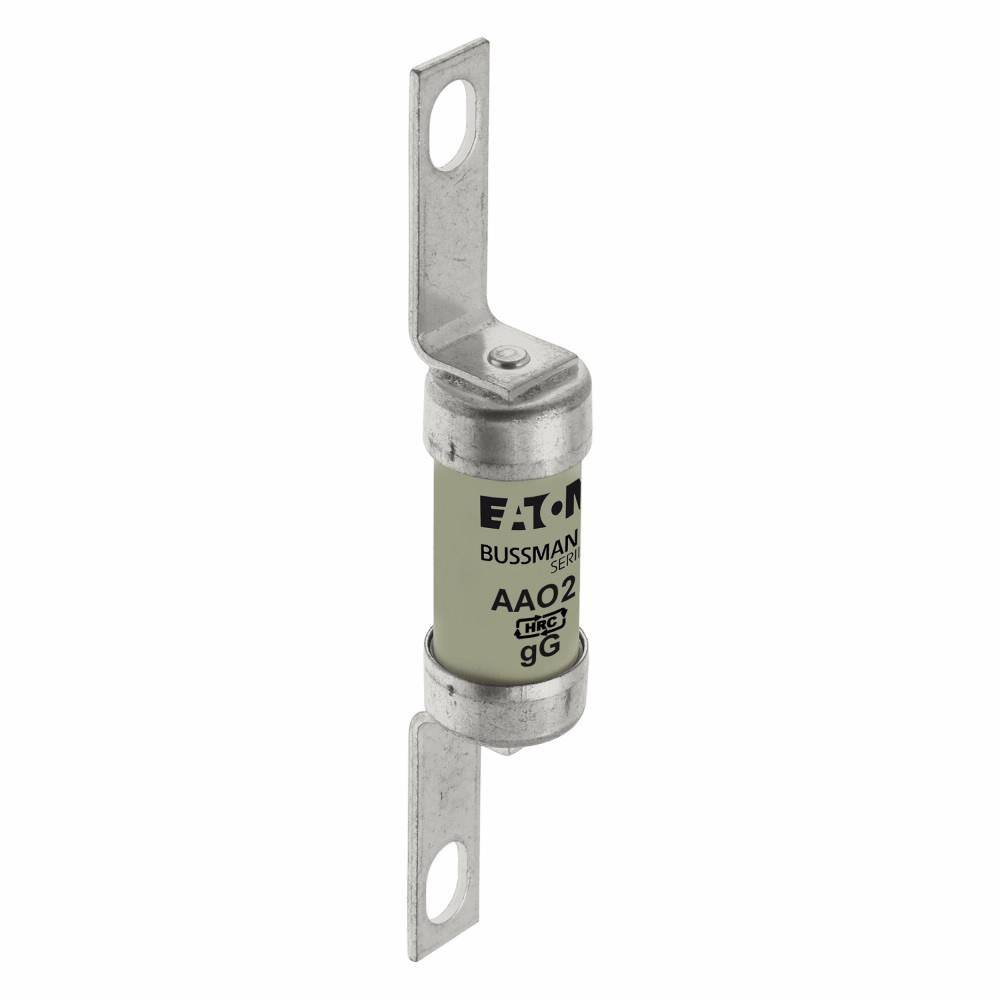

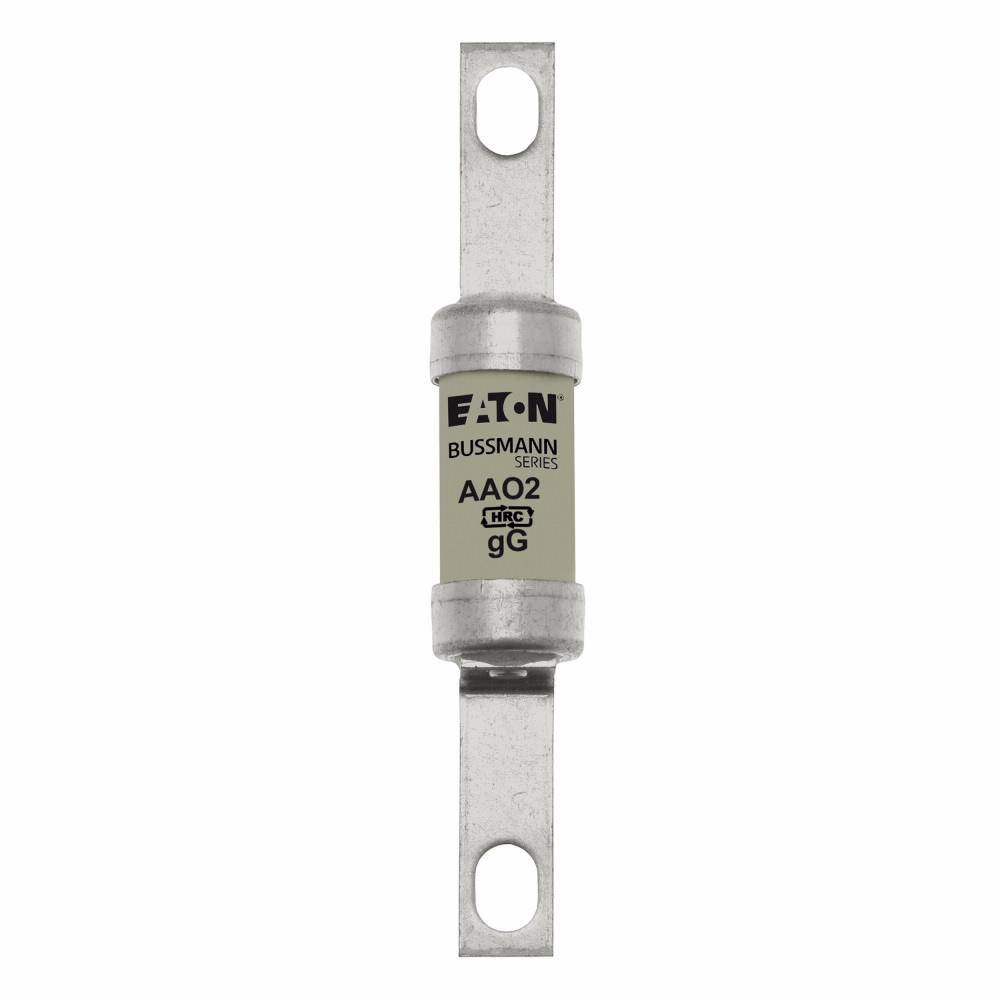

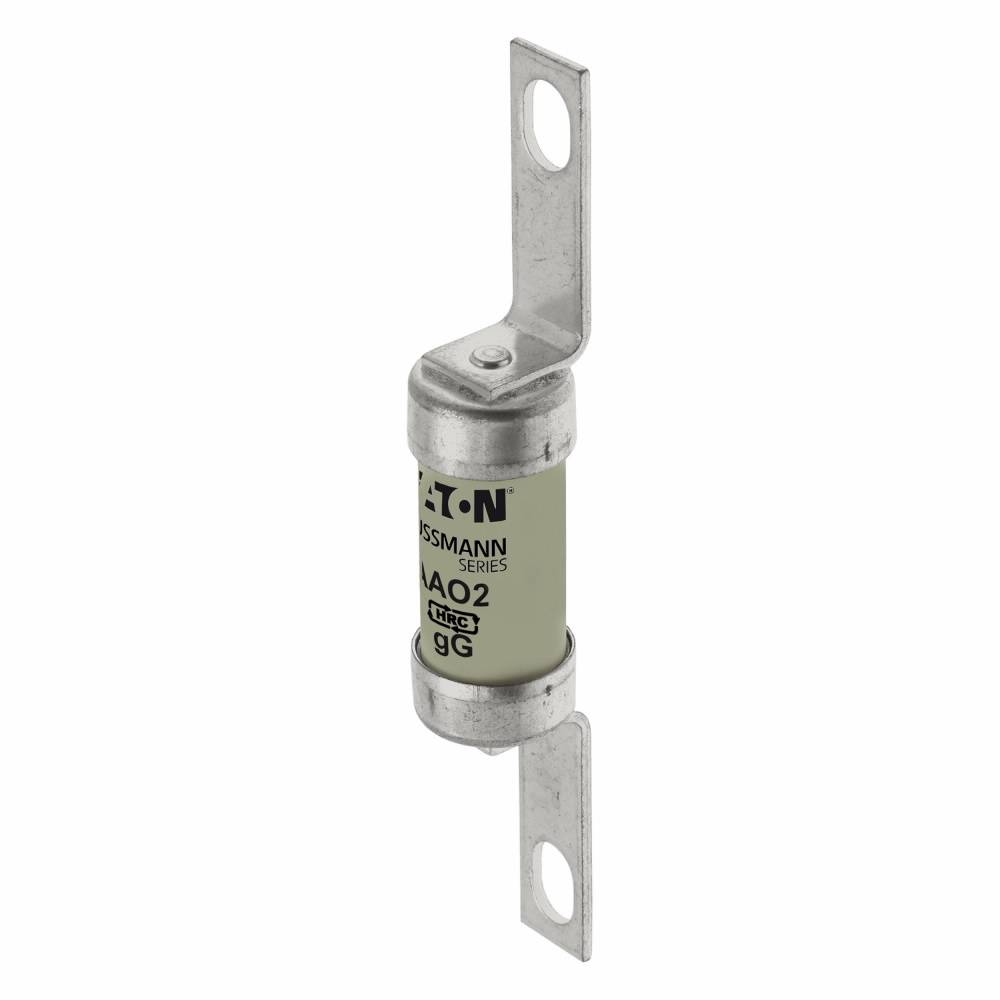

Edison AAO2 Low Voltage HRC Fuse Link, 550 VAC, 2 A, Ceramic

Name: Edison AAO2 Low Voltage HRC Fuse Link, 550 VAC, 2 A, Ceramic
Brand: Eaton
SKU: BUAAO2
Availability: InStock

Short Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Edison HRC Fuse Link, Low Voltage, Series: AAO, 550 VAC, 2 A, Rated Breaking Capacity: 80 kA, Ceramic, 85 mm W x 14 mm D x 13.7 mm H

MFG #: AAO2

EECO #: BUAAO2 BUAAO2

Brand: Edison

UPC #: 051712838405

Attributes

Features

Documents

Product Information

Attributes

UNSPSC

39121626

Material

Ceramic

Application

For used with the protection of general industrial applications example power distribution, cable protection and motor protection

Mounting Type

Stud

Voltage Rating

550

Type

Low Voltage

Series

AAO

Dimensions

85 mm W x 14 mm D x 13.7 mm H

Amperage Rating

Features

AAO types are low voltage fuses complying with general purpose gG characteristics
Good peak let-through current limitation
1:1:6 selective coordination ratio between "minor" and "major" fuse
Power loss values well within the limits of IEC 60269-2

CEO100_RoHS_01

AAO6_Specification_Sheet_02
