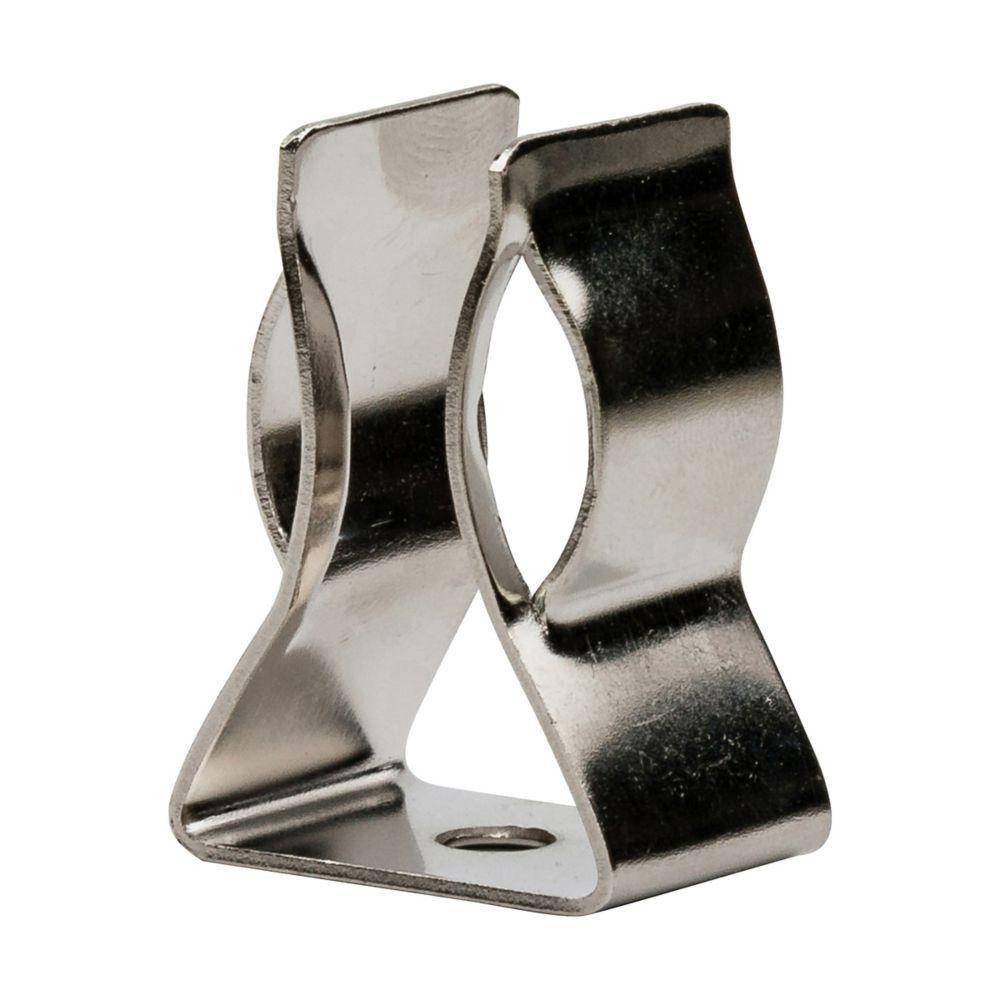

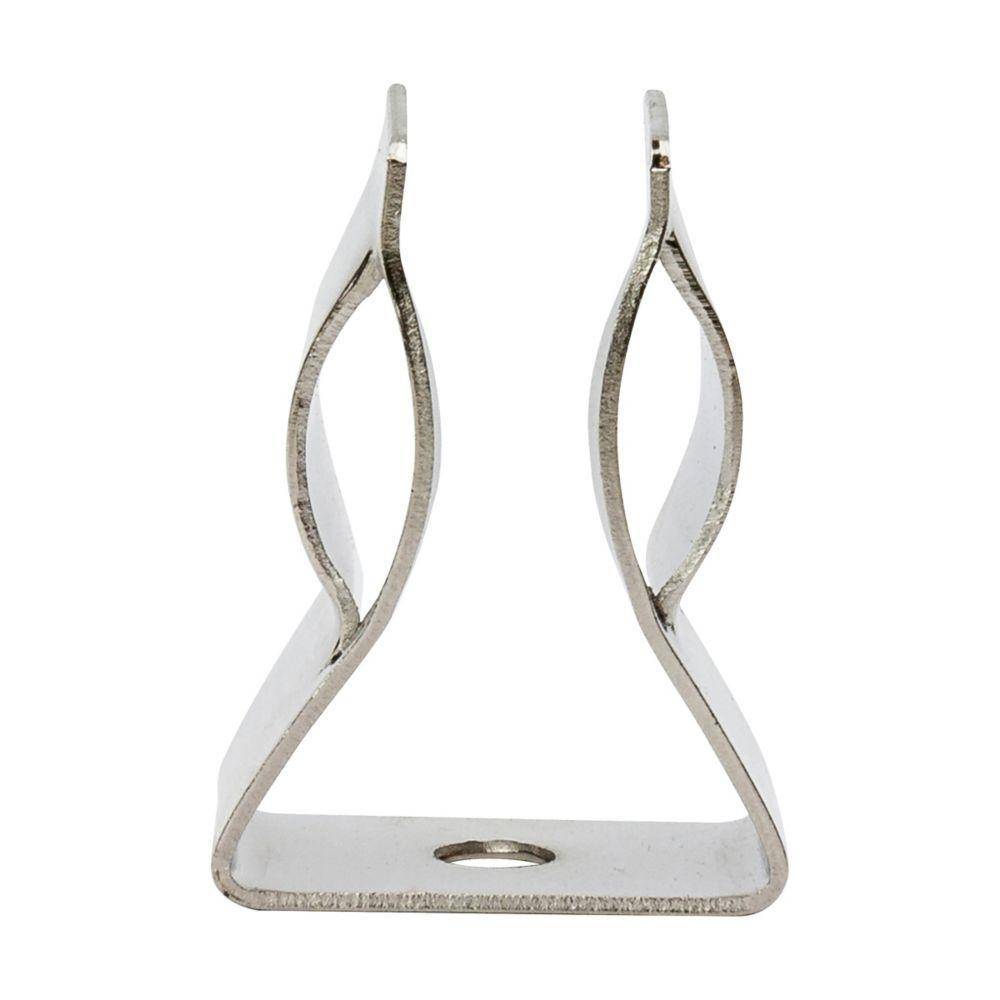

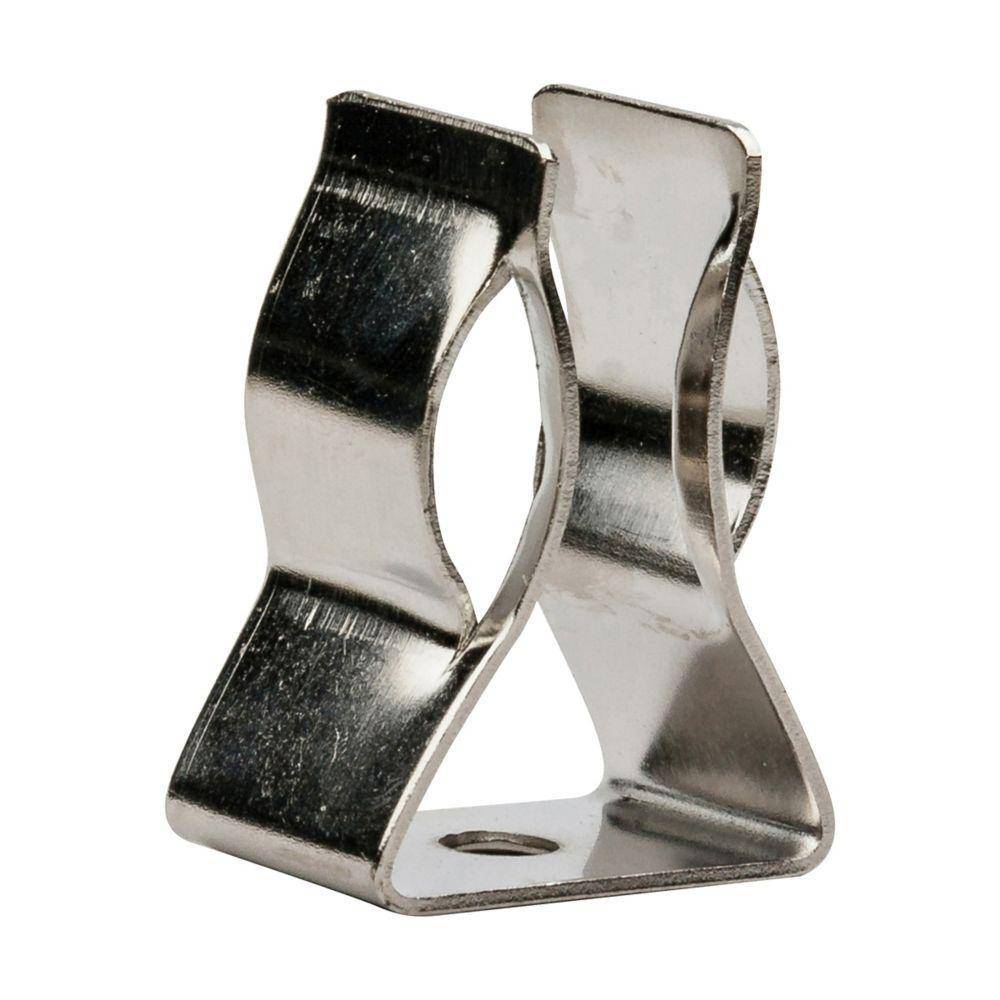

Edison A3354705 Fuse Clip, Nickel Silver Alloy
Edison A3354705 Fuse Clip, Nickel Silver Alloy
Edison A3354705 Fuse Clip, Nickel Silver Alloy
Edison A3354705 Fuse Clip, Nickel Silver Alloy
Edison A3354705 Fuse Clip, Nickel Silver Alloy
Edison A3354705 Fuse Clip, Nickel Silver Alloy
Share Share Print Print
Eaton

Edison A3354705 Fuse Clip, Nickel Silver Alloy

Short Description

To complement the range of tag fixings offered by Eaton, a range of fuse clips are available. These are suitable for use with British Standard, DIN Dimensioned and VT ferrule style fuse links. The BS and DIN Clips are rated up to 200 A. They are designed to be fitted onto insulated studs or directly onto a busbar.

Edison Fuse Clip, 5.3 mm Mounting Hole, Nickel Silver Alloy, 25.4 mm L x 17.5 mm W x 35 mm H
MFG #: A3354705

EECO #: BUA3354705

Brand: Edison
UPC #: 051712838375
Attributes
Features
Documents
Product Information
Attributes
Finish
Nickel Plated
UNSPSC
39121625
Material
Nickel Silver Alloy
Application
For used with potential and small power transformer fuses, 25.4 mm VT fuse links
Dimensions
25.4 mm L x 17.5 mm W x 35 mm H
Mounting Hole Size
5.3
Features
  • Material: Nickel Silver Alloy
  • Mounting Hole Size: 5.3 mm
  • Dimensions: 25.4 mm (Length) x 17.5 mm (Width) x 35 mm (Height)

Enhanced by AI

Edison_A3354705_Specification_Sheet
everwhere
Edison A3354705 Fuse Clip, Nickel Silver Alloy
