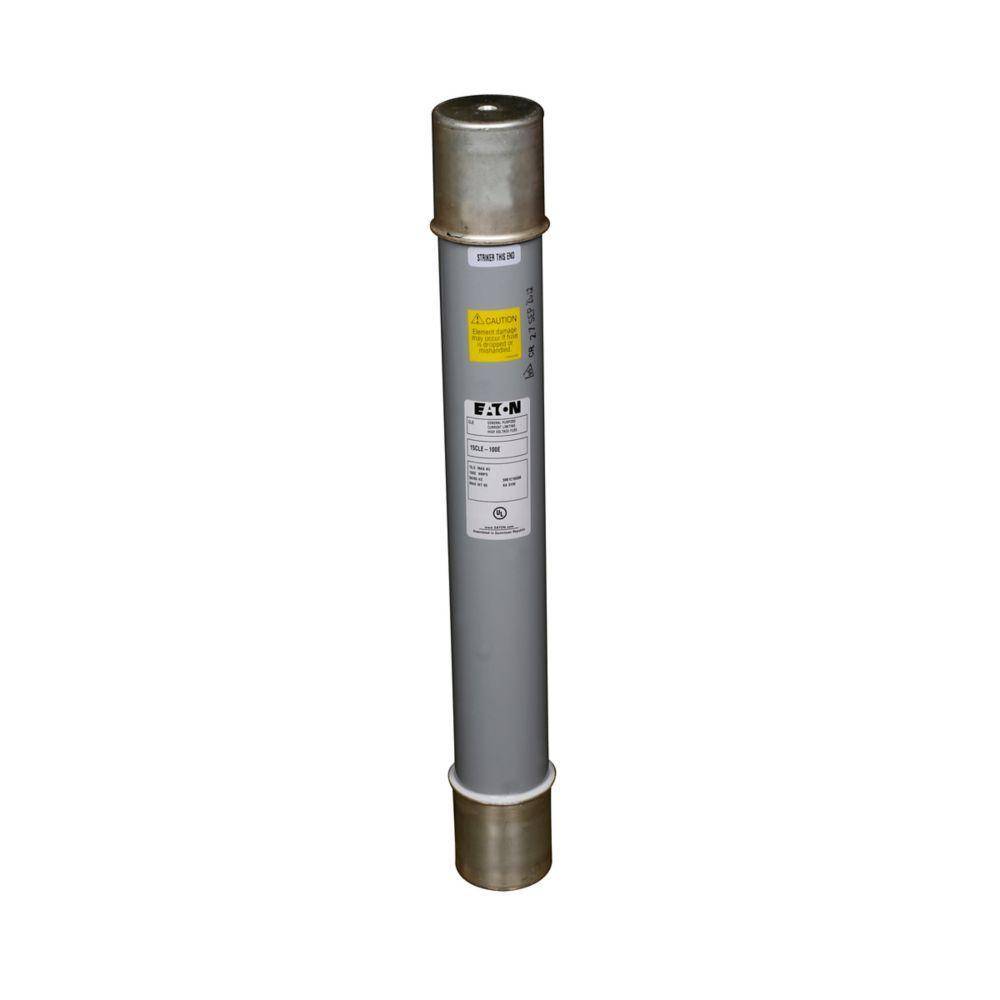

EATON 8HLE-10E Type HLE E-Rated Medium Voltage 1-Barrel Current Limiting Fuse, 10 A, 8.3 kV, 50 kA Interrupt, Class: E

Short Description

Current limiting E-Rated medium voltage fuses are defined by their melting time-current characteristic that permit their electrical interchangeability with other fuses of the same E Rating. They are physically dimensioned for easy installation in existing hardware to provide positive interruption even on low fault currents. E-Rated fuse constructions are available in ferrule, bolt-on and clip-lock and specialty mount fuses for AMPGARD® motor starters Outdoor rating available on select catalog numbers and open fuse indicator speeds troubleshooting by providing a positive visual indication of fuse operation.

EATON Current Limiting Fuse, Type HLE E-Rated Medium Voltage 1-Barrel, 10 A, 8.3 kV, 50 kA Interrupt, Class: E, 50/60 Hz Frequency, 300 s Response, Bolted-On Mounting, 15.9 in L x 3 in W x 3 in H Body
MFG #: 8HLE-10E

EECO #: BU8HLE10E

Brand: Eaton
UPC #: 786670006701
Attributes
Features
Documents
Product Information
Attributes
Class
E
UNSPSC
39121628
Application
For use in medium voltage feeder circuit protection, medium voltage metal-enclosed switchgear, medium voltage transformer primary protection, medium voltage switches and indoor/outdoor applications
Mounting Type
Bolted-On
Response Time
300
Voltage Rating
8.3
Frequency Rating
50/60
Type
Type HLE E-Rated Medium Voltage 1-Barrel
Series
HLE
Amperage Rating
10
Features
  • Current limiting e-rated medium voltage fuses are defined by their melting time-current characteristic that permit their electrical interchangeability with other fuses of the same e-rating
  • E-rated fuses must have a defined current response time specified by ANSI C37.46
  • E-rated fuse of 100 A and below must melt in 300 s at an RMS current within the range of 200 to 240% of the fuse's nameplate current rating
  • E-rated fuses are physically dimensioned for easy installation in existing hardware
  • Current limiting fuses provide positive interruption even on low fault currents
  • The fuse limits the magnitude of electro mechanical stresses in the protected apparatus
  • Open fuse indicator speeds trouble shooting by providing a positive visual indication of fuse operation
  • HLE short construction
15LHLE2_125E_User_Manual_01
EATON_5NCLPT_1E_A_User_Manual
EATON_8HLE_10E_Specification_Sheet
