Eaton

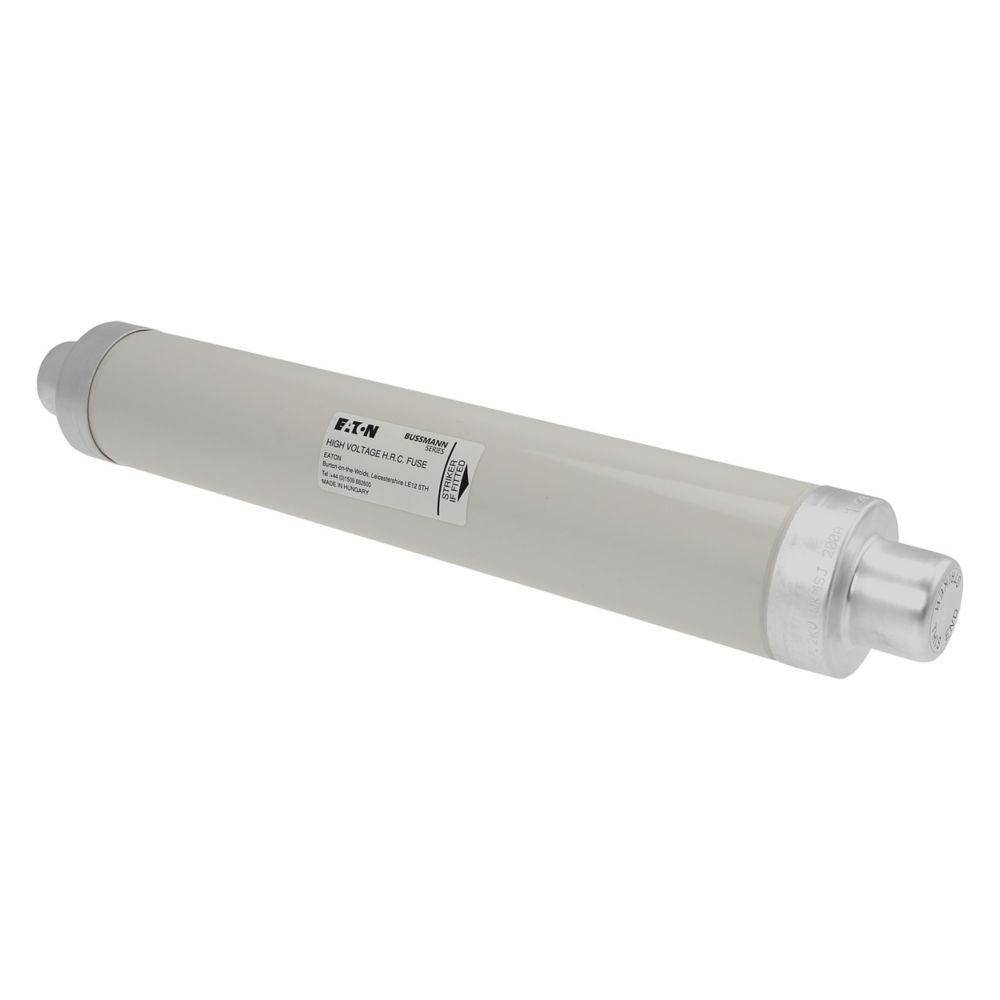

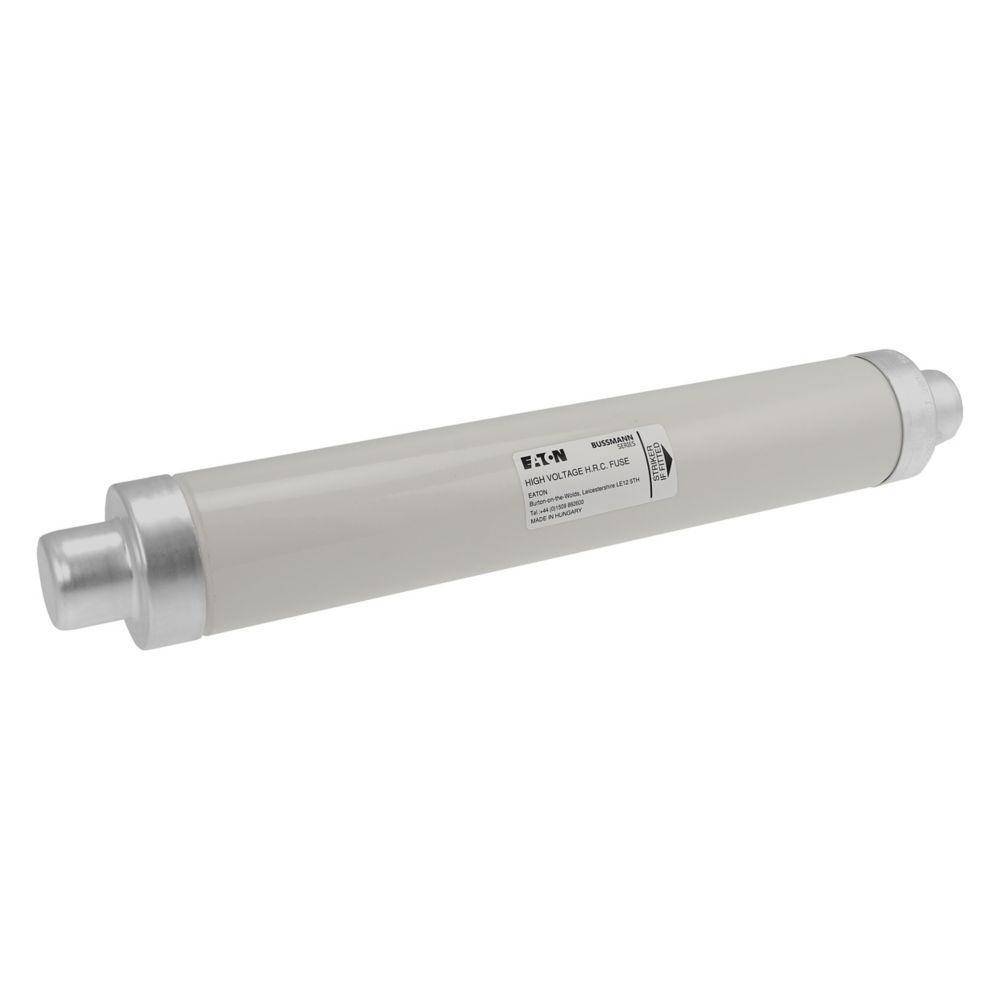

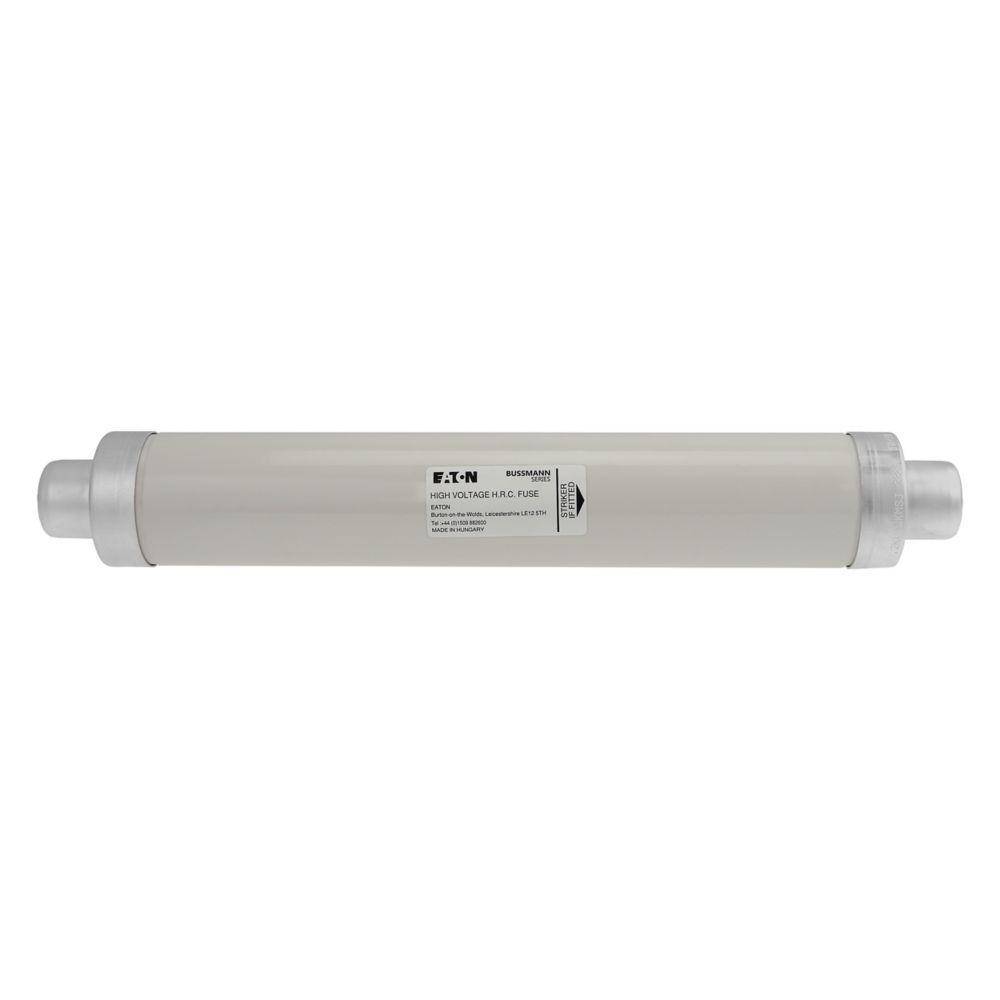

Bussmann 7.2WKMSJ200 WKMSJ DIN Dimensioned Medium Voltage Motor Fuse, 7.2 kV, 200 A

Short Description

Motor fuse links providing short circuit protection in motor circuits to both the motor starter and cables from the starter to the motor.

Bussmann Motor Fuse, DIN Dimensioned Medium Voltage, Series: WKMSJ, 7.2 kV, 200 A, 76 mm Dia x 442 mm L
MFG #: 7.2WKMSJ200

EECO #: BU7.2WKMSJ200

Brand: Bussmann
UPC #: 051712837798
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Application
Transformer Protection, Medium Voltage IEC Designed Equipment, Motor Starter, Indoor and Outdoor Applications
Voltage Rating
7.2
Type
DIN Dimensioned Medium Voltage
Series
WKMSJ
Dimensions
76 mm Dia x 442 mm L
Amperage Rating
200
Features
  • Cool running, low watts loss and power dissipation thanks to the m-effect ensuring high levels of substation utilization
  • Silver elements ensuring high conductivity and low power (revenue) loss
  • 100% X-Ray, all our medium voltage fuse links are X-Rayed ensuring the highest possible standards are maintained
  • Allows motor start current to pass on without degradation of fuse link
Edison_24FDMSJ16_Catalog
Bussmann_7_2WKMSJ200_Specification_Sheet
