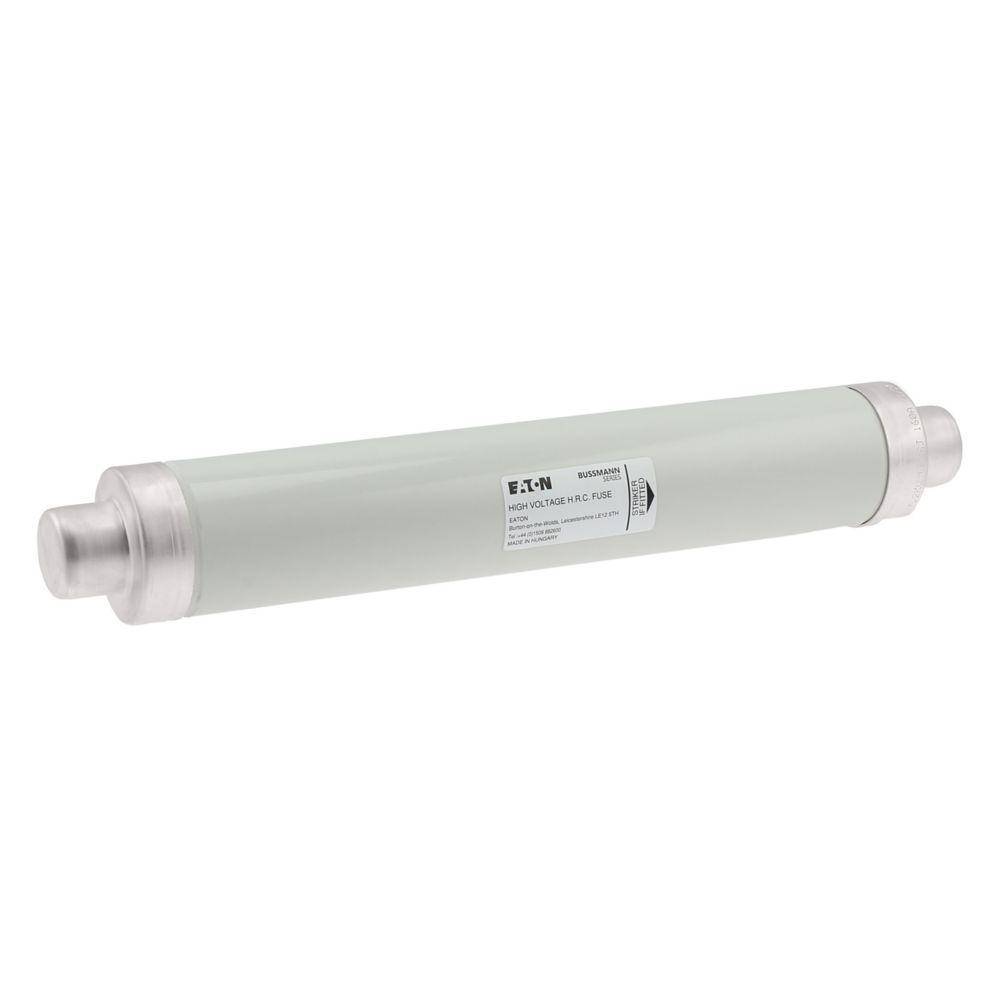

Bussmann 7.2WFMSJ80 WFMSJ British Standard DIN Dimensioned Medium Voltage IEC Fuse, 7.2 kV, 80 A

Short Description

Motor fuse links providing short circuit protection in motor circuits to both the motor starter and cables from the starter to the motor.

Bussmann IEC Fuse, British Standard DIN Dimensioned Medium Voltage, Series: WFMSJ, 7.2 kV, 80 A, 3 in Dia x 17.4 in L Dimensions
MFG #: 7.2WFMSJ80

EECO #: BU7.2WFMSJ80

Brand: Bussmann
UPC #: 051712837651
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Application
Motor Starter and Motor Circuit Protection
Voltage Rating
7.2
Type
British Standard DIN Dimensioned Medium Voltage
Series
WFMSJ
Dimensions
3 in Dia x 17.4 in L
Amperage Rating
80
Features
  • Cool running, low watts loss and power dissipation thanks to the M-effect ensuring high levels of substation utilization
  • Silver elements ensuring high conductivity and low power (revenue) loss
  • 100% X-ray, all our medium voltage fuse links are X-rayed ensuring the highest possible standards are maintained
  • Allows motor start current to pass on without degradation of fuse link
