Eaton

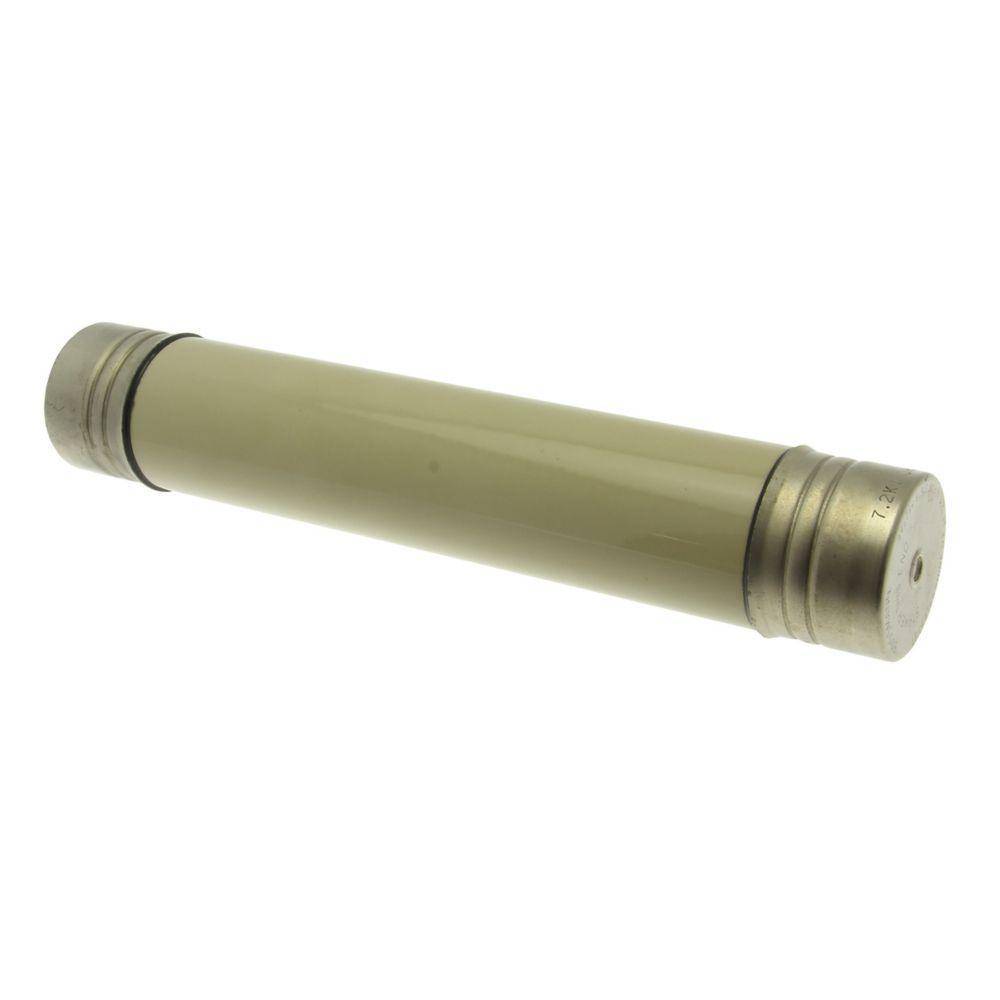

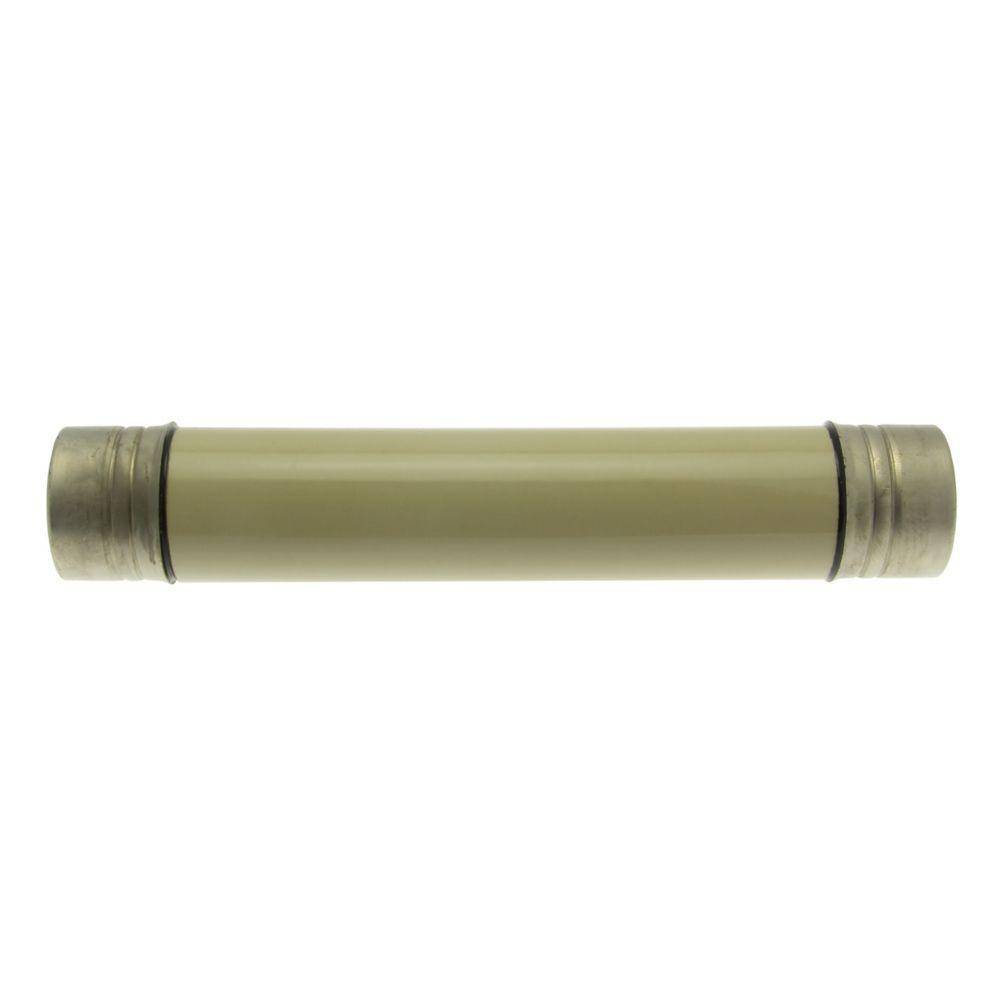

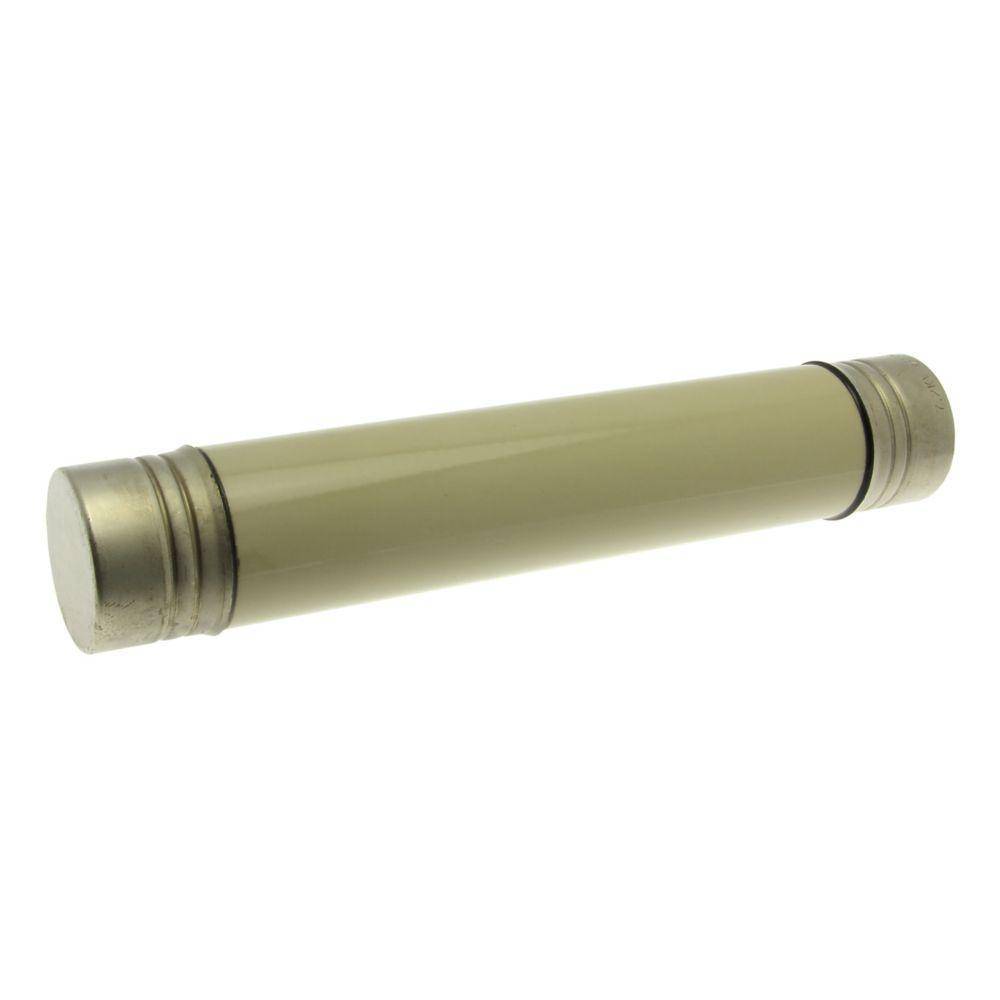

Edison 7.2OHGMA140 Oiltight Fuse Link, 7.2 kV, 140 A

Short Description

Eaton's Bussmann series oil tight medium voltage fuses are designed for use in oil filled switchgear. They are suitable for primary side transformer protection and oil filled switch combination unit. This type of fuses was pioneered in the UK. Eaton has been in continuous manufacture for almost 40 years being by far one of the most widely used device of its kind in the world. Over 1 million of Eaton's Bussmann series oil tight medium voltage fuses have been put in service.

Edison Fuse Link, Oiltight, 7.2 kV, 140 A, Rated Breaking Capacity: 45 kA, 63.5 mm Dia x 359 mm L
MFG #: 7.2OHGMA140

EECO #: BU7.2OHGMA140

Brand: Edison
UPC #: 051712837378
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Application
For used with primary side transformer protection and oil filled fuse switch combination unit
Voltage Rating
7.2
Type
Oiltight
Series
OHG
Dimensions
63.5 mm Dia x 359 mm L
Amperage Rating
140
Features
  • Cool running, low watts loss and power dissipation thanks to the m-effect ensuring high levels of substation utilization
  • Silver elements ensuring high conductivity and low power (revenue) loss
  • 100% X-Ray, all our medium voltage fuse links are X-Rayed ensuring the highest possible standards are maintained
  • The range is not suitable for use inside oil filled transformer tanks where high oil temperatures may be expected
Bussmann_7_2OHGMA140_Specification_Sheet
Edison_72OHGMA140_Catalog
