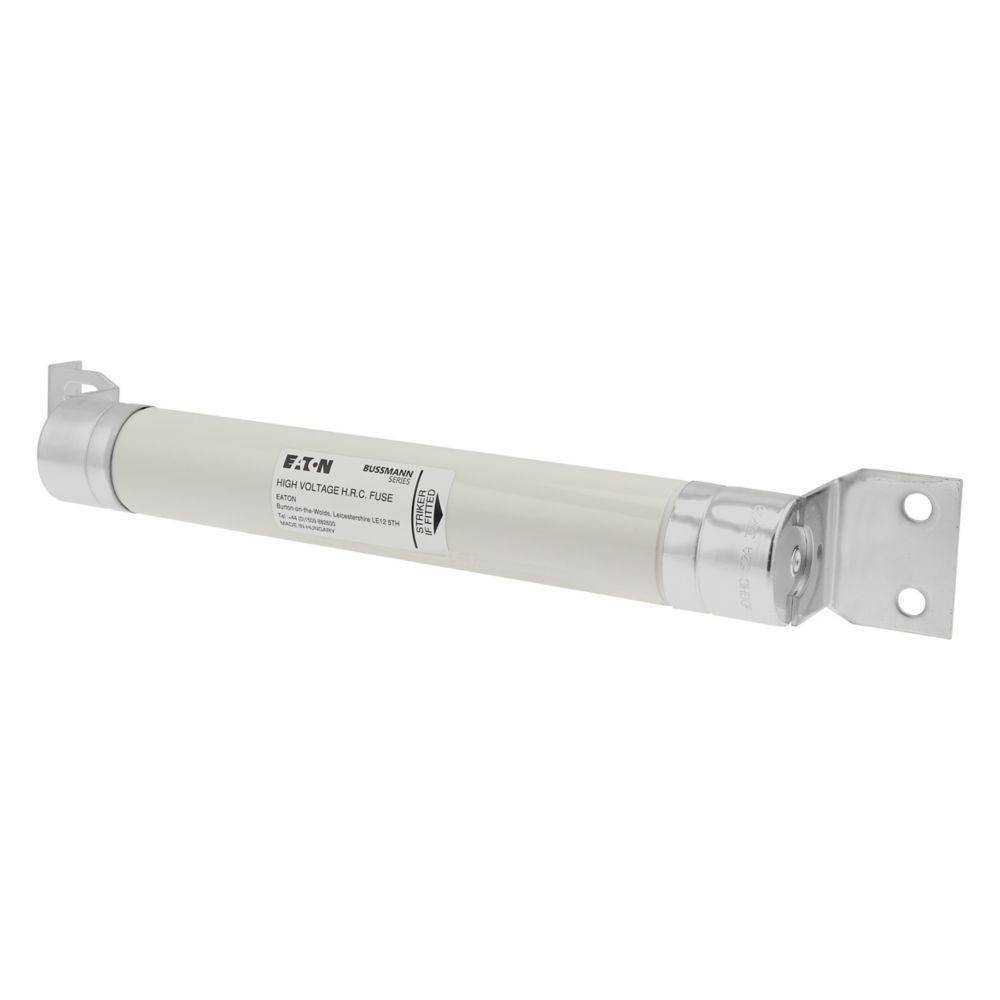

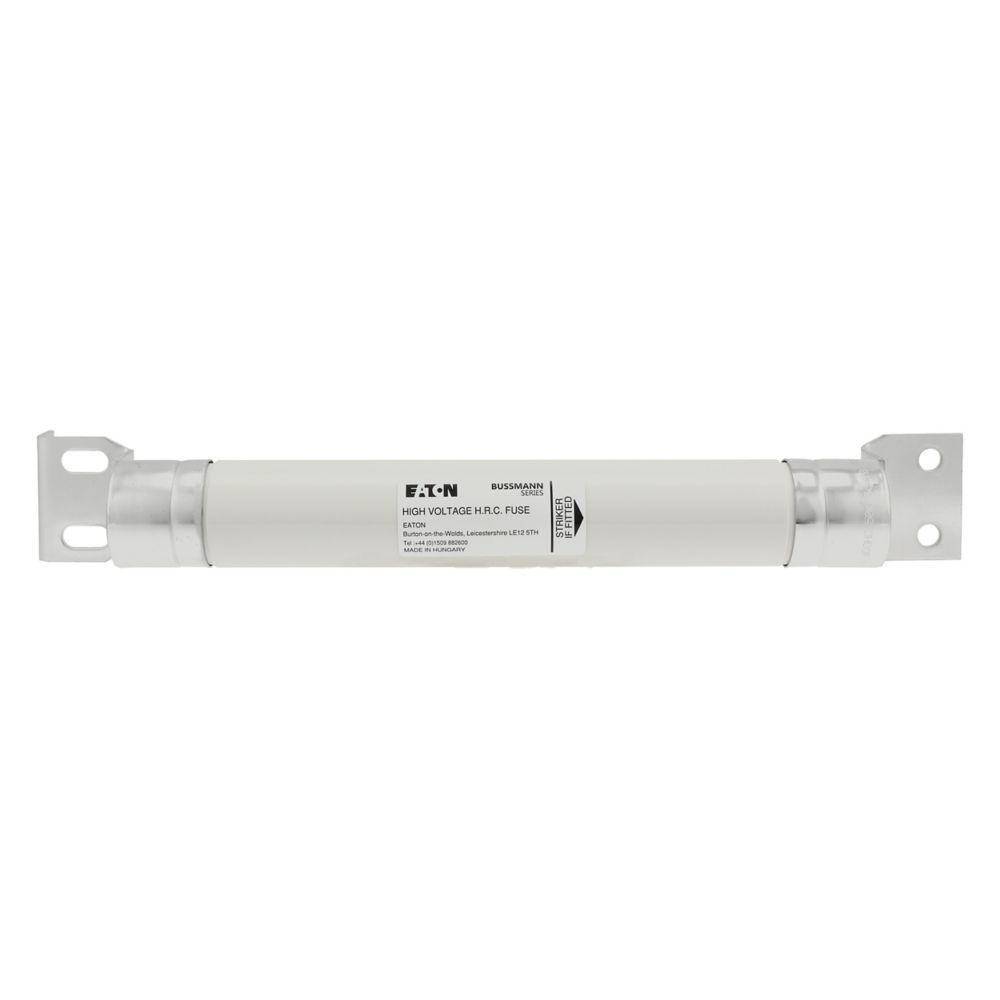

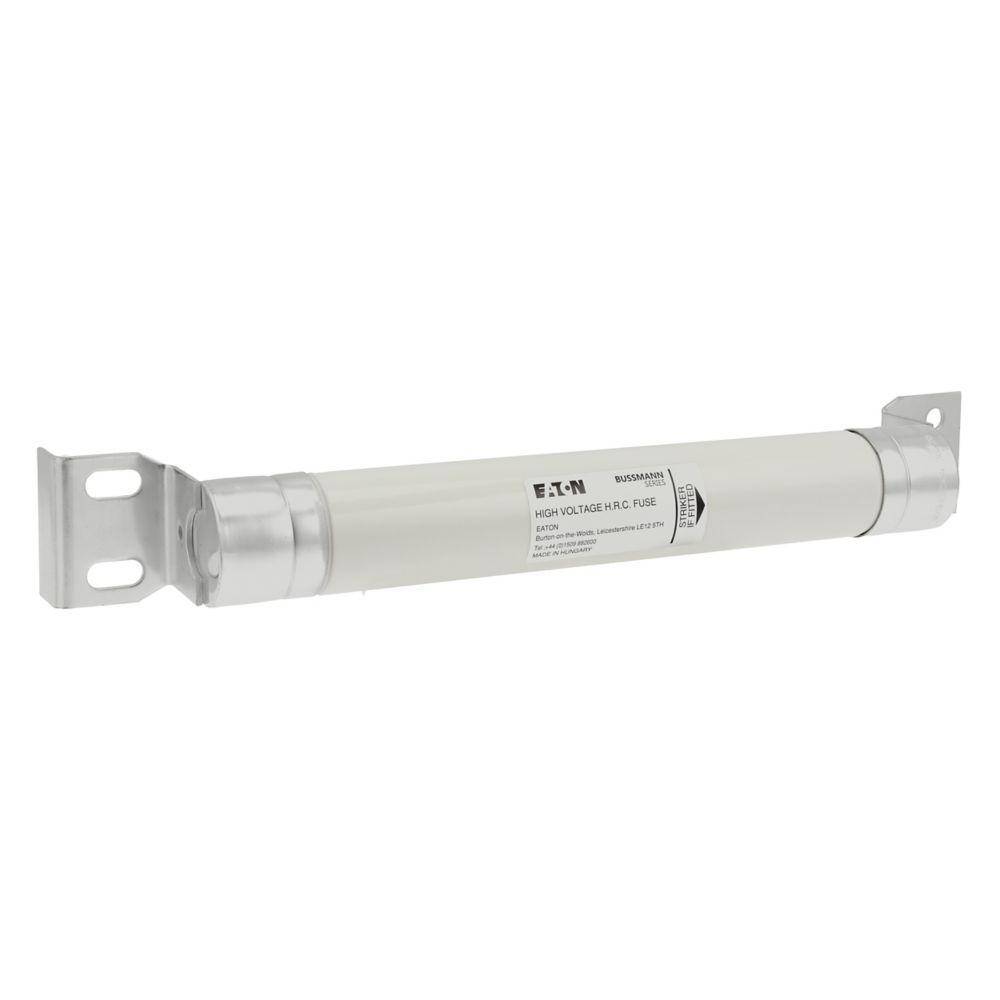

Edison 7.2BFGHD160 Type BFGHD Medium Voltage Current Limiting Fuse Link, 7.2 kV, 160 A

Name: Edison 7.2BFGHD160 Type BFGHD Medium Voltage Current Limiting Fuse Link, 7.2 kV, 160 A
Brand: Eaton
SKU: BU7.2BFGHD160
Availability: InStock

Short Description

Eaton's Bussmann medium voltage DIN full range and back-up fuses offer an excellent transformer protection. They are available with or without striker. They comply to the dimensional standard DIN 43625, VDE 0670 and IEC 60282-1. They are suitable for indoor and outdoor use.

Edison Current Limiting Fuse Link, Type BFGHD Medium Voltage, 7.2 kV, 160 A

MFG #: 7.2BFGHD160

EECO #: BU7.2BFGHD160 BU7.2BFGHD160

Brand: Edison

UPC #: 051712837323

Attributes

Features

Documents

Product Information

Attributes

UNSPSC

39121626

Application

Primary Side Transformer Protection, Fuse Switch Combination Unit, Fuse Bases and Fuse Switches

Mounting Type

Stud

Voltage Rating

7.2

Type

Type BFGHD Medium Voltage

Series

BFGHD

Dimensions

76 mm Dia x 461 mm L

Amperage Rating

160

Features

Cool running, low watts loss and power dissipation thanks to the M-effect ensuring high levels of substation utilization
Silver elements ensuring high conductivity and low power (revenue) loss
100% X-ray, all our medium voltage fuse links are X-rayed ensuring the highest possible standards are maintained

Bussmann_7_2BFGHD160_Specification_Sheet
