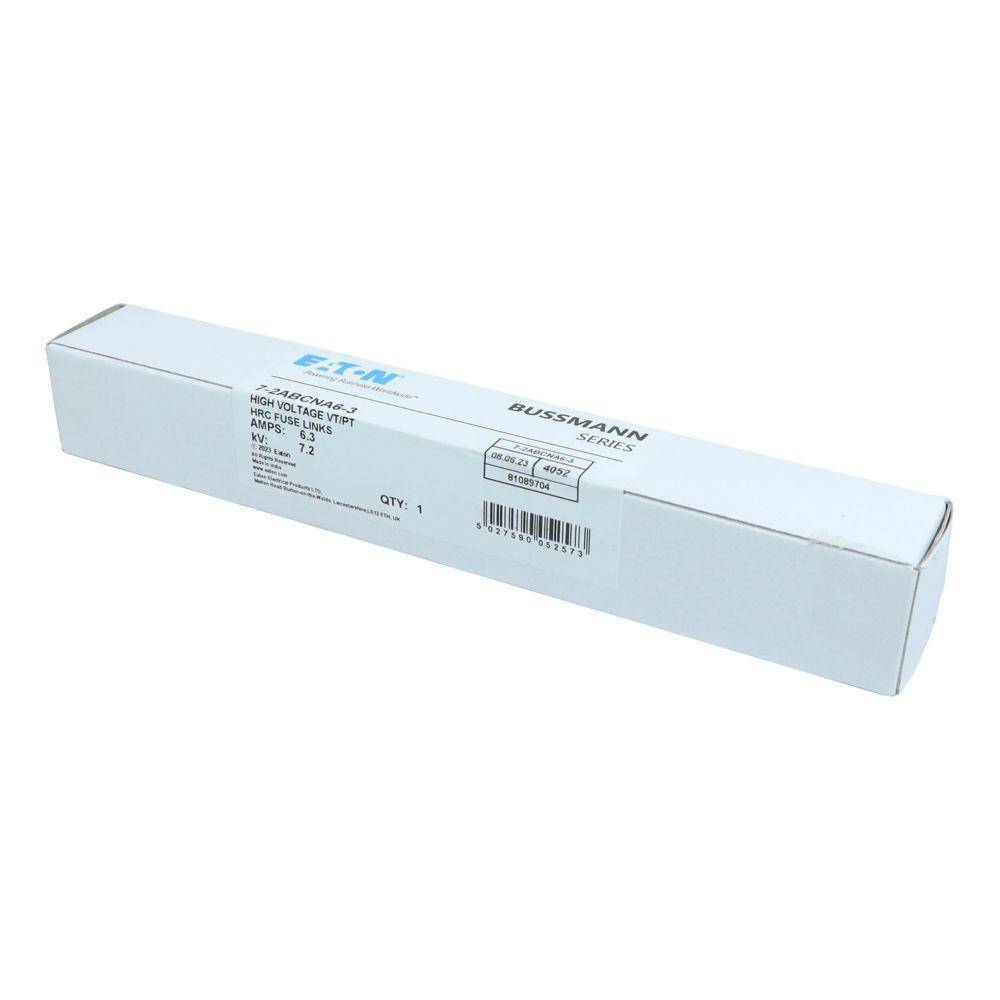

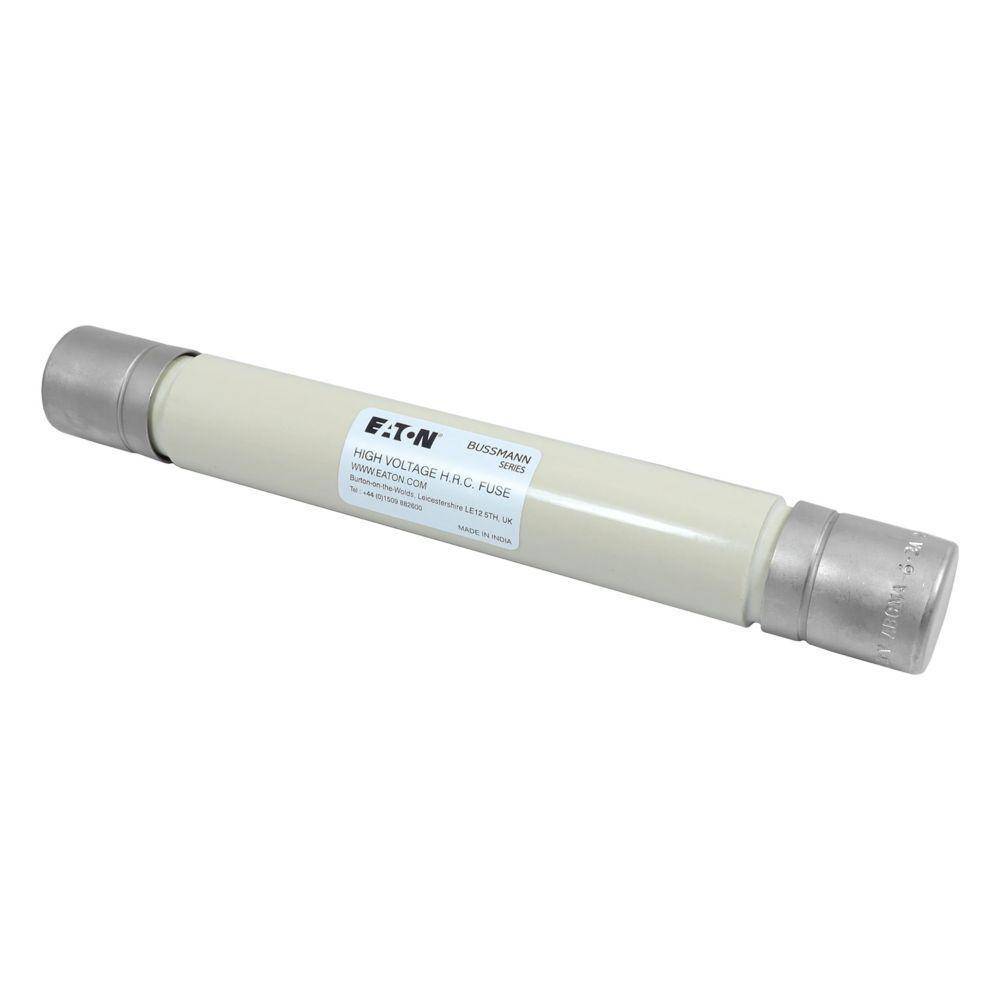

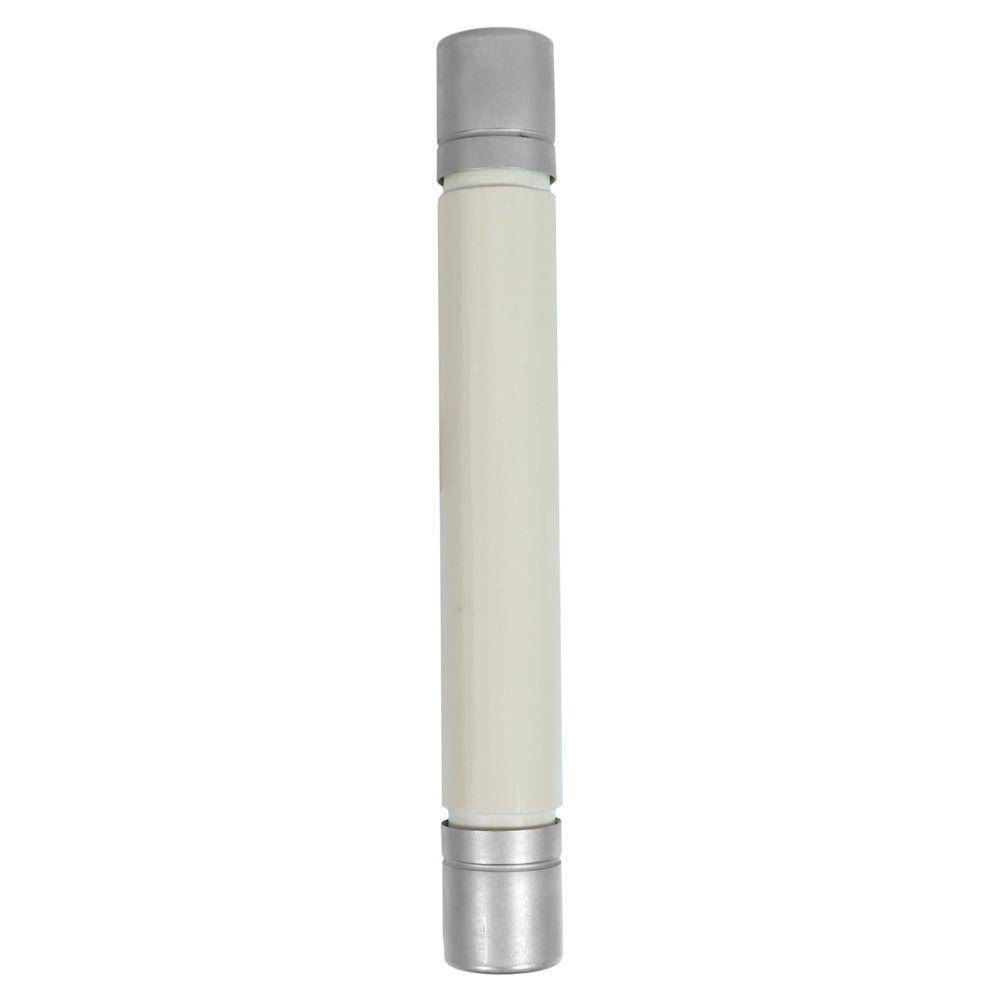

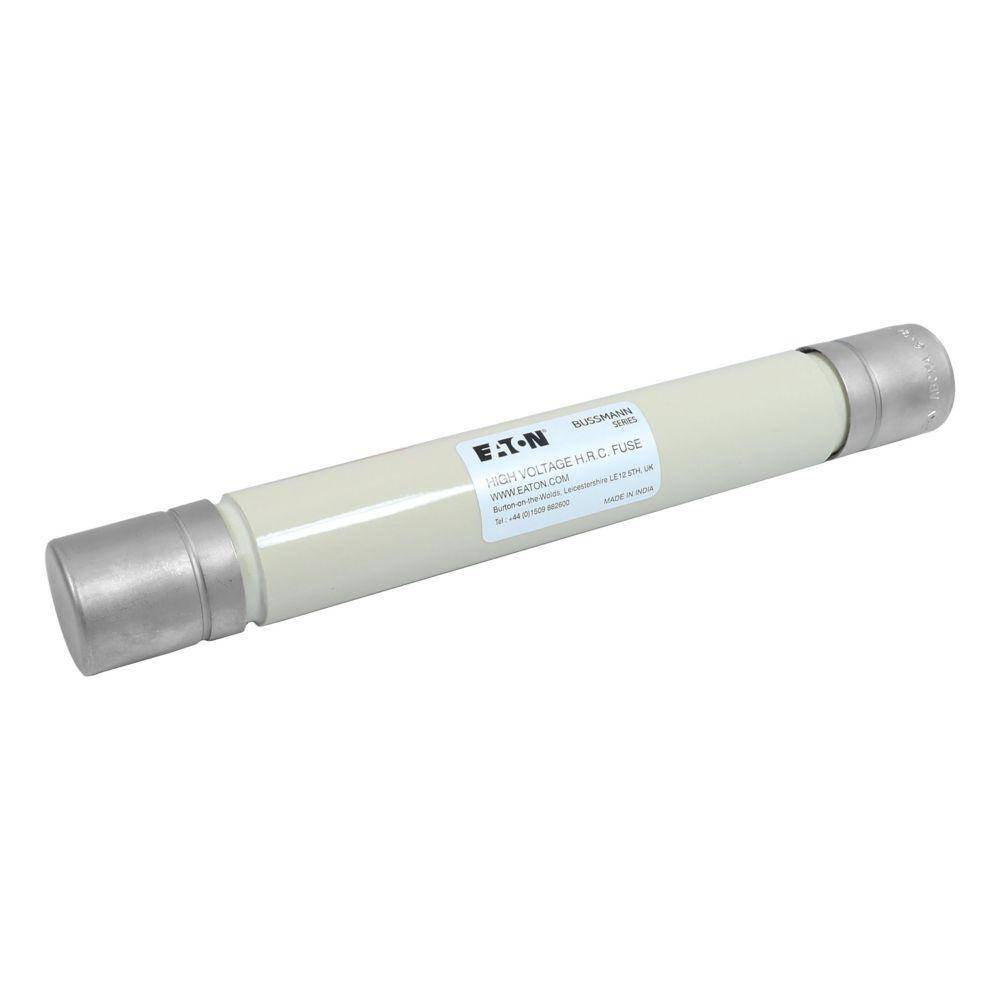

Edison 7.2ABCNA6.3 Medium Voltage Current Limiting Fuse, 7.2 kV, 6.3 A

Short Description

Eaton's Bussmann series medium voltage auxiliary transformers fuses are specifically designed for use in the primary side of voltage transformers. They comply with BS 2692-1 and IEC 60282-1 standards.

Edison Current Limiting Fuse, Medium Voltage, 7.2 kV, 6.3 A, 1 in Dia x 7.7 in L Dimensions
MFG #: 7.2ABCNA6.3

EECO #: BU7.2ABCNA6.3

Brand: Edison
UPC #: 051712797597
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Application
Medium Voltage Potential Transformers, Small Medium Voltage Service Transformers, Small Medium Voltage Control Transformers
Mounting Type
Bolt-On
Voltage Rating
7.2
Type
Medium Voltage
Series
AB Series
Dimensions
1 in Dia x 7.7 in L
Amperage Rating
6.3
Features
  • Low amp, current limiting e-rated PT medium voltage fuses are general purpose fuses defined by their melting time-current characteristic that permit their electrical interchangeability with other fuses of the same e-rating
  • E-rated general purpose fuses must have a current responsive element that will melt in 300 s at an RMS current within the range of 200 to 240% of the fuses name plate current rating, fuse refill or link per ANSI C37.46 for fuses rated 100E or less
  • PT fuses are physically dimensioned for easy installation in existing hardware
  • Space saving size eases design considerations for new installations
  • Current limiting fuses provide positive interruption even on low fault currents, the fuse limits the magnitude of electromechanical stresses in the protected apparatus
  • These fuses are in a self-contained, nonventing package for installation indoors or outdoors in an enclosure
  • Open fuse indicator speeds troubleshooting by providing a positive visual indication of fuse operation
