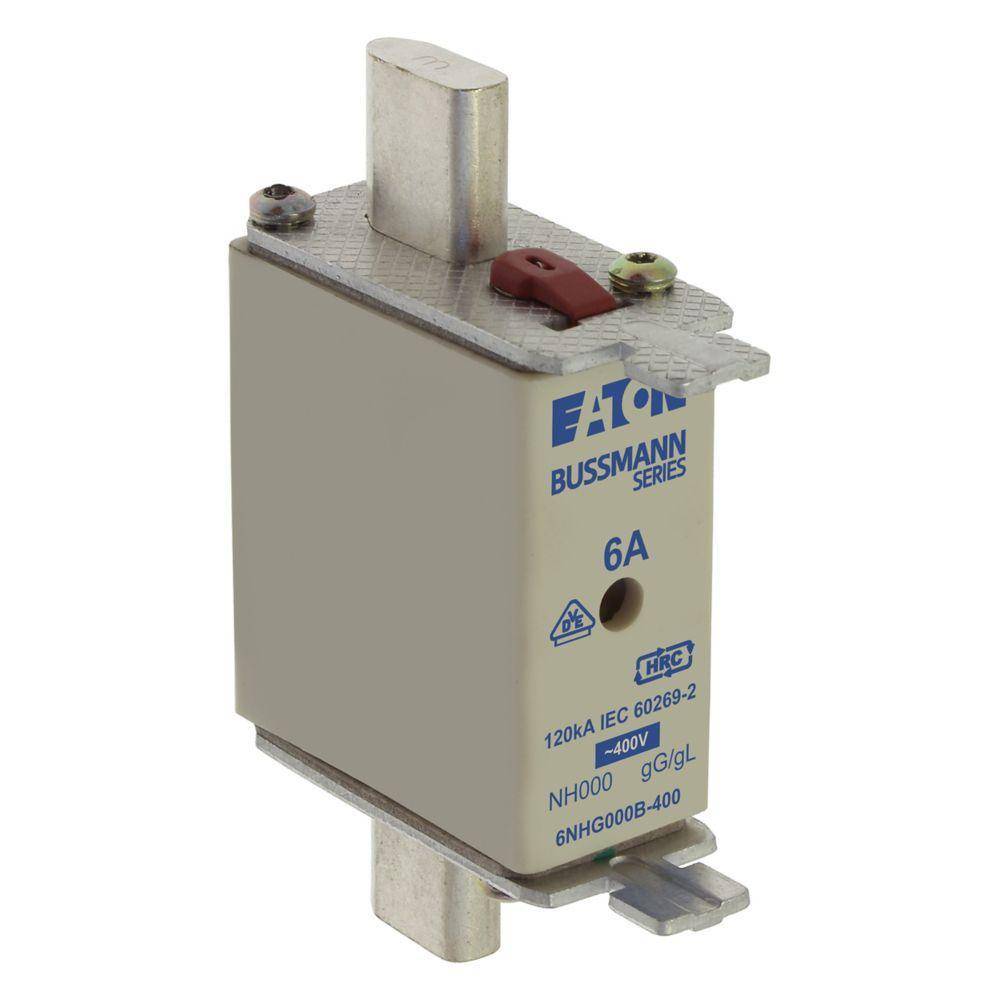

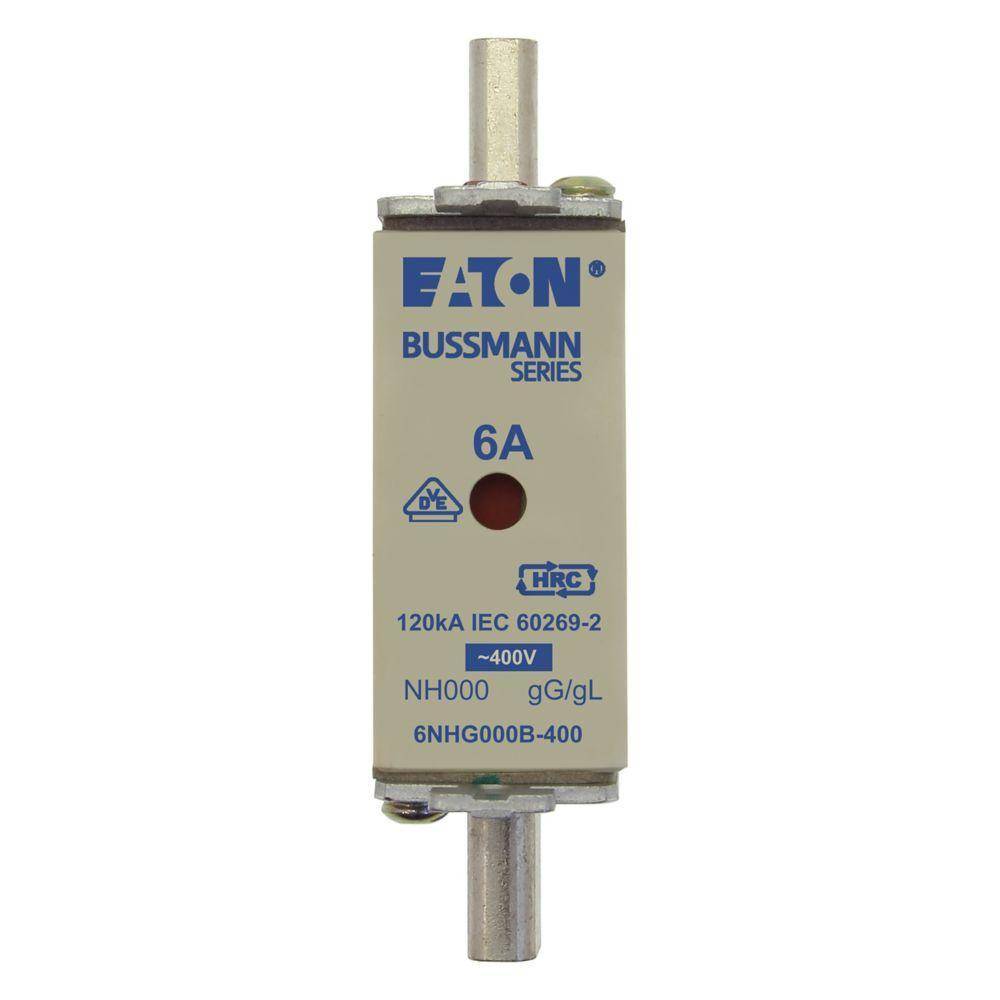

Bussmann 6NHG000B-400 Size 000 Dual Indicator Low Voltage NH Fuse Link, 400 V, 6 A, For Use With Class C/gG/gL Fuse, Ceramic
Bussmann 6NHG000B-400 Size 000 Dual Indicator Low Voltage NH Fuse Link, 400 V, 6 A, For Use With Class C/gG/gL Fuse, Ceramic
Bussmann 6NHG000B-400 Size 000 Dual Indicator Low Voltage NH Fuse Link, 400 V, 6 A, For Use With Class C/gG/gL Fuse, Ceramic
Bussmann 6NHG000B-400 Size 000 Dual Indicator Low Voltage NH Fuse Link, 400 V, 6 A, For Use With Class C/gG/gL Fuse, Ceramic
Bussmann 6NHG000B-400 Size 000 Dual Indicator Low Voltage NH Fuse Link, 400 V, 6 A, For Use With Class C/gG/gL Fuse, Ceramic
Bussmann 6NHG000B-400 Size 000 Dual Indicator Low Voltage NH Fuse Link, 400 V, 6 A, For Use With Class C/gG/gL Fuse, Ceramic
Share Share Print Print
Eaton

Bussmann 6NHG000B-400 Size 000 Dual Indicator Low Voltage NH Fuse Link, 400 V, 6 A, For Use With Class C/gG/gL Fuse, Ceramic

Short Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.

Bussmann NH Fuse Link, Size 000 Dual Indicator Low Voltage, Series: NHG, 400 V, 6 A, 45 to 62 Hz, Rated Breaking Capacity: 120 kAIC, Holder Mount, For Use With: Class C/gG/gL Fuse, Ceramic, 29.528 in L x 31.496 in W x 22.047 in H
MFG #: 6NHG000B-400

EECO #: BU6NHG000B400

Brand: Bussmann
UPC #: 051712241960
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Material
Ceramic
Application
Electrical Assemblies, Panels, EOEMs, Control Panels for Machines, Panel Builders, Industrial Facilities and Factories, Power Distribution and Control, Safety and Security Systems
Mounting Type
Holder
Voltage Rating
400
Frequency Rating
45 to 62
Type
Size 000 Dual Indicator Low Voltage
Series
NHG
Dimensions
29.528 in L x 31.496 in W x 22.047 in H
Amperage Rating
6
Suitable For Use With
Class C/gG/gL Fuse
Features
  • Type: Dual Indicator Low Voltage NH Fuse Link
  • Size: 000
  • Voltage Rating: 400 V
  • Current Rating: 6 A
  • Frequency Range: 45 to 62 Hz
  • Rated Breaking Capacity: 120 kAIC
  • Material: Ceramic
  • Compatibility: For use with Class C/gG/gL Fuse
  • Dimensions: 29.528 in L x 31.496 in W x 22.047 in H
  • Mounting: Holder Mount

Enhanced by AI

Bussmann_6NHG000B_400_Specification_Sheet
