Bussmann 6NHG000B Size 000 Dual Indicator Low Voltage NH Fuse Link, 500 V, 6 A, For Use With NH Series Photovoltaic Fuse, Class C gG/gL Fuse, Ceramic

Short Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.

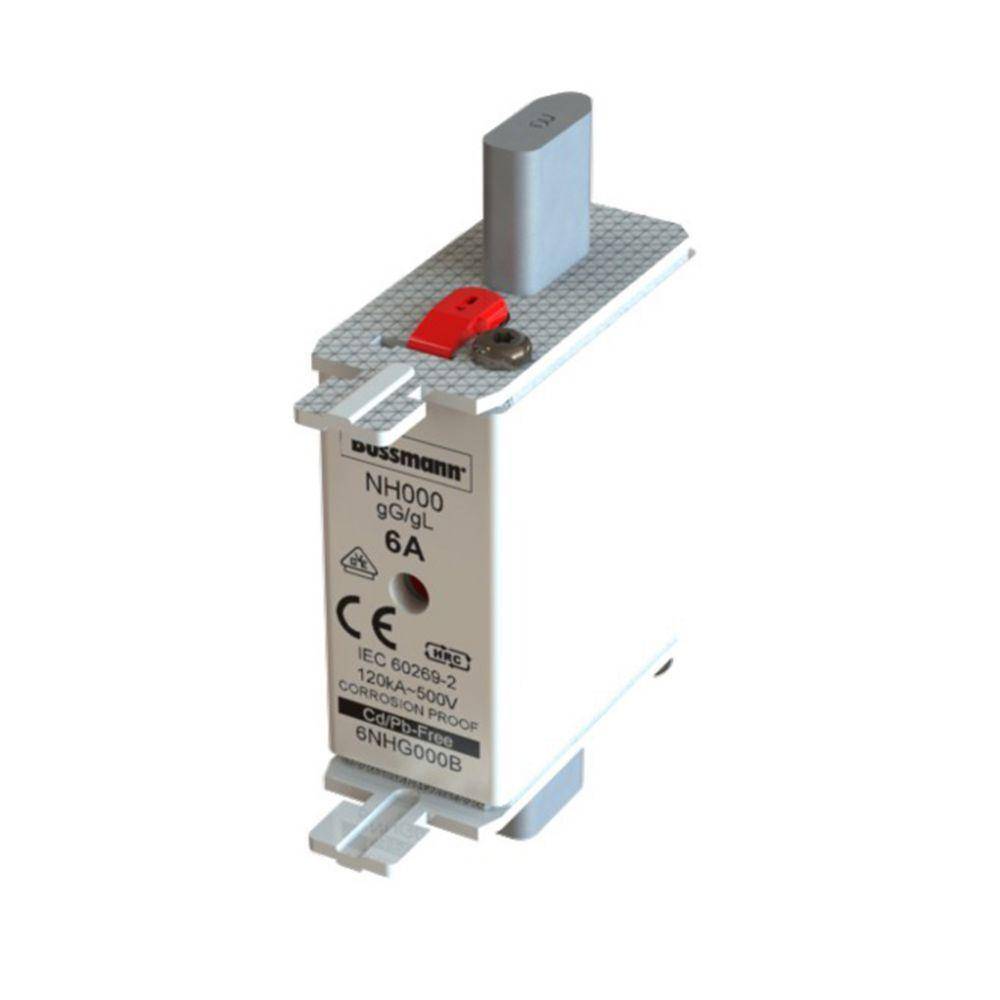

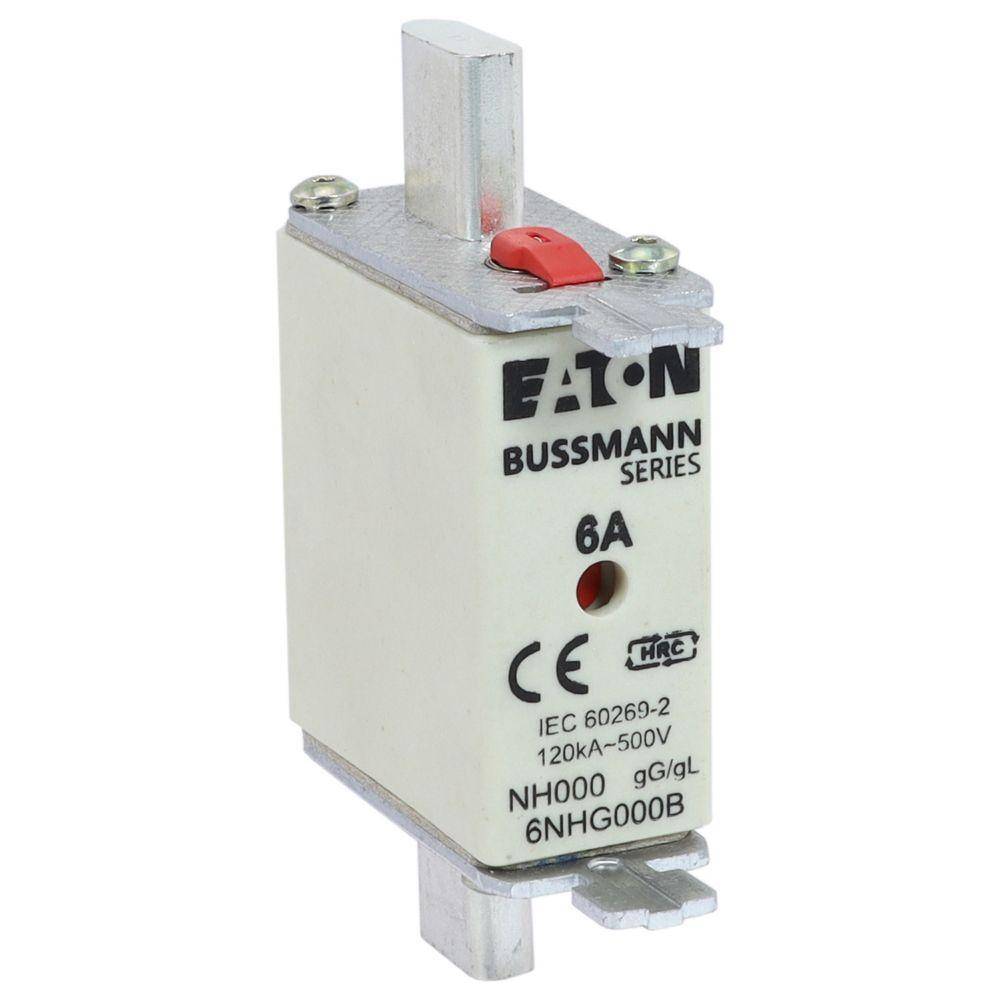

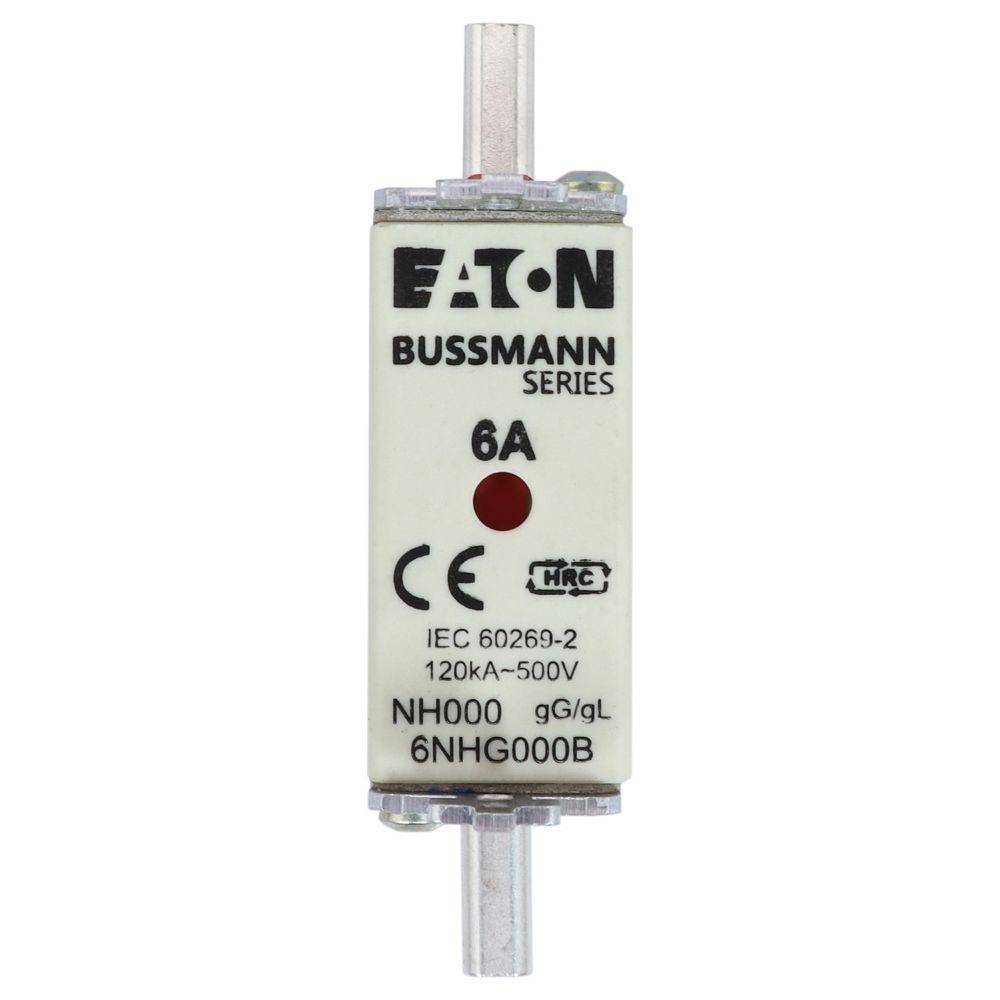

Bussmann NH Fuse Link, Size 000 Dual Indicator Low Voltage, Series: NH Series, 500 V, 6 A, 45 to 62 Hz Frequency, Rated Breaking Capacity: 120 kA, Holder Mounting, For Use With: NH Series Photovoltaic Fuse, Class C gG/gL Fuse, Ceramic, 79 mm L x 30 mm W x 51 mm H Dimensions
MFG #: 6NHG000B

EECO #: BU6NHG000B

Brand: Bussmann
UPC #: 051712540032
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121606
Material
Ceramic
Application
Electrical Assemblies, Panels and EOEMs, Control Panels for Machines, Aftermarket, Panel Builders, Industrial Facilities and Factories, Power Distribution and Control, Safety and Security Systems Applications
Mounting Type
Holder
Voltage Rating
500
Frequency Rating
45 to 62
Type
Size 000 Dual Indicator Low Voltage
Series
NH Series
Dimensions
79 mm L x 30 mm W x 51 mm H
Amperage Rating
6
Suitable For Use With
NH Series Photovoltaic Fuse, Class C gG/gL Fuse
Features
  • Eaton's Bussmann® series 500 VAC NH square bodied industrial fuse links are suitable for a wide variety of applications
  • Reliable dual indicator system
  • Low temperature rise
  • Steatite insulator, corrosion proof (aluminum) metal parts with full contact, silver plated copper blade construction
  • Live gripping lugs
