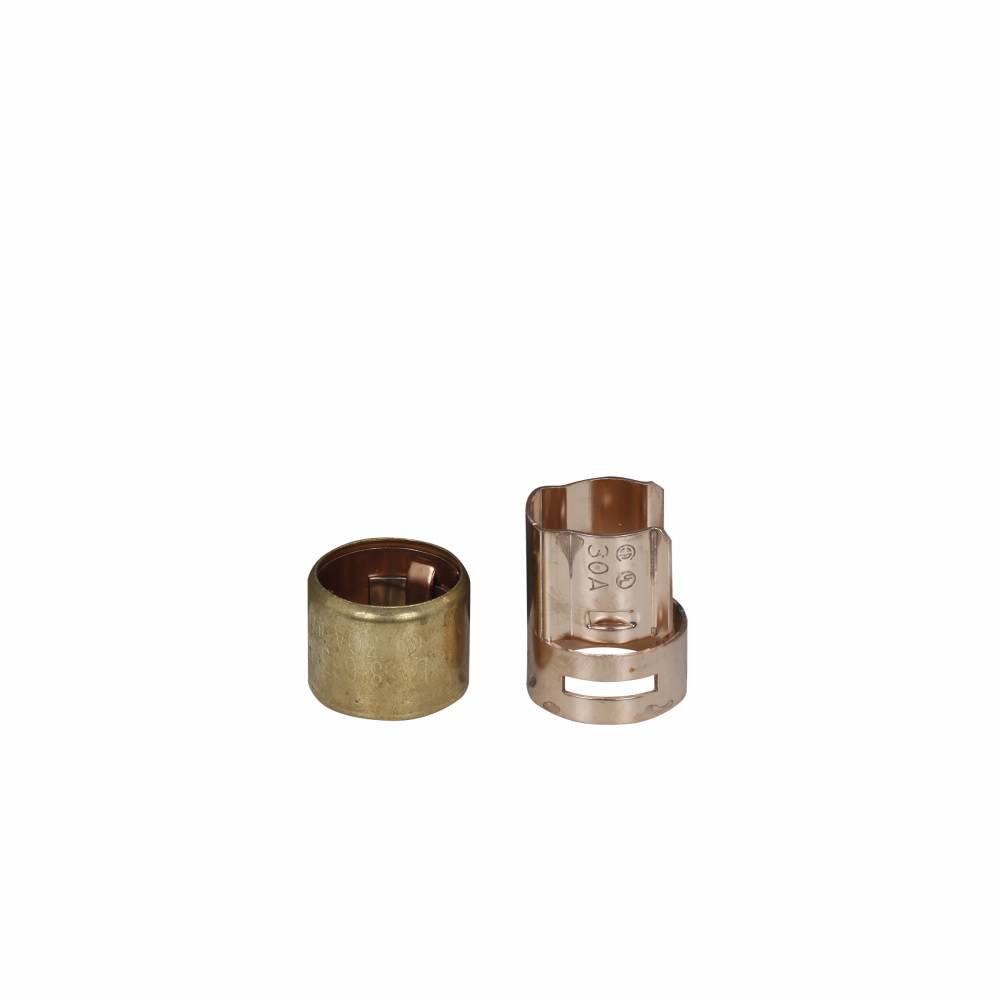

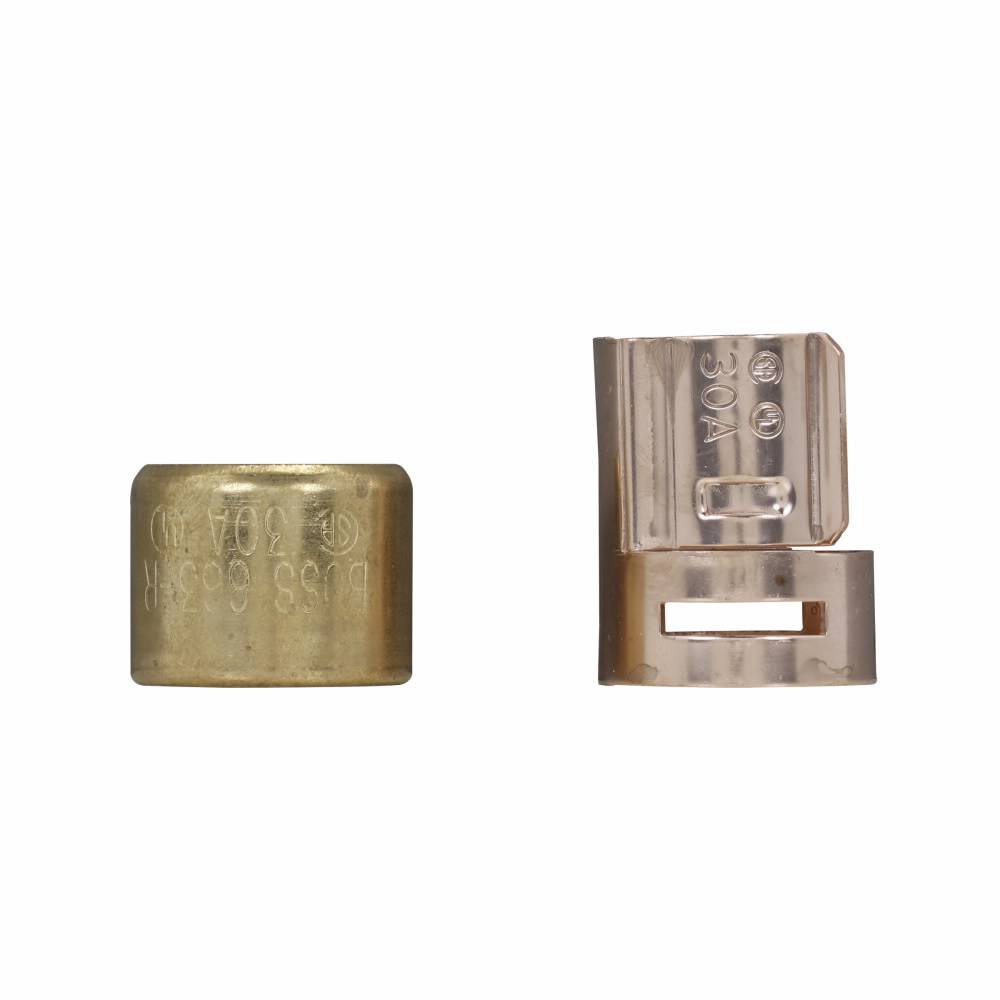

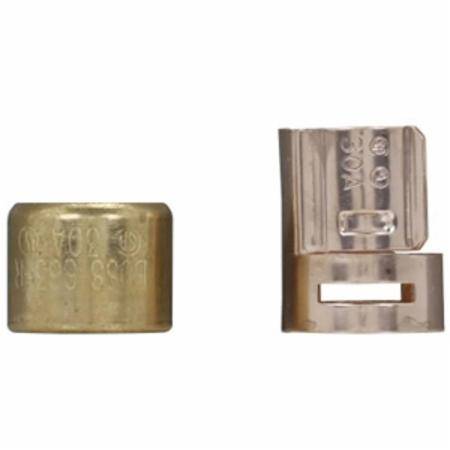

Edison NO.663-R Fuse Reducer, 600 VAC, Class: R, 30 A Fuse
Edison NO.663-R Fuse Reducer, 600 VAC, Class: R, 30 A Fuse
Edison NO.663-R Fuse Reducer, 600 VAC, Class: R, 30 A Fuse
Edison NO.663-R Fuse Reducer, 600 VAC, Class: R, 30 A Fuse
Edison NO.663-R Fuse Reducer, 600 VAC, Class: R, 30 A Fuse
Edison NO.663-R Fuse Reducer, 600 VAC, Class: R, 30 A Fuse
Edison NO.663-R Fuse Reducer, 600 VAC, Class: R, 30 A Fuse
Edison NO.663-R Fuse Reducer, 600 VAC, Class: R, 30 A Fuse
Share Share Print Print
Eaton

Edison NO.663-R Fuse Reducer, 600 VAC, Class: R, 30 A Fuse

Short Description

A range of Bussman series fuse reducers for class H(K), J and R ferrule and blade fuses. fuse reducers install on fuse ferrules or blades to permit the application of smaller size fuses than those for which the fuse blocks or holders are designed.

Edison Fuse Reducer, 600 VAC, Class: R, 30 A Fuse, 60 A Fuse Block

MFG #: NO.663-R

EECO #: BU663R

Brand: Edison
UPC #: 051712613736
Attributes
Features
Documents
Product Information
Attributes
Class
R
UNSPSC
39121617
Approval
UL, CSA
Application
For FRN-R/LPN-RK 250 VAC and FRS-R/LPS-RK 600 VAC Series class R dimension fuses
Voltage Rating
600
Type
Pair
Fuse Size
30
Fuse Type
Class R
Accessory Type
Fuse Reducer
Amperage Rating
60
600 V Clip Current Rating
60 Amp
600 V Fuse Current Rating
30 Amp
Features
  • Fuse reducers install on fuses and permit smaller size fuses to be used in larger amp size switches and blocks
  • Reducers will fit into any panel or switch including the dead front type
  • Strong contact is maintained both mechanically and electrically
  • There are no reducers to go from 250 to 600 VAC
  • There are no reducers for switching from one class to another
COBUSSE02627_1_21_15_7
COBUSSE02719_1_2
EATCORE57141_1
Qty Unit price
Ea
1 $20.36

Slqt
1 $20.36

Stpk
1 $20.36

Unit
1 $20.36
