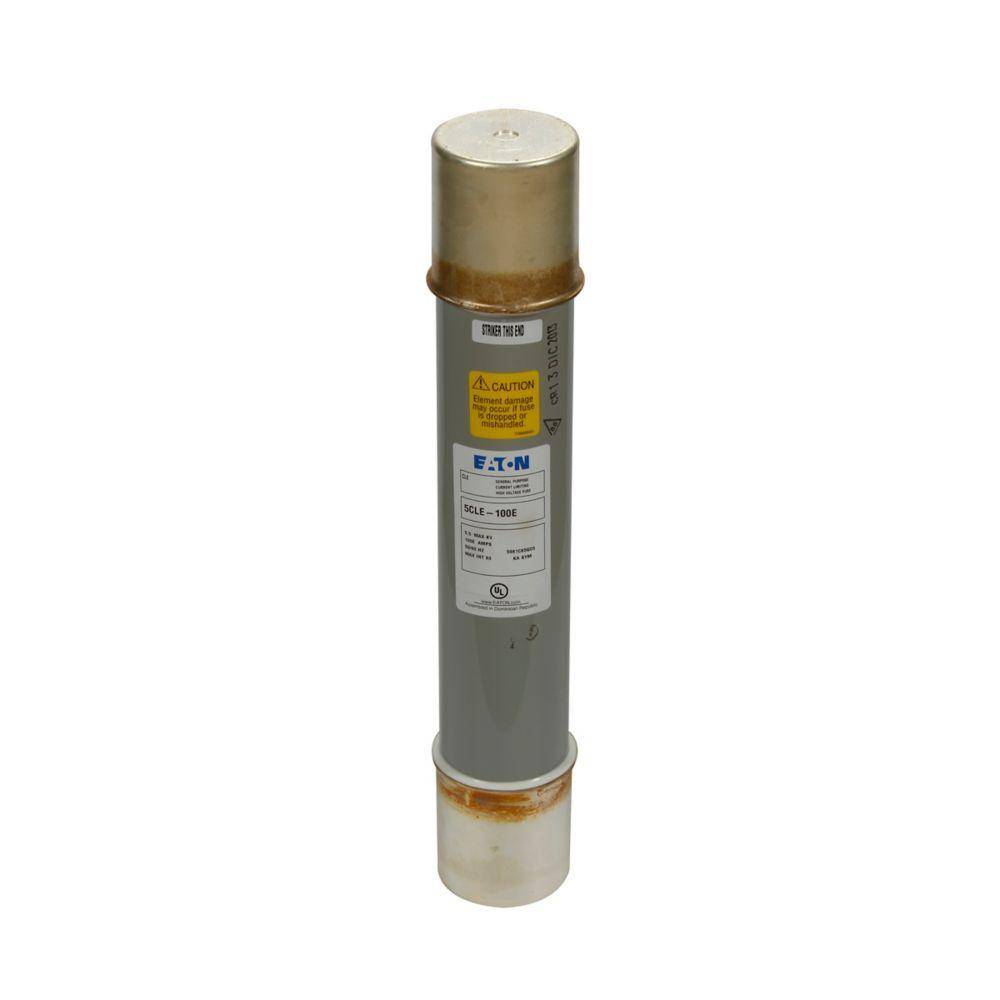

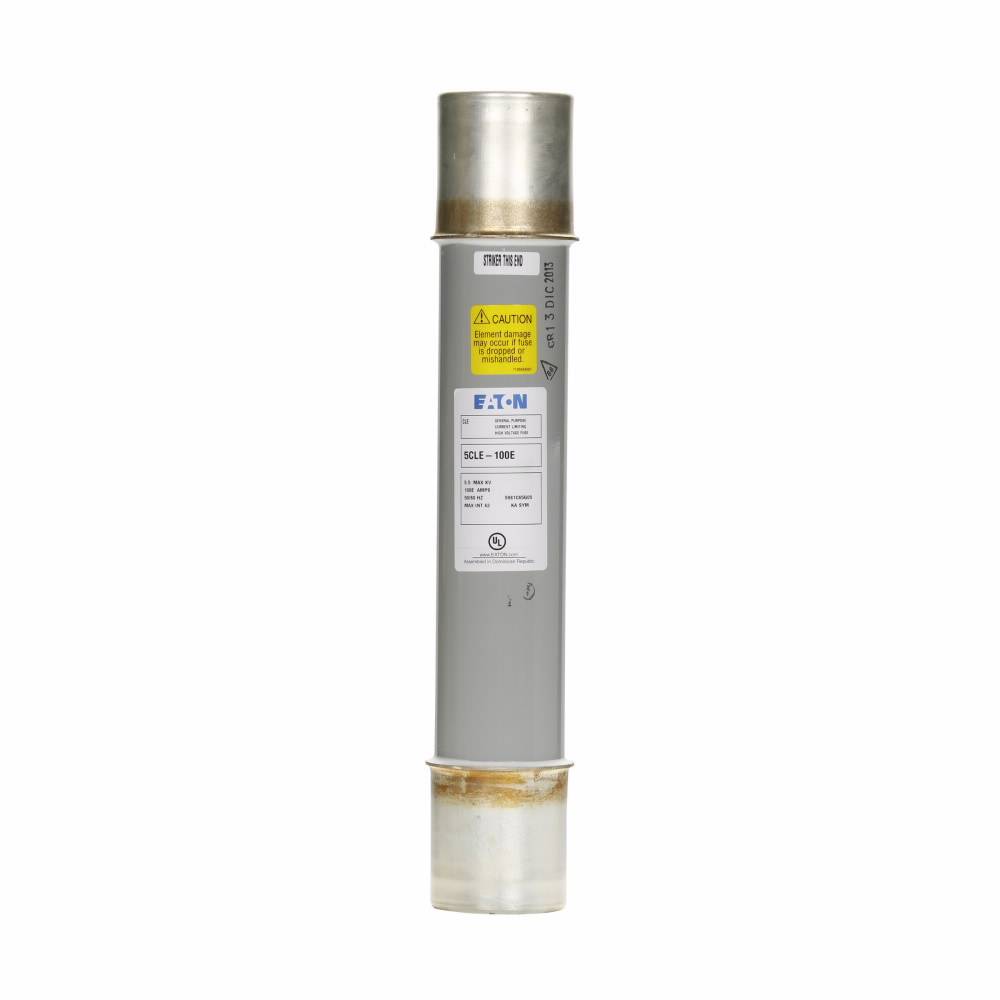

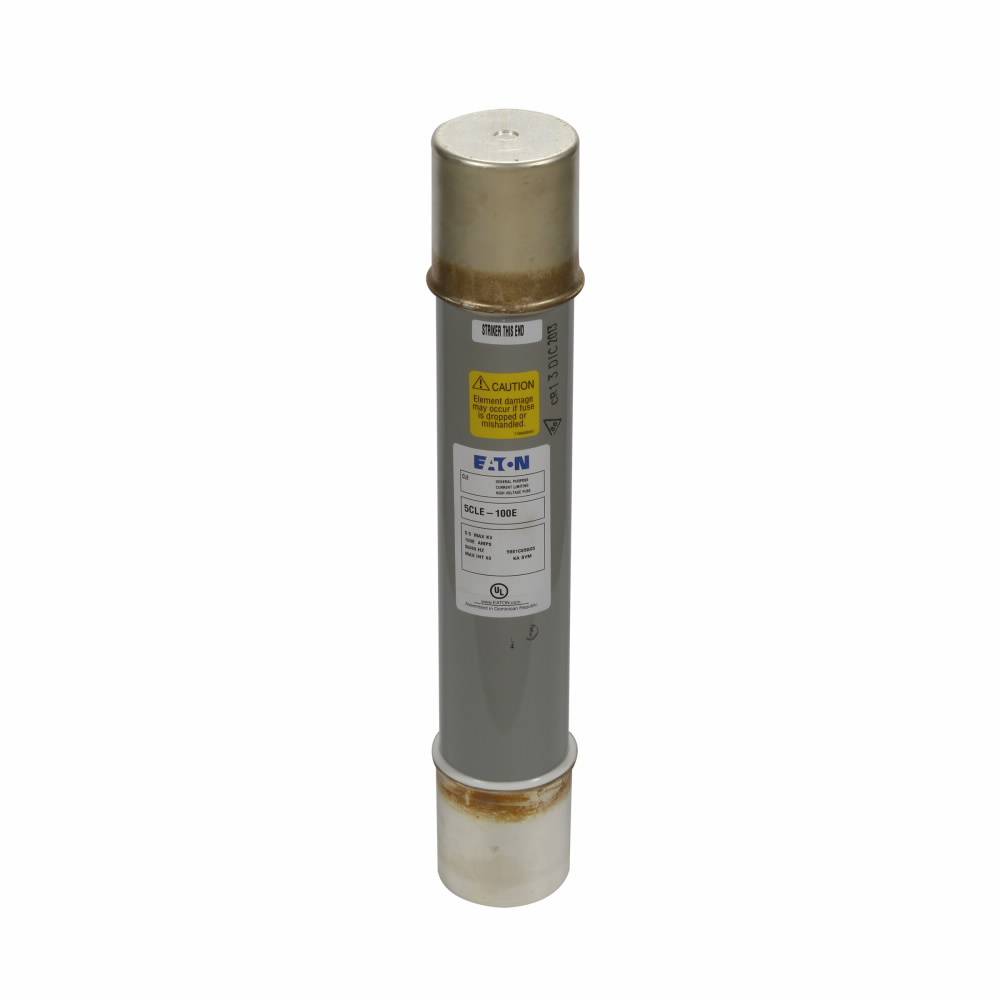

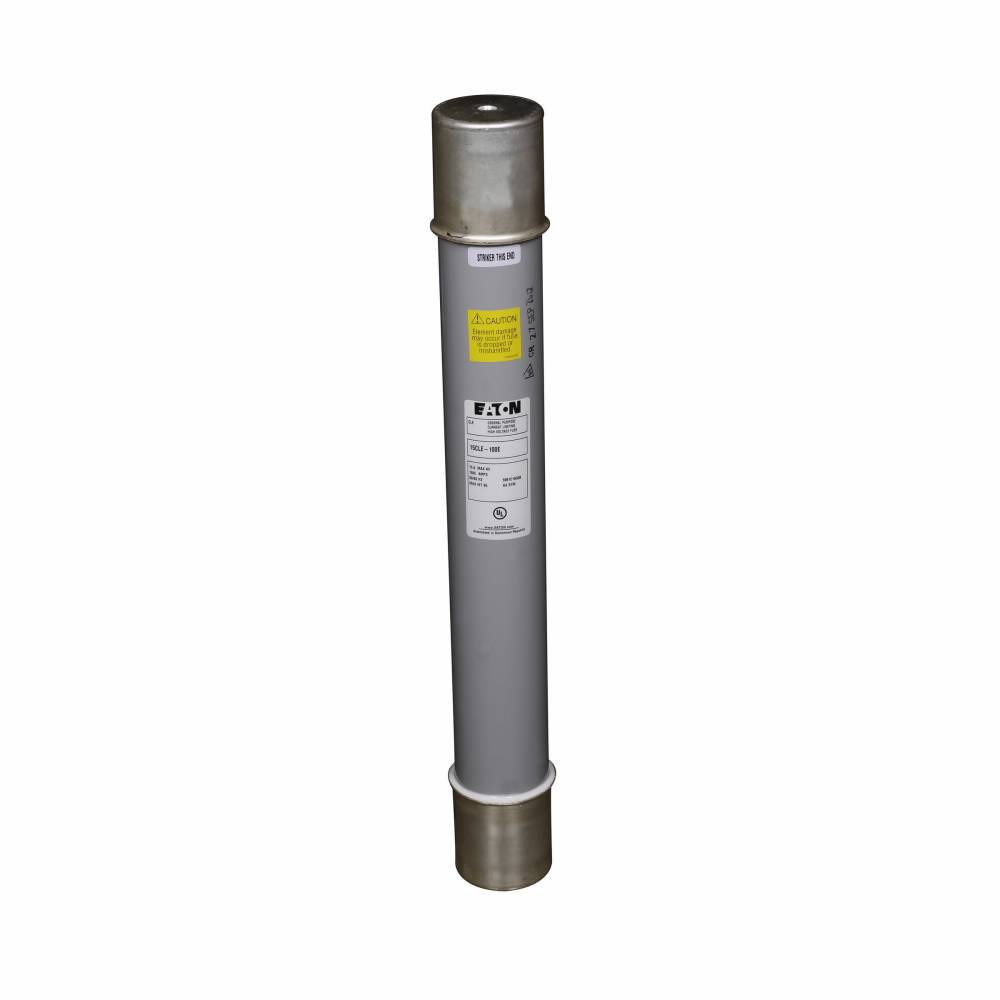

EATON Bussmann 5CLE-100E CLE Helix Medium Voltage Single Barrel Current-Limiting Fuse, 100 A, 5.5 kV, 63 kA Interrupt, Class E

Short Description

Eaton Helix fuses (CLE) are general purpose fuses suitable for indoor and outdoor use. They provide high and low level fault protection. Typical uses include transformers, power centers, load interrupters, feeders and unit substations.

EATON Bussmann Current-Limiting Fuse, Helix Medium Voltage Single Barrel, Series: CLE, 100 A, 5.5 kV, 63 kA Interrupt, Class: E, Ferrule Terminal, Clip Mounting, Fiberglass Reinforced Resin, 0.001 x 0.001 x 0.001 in Body
MFG #: 5CLE-100E

EECO #: BU5CLE100E

Brand: Eaton
UPC #: 782116072811
Attributes
Features
Documents
Product Information
Attributes
Class
E
UNSPSC
39121628
Approval
UL
Material
Fiberglass Reinforced Resin
Application
Primary Transformer, Feeder Circuit Protection, Switches, Metal Enclosed Switchgear and Indoor/Outdoor Applications
Mounting Type
Clip
Terminal Type
Ferrule
Current Rating
100 Amp
Voltage Rating
5.5
Frequency Rating
50/60
Type
Helix Medium Voltage Single Barrel
Series
CLE
Amperage Rating
100
Breaker Current Rating
100 Amp
Features
  • These fuses are defined by their melting time current characteristic that permit their electrical interchangeability with other fuses of the same E-rating
  • They are physically dimensioned for easy installation in existing hardware to provide positive interruption even on low fault currents
