Edison 5.5ABWNA2E E-Rated Fuse Link, 2 A, 5.5 kV
Edison 5.5ABWNA2E E-Rated Fuse Link, 2 A, 5.5 kV
Edison 5.5ABWNA2E E-Rated Fuse Link, 2 A, 5.5 kV
Edison 5.5ABWNA2E E-Rated Fuse Link, 2 A, 5.5 kV
Edison 5.5ABWNA2E E-Rated Fuse Link, 2 A, 5.5 kV
Edison 5.5ABWNA2E E-Rated Fuse Link, 2 A, 5.5 kV
Edison 5.5ABWNA2E E-Rated Fuse Link, 2 A, 5.5 kV
Edison 5.5ABWNA2E E-Rated Fuse Link, 2 A, 5.5 kV
Share Share Print Print
Eaton

Edison 5.5ABWNA2E E-Rated Fuse Link, 2 A, 5.5 kV

Short Description

Eaton's Bussmann series medium voltage auxiliary transformers fuses are specifically designed for use in the primary side of voltage transformers. They comply with BS 2692-1 and IEC 60282-1 standards.

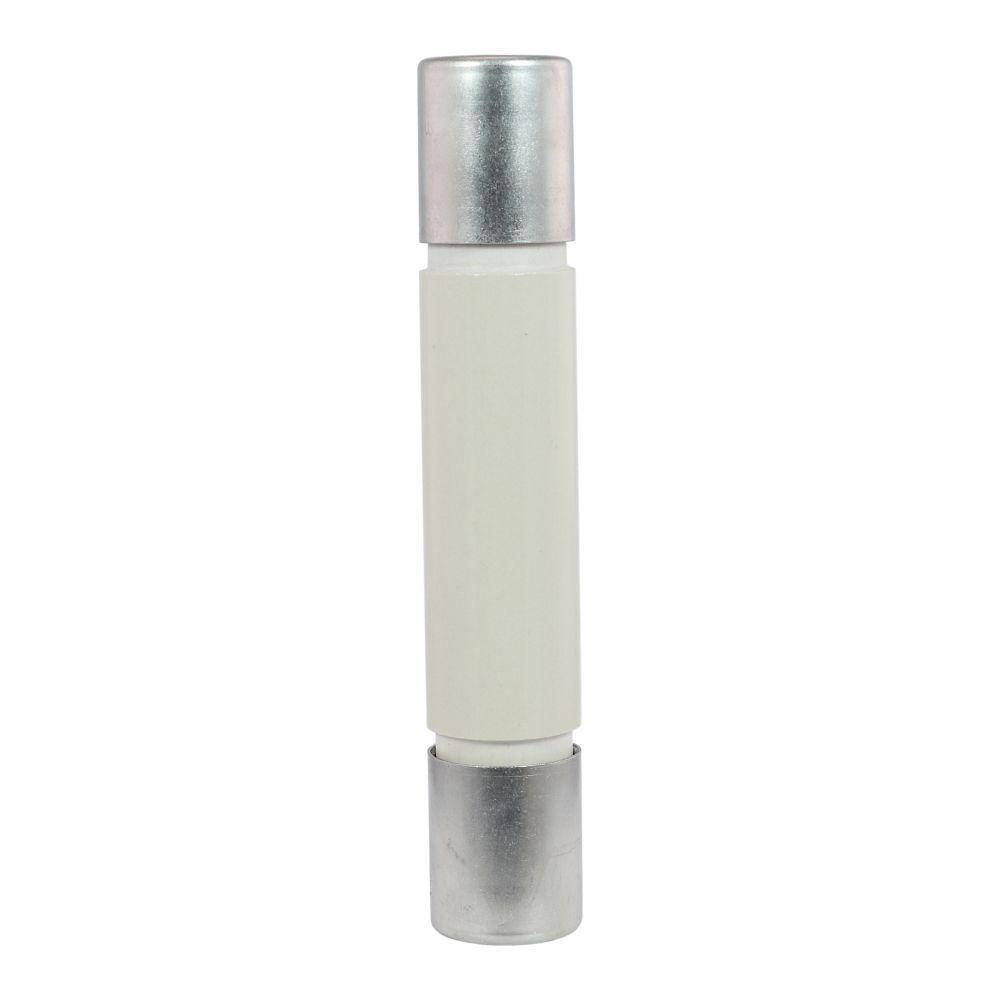

Edison Fuse Link, E-Rated, 2 A, 5.5 kV, Bolted-On Mounting, 1 in Dia x 5.6 in L Body
MFG #: 5.5ABWNA2E

EECO #: BU5.5ABWNA2E

Brand: Edison
UPC #: 051712835879
Attributes
Features
Documents
Product Information
Attributes
Class
E
UNSPSC
39121626
Material
Ceramic
Application
For medium voltage potential transformers and small medium voltage service transformers
Mounting Type
Bolted-On
Terminal Type
Ferrule
Voltage Rating
5.5
Type
E-Rated
Series
AB Series
Amperage Rating
2
Features
  • PT fuses are physically dimensioned for easy installation in existing hardware
  • Space saving size eases design considerations for new installations
  • Current limiting fuses provide positive interruption even on low fault currents
  • The fuse limits the magnitude of electromechanical stresses in the protected apparatus
  • These fuses are in a self-contained, non-venting package for installation indoors or outdoors in an enclosure
Bussmann_5_5ABWNA2E_Specification_Sheet
Bussmann_5_5AMWNA0_5E_User_Manual_CA
Bussmann_7_2AMWNA2_0E_Technical_Bulletin
