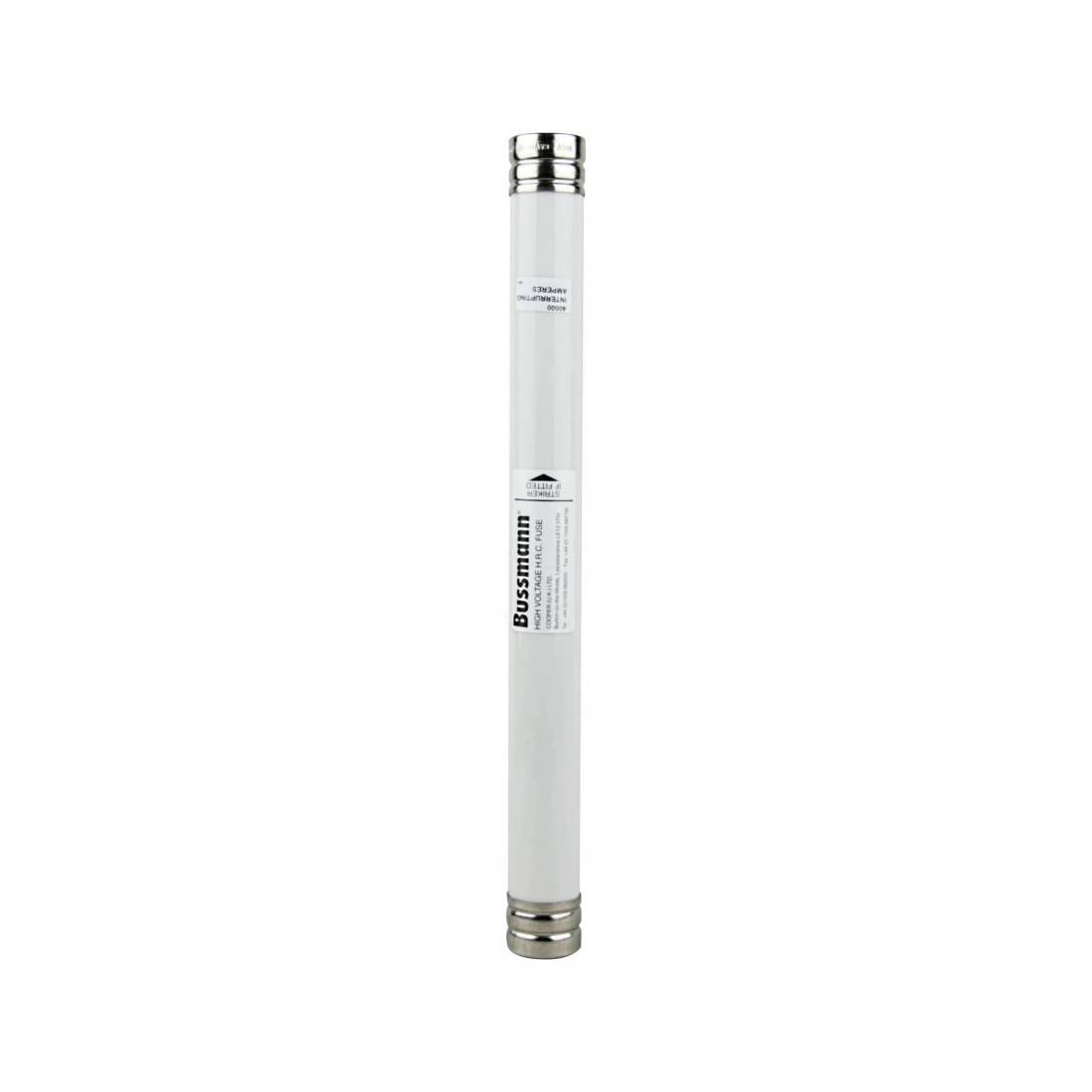

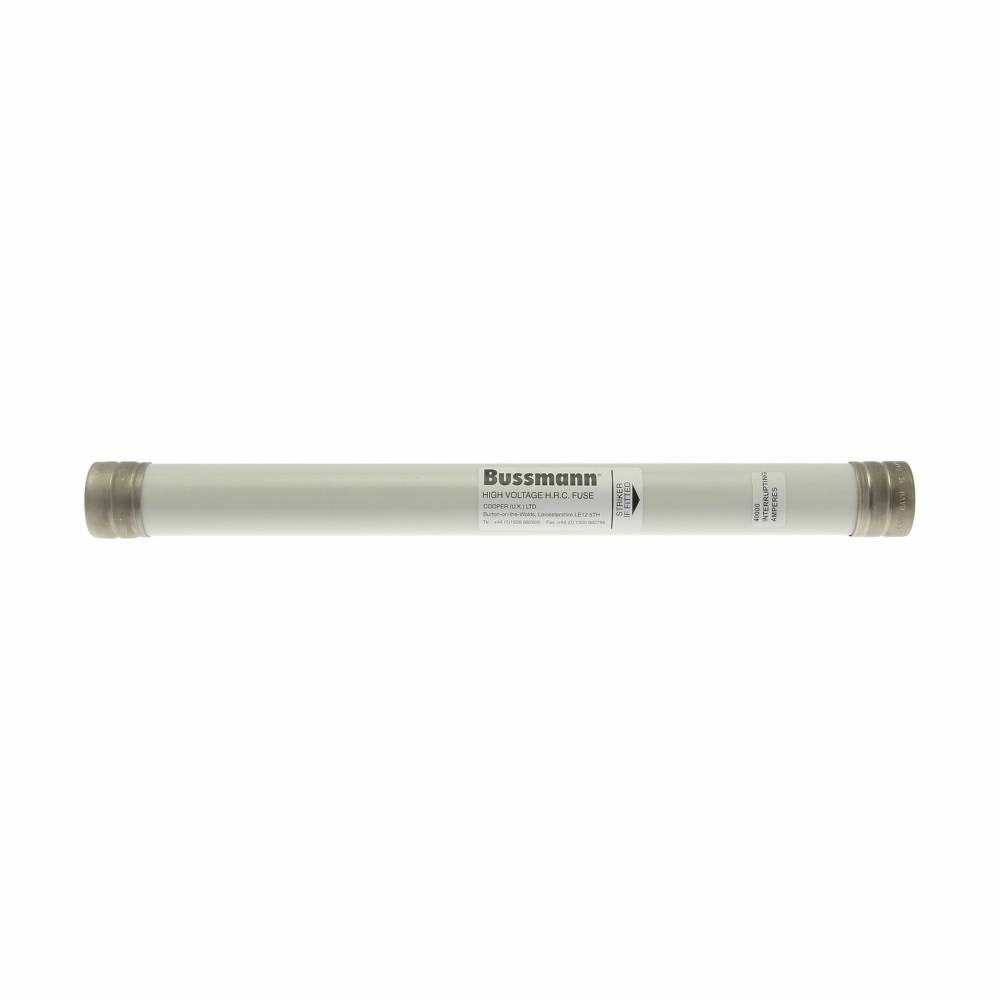

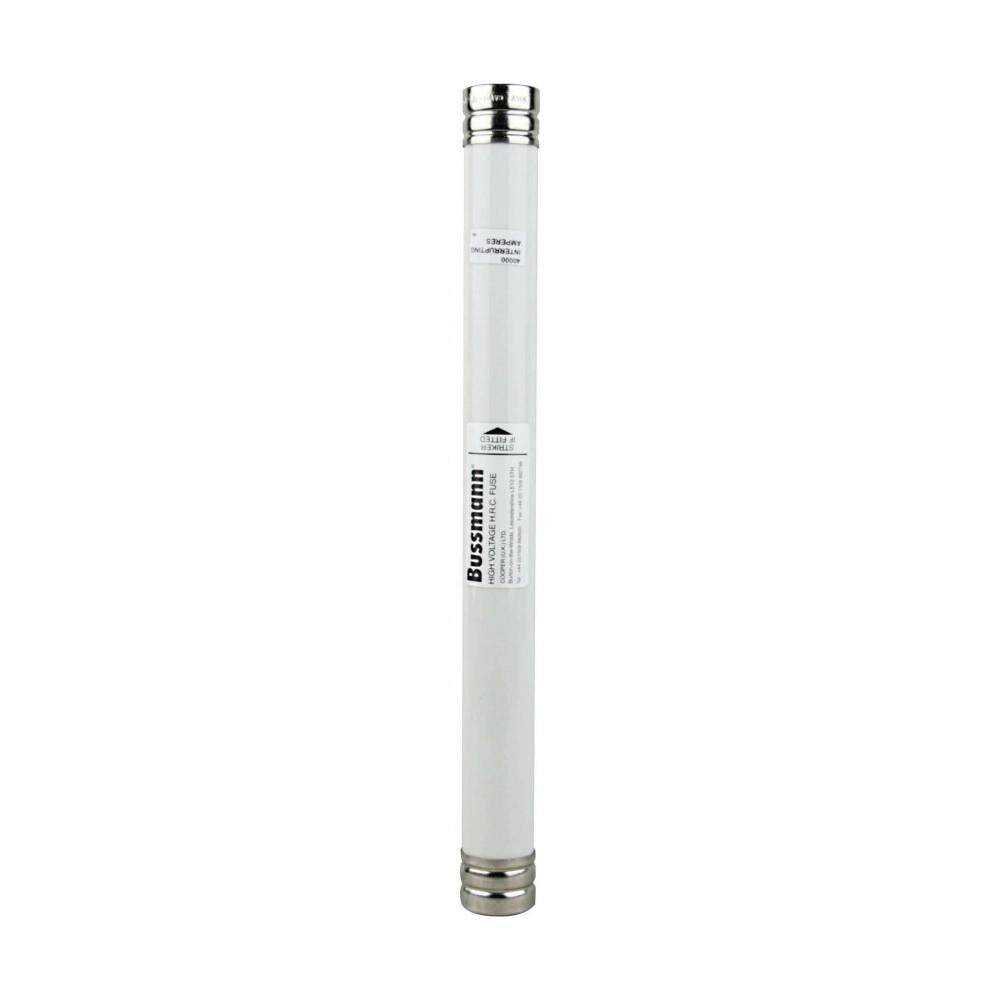

Edison 38CAVH1E CAVH Single Barrel Medium Voltage Fuse, 1E A, 38 kV, 40 kA Interrupt, Class: E

Short Description

Eaton's Bussmann series medium voltage auxiliary transformers fuses are specifically designed for use in the primary side of voltage transformers. They comply with BS 2692-1 and IEC 60282-1 standards.

Edison Medium Voltage Fuse, Single Barrel, Series: CAVH, Indicating, 1E A, 38 kV, 40 kA Interrupt, Class: E, Ferrule Terminal, Bolted-On Mounting, 1.63 in Dia x 17.32 in L Body
MFG #: 38CAVH1E

EECO #: BU38CAVH1E

Brand: Edison
UPC #: 051712843676
Attributes
Features
Documents
Product Information
Attributes
Class
E
UNSPSC
39121626
Application
For primary protection of medium voltage potential transformers and small medium voltage service/control transformers
Mounting Type
Bolted-On
Terminal Type
Ferrule
Voltage Rating
38
Type
Single Barrel
Series
CAVH
Amperage Rating
1E
Features
  • Low amp, current-limiting E-Rated PT medium voltage fuses are general purpose fuses defined by their melting time current characteristic that permit their electrical interchangeability with other fuses of the same E Rating
  • E-rated general purpose fuses must have a current responsive element that will melt in 300 sec at an RMS current within the range of 200% to 240% of the fuse's nameplate current rating, fuse refill or link per ANSI C37.46 for fuses rated 100E or less
  • Physically dimensioned for retrofitting in existing hardware
  • Space saving size
  • Fitted with a striker pin for indication
