Eaton

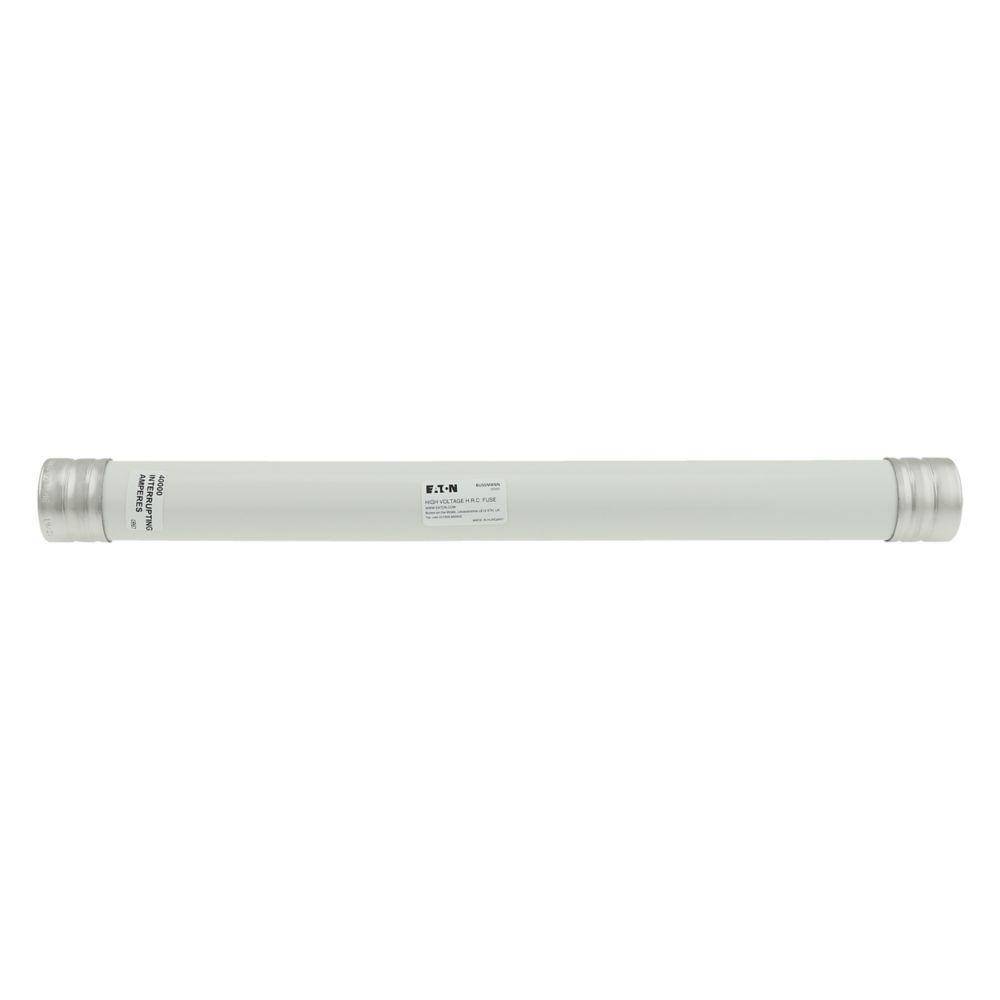

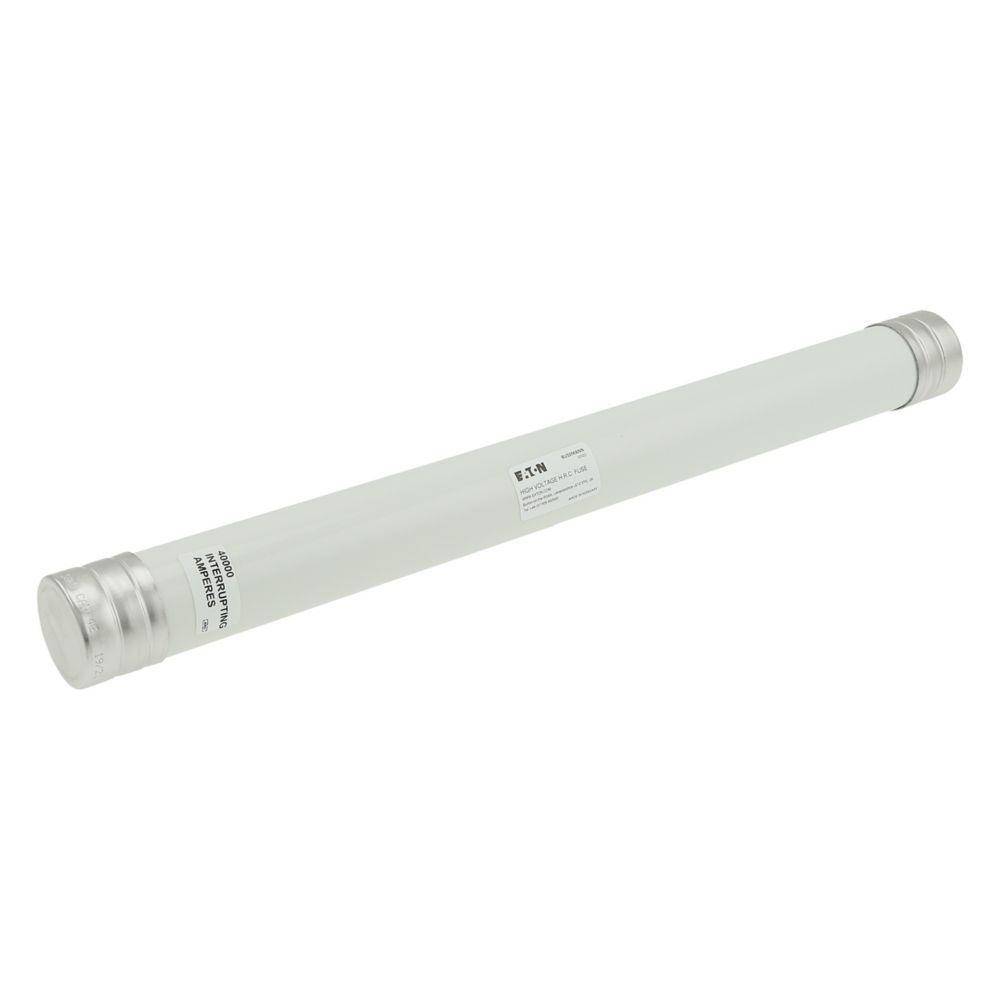

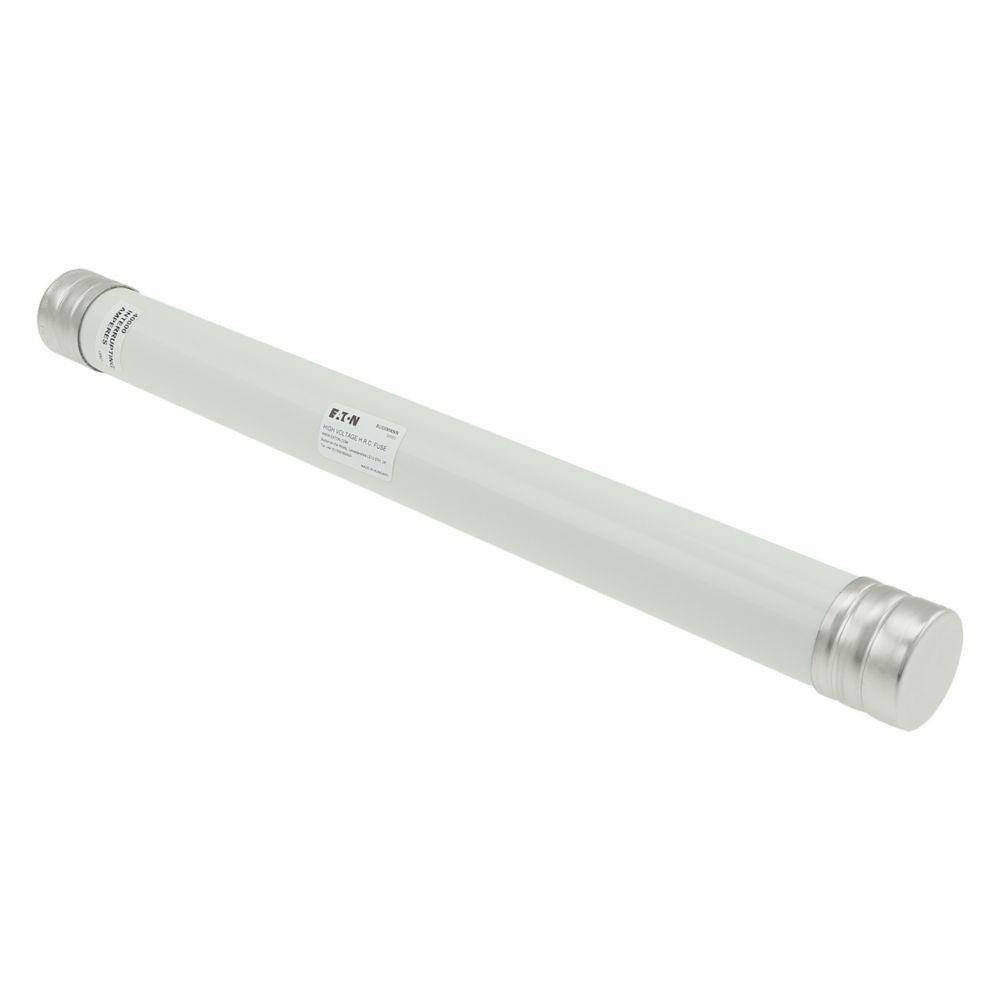

Edison 38CAV4E E-Rated Potential Transformer Fuse, 4 A, 38 kV

Short Description

Eaton's Bussmann series medium voltage auxiliary transformers fuses are specifically designed for use in the primary side of voltage transformers. They comply with BS 2692-1 and IEC 60282-1 standards.

Edison Potential Transformer Fuse, E-Rated, Indicating/Non-Indicating: Non-Indicating, 4 A, 38 kV, 1.6 in Dia x 17.3 in L Body Size
MFG #: 38CAV4E

EECO #: BU38CAV4E

Brand: Edison
UPC #: 051712794374
Attributes
Features
Documents
Product Information
Attributes
Class
E
UNSPSC
39121626
Application
Medium Voltage Potential Transformers, Small Medium Voltage Service Transformers and Small Medium Voltage Control Transformers
Mounting Type
Bolted-On
Terminal Type
Ferrule
Voltage Rating
38
Type
E-Rated
Series
CAV
Amperage Rating
4
Features
  • PT fuses are physically dimensioned for easy installation in existing hardware
  • Space saving size eases design considerations for new installations
  • Current limiting fuses provide positive interruption even on low fault currents
  • The fuse limits the magnitude of electromechanical stresses in the protected apparatus
  • These fuses are in a self-contained, non-venting package for installation indoors or outdoors in an enclosure
Bussmann_38CAV4E_Specification_Sheet
Edison_38CAV4E_Specification_Sheet
