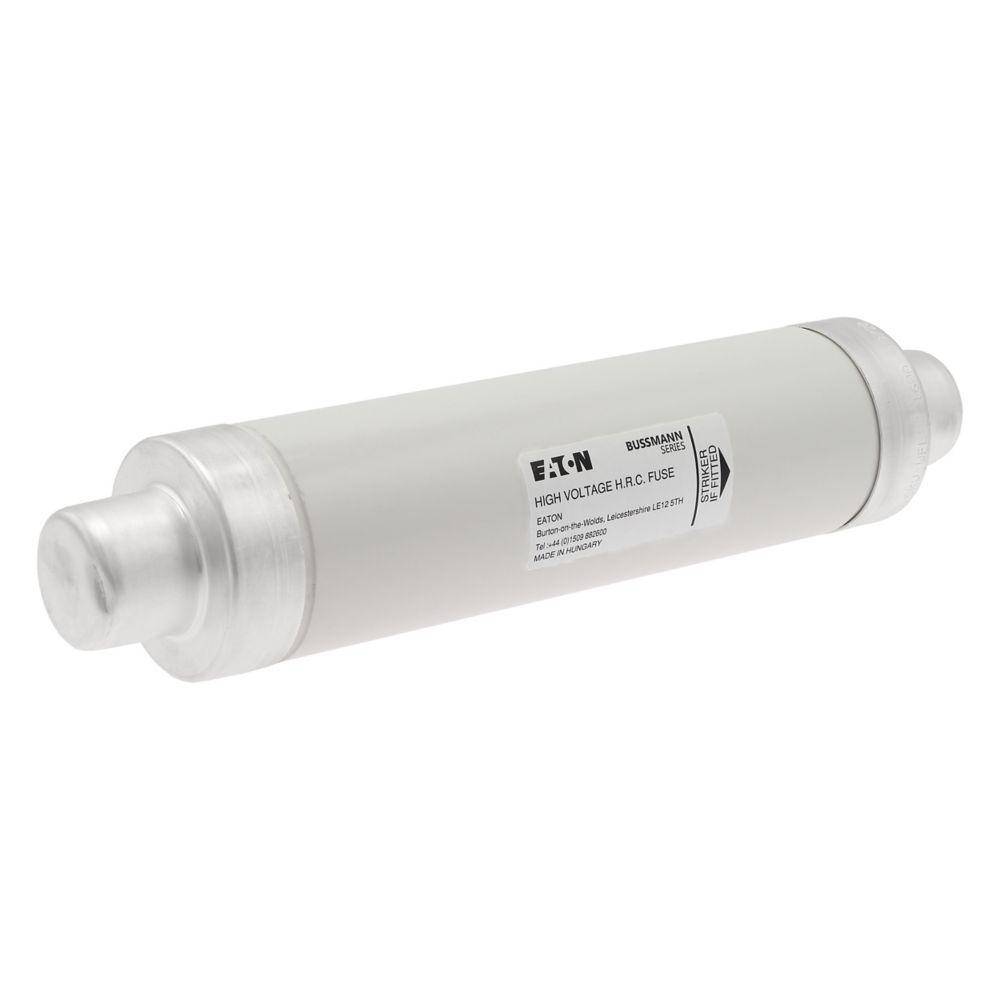

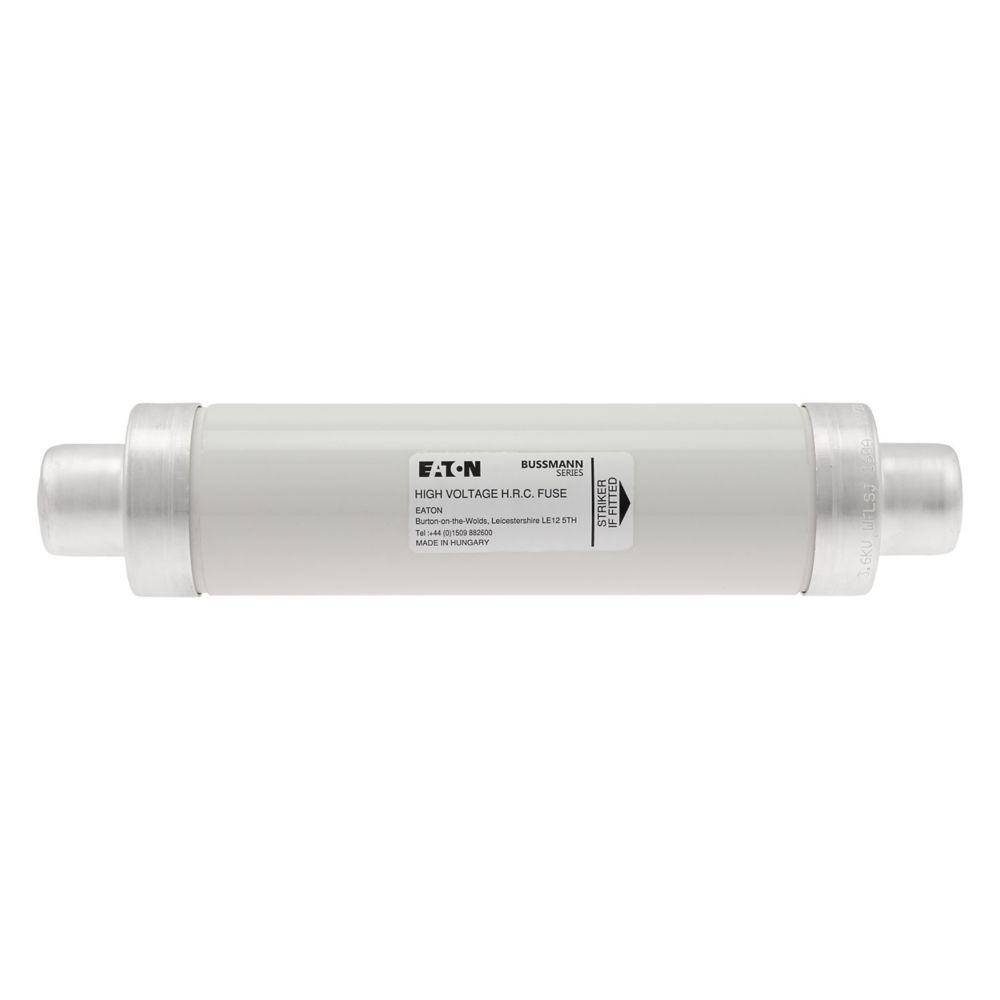

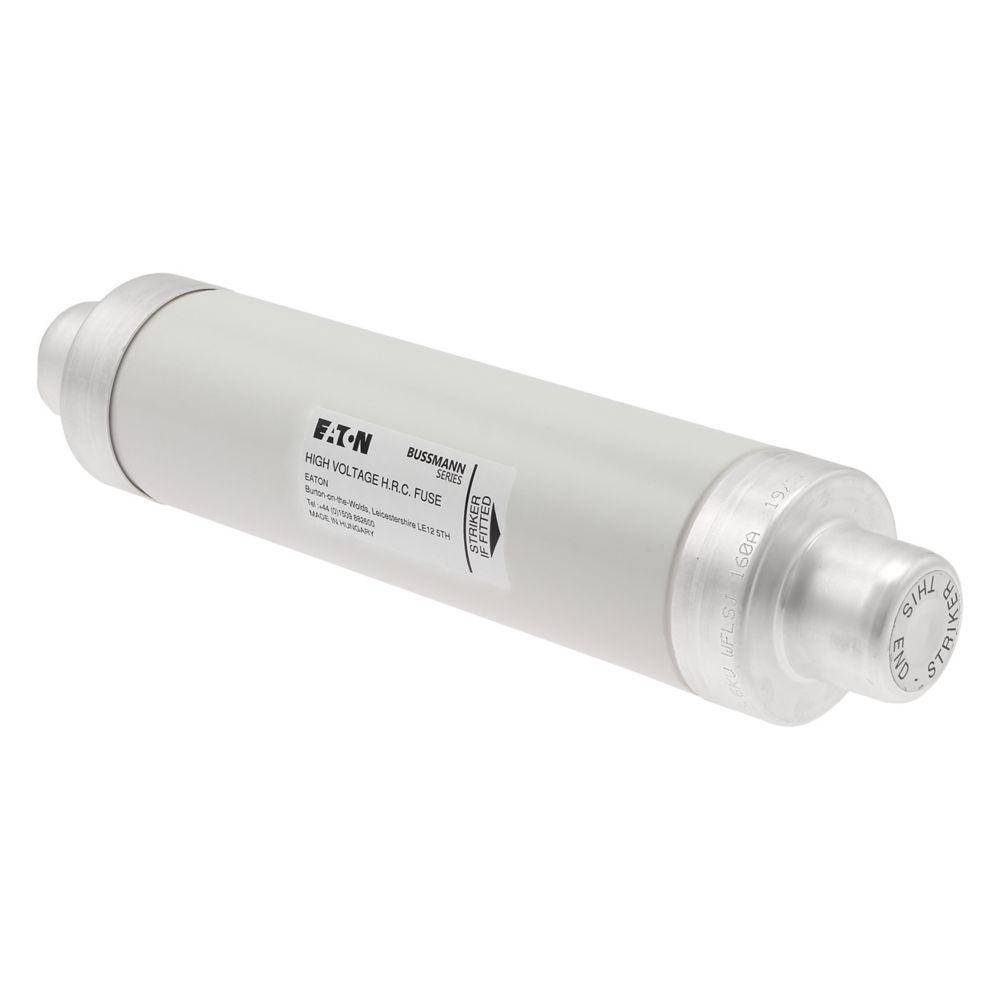

Edison 3.6WFLSJ160 Motor Fuse Link, 160 A, 3.6 kV

Name: Edison 3.6WFLSJ160 Motor Fuse Link, 160 A, 3.6 kV
Brand: Eaton
SKU: BU3.6WFLSJ160
Availability: InStock

Short Description

Motor fuse links providing short circuit protection in motor circuits to both the motor starter and cables from the starter to the motor.

Edison Motor Fuse Link, 160 A, 3.6 kV, 76 mm Dia x 292 mm L Body

MFG #: 3.6WFLSJ160

EECO #: BU3.6WFLSJ160 BU3.6WFLSJ160

Brand: Edison

UPC #: 051712834797

Attributes

Features

Documents

Product Information

Attributes

Class

Back-Up

UNSPSC

39121626

Application

For used with motor protection

Mounting Type

Stud

Terminal Type

Bolted-Down

Voltage Rating

3.6

Frequency Rating

Type

Medium Voltage

Series

WFLSJ

Amperage Rating

160

Features

Cool running, low watts loss and power dissipation thanks to the m-effect ensuring high levels of substation utilization
Silver elements ensuring high conductivity and low power (revenue) loss
100% X-Ray, all our medium voltage fuse links are X-Rayed ensuring the highest possible standards are maintained
Allows motor start current to pass on without degradation of fuse link
