Eaton

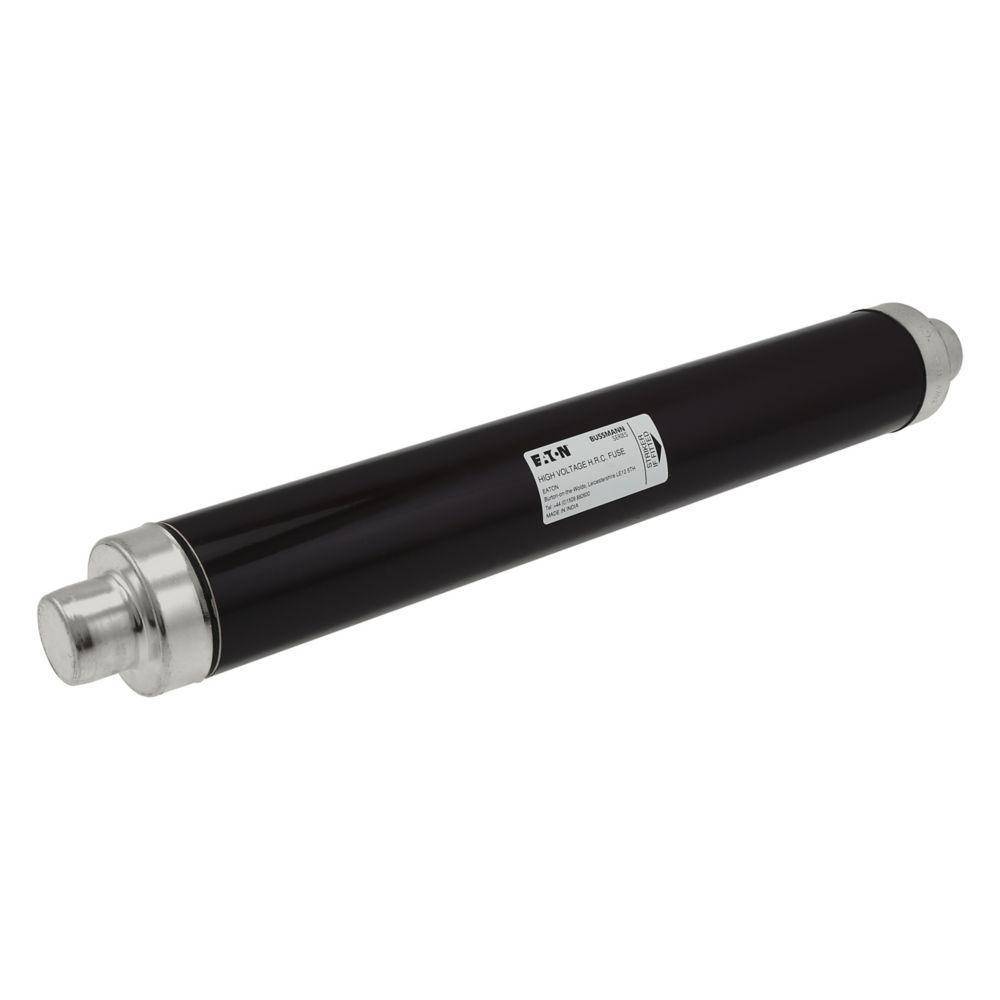

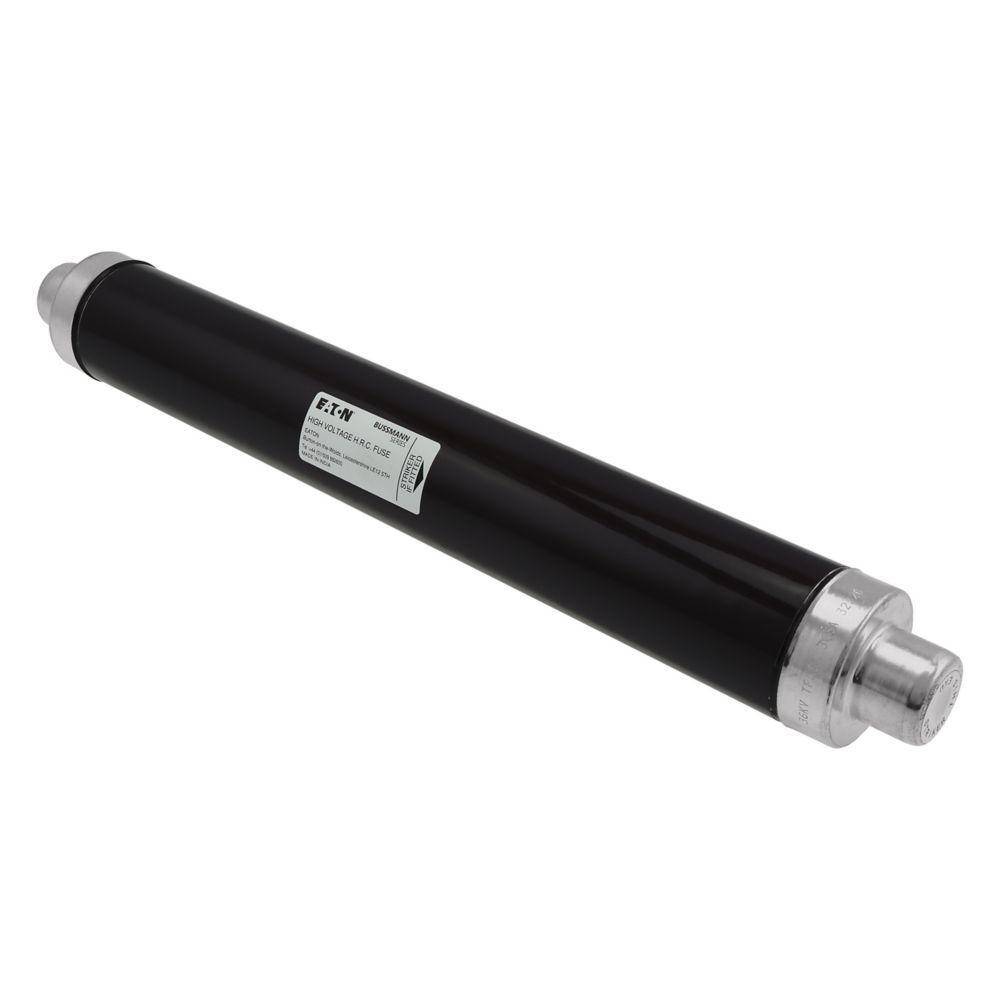

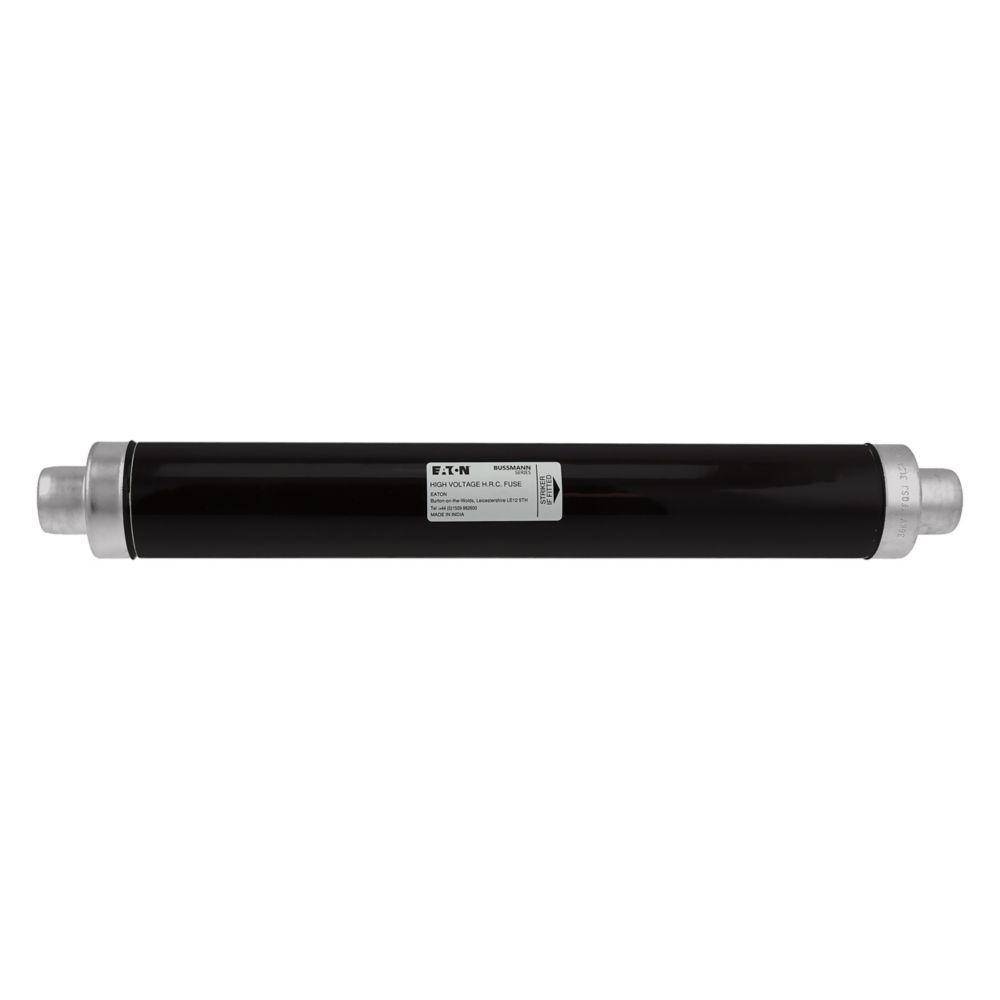

Bussmann 36TFQSJ31.5 TFQSJ Back-Up DIN Dimensioned Medium Voltage Type T Current Limiting IEC Fuse, 31.5 A, 36 kV, 35.5 kA Interrupt, Class: Back-Up, Cartridge Body

Short Description

Eaton's Bussmann medium voltage DIN full range and back-up fuses offer an excellent transformer protection. They are available with or without striker. They comply to the dimensional standard DIN 43625, VDE 0670 and IEC 60282-1. They are suitable for indoor and outdoor use.

Bussmann Current Limiting IEC Fuse, Back-Up DIN Dimensioned Medium Voltage Type T, Series: TFQSJ, Indicating/Non-Indicating: Non-Indicating, 31.5 A, 36 kV, 35.5 kA Interrupt, Class: Back-Up, Body Type: Cartridge, 3 in Dia x 21.2 in L Body Size
MFG #: 36TFQSJ31.5

EECO #: BU36TFQSJ31.5

Brand: Bussmann
UPC #: 051712186452
Attributes
Features
Documents
Product Information
Attributes
Class
Back-Up
UNSPSC
39121626
Application
Medium Voltage IEC Designed Equipment, Primary Side Transformer Protection, Fuse Switch Combination Unit, Fuse Bases and Fuse Switches
Voltage Rating
36
Type
Back-Up DIN Dimensioned Medium Voltage Type T
Series
TFQSJ
Amperage Rating
31.5
Features
  • DIN dimensioned for retrofitting in existing hardware
  • Open fuse indicator for ease in troubleshooting
  • Designed for use in IEC equipment
Bussmann_36TFQSJ31_5_Specification_Sheet
