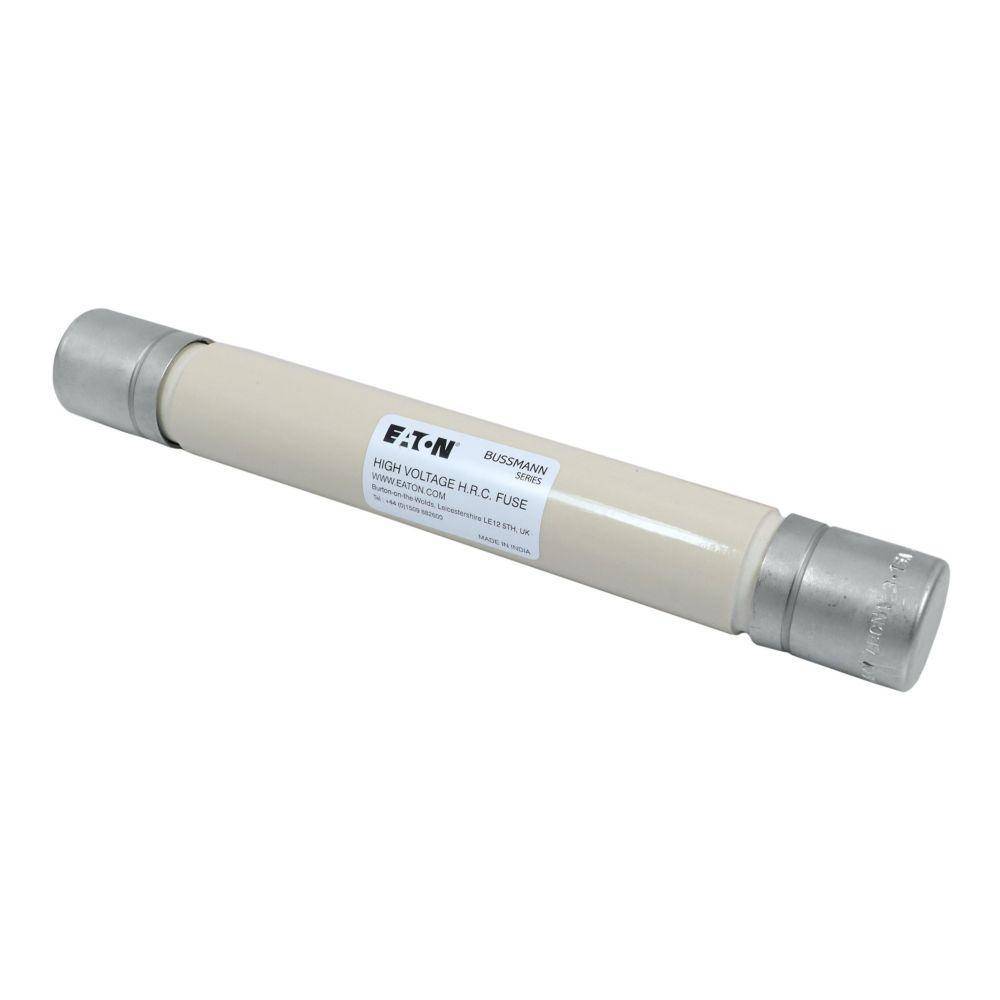

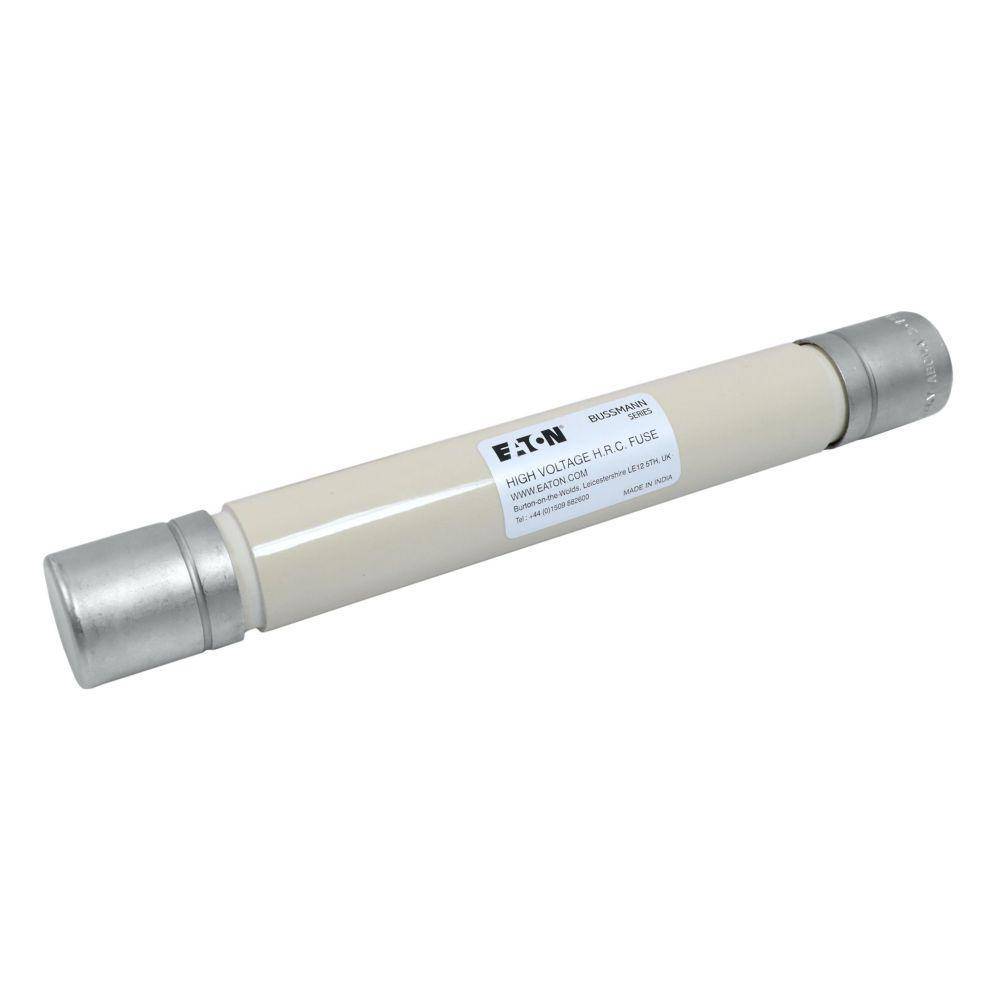

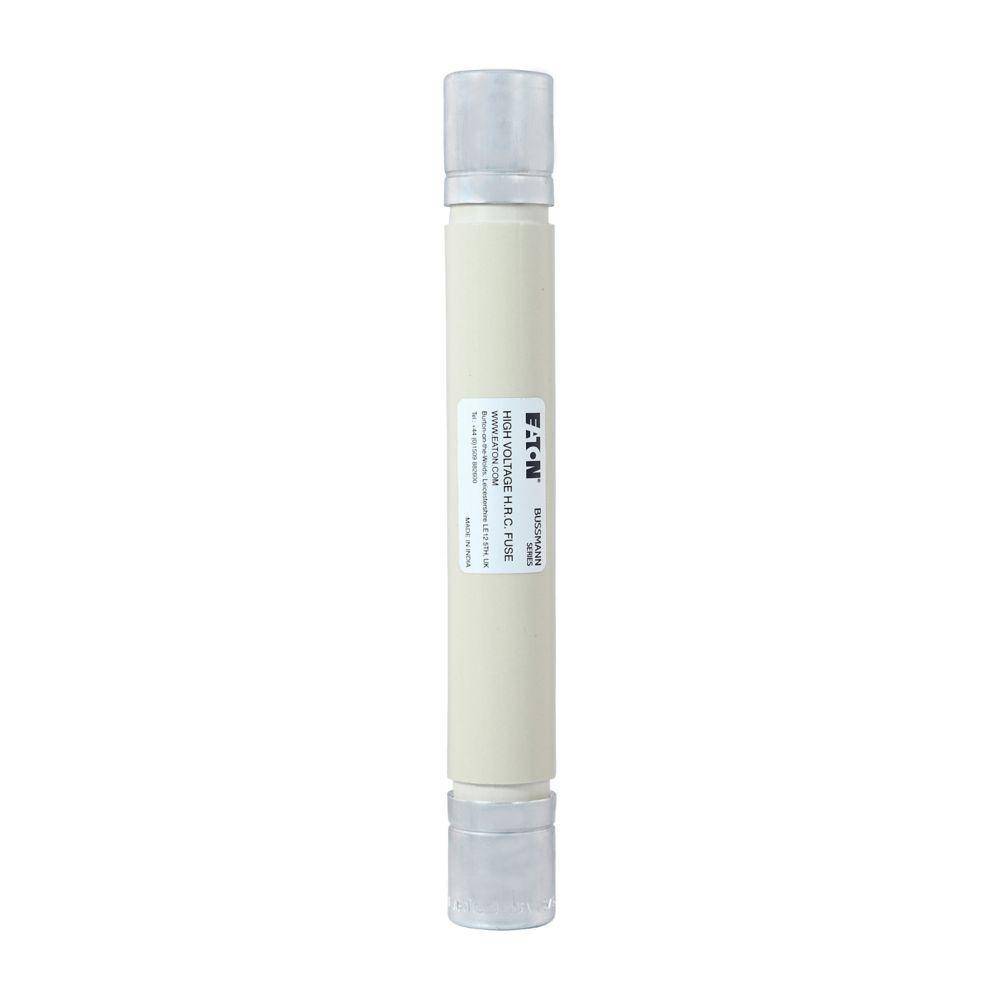

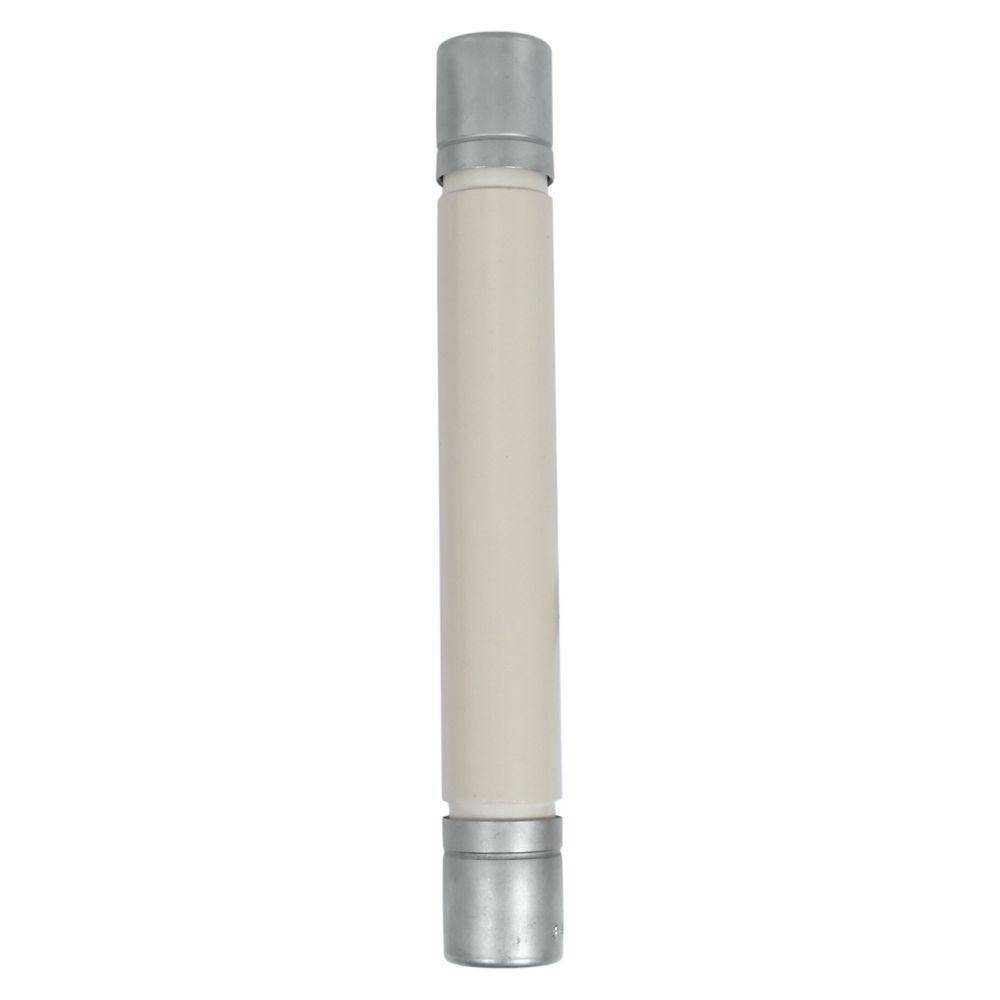

Edison 3.6ABCNA3.15 Medium Voltage Current Limiting Fuse, 3.15 A, 3.6 kV, 50 kA Interrupt

Short Description

Eaton's Bussmann series medium voltage auxiliary transformers fuses are specifically designed for use in the primary side of voltage transformers. They comply with BS 2692-1 and IEC 60282-1 standards.

Edison Current Limiting Fuse, Medium Voltage, Indicating/Non-Indicating: Non-Indicating, 3.15 A, 3.6 kV, 50 kA Interrupt, 300 s Response, 1 in Dia x 7.7 in L Body Size
MFG #: 3.6ABCNA3.15

EECO #: BU3.6ABCNA3.15

Brand: Edison
UPC #: 051712834605
Attributes
Features
Documents
Product Information
Attributes
Class
Back-Up
UNSPSC
39121626
Application
Medium Voltage Potential Transformers, Small Medium Voltage Service Transformers, Small Medium Voltage Control Transformers
Mounting Type
Bolt-On
Response Time
300
Terminal Type
Ferrule
Voltage Rating
3.6
Type
Medium Voltage
Series
AB Series
Amperage Rating
3.15
Features
  • Low amp, current limiting e-rated PT medium voltage fuses are general purpose fuses defined by their melting time-current characteristic that permit their electrical interchangeability with other fuses of the same e-rating
  • E-rated general purpose fuses must have a current responsive element that will melt in 300 s at an RMS current within the range of 200 to 240% of the fuses name plate current rating, fuse refill or link per ANSI C37.46 for fuses rated 100E or less
  • PT fuses are physically dimensioned for easy installation in existing hardware
  • Space saving size eases design considerations for new installations
  • Current limiting fuses provide positive interruption even on low fault currents, the fuse limits the magnitude of electromechanical stresses in the protected apparatus
  • These fuses are in a self-contained, nonventing package for installation indoors or outdoors in an enclosure
  • Open fuse indicator speeds troubleshooting by providing a positive visual indication of fuse operation
  • Ferrule end connection
