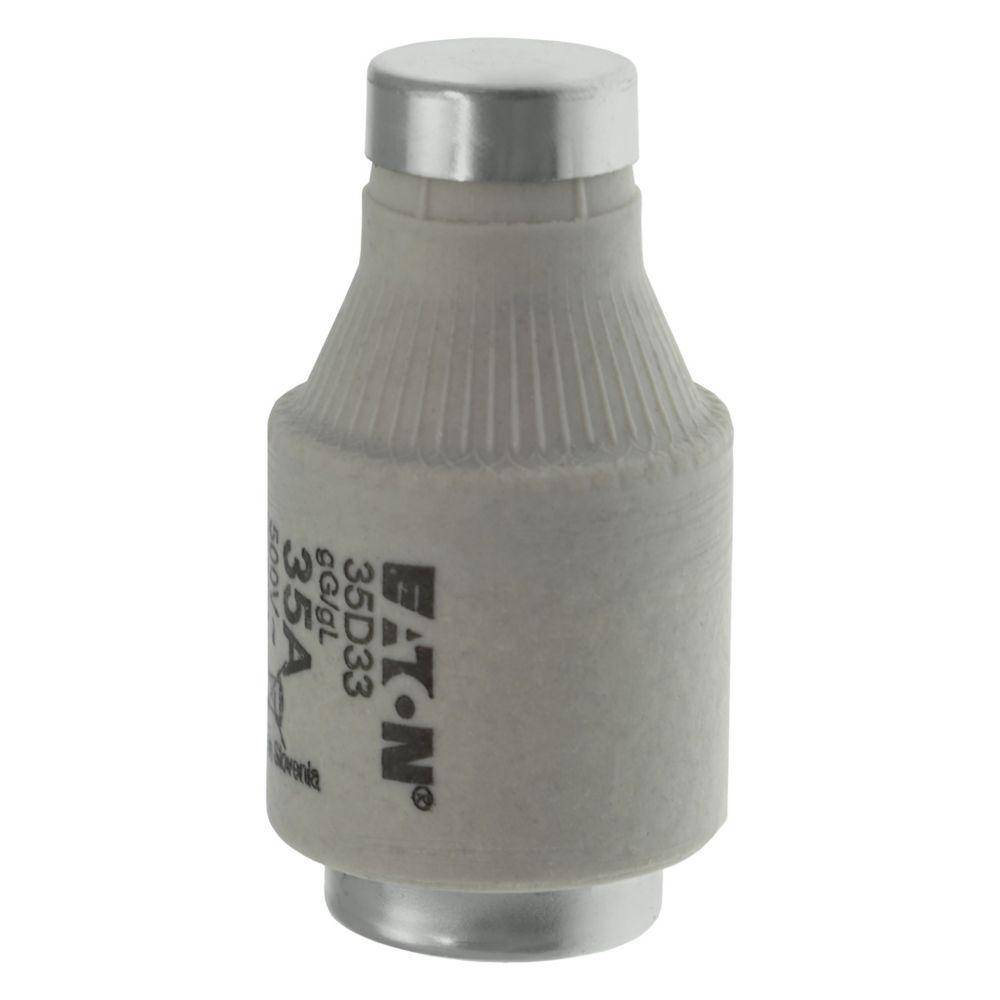

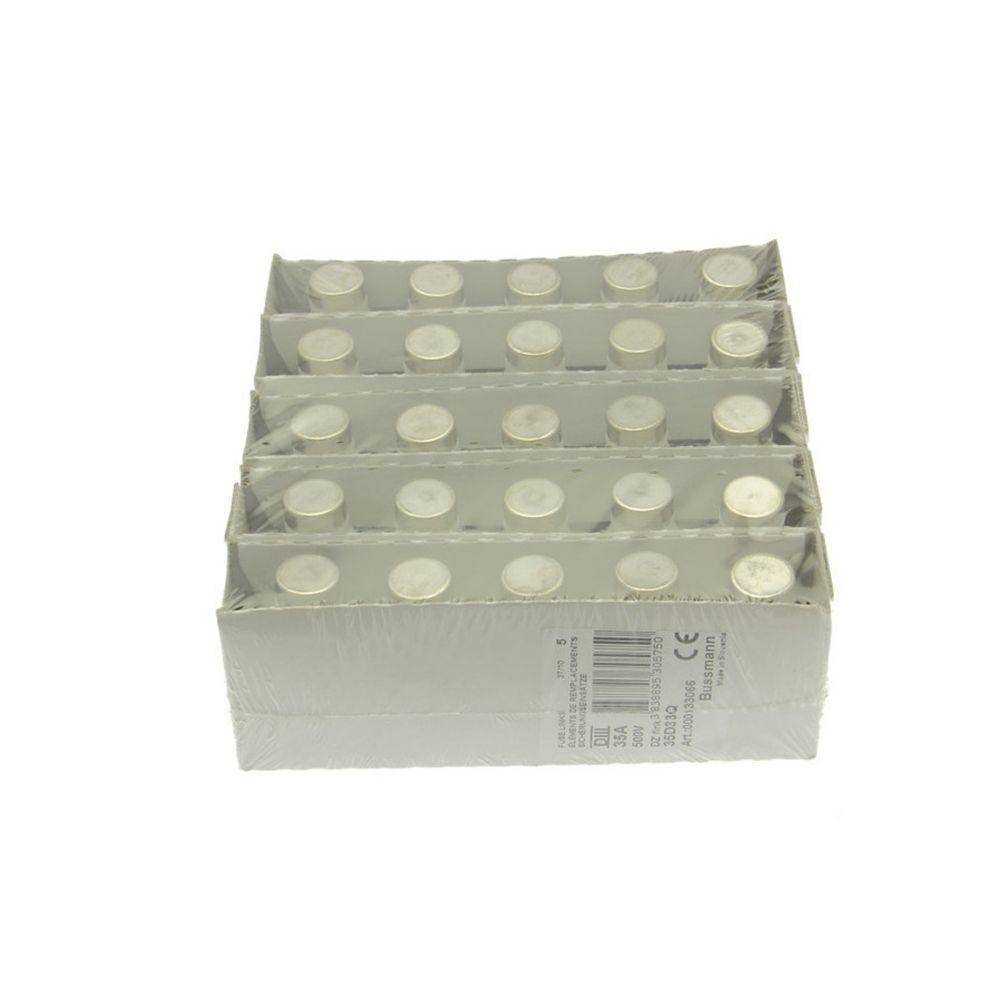

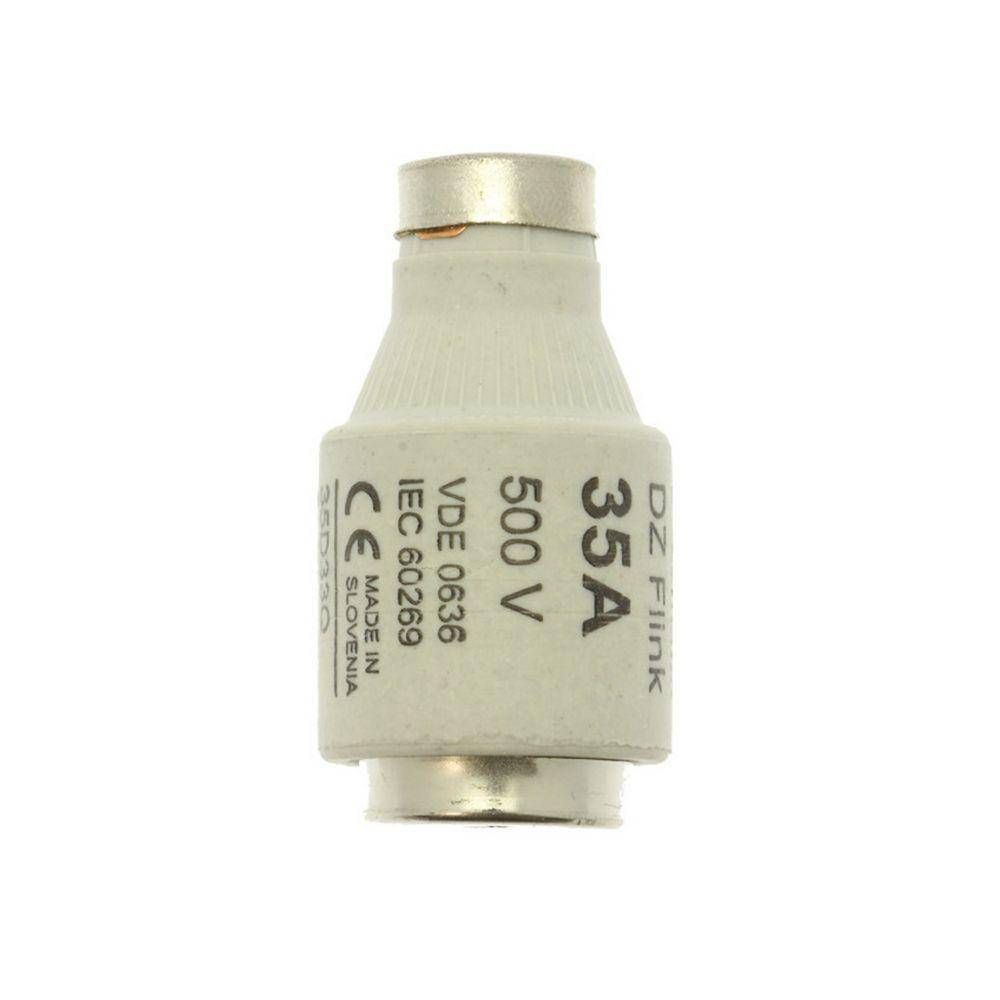

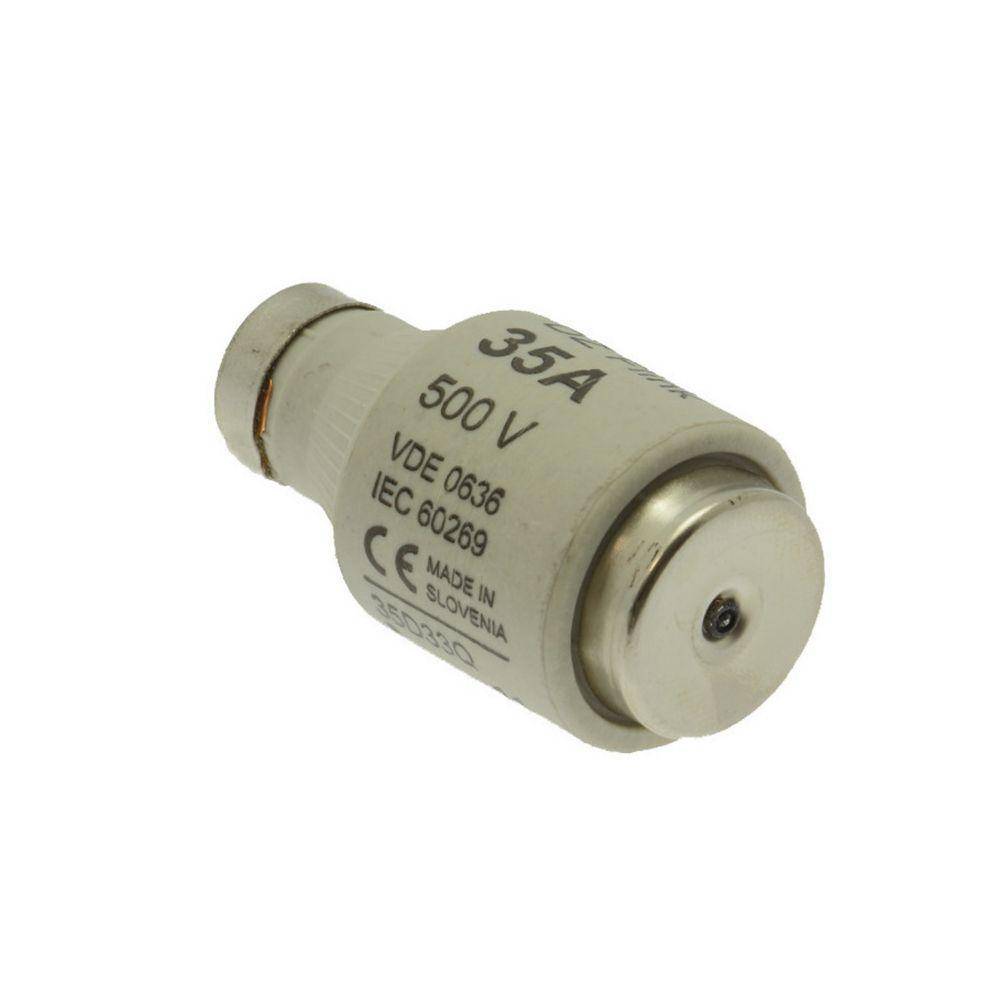

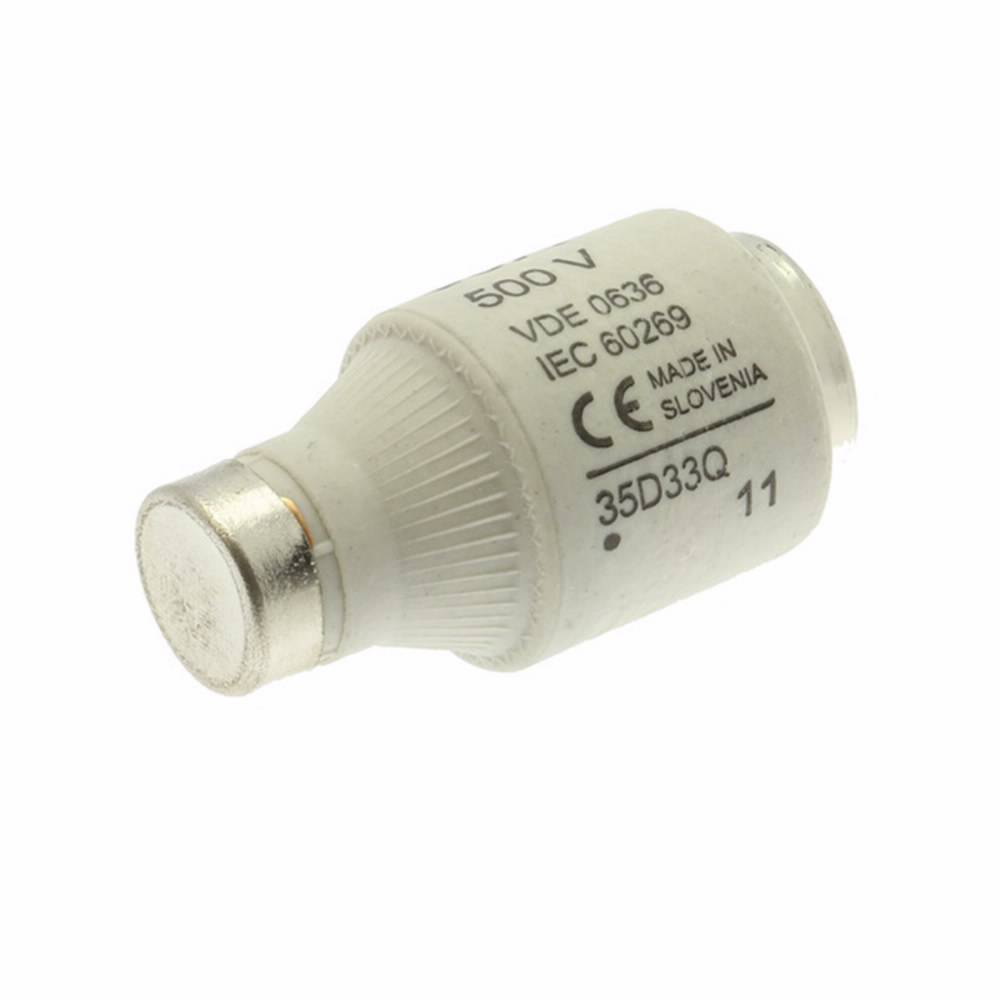

Edison 35D33Q Class gG/gL Fast Acting Low Voltage Non-Indicating Diazed Fuse Link, 500 VAC, 35 A, For Use With E33/DIII Size Screw Cap/Fuse, Ceramic

Short Description

Eaton's Bussmann series low voltage D and D0 bottle fuses are specifically designed for the protection of general industrial applications such as power distribution and cable protection. Both D and D0 fuse types are available in three operating characteristics: time delay, fast acting and ultra rapid versions that can fit into screw cap fuse carriers for mounting on 1 or 3 pole DIN-Rail or panel mount

Edison Diazed Fuse Link, Class gG/gL Fast Acting Low Voltage Non-Indicating, Series: D33, 500 VAC, 35 A, Rated Breaking Capacity: 100 kA, Holder Mounting, For Use With: E33/DIII Size Screw Cap/Fuse, Ceramic, Black, 27.5 mm Dia x 50 mm L mm Dimensions
MFG #: 35D33Q

EECO #: BU35D33Q

Brand: Edison
UPC #: 051712834155
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121606
Material
Ceramic
Application
General Industrial Applications
Mounting Type
Holder
Voltage Rating
500
Type
Class gG/gL Fast Acting Low Voltage Non-Indicating
Series
D33
Dimensions
27.5 mm Dia x 50 mm L
Amperage Rating
35
Suitable For Use With
E33/DIII Size Screw Cap/Fuse
Features
  • Characteristics to suit the protection needs of inductive and resistive loads
  • Fast trouble shooting with easily visible fuse operated pin indicator
